Parts for 2.5 L S3000 2-Stroke EFI Mercury Outboard Motor Crankshaft Pistons, & Connecting Rods

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > 2.5 L S3000 > 0D181027 & Up - USA > Crankshaft Pistons, & Connecting Rods

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

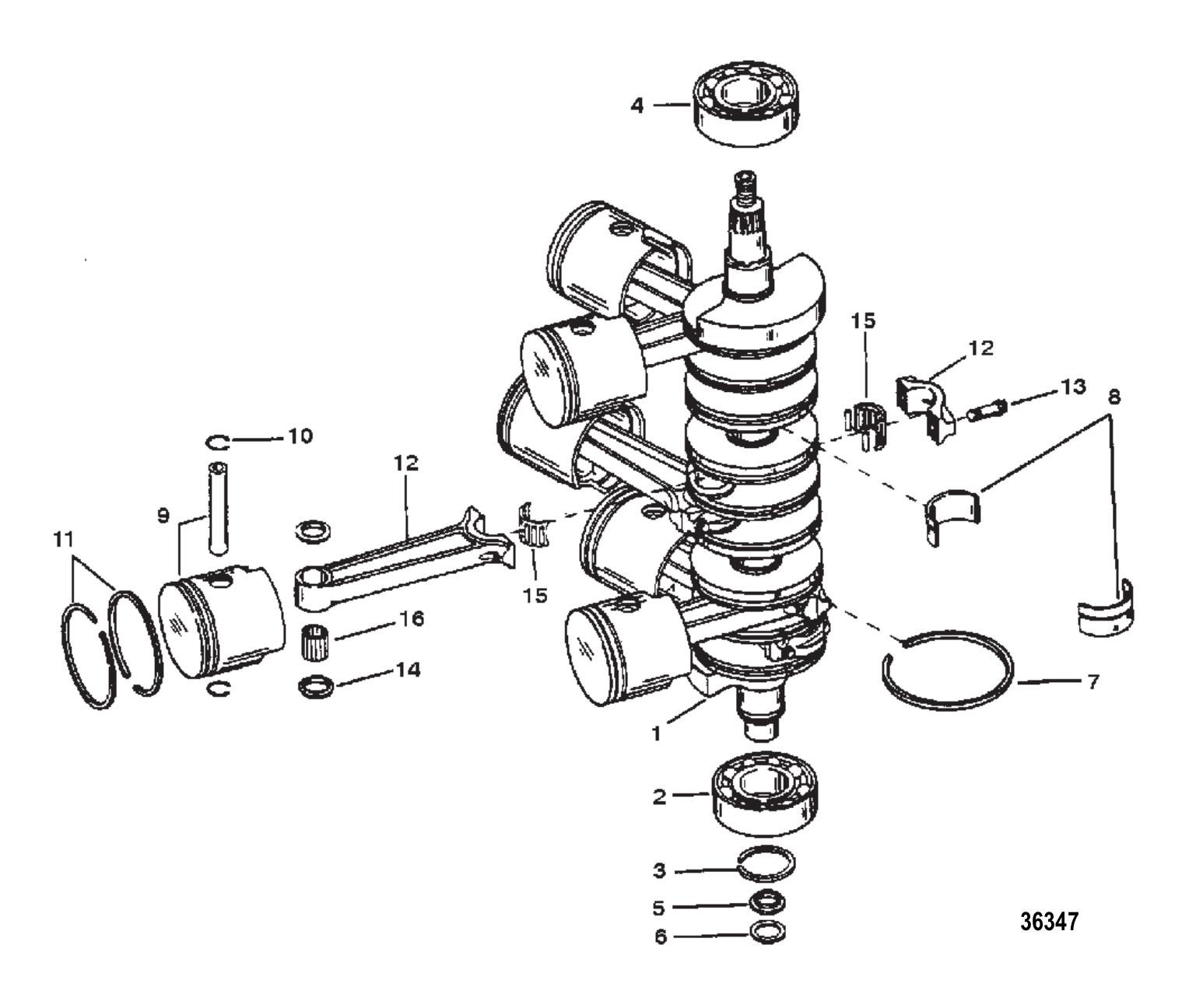

Crankshaft Pistons, & Connecting Rods

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	814658A6	GASKET SET (1 required per assembly)
		27-814658A 6 - Gasket Set [ More info ] Unavailable
#-	848039A68	P/H ASY-S3/CHAMP (1 required per assembly) — Replaces: 848039A44, 848039A56
		61-848039A68 - P/H ASY-S3/CHAMP [ More info ] Unavailable
		61-848039A84 - Pwd Assembly 2.5 Race [ More info ] Unavailable
#1	848330T4	CRANKSHAFT (1 required per assembly)
		455-848330T 4 - CrankShaft [ More info ] Unavailable
#2	67923T	BEARING BALL (LOWER) (1 required per assembly) — Replaces: 67923
		30-67923T - Ball Bearing [ More info ] $69.49 Available to Order: Shipping delay up to 10 days.
#3	67446	RING (1 required per assembly)
		53-67446 - Ring - Retaining [ More info ] $3.69 4 In Stock.
#4	849819	BEARING BALL (UPPER) (1 required per assembly)
		30-849819 - Ball Bearing [ More info ] $101.03 Available to Order: Shipping delay up to 10 days.
#5	54196A6	CARRIER ASSY (1 required per assembly)
		54196A 6 - Carrier Assembly [ More info ] $22.53 1 In Stock.
#6	65800	PACKING (1 required per assembly)
		65800 - Packing [ More info ] $4.59 10+ In Stock.
#7	8M0072093	RING (7 required per assembly) — Replaces: 673772, 673773
		398M0072093 - Ring [ More info ] $54.66 Available to Order: Shipping delay up to 10 days.
#8	16756T8	BEARING ASSY (2 required per assembly) — Replaces: 16756A8
		31-16756T 8 - Roller Bearing [ More info ] $97.44 Available to Order: Shipping delay up to 10 days.
#9	827352A13	PISTON ASSEMBLY (STARBOARD) (3 required per assembly)
		2717-827352A13 - Piston - Starboard,NLA [ More info ] Unavailable
#9	827353A13	PISTON ASSEMBLY (PORT) (3 required per assembly)
		2717-827353A13 - Piston-PORT,NLA [ More info ] Unavailable
#10	857196	LOCK RING (RED) (12 required per assembly) — Replaces: 52035
		53-857196 - Lock Ring - Priced Individually [ More info ] $3.39 $2.72 10+ In Stock.
#11	840663A12	RING SET PISTON (12 PCS PER A12 SET) (1 required per assembly) — Replaces: 848201A12
		39-840663A12 - Rings [ More info ] $426.93 Available to Order: Shipping delay up to 10 days.
#12	8M0084786	CONN ROD ASSY (6 required per assembly) — Replaces: 818141A9, 847522A9
		6258M0084786 - Connecting Rod Assembly [ More info ] Unavailable
		625-8M0192253 - CONN ROD ASSY [ More info ] Unavailable
#13	848475	SCREW (12 required per assembly)
		10-848475 - Screw [ More info ] $41.76 10+ In Stock.
#14	8M0012298	THRUST WASHER (12 required per assembly) — Replaces: 812876
		12-8M0012298 - Thrust Washer [ More info ] $5.29 6 In Stock.
#15	8M0045428	BEARING KIT (6 required per assembly) — Replaces: 821146A1, 17514A1
		31-8M0045428 - 31-8M0045428 - BEARING KIT [ More info ] Unavailable Replaced by -8M0234886
		8M0234886 CAGE BEARING [ More info ] $70.49 $70.25 Available to Order: Shipping delay up to 10 days.
#16	8M0204691	BRG-NEEDLE @200 (174 required per assembly) — Replaces: 822553
		298M0204691 - Bearing needle [ More info ] $0.60 10+ In Stock.
