Parts for 50 HP Carb 4 Cyl 4-Stroke Mercury Outboard Motor Adaptor Plate

Revise Search: Outboard > 4-Stroke Mercury Outboard > 50 HP Carb 4 Cyl > 0P094500 - 0P206999 - Belgium > Adaptor Plate

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

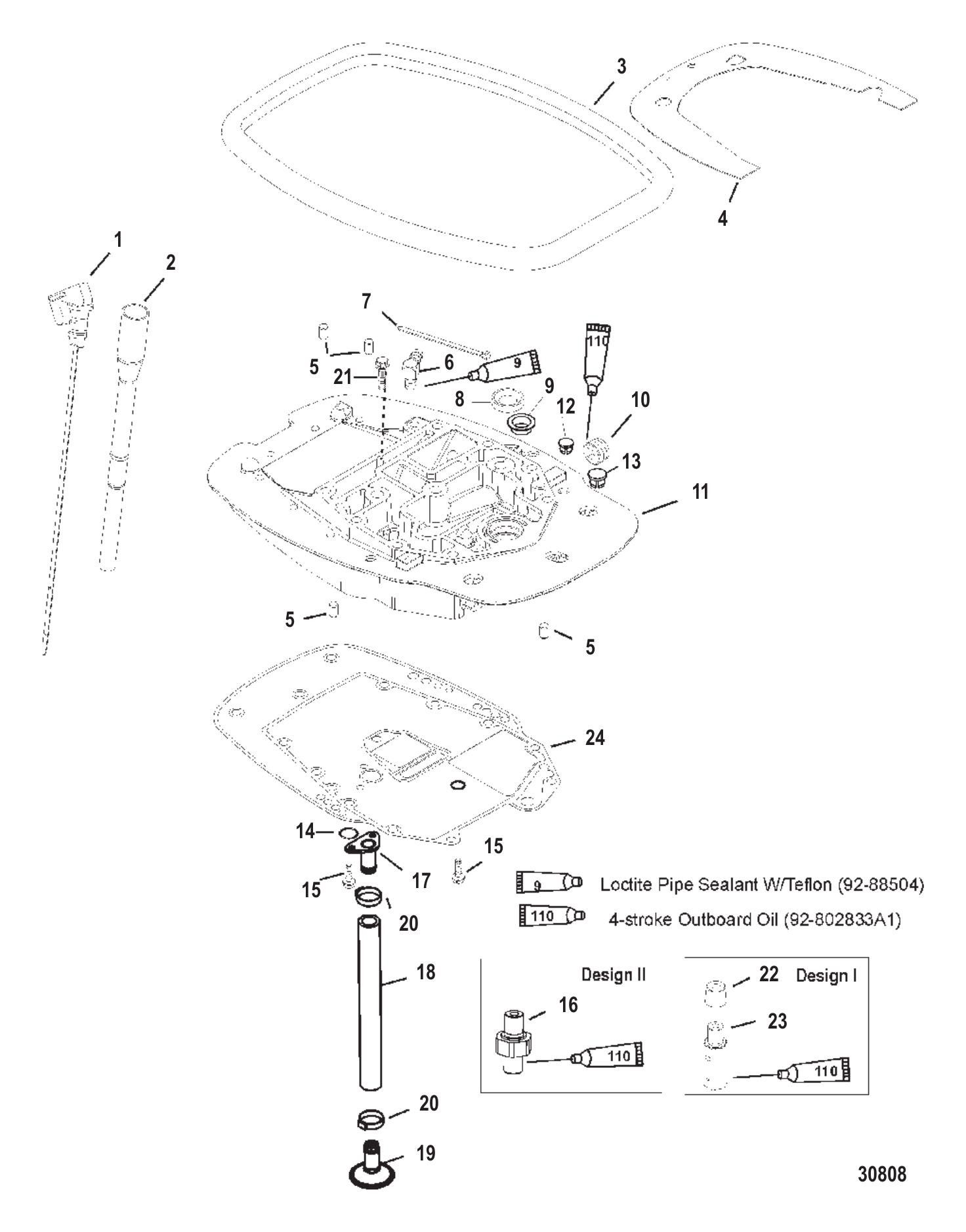

Adaptor Plate

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	859352A01	GASKET SET (1 required per assembly)
		27-859352A01 - Gasket Set [ More info ] Unavailable
#1	8M0162935	DIPSTICK (1 required per assembly) — Replaces: 825990
		8M0162935 - DIPSTICK [ More info ] $32.99 Available to Order: Shipping delay up to 10 days.
#2	825989003	TUBE-DIPSTICK (1 required per assembly) — Replaces: 8259892
		825989003 - Dipstick Tube [ More info ] Unavailable
#3	8560552	SEAL (1 required per assembly)
		856055 2 - Seal [ More info ] $64.68 1 In Stock.
#4	8289151	SHIELD-HEAT (1 required per assembly)
		828915 1 - Heat Shield [ More info ] $22.39 Available to Order: Shipping delay up to 10 days.
#5	23784	PIN-DOWEL (4 required per assembly)
		17-23784 - Pin, Dowel [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#6	629101	ELBOW (1 required per assembly)
		22-62910 1 - Elbow [ More info ] $13.39 Available to Order: Shipping delay up to 10 days.
#7	816311T	TIE STRAP @100 (2 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#8	66301	SEAL @2 (1 required per assembly)
		26-66301 - Seal - Priced Individually [ More info ] $20.49 Available to Order: Shipping delay up to 10 days.
#9	859594	BUSHING (1 required per assembly)
		23-859594 - Bushing [ More info ] $9.39 Available to Order: Shipping delay up to 10 days.
#10	384073	PLUG-PIPE @5 (1 required per assembly)
		0384073 - Ring Set, .030 (384073) [ More info ] Unavailable
#11	825228A17	ADAPTOR PLATE KIT (1 required per assembly) — Replaces: 825228T9
		825228A17 - Adaptor Plate Kit [ More info ] $821.43 Available to Order: Shipping delay up to 10 days.
#12	822464	PLUG (1 required per assembly)
		19-822464 - Plug [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#13	48323	PLUG (1 required per assembly)
		19-48323 - Plug [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#14	845746	O RING (1 required per assembly)
		25-845746 - O-ring, Oil Pick-up Plate [ More info ] $8.69 Available to Order: Shipping delay up to 10 days.
#15	8M0204741	SCREW @4 (3 required per assembly) — Replaces: 40011128, 8M4503518
		108M0204741 - SCREW Note: Priced Individually [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#16	8M0203751	ADAPTOR ASSY (DESIGN II) (1 required per assembly) — Replaces: 881872A1
		8M0203751 - 8M0203751 - ADAPTOR ASSY [ More info ] Unavailable Replaced by -8M0210772
		8M0210772 - ADAPTOR ASSY [ More info ] Unavailable
#17	893765	PLATE (1 required per assembly) — Replaces: 854789
		893765 - Plate [ More info ] $14.49 Available to Order: Shipping delay up to 10 days.
#18	854793	HOSE (1 required per assembly)
		32-854793 - Hose [ More info ] $26.09 Available to Order: Shipping delay up to 10 days.
#19	893700	BAFFLE (1 required per assembly) — Replaces: 854791, 8547911
		893700 - Baffle [ More info ] $27.19 Available to Order: Shipping delay up to 10 days.
#20	855228	CLAMP @5 (2 required per assembly)
		54-855228 - Clamp [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#21	4007455	SCREW (1 required per assembly) — Replaces: 4007450
		10-40074 55 - Screw [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#22	856592	DEFLECTOR (DESIGN I) (1 required per assembly)
		856592 - Deflector [ More info ] Unavailable
#23	8M0203751	ADAPTOR ASSY (DESIGN I) (1 required per assembly) — Replaces: 825295A1, 881872A1
#24	8252517	GASKET (1 required per assembly) — Replaces: 8252513, 8252516
		27-825251 7 - Gasket [ More info ] Unavailable
		27-892320001 - Adaptor Plate Gasket [ More info ] Unavailable
		27-8M0163130 - 27-8M0163130 - GASKET [ More info ] Unavailable Replaced by -8M0213113
		278M0213113 - Gasket [ More info ] $131.99 Available to Order: Shipping delay up to 10 days.
