Parts for 50 HP Carb 4-Stroke Mercury Outboard Motor Starter Motor (S/N 0G472132 & Below)

Revise Search: Outboard > 4-Stroke Mercury Outboard > 50 HP Carb > 9944807 - 0P016999 - Belgium > Starter Motor (S/N 0G472132 & Below)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

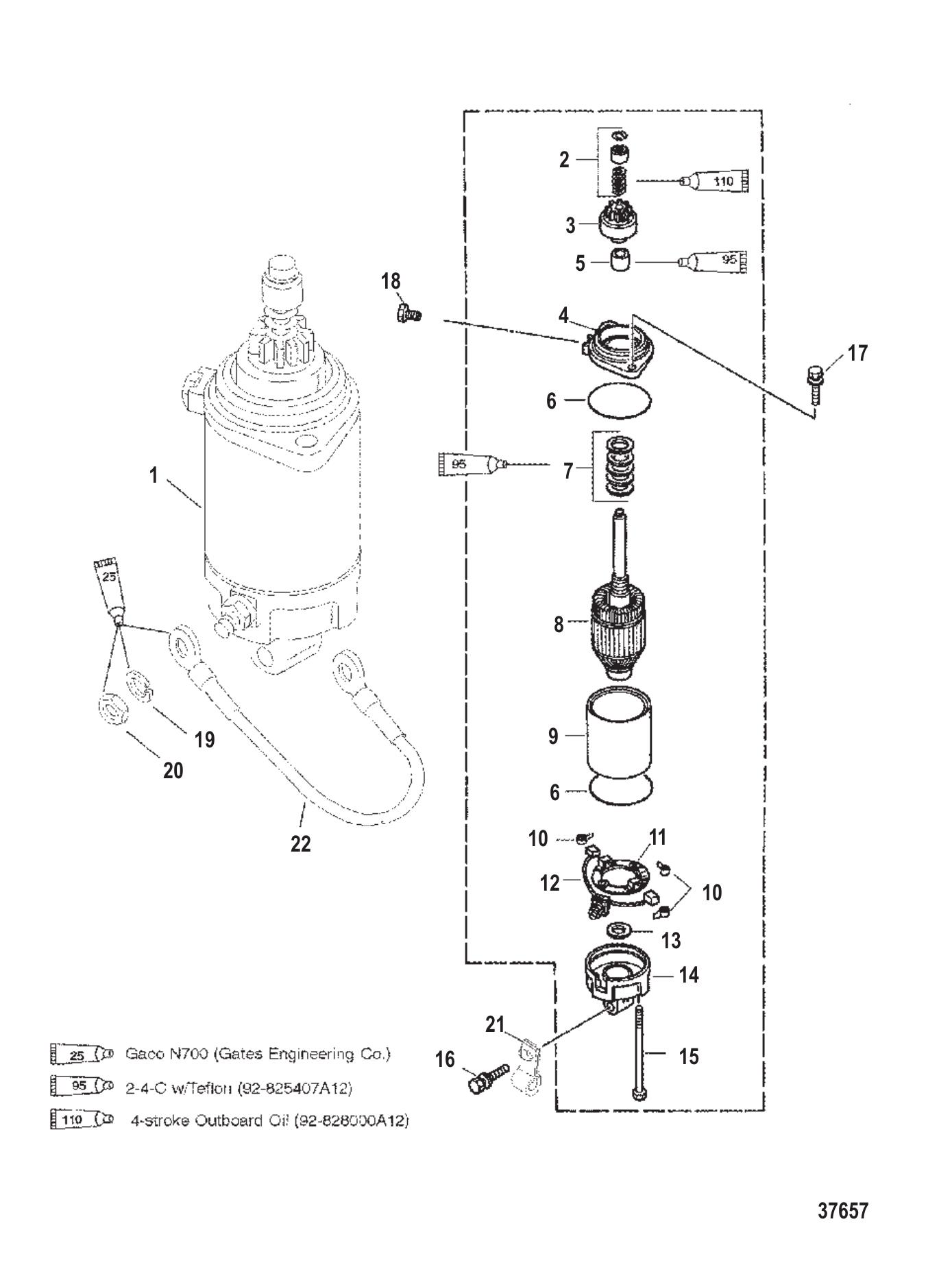

Starter Motor (S/N 0G472132 & Below)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	825095	STARTER ASSY (1 required per assembly)
		50-825095 - Starter,NLA [ More info ] Unavailable
#2	809556	RETAINER (1 required per assembly)
		809556 - Retainer, NLA [ More info ] Unavailable
#3	809555T	GEAR (1 required per assembly) — Replaces: 809555
		809555T - Gear [ More info ] $80.00 $67.76 5 In Stock.
#4	809557	BRACKET FRONT (1 required per assembly)
		809557 - Bracket - Front, NLA [ More info ] Unavailable
#5	809588	METAL (1 required per assembly)
		809588 - Bushing, NLA [ More info ] $7.50 $6.36 4 In Stock.
#6	809550	O-RING (2 required per assembly)
		25-809550 - O Ring,NLA [ More info ] $3.00 $2.54 10+ In Stock.
#7	809548	WASHER KIT (1 required per assembly)
		12-809548 - Washer Kit, NLA [ More info ] $2.00 $1.69 10+ In Stock.
#8	809547	ARMATURE (1 required per assembly)
		809547 - Armature, NLA [ More info ] $120.00 $101.64 5 In Stock.
#9	809549	STATOR (1 required per assembly)
		809549 - Stator, NLA [ More info ] Unavailable
#10	809553	SPRING (3 required per assembly)
		24-809553 - Spring, NLA [ More info ] Unavailable
#11	809552	HOLDER ASSEMBLY BRUSH (1 required per assembly)
		809552 - Brush Holder, NLA [ More info ] Unavailable
#12	809551	BRUSH SET (1 required per assembly)
		809551 - Brush Set, NLA [ More info ] $95.00 $80.46 4 In Stock.
#13	8095481	WASHER (1 required per assembly)
		12-809548 1 - WASHER,NLA [ More info ] Unavailable
#14	809554	BRACKET REAR (1 required per assembly)
		809554 - Bracket - Rear, NLA [ More info ] $36.00 $30.49 10 In Stock.
#15	809558	BOLT (2 required per assembly)
		10-809558 - Bolt, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#16	40011153	SCREW (1 required per assembly)
		10-40011153 - Screw [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#17	8240717	SCREW W/WASHER (2 required per assembly)
		10-824071 7 - Screw [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#18	81893420	SCREW (1 required per assembly)
		10-818934 20 - Screw [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#19	26992	LOCKWASHER @5 (1 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#20	64015	NUT @3 (1 required per assembly)
		11-64015 - Nut (1 /4-20) [ More info ] $2.79 10+ In Stock.
#21	814634	CLAMP (1 required per assembly)
		54-814634 - Clamp [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#22	93388A6	CABLE ASSY (1 required per assembly)
		84-93388A 6 - Cable Assembly [ More info ] $15.09 Available to Order: Shipping delay up to 10 days.
