Parts for 300 (3.0L EFI) Promax 2-Stroke EFI Mercury Outboard Motor Top Cowl (S/N 0G857000 & Up)

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > 300 (3.0L EFI) Promax > 0G610221 - 0T105297 - USA > Top Cowl (S/N 0G857000 & Up)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

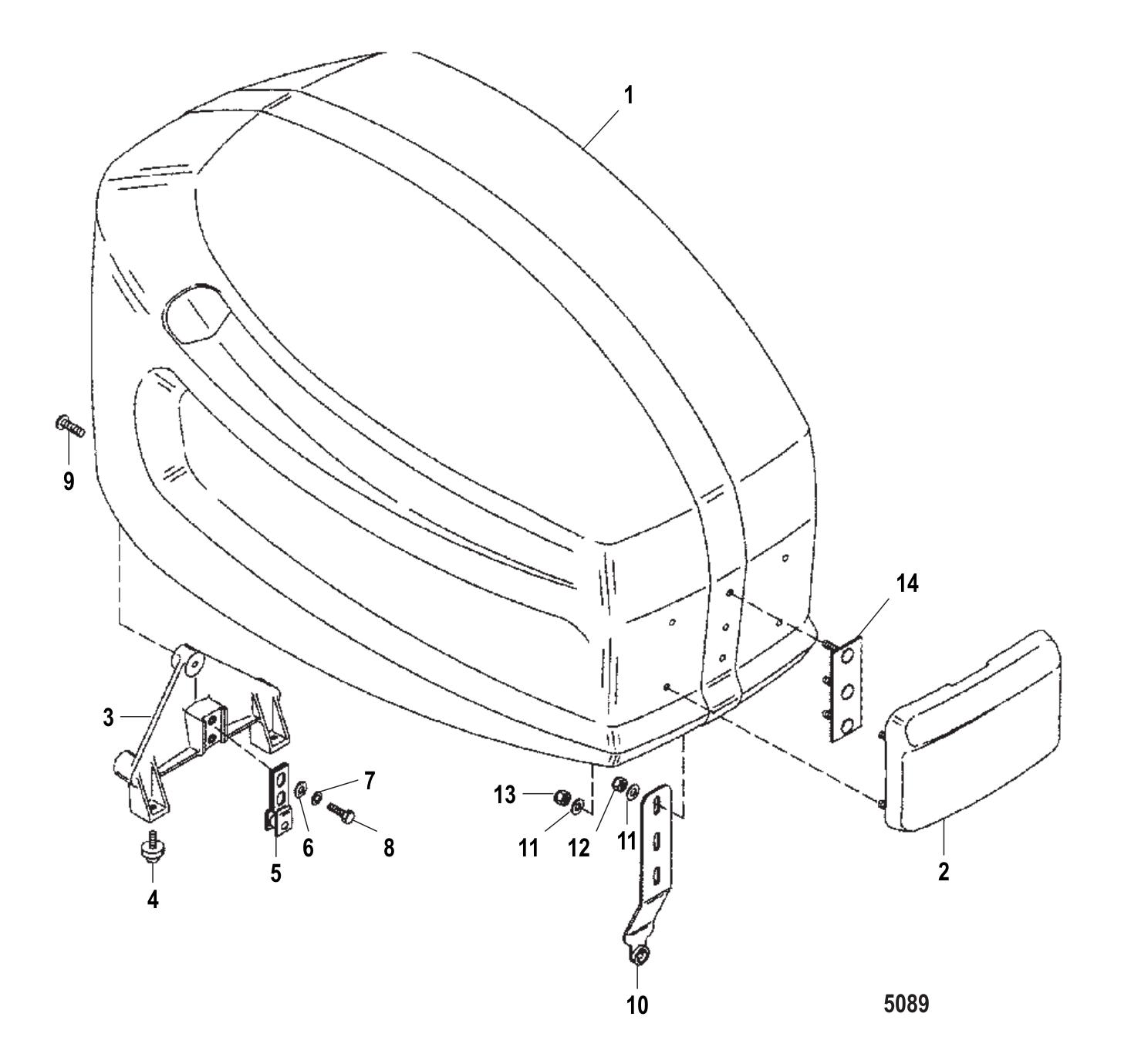

Top Cowl (S/N 0G857000 & Up)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	840323A16	DECAL SET DOES NOT INCLUDE 300 NUMBER DECAL [0G980650] & Up (1 required per assembly) — Replaces: 849049A1
		37-840323A16 - Decal Set [ More info ] Unavailable
#-	849065A1	DECAL SET (Silver) [0G857000] THRU [0G980649] (1 required per assembly)
		37-849065A 1 - Decal Set [ More info ] Unavailable
#-	840323A20	DECAL SET COMPLETE SET - INCLUDES 300 NUMBER DECAL [0G980650] & Up (1 required per assembly)
		37-840323A20 - Decal Set [ More info ] Unavailable
#1	848792T7	COWL-TOP-BLACK (Black) [0G857000] THRU [0G980649] (1 required per assembly) — Replaces: 848792T5
		104-848792T 7 - COWL-TOP-BLACK,NLA [ More info ] Unavailable
#1	848792T6	COWL-TOP-GRAY (Silver) [0G857000] THRU [0G980649] (1 required per assembly)
		104-848792T 6 - COWL-TOP-GRAY [ More info ] Unavailable
#2	848820T1	SHIELD (Black) (1 required per assembly)
		105-848820T 1 - Shield- Black [ More info ] Unavailable
#2	848820T2	SHIELD (Silver) (1 required per assembly)
		105-848820T 2 - SHIELD-SILVER [ More info ] Unavailable
#3	848808	BRACKET LATCH (1 required per assembly)
		848808 - Latch Bracket [ More info ] $275.77 Available to Order: Shipping delay up to 10 days.
#4	849374	BUMPER (2 required per assembly)
		849374 - Bumper [ More info ] $8.70 Available to Order: Shipping delay up to 10 days.
#5	893763	BRACKET ROLLER LATCH (1 required per assembly) — Replaces: 18173
		893763 - Roller Latch Bracket [ More info ] $31.79 Available to Order: Shipping delay up to 10 days.
#6	8M0204690	WASHER (.344 X .688 X .065) STAINLESS STEEL (2 required per assembly) — Replaces: 814806
		12-8M0204690 - WASHER [ More info ] Unavailable
#7	53166	LOCKWASHER (.312) (2 required per assembly)
		13-53166 - LockWasher - Priced Individually [ More info ] $1.80 10+ In Stock.
#8	28782	SCREW (.312-18 X .880) STAINLESS STEEL (2 required per assembly)
		10-28782 - Screw - Priced Individually [ More info ] $2.99 10+ In Stock.
#9	849011	SCREW (.250-20 X .750) (4 required per assembly)
		10-849011 - Screw [ More info ] $6.15 Available to Order: Shipping delay up to 10 days.
#10	849834A1	LATCH (1 required per assembly)
		849834A 1 - Latch Bracket [ More info ] $130.85 Available to Order: Shipping delay up to 10 days.
#11	8M0204649	WASHER @10 (7 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#12	8267098	NUT (.250-20) STAINLESS STEEL (3 required per assembly) — Replaces: 56374
		11-826709 8 - Nut - Priced Individually [ More info ] $6.89 $1.38 10+ In Stock.
#13	8M0207776	NUT (4 required per assembly) — Replaces: 814101
		118M0207776 - NUT [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#14	849179	PLATE (1 required per assembly)
		849179 - Plate [ More info ] $77.06 Available to Order: Shipping delay up to 10 days.
