Parts for 40 HP EFI 4 Cyl 4-Stroke Mercury Outboard Motor Transom Bracket

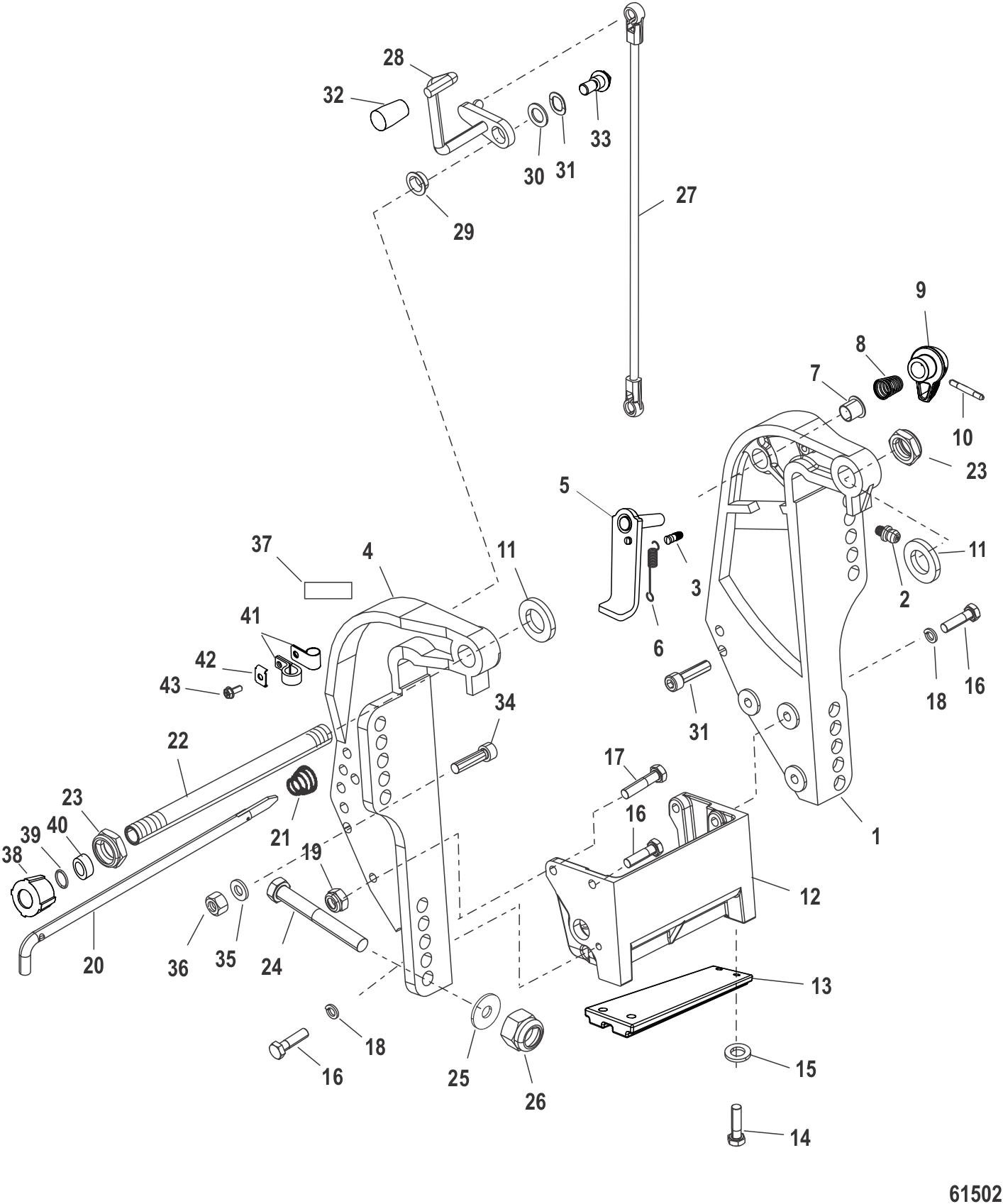

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 822866T04 | TRANSOM BRACKET ASSEMBLY-PORT-PAINT (1 required per assembly) |
  |
|
3418-822866T04 - Transom Bracket A [ More info ]
|
| #2 | 8M0169588 | FITTING (1 required per assembly) — Replaces: 98727 |
  |
|
22-8M0169588 - FITTING [ More info ] Unavailable |
| #3 | 99604 | PIN GROOVE (1 required per assembly) |
  |
|
17-99604 - Pin, Groove [ More info ]
|
| #4 | 822865T05 | TRANSOM BRACKET-STBD-PAINT (1 required per assembly) |
  |
|
3418-822865T05 - Transom Bracket -s [ More info ]
|
| #5 | 893704T01 | TILT LOCK LEVER-PAINT (1 required per assembly) |
  |
|
893704T01 - Tilt Lock Lever [ More info ]
|
| #6 | 99622 | SPRING (1 required per assembly) |
  |
|
24-99622 - Spring, Tilt Lock Tension [ More info ]
|
| #7 | 65830 | NYLINER (1 required per assembly) |
  |
|
23-65830 - NyLiner [ More info ]
|
| #8 | 812708 | SPRING (1 required per assembly) |
  |
|
24-812708 - Spring [ More info ]
|
| #9 | 8M0007470 | KNOB (1 required per assembly) |
  |
|
8M0007470 - Knob [ More info ]
|
| #10 | 8M0021914 | PIN (1 required per assembly) |
  |
|
17-8M0021914 - Pin , (.125 X 30 Mm) [ More info ]
|
| #11 | 19619 | WASHER (2 required per assembly) |
  |
|
12-19619 - Washer [ More info ]
|
| #12 | 18486A08 | ANCHOR BRACKET KIT-PAINT (1 required per assembly) |
  |
|
18486A08 - Anchor Bracket Ki [ More info ]
|
| #13 | 818298Q1 | ANODE KIT(ALUM) (1 required per assembly) |
  |
|
97-818298Q 1 - Anode Kit - Outboard Transom Aluminum [ More info ]
|
  |
|
18-6249A - Anode, Aluminum, 18-6249A [ More info ]
|
  |
|
18-6249 - Zinc Anode, 818298A1 [ More info ]
|
  |
|
97-818298T 1 - Anode - Outboard Transom Aluminum [ More info ]
|
| #14 | 8M0204707 | SCREW @5 (2 required per assembly) — Replaces: 4000330 |
  |
|
108M0204707 - SCREW Note: Priced Individually [ More info ]
|
| #15 | 8M0204649 | WASHER @10 (2 required per assembly) — Replaces: 29245 |
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #16 | 85594030 | SCREW Included with Anchor Bracket Kit (5 required per assembly) |
  |
|
10-855940 30 - Screw [ More info ]
|
| #17 | 8M0000586 | SCREW @10 Included with Anchor Bracket Kit (1 required per assembly) |
  |
|
10-8M0000586 - Screw - Priced Individually [ More info ]
|
| #18 | 8M0109650 | WASHER Included with Anchor Bracket Kit (4 required per assembly) |
  |
|
128M0109650 - Washer [ More info ]
|
| #19 | 401388 | NUT @5 (2 required per assembly) |
  |
|
11-40138 8 - Nut - Priced Individually [ More info ]
|
| #20 | 8M0026068 | PIN ASY-TILT Non Power Trim (1 required per assembly) |
  |
|
17-8M0026068 - Pin Assembly - Tilt [ More info ]
|
| #21 | 821461 | SPRING Non Power Trim (1 required per assembly) |
  |
|
24-821461 - Spring, Tilt Lock Pin (Manual Tilt Models) [ More info ]
|
| #22 | 8M0041938 | TILT TUBE EDP (1 required per assembly) |
  |
|
8M0041938 - Tilt Tube [ More info ]
|
| #23 | 858869 | NUT @5 (2 required per assembly) |
  |
|
11-858869 - Nut, (.875-14) [ More info ]
|
| #24 | 814259 | SCREW (4 required per assembly) |
  |
|
10-814259 - Screw [ More info ]
|
| #25 | 8M0109675 | WASHER (4 required per assembly) |
  |
|
128M0109675 - Washer [ More info ]
|
| #26 | 82671117 | NUT (4 required per assembly) |
  |
|
11-826711 17 - Nut, (.500-20) [ More info ]
|
| #27 | 8M0084737 | LINK Non Power Trim (1 required per assembly) — Replaces: 1938525 |
  |
|
8M0084737 - LINK [ More info ]
|
| #28 | 19615A05 | TILT LEVER ASSY Non Power Trim (1 required per assembly) |
  |
|
19615A05 - Tilt Lever Assembly [ More info ]
|
| #29 | 812707 | BUSHING Non Power Trim (1 required per assembly) |
  |
|
23-812707 - Bushing [ More info ]
|
| #30 | 8M0042643 | WASHER Non Power Trim (1 required per assembly) |
  |
|
12-8M0042643 - Washer [ More info ]
|
| #31 | 99611 | WASHER-WAVE Non Power Trim (1 required per assembly) |
  |
|
13-99611 - Washer, NLA [ More info ]
|
| #32 | 8M0007469 | KNOB-TILT Non Power Trim (1 required per assembly) |
  |
|
8M0007469 - Knob - Tilt [ More info ]
|
| #33 | 19611 | BOLT Non Power Trim (1 required per assembly) |
  |
|
|
| #34 | 4009040 | SCREW (2 required per assembly) |
  |
|
10-40090 40 - Screw [ More info ]
|
| #35 | 4002319 | WASHER @3 (2 required per assembly) |
  |
|
12-40023 19 - Washer (M10) [ More info ]
|
| #36 | 40140 | NUT @2 (2 required per assembly) |
  |
|
11-40140 - Nut, (M10) [ More info ]
|
| #37 | 830253 | DECAL-TILT/LOCK Non Power Trim (1 required per assembly) |
  |
|
37-830253 - Decal - Tilt/Lock [ More info ]
|
| #38 | 19624A1 | SEAL KIT Non Power Trim (1 required per assembly) |
  |
|
19624A 1 - Seal Kit [ More info ]
|
| #39 | 26919 | LINE FUEL Non Handle (1 required per assembly) |
  |
|
32-26919 - Fuel Line, NLA [ More info ] Unavailable |
| #40 | 78861 | SPACER Non Handle (1 required per assembly) |
  |
|
23-78861 - Spacer [ More info ]
|
| #41 | 22740 | CLIP Power Trim (2 required per assembly) |
  |
|
|
| #42 | 8M0084613 | WASHER Power Trim (1 required per assembly) |
  |
|
8M0084613 - Washer [ More info ]
|
| #43 | 878609 | SCREW Power Trim (1 required per assembly) |
  |
|
10-878609 - Screw [ More info ]
|
