Parts for 40 HP EFI 4 Cyl 4-Stroke Mercury Outboard Motor Maintenance Kits
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0090558 | SERV KIT-100 HRS (1 required per assembly) |
  |

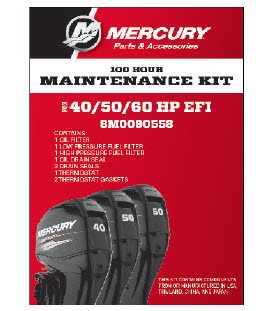

8M0090558 - W40/50/60 EFI 4-STK 100 HR Kit [ More info ] Unavailable |
|
  |
|
8M0232733 - SERV KIT 100 HRS [ More info ] Unavailable |
| #- | 8M0162829 | FILTER OIL (1 required per assembly) |
  |
|
35-8M0162829 - Oil Filter [ More info ]
|
| #- | 879884T | FILTER ASSEMBLY FUEL (1 required per assembly) |
  |
|
35-879884T - Fuel Filter [ More info ]
|
| #- | 8M0153652 | FUEL FILTER HIGH PRESSURE (1 required per assembly) |
  |
|
358M0153652 - Fuel Filter - Priced Individually [ More info ]
|
| #- | 8M0007119 | SEAL DRAIN PLUG (1 required per assembly) |
  |
26-8M0007119 - Seal [ More info ] Unavailable |
|
  |
|
12-8M0188221 - Seal [ More info ]
|
| #- | 8M0204693 | SEAL @6 (3 required per assembly) — Replaces: 830749 |
  |
|
26-8M0204693 - Drain Screw Washer, Priced Individually [ More info ]
|
  |
|
10-10100-1 - Drain Screw Washer 830749 [ More info ]
|
| #- | 8M0168892 | THERMOSTAT (1 required per assembly) — Replaces: 8M0117413 |
  |
8M0168892 - Thermostat 40-60HP OB [ More info ] Unavailable |
|
  |
|
8M0223832 - THERMOSTAT [ More info ]
|
| #- | 887978 | GASKET (1 required per assembly) |
  |
|
27-887978 - Thermostat Gasket [ More info ]
|
| #- | 8M0177107 | GASKET (1 required per assembly) — Replaces: 824853 |
  |
|
27-8M0177107 - Thermostat Gasket [ More info ]
|
| #- | 8M0090559 | SERV KIT-300 HRS (1 required per assembly) |
  |
|
8M0090559 - W40/50/60 4-STK 300 HR SVC Kit [ More info ] Unavailable |
| #- | 883323001 | SPARK PLUG (4 required per assembly) |
  |
|
33-883323001 - Spark Plug - RA8HC - Priced Individually [ More info ] Unavailable |
  |
|
RA8HC - Champion Spark Plug ( #810) [ More info ]
|
| #- | 8M0100527 | REPAIR KIT WATER PUMP (1 required per assembly) |
  |
|
47-8M0100527 - Repair Kit - Impeller [ More info ]
|
  |
|
18-3265 - Water Pump Kit 47-43026Q06 [ More info ]
|
  |
|
47-8M0100526 - Impeller Repair Kit [ More info ]
|
| #- | 818298T1 | ANODE KIT (1 required per assembly) |
  |
|
97-818298T 1 - Anode - Outboard Transom Aluminum [ More info ]
|
  |
|
18-6249A - Anode, Aluminum, 18-6249A [ More info ]
|
  |
|
18-6249 - Zinc Anode, 818298A1 [ More info ]
|
  |
|
97-818298Q 1 - Anode Kit - Outboard Transom Aluminum [ More info ]
|
  |
|
35-822626T 7 - Oil Filter [ More info ]
|
| #- | 826134T | ANODE (2 required per assembly) |
  |
|
97-826134T - Anode - Outboard Side Pocket - Priced Individually [ More info ]
|
  |
|
18-6068 - Anode, Zinc, 826134 [ More info ]
|
  |
|
97-826134Q - Anode, Aluminum, Outboard Side Pocket, Priced Individually [ More info ]
|
| #- | 8M0113483 | SERV KIT-300 HRS (1 required per assembly) |
  |
|
8M0113483 - W SERV Kit-300 HRS [ More info ] Unavailable |
| #- | 19453T | IMPELLER (1 required per assembly) |
  |
|
47-19453T - Water Pump Impeller [ More info ]
|
  |
|
18-8900 - Impeller, 47-19453T [ More info ]
|
| #- | 8M0204720 | WASHER @6 (2 required per assembly) — Replaces: 8M0005777 |
  |
|
12-8M0204720 - Washer, Priced Individually [ More info ]
|
| #- | 8M0032831 | KEY IMPELLER (1 required per assembly) |
  |
|
28-8M0032831 - Key [ More info ]
|
| #- | 822189 | GASKET UPPER WATER PUMP (1 required per assembly) |
  |
|
27-822189 - Upper Water Pump Gasket [ More info ]
|
  |
|
18-0345 - Gasket [ More info ]
|
| #- | 19700A2 | FACE PLATE (1 required per assembly) |
  |
|
19700A 2 - Face Plate Kit [ More info ]
|
| #- | 8M4502052 | GASKET LOWER (1 required per assembly) |
  |
27-8M4502052 - Water Pump Gasket (Lower) Outboard [ More info ] Unavailable |
|
  |
|
18-0622 - Gasket, 27-19701 [ More info ]
|
  |
|
278M0224241 - Gasket [ More info ]
|
