Parts for 40 HP EFI 4 Cyl 4-Stroke Mercury Outboard Motor Gear Housing Driveshaft - 2.33:1 Gear Ratio

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP EFI 4 Cyl > 1C453840 & Up - USA > Gear Housing Driveshaft - 2.33:1 Gear Ratio

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Gear Housing Driveshaft - 2.33:1 Gear Ratio

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0118187	GC SEAPRO L LONG SeaPro Only (1 required per assembly)
		16008M0118187 - GC SEAPRO L LONG [ More info ] Unavailable
#-	8M0118186	GC 40-60 LG (1 required per assembly)
		16008M0118186 - GC 40-60 LG [ More info ] Unavailable
#-	8M0118188	GC SEAPRO X LONG (1 required per assembly)
		16008M0118188 - GC SEAPRO X LONG [ More info ] Unavailable
#-	816575A2	SEAL KIT (1 required per assembly)
		26-816575A 2 - Seal Kit [ More info ] $10.89 1 In Stock.
		18-2599 - Seal, 26-816575A 2 [ More info ] $7.72 10+ In Stock.
		26-02106 - Seal, 26-816575A2 [ More info ] $7.49 $6.48 8 In Stock.
#-	43035A05	SEAL KIT-G/H (1 required per assembly)
		26-43035A05 - Gear Housing Seal Kit [ More info ] $113.99 Available to Order: Shipping delay up to 10 days.
#-	8M0113801	REPAIR KIT- W/P (1 required per assembly)
		46-8M0113801 - Water Pump Repair Kit [ More info ] $220.49 In Stock
#-	8M0100526	REPAIR KIT - IMP (1 required per assembly)
		47-8M0100526 - Impeller Repair Kit [ More info ] $66.99 7 In Stock.
		18-3265 - Water Pump Kit 47-43026Q06 [ More info ] $60.49 $59.34 10+ In Stock.
		18-3214 - Impeller Repair Kit, Without Housing [ More info ] $42.99 $42.32 10+ In Stock.
		47-8M0100527 - Repair Kit - Impeller [ More info ] $73.50 Available to Order: Shipping delay up to 10 days.
		46-01811 - Water Pump Kit without Housing 47-43026T11, Q06 [ More info ] $46.99 $45.81 10+ In Stock.
#-	803496T2	REPAIR KIT (1 required per assembly)
		31-803496T 2 - Repair Kit [ More info ] $249.49 Available to Order: Shipping delay up to 10 days.
#1	8M0118594	GEAR HOUSING ASSEMBLY BASIC (1 required per assembly)
		16008M0118594 - Gearcase BASIC ASSY - N [ More info ] $1,569.49 Available to Order: Shipping delay up to 10 days.
#2	8M0084244	PIN DOWEL FRONT (1 required per assembly)
		178M0084244 - Pin - Dowel [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#3	43046	TUBE OILER (1 required per assembly)
		43046 - Oiler Tube [ More info ] $28.99 Available to Order: Shipping delay up to 10 days.
#4	8M0058389	SCREW KIT DRAIN Magnetic (3 required per assembly)
		22-8M0058389 - Screw Kit - Priced Individually [ More info ] $11.69 10 In Stock.
		18-23751-9 - Drain Screw , Package of 50 [ More info ] $346.09 In Stock
		18-2375 - Plug, 22-67892A1 [ More info ] $7.16 10+ In Stock.
		10-02683 - Drain Screw [ More info ] $6.39 $6.03 5 In Stock.
#5	8M0204693	SEAL @6 (3 required per assembly) — Replaces: 830749
		26-8M0204693 - Drain Screw Washer, Priced Individually [ More info ] $5.19 10+ In Stock.
		10-10100-1 - Drain Screw Washer 830749 [ More info ] $3.79 $2.91 10+ In Stock.
#6	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) REAR (1 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#7	31640T07	TRIM TAB (1 required per assembly)
		31640T07 - Trim Tab [ More info ] Unavailable
		8M0236553 - Trim Tab [ More info ] $27.56 6 In Stock.
#8	825427	SCREW (.437-14 X 1.250) STAINLESS STEEL (1 required per assembly)
		10-825427 - Screw [ More info ] $6.99 3 In Stock.
#9	451761	WASHER (.453 X .812 X .105) BLACK OXIDE (1 required per assembly)
		12-45176 1 - Washer [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#10	43040T1	CARRIER ASSEMBLY (1 required per assembly)
		43040T 1 - Carrier Assembly [ More info ] $78.99 Available to Order: Shipping delay up to 10 days.
#11	NSS	NOT SOLD SEPARATE NEEDLE BEARING (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#12	826134Q	ANODE (2 required per assembly)
		97-826134Q - Anode, Aluminum, Outboard Side Pocket, Priced Individually [ More info ] $16.49 10 In Stock.
		18-6068 - Anode, Zinc, 826134 [ More info ] $14.31 1 In Stock.
		97-826134T - Anode - Outboard Side Pocket - Priced Individually [ More info ] $18.19 7 In Stock.
#13	401386	NUT (M6) STAINLESS STEEL (1 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#14	4000333	SCREW (M6 X 40) (1 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $4.09 10+ In Stock.
#15	NSS	NOT SOLD SEPARATE PINION GEAR - PART OF FORWARD GEAR KIT (1 required per assembly)
#16	35921	NUT (.625-18) (1 required per assembly)
		11-35921 - Nut, (.625-18) [ More info ] $7.99 10+ In Stock.
		18-3719 - Nut, 11-35921, 314730 [ More info ] $5.10 Available to Order: Shipping delay up to 10 days.
		18-2359 - Nut Kit [ More info ] $5.19 $3.51 Available to Order: Shipping delay up to 10 days.
#17	883047A1	BEARING ASSEMBLY TAPERED ROLLER (1 required per assembly)
		31-883047A 1 - Tapered Roller Bearing [ More info ] $92.99 Available to Order: Shipping delay up to 10 days.
#18	8M0063265	SHIM SET (1 required per assembly)
		158M0063265 - Shim Set [ More info ] $65.99 $63.12 10+ In Stock.
#19	8M0118189	DRIVESHAFT ASSEMBLY LL SeaPro Only (1 required per assembly)
		15008M0118189 - Drive Shaft ASY LL [ More info ] $388.49 Available to Order: Shipping delay up to 10 days.
#19	859105A1	DRIVESHAFT ASSEMBLY (Long) (1 required per assembly)
		45-859105A 1 - Drive Shaft [ More info ] $898.99 Available to Order: Shipping delay up to 10 days.

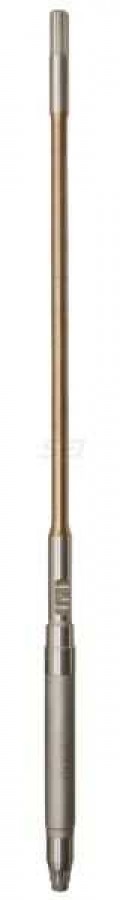

		92-205-04-20G - Drive Shaft replaces 45-859105A 1 [ More info ] $422.00 $422.00 Available to Order
#19	875222A1	DRIVESHAFT ASSEMBLY (X-Long) (1 required per assembly)
		45-875222A 1 - Drive Shaft Assembly -xl [ More info ] $683.99 Available to Order: Shipping delay up to 10 days.

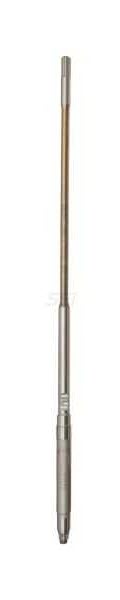

		92-205-04-25G - Drive Shaft replaces 45-875222A 1 [ More info ] $413.12 $413.12 Available to Order
#20	42461A1	SLEEVE/RING KIT (1 required per assembly)
		42461A 1 - Sleeve/Ring Kit [ More info ] $27.31 2 In Stock.
#21	NSS	NOT SOLD SEPARATE RING-SEAL (1 required per assembly)
#22	8M0113262	COVER ASSEMBLY WATER PUMP (1 required per assembly)
		46-8M0113262 - Water Pump Cover Assembly [ More info ] $148.99 In Stock
#23	8M0142616	GASKET FACE PLATE TO GEARCASE (1 required per assembly) — Replaces: 8M0050720, 8M0112903
		27-8M0142616 - Gasket LOWER [ More info ] $9.59 Available to Order: Shipping delay up to 10 days.
#24	430472	GASKET (1 required per assembly)
		27-43047 2 - Gasket [ More info ] Unavailable
		27-8M0214931 - Gasket [ More info ] $13.69 Available to Order: Shipping delay up to 10 days.
#25	43035	SEAL OIL UPPER (1 required per assembly)
		26-43035 - Seal [ More info ] $19.89 In Stock
		18-0583 - Seal, 26-43035 [ More info ] $13.99 $13.80 Available to Order: Shipping delay up to 10 days.
		26-8M0245495 - OIL SEAL [ More info ] Unavailable
#26	43036	SEAL OIL LOWER (1 required per assembly)
		26-43036 - Seal [ More info ] $19.89 In Stock
		18-0522 - Seal, 26-43036 [ More info ] $12.03 Available to Order: Shipping delay up to 10 days.
#27	8172771	GASKET (1 required per assembly)
		27-817277 1 - Gasket -Sold each [ More info ] $5.69 7 In Stock.
		18-2566-9 - Gasket 27-817277 2-Pack [ More info ] $8.67 10+ In Stock.
#28	817275A2	HOUSING KIT UPPER WATER PUMP (1 required per assembly)
		817275A 2 - Water Pump Housing Upper [ More info ] $104.99 In Stock
		18-3572 - Water Pump Housing Kit 817275A2 [ More info ] $89.99 $85.72 4 In Stock.
#29	8M0204709	FACEPLATE-W/P (1 required per assembly) — Replaces: 8172761
		8M0204709 - Water Pump Faceplate, Outboard [ More info ] $14.59 Available to Order: Shipping delay up to 10 days.
#30	82684430	SCREW (M6 X 30) (4 required per assembly)
		10-826844 30 - Screw - Priced Individually [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#31	8M0151044	COUPLING WATER TUBE (1 required per assembly) — Replaces: 8M0109700
		8M0151044 - Coupler [ More info ] $10.39 Available to Order: Shipping delay up to 10 days.
#32	8M0204723	KEY @2 (1 required per assembly) — Replaces: 8M0032833
		288M0204723 - KEY Note: Priced Individually [ More info ] $4.39 2 In Stock.
#33	43026T2	IMPELLER (1 required per assembly)
		47-43026T 2 - Water Pump Impeller [ More info ] $36.49 10 In Stock.
		18-3056 - Impeller 47-43026-2 [ More info ] $26.99 $26.12 10+ In Stock.
		47-43026Q02 - Water Pump Impeller [ More info ] $36.49 Available to Order: Shipping delay up to 10 days.
#34	82684425	SCREW (M6 X 25) (6 required per assembly)
		10-826844 25 - Screw [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#35	8M0142851	VRING FACE SEAL (1 required per assembly) — Replaces: 8M2014338
		268M0142851 - FACE SEAL VRING [ More info ] $0.30 Available to Order: Shipping delay up to 10 days.
#36	8M0118190	SHIFT SHAFT ASSEMBLY LOWER, LL SeaPro Only (1 required per assembly)
		8M0118190 - SHIFT Shaft LL [ More info ] $99.99 Available to Order: Shipping delay up to 10 days.
#36	884563A00	SHIFT SHAFT ASSEMBLY (Long) (1 required per assembly)
		884563A00 - Shift Shaft, Long [ More info ] $93.99 Available to Order: Shipping delay up to 10 days.
#36	884565A00	SHIFT SHAFT ASSEMBLY (X-Long) (1 required per assembly)
		884565A00 - Shift Shaft -XLong [ More info ] $94.99 Available to Order: Shipping delay up to 10 days.
#37	29641	E RING (1 required per assembly)
		53-29641 - E Ring - Priced Individually [ More info ] $1.80 4 In Stock.
#38	43052A4	BUSHING ASSEMBLY (1 required per assembly)
		23-43052A 4 - Bushing Kit [ More info ] $47.01 1 In Stock.
#39	8M0204681	O RING @5 (1 required per assembly) — Replaces: 457101
		25-8M0204681 - O RING Note: Priced Individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#40	8M0204708	SEAL (1 required per assembly) — Replaces: 8164641
		26-8M0204708 - Shift Shaft Oil Seal-O/B [ More info ] $16.99 2 In Stock.
		26-8M0246145 - SHIFT SHAFT OIL SEAL O/B [ More info ] $16.99 10 In Stock.
#41	82684425	SCREW (M6 X 25) (2 required per assembly)
#42	891637	BUSHING (1 required per assembly)
		23-891637 - Bushing [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#NS	NSS	NOT SOLD SEPARATE TOOL, FACE SEAL SETTING (1 required per assembly)
