Parts for 40 HP EFI 4 Cyl 4-Stroke Mercury Outboard Motor Electrical Components (USA-1B226999 / BEL-0P400999 & Below)

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP EFI 4 Cyl > 0T409000 - 1B355222 - USA > Electrical Components (USA-1B226999 / BEL-0P400999 & Below)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

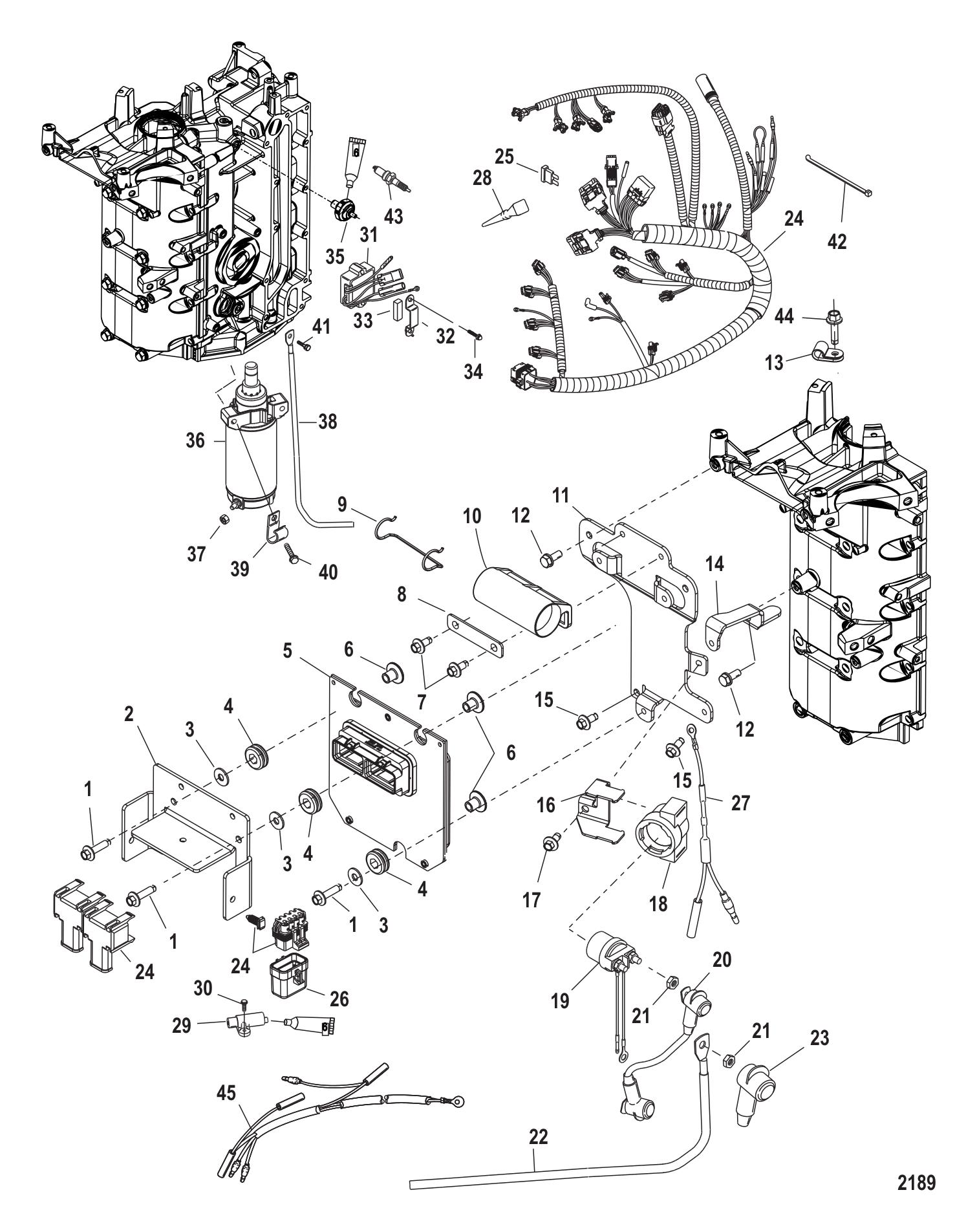

Electrical Components (USA-1B226999 / BEL-0P400999 & Below)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	893678T03	GREEN PH ASY-4CYL(NO CYL HEAD) (1 required per assembly) — Replaces: 878344T02, 878344T03
		61893678T03 - GREEN PH ASY-4CYL(No Cy [ More info ] Unavailable
#1	82129125	SCREW (3 required per assembly)
		10-821291 25 - Screw [ More info ] Unavailable
#2	8812902	PLATE (1 required per assembly)
		881290 2 - Plate [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#3	4002316	WASHER @5 (3 required per assembly)
		12-40023 16 - Washer - Priced Individually [ More info ] $1.17 2 In Stock.
		128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ] $1.00 1 In Stock.
#4	834985	GROMMET @5 (3 required per assembly)
		25-834985 - Grommet [ More info ] Unavailable
		25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ] $3.89 Available to Order: Shipping delay up to 10 days.
#5	898369T18	ECM (50 Canada) (1 required per assembly) — Replaces: 88452112S, 89195212S
		898369T18 - ECM [ More info ] Unavailable
#5	898369T02	ECM (50) [Bel-0P325500] THRU [Bel-0P400999] (1 required per assembly) — Replaces: 89195218T
		898369T02 - ECM Engine Control Modu [ More info ] Unavailable
#5	898369T19	ECM (60-Canada) (1 required per assembly) — Replaces: 88452111S, 89195211S
		898369T19 - ECM [ More info ] Unavailable
#5	898369T03	ECM (60) [Bel-0P325500] THRU [Bel-0P400999] (1 required per assembly) — Replaces: 89195219T
		898369T03 - ECM Engine Control Modu [ More info ] Unavailable
#5	898369T20	ECM (40) [Bel-0P308287] THRU [Bel-0P325499] (1 required per assembly) — Replaces: 88452113S, 89195213S
		898369T20 - ECM [ More info ] Unavailable
#5	898369T01	ECM (40)(All) [Bel-0P325500] THRU [Bel-0P400999] (1 required per assembly) — Replaces: 89195217T
		898369T01 - ECM Engine Control Modu [ More info ] Unavailable
#5	898369T17	ECM (40 Bigfoot) [Bel-0P308287] THRU [Bel-0P325499] (1 required per assembly) — Replaces: 88452110S, 89195210S
		898369T17 - ECM [ More info ] Unavailable
#6	856954	BUSHING (3 required per assembly)
		23-856954 - Bushing [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#7	82129114	SCREW (2 required per assembly)
		10-821291 14 - Screw [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#8	856040	BRACKET (1 required per assembly)
		856040 - Bracket [ More info ] $21.25 Available to Order: Shipping delay up to 10 days.
#9	92753	RETAINER (1 required per assembly)
		92753 - Harness Retainer [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#10	856836001	RETAINER [USA-0T980000/Bel-0P325500] THRU [USA-1B226999/Bel-0P400999] (1 required per assembly) — Replaces: 856836
		856836001 - Retainer [ More info ] Unavailable
#11	8M0009177	PLATE (1 required per assembly) — Replaces: 877802, 893764001
		8M0009177 - Plate [ More info ] $21.99 Available to Order: Shipping delay up to 10 days.
#12	8248324	SCREW @5 (3 required per assembly)
		10-824832 4 - Screw [ More info ] $1.80 5 In Stock.
#13	24836	CLIP @5 (1 required per assembly)
		54-24836 - Clip - Priced Individually [ More info ] $4.19 10+ In Stock.
#14	8M0007734	BRACE (1 required per assembly) — Replaces: 882753
		8M0007734 - Brace [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#15	82129114	SCREW (2 required per assembly)
#16	893768	PLATE (1 required per assembly) — Replaces: 8250741
		893768 - Plate [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#17	82129114	SCREW (1 required per assembly)
#18	8M0010250	BRACKET (1 required per assembly) — Replaces: 95643M
		8M0010250 - Bracket [ More info ] $22.99 Available to Order: Shipping delay up to 10 days.
#19	8M0098898	RELAY ASSY (1 required per assembly) — Replaces: 825096T, 825096T01
		89-8M0098898 - Relay Assembly [ More info ] $45.99 2 In Stock.
#20	93388A16	CABLE (1 required per assembly)
		84-93388A16 - Cable [ More info ] $19.59 Available to Order: Shipping delay up to 10 days.
#21	401386	NUT @5 (2 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#22	88439A9	CABLE ASSY-POS (1 required per assembly)
		84-88439A 9 - Battery Cable, Positive [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#23	880786	BOOT (RED) (1 required per assembly)
		85-880786 - Boot (red) [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#24	877804T3	HARNESS-ENGINE [Bel-0P325499] & Below (1 required per assembly)
		84-877804T 3 - Engine Harness [ More info ] $677.49 Available to Order: Shipping delay up to 10 days.
#24	877804T05	HARNESS-EFI [Bel-0P343605] THRU [Bel-0P400999] (1 required per assembly) — Replaces: 877804T04
		84-877804T05 - Harness - EFI [ More info ] $677.49 Available to Order: Shipping delay up to 10 days.
#25	832969T20	FUSE-20 AMP @5 (20 AMP) [Bel-0P343605] THRU [Bel-0P400999] (3 required per assembly) — Replaces: 83296920
		88-832969T20 - Fuse - Yellow - 20 Amp [ More info ] $7.09 10+ In Stock.
#25	832969T15	FUSE-15 AMP @5 [Bel-0P343604] & Below (1 required per assembly) — Replaces: 83296915
		88-832969T15 - Fuse -Blue-15AMP [ More info ] $4.09 4 In Stock.
#25	832969T05	FUSE-TAN-5 AMP (5 AMP) [Bel-0P343605] THRU [Bel-0P400999] (1 required per assembly) — Replaces: 8329695
		88-832969T05 - Fuse -TAN-5 AMP [ More info ] $6.69 5 In Stock.
#25	832969T25	FUSE-25 AMP @5 (25 AMP) [Bel-0P343605] THRU [Bel-0P400999] (1 required per assembly) — Replaces: 83296925
		88-832969T25 - Fuse -Clear-25 AMP [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#26	858754	COVER FUSE (1 required per assembly)
		858754 - Fuse Cover [ More info ] Unavailable
#27	883834T01	CABLE ASSEMBLY (1 required per assembly) — Replaces: 883834A1
		84-883834T01 - Harness [ More info ] $64.49 1 In Stock.
#28	13541	PLUG (1 required per assembly)
		13541 - Plug [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#29	8M0082988	SENSOR ASSY (1 required per assembly) — Replaces: 8283582, 8M0030022
		8M0082988 - Sensor Assembly [ More info ] $120.49 $115.99 In Stock
#30	40011107	SCREW @5 (2 required per assembly)
		10-40011107 - SCREW [ More info ] $1.80 2 In Stock.
#31	883071T1	REF SOB 05-09 (1 required per assembly)
		883071T 1 - CALL FOR OPTIONS #SB2005-09 [ More info ] Unavailable
		18-5743-1 - Voltage Regulator, Mercury [ More info ] $199.66 $184.76 Available to Order: Shipping delay up to 10 days.
#32	893771	BRACKET (1 required per assembly) — Replaces: 858413
		893771 - Bracket [ More info ] $21.79 Available to Order: Shipping delay up to 10 days.
#33	8308971	PAD-FOAM (1 required per assembly)
		830897 1 - Pad -foam [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#34	8248329	SCREW (2 required per assembly)
		10-824832 9 - Screw [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.
#35	8M0098207	SWITCH-PRESSURE (1 required per assembly) — Replaces: 8280401, 8M0070107
		87-8M0098207 - Pressure Switch [ More info ] $36.27 3 In Stock.
#36	893888T	STARTER MOTOR [USA-0T801000/Bel-0P268000] THRU [USA-1B226999/Bel-0P400999] (1 required per assembly) — Replaces: 884044T, 888161T
		50-893888T - Starter Motor [ More info ] $400.49 Available to Order: Shipping delay up to 10 days.
		18-6435 - Starter, 50-888161T [ More info ] $334.99 $328.59 In Stock
		5360 - Outboard Starter [ More info ] $282.84 3 In Stock.
#37	94330	NUT @2 (1 required per assembly)
		11-94330 - Nut, Brass (1/4-20) [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#38	88439A4	CABLE ASSY-NEG (1 required per assembly)
		84-88439A 4 - Cable Assembly -neg [ More info ] $48.89 2 In Stock.
#39	8M0024808	J CLIP (1 required per assembly) — Replaces: 65292
		54-8M0024808 - J-CLIP [ More info ] Unavailable
#40	40011153	SCREW (3 required per assembly)
		10-40011153 - Screw [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#41	8248326	SCREW (2 required per assembly)
		10-824832 6 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#42	816311T	TIE STRAP @100 (AR required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#43	883323001	SP RA8HC @4 (4 required per assembly) — Replaces: 883323
		33-883323001 - Spark Plug - RA8HC - Priced Individually [ More info ] Unavailable
		RA8HC - Champion Spark Plug ( #810) [ More info ] $4.43 10+ In Stock.
#44	82239312	SCREW (1 required per assembly)
		10-822393 12 - SCREW (M5 x 12) [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#45	852375A6	HARNESS ASSEMBLY EXTENSION (HANDLE) (1 required per assembly)
		84-852375A 6 - Extension Harness Assembly [ More info ] $26.09 Available to Order: Shipping delay up to 10 days.
