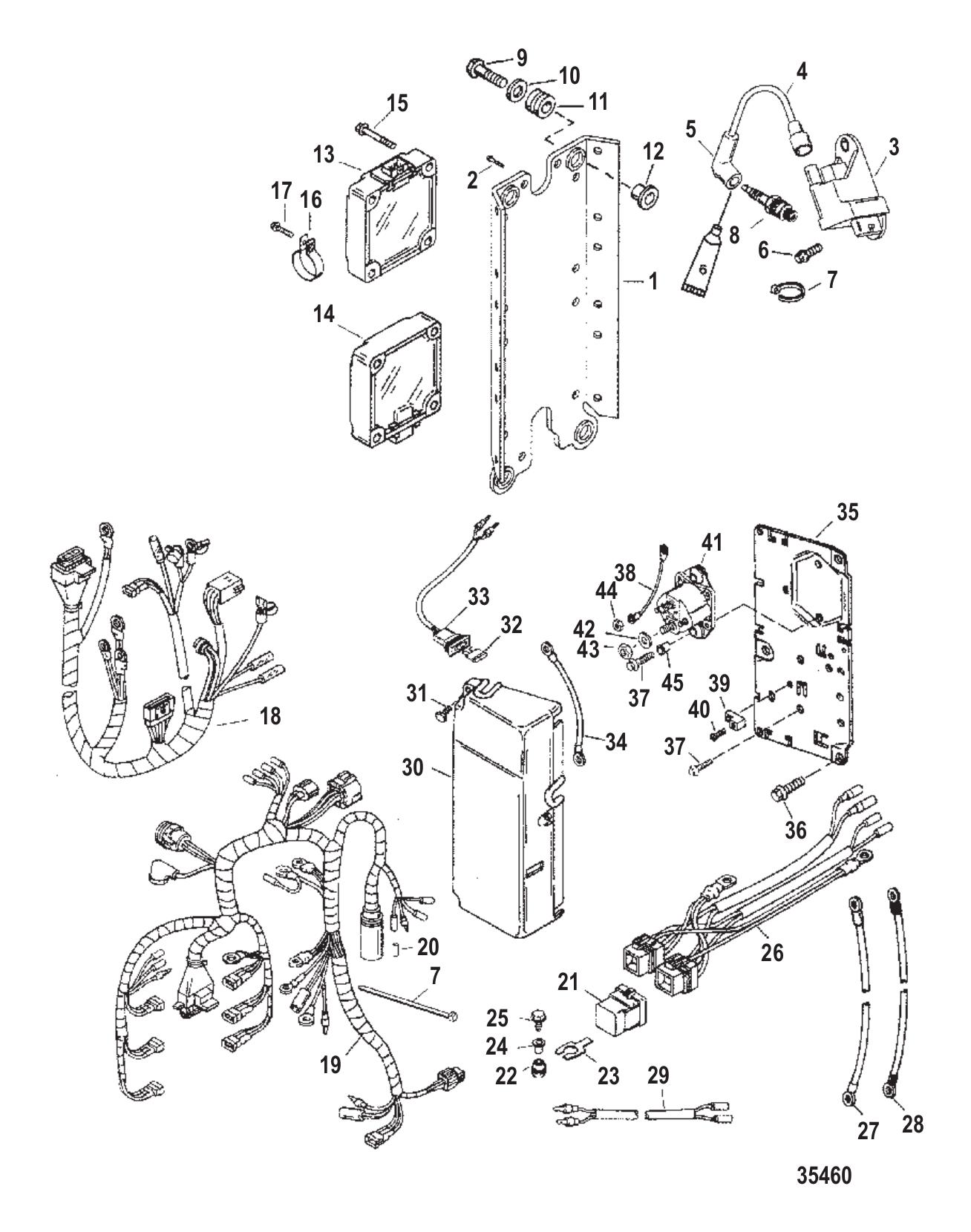

Parts for 300 (3.0L EFI) Promax 2-Stroke EFI Mercury Outboard Motor Electrical Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 825296T1 | PLATE (1 required per assembly) |
  |
|
825296T 1 - Plate [ More info ] Unavailable |
| #2 | 82129114 | SCREW (2 required per assembly) |
  |
|
10-821291 14 - Screw [ More info ]
|
| #3 | 827509T7 | CDM MODULE ASSY (6 required per assembly) |
  |
|
827509T 7 - CDM Module Assembly [ More info ] Unavailable |
  |
|
18-99161 - CDI Module MERCURY 114-7509 827509A10 [ More info ]
|
| #4 | 813706A56 | CABLE ASSEMBLY HI TENSION (Set of 6) (1 required per assembly) |
  |
|
84-813706A56 - Cable Kit [ More info ]
|
| #4 | 821945A61 | CABLE ASSEMBLY HI TENSION (Single Cable) (6 required per assembly) |
  |
|
84-821945A61 - Cable Assembly - Black [ More info ]
|
| #5 | 63709A1 | BOOT/TERMINAL KIT (6 required per assembly) |
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
| #6 | 82129116 | SCREW @5 (12 required per assembly) |
  |
|
10-821291 16 - Screw - Priced Individually [ More info ]
|
| #7 | 816311T | TIE STRAP @100 (AR required per assembly) — Replaces: 816311 |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #8 | 941 | SP #QL77CC @6 (6 required per assembly) |
  |
|
33-941 - Spark Plug #BR8HS - Priced Individually [ More info ] Unavailable |
  |
|
BR8HS - NGK Spark Plug, 4322 [ More info ]
|
  |
|
QL77CC - Champion Spark Plug ( #941M) [ More info ]
|
| #9 | 81893435 | SCREW (4 required per assembly) |
  |
|
10-818934 35 - Screw [ More info ]
|
  |
|
108M0103814 - Screw (M8 x 35 MM) [ More info ]
|
| #10 | 56720 | WASHER (4 required per assembly) |
  |
|
12-56720 - Washer, (.330 X .750 X .060) Stainless Steel [ More info ]
|
| #11 | 825380001 | GROMMET @5 (4 required per assembly) — Replaces: 825380 |
  |
|
25-825380001 - Grommet - Priced Individually [ More info ]
|
| #12 | 19064 | BUSHING (4 required per assembly) |
  |
|
23-19064 - Bushing [ More info ]
|
| #13 | 830044T06 | ECU (CDI) (1 required per assembly) — Replaces: 8300446 |
  |
|
830044T06 - ECU [ More info ] Unavailable |
| #14 | 830046T03 | ECU (EFI) (1 required per assembly) — Replaces: 8300463 |
  |
|
830046T03 - ECU [ More info ] Unavailable |
| #15 | 82129145 | SCREW @5 (8 required per assembly) |
  |
|
10-821291 45 - Screw - Priced Individually [ More info ]
|
| #16 | 826188 | CLAMP (1 required per assembly) |
  |
|
54-826188 - Clamp [ More info ]
|
| #17 | 82104520 | SCREW (1 required per assembly) |
  |
|
10-821045 20 - Screw [ More info ]
|
| #18 | 825763A5 | HARNESS ASSEMBLY (EFI) (1 required per assembly) |
  |
|
84-825763A 5 - Harness - EFI [ More info ]
|
| #19 | 825433A11 | HARNESS-IGNITION (1 required per assembly) |
  |
|
84-825433A11 - Ignition Harness [ More info ]
|
| #20 | 13541 | PLUG (3 required per assembly) |
  |
|
|
| #21 | 882751A1 | RELAY ASSY-TRIM (2 required per assembly) — Replaces: 828151A1 |
  |
|
882751A 1 - Relay - 8M0207773 [ More info ] Unavailable |
  |
|
18-5849 - Relay, 882751A1 [ More info ]
|
  |
|
300-01562 - Power Trim Relay, 882751A1 [ More info ]
|
  |
|
|
| #22 | 8M0207785 | GROMMET (2 required per assembly) — Replaces: 818967 |
  |
|
258M0207785 - Grommet [ More info ]
|
| #23 | 8M0207771 | BRACKET (2 required per assembly) — Replaces: 828102 |
  |
|
8M0207771 - BRACKET [ More info ] Unavailable |
| #24 | 818968 | BUSHING (2 required per assembly) |
  |
23-818968 - Bushing [ More info ] Unavailable |
|
  |
|
238M0214955 - Bushing [ More info ]
|
| #25 | 82129125 | SCREW (2 required per assembly) |
  |
|
10-821291 25 - Screw [ More info ] Unavailable |
| #26 | 826802A2 | HARNESS-TRIM (1 required per assembly) |
  |
|
84-826802A 2 - Trim Harness [ More info ]
|
| #27 | 88439A34 | CABLE (1 required per assembly) |
  |
|
84-88439A34 - Cable [ More info ]
|
| #28 | 88439A24 | CABLE-BATTERY (1 required per assembly) |
  |
|
84-88439A24 - Battery Cable [ More info ]
|
| #29 | 827356A2 | HARNESS ASSEMBLY (26 INCHES) (1 required per assembly) |
  |
|
84-827356A 2 - Harness Assembly [ More info ]
|
| #30 | 8216091 | COVER (1 required per assembly) |
  |
|
821609 1 - Cover [ More info ] Unavailable |
| #31 | 82239320 | SCREW (3 required per assembly) |
  |
|
10-822393 20 - Screw [ More info ]
|
| #32 | 812619 | FUSE-YELLOW-20AMP (1 required per assembly) |
  |
|
88-812619 - Fuse - Yellow - 20 Amp [ More info ]
|
| #33 | 19637 | SOCKET (1 required per assembly) |
  |
|
88-19637 - Socket [ More info ]
|
| #34 | 93388A8 | CABLE ASSY (1 required per assembly) |
  |
|
84-93388A 8 - Cable Assembly [ More info ]
|
| #35 | 8212282 | PLATE-SOLENOID (1 required per assembly) |
  |
|
821228 2 - Solenoid Plate [ More info ] Unavailable |
| #36 | 82155025 | SCREW @5 (3 required per assembly) |
  |
|
10-821550 25 - Screw - Priced Individually [ More info ]
|
| #37 | 82129125 | SCREW (2 required per assembly) |
| #38 | 88807A16 | CABLE ASSY (1 required per assembly) |
  |
|
84-88807A16 - Cable Assembly [ More info ]
|
| #39 | 45915 | BLOCK-TERMINAL (1 required per assembly) |
  |
|
86-45915 - Terminal Block [ More info ]
|
| #40 | 878608 | SCREW @2 (1 required per assembly) — Replaces: 812832 |
  |
|
10-878608 - Screw [ More info ]
|
| #40 | 878607 | SCREW (1 required per assembly) — Replaces: 817626 |
  |
|
10-878607 - Screw [ More info ]
|
| #41 | 817109A2 | SOLENOID KIT (1 required per assembly) |
  |
|
89-817109A 2 - Solenoid Kit [ More info ]
|
  |
|
18-5834 - Solenoid, 89-817109A2 [ More info ]
|
  |
|
SW109 - Solenoid [ More info ]
|
| #42 | 53166 | LOCKWASHER @5 (2 required per assembly) |
  |
|
13-53166 - LockWasher - Priced Individually [ More info ]
|
| #43 | 8M0204668 | NUT @5 (2 required per assembly) — Replaces: 68292 |
  |
|
11-8M0204668 - NUT @5 [ More info ] Unavailable |
| #44 | 45076 | NUT @10 (2 required per assembly) |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #45 | 818968 | BUSHING (2 required per assembly) |
