Parts for 40 HP EFI 4 Cyl 4-Stroke Mercury Outboard Motor Xl Extension Kit

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP EFI 4 Cyl > 0P153500 - 0P400999 - Belgium > Xl Extension Kit

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

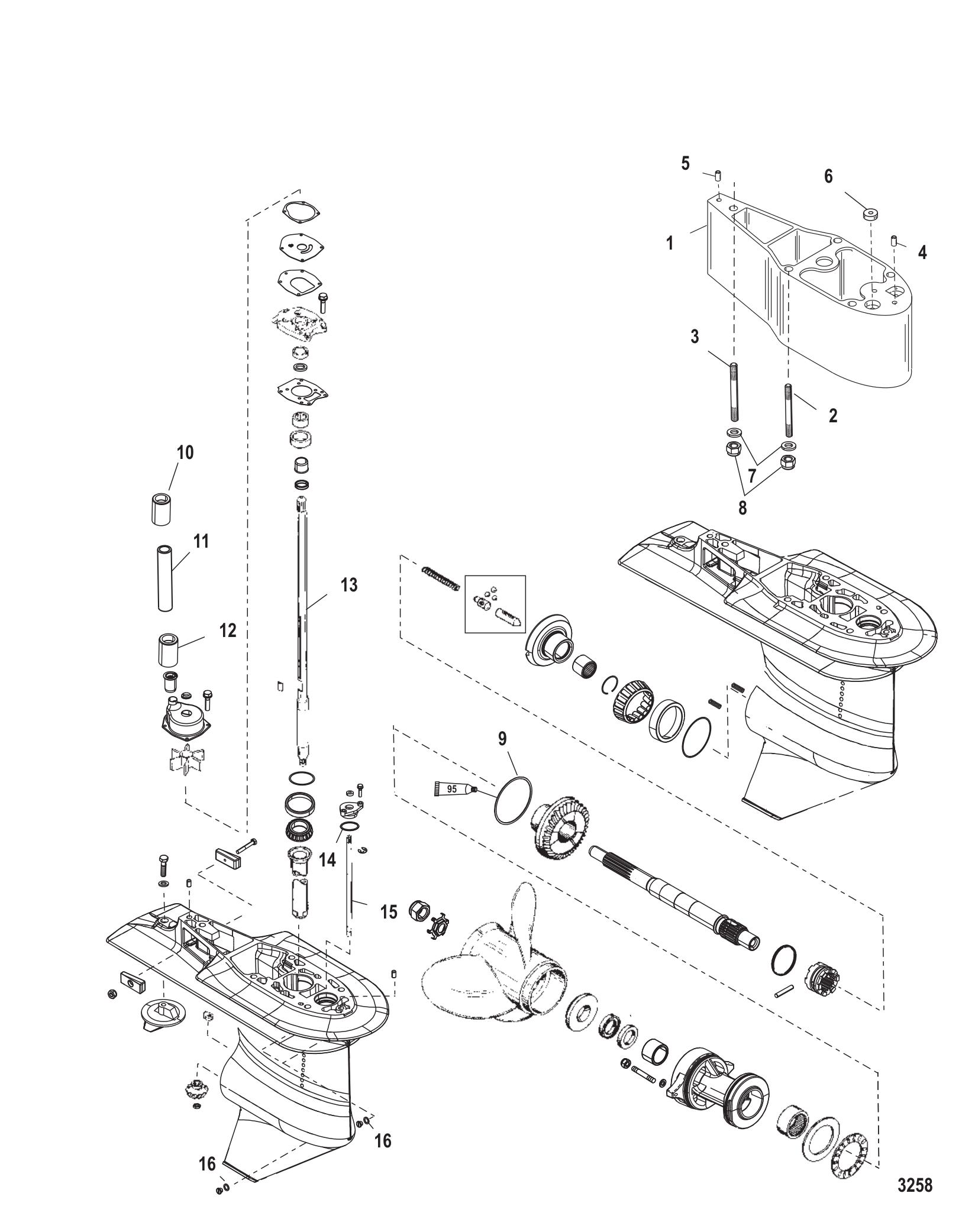

Xl Extension Kit

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	12092A18	CONV KIT-5IN-BLK (1 required per assembly)
		12092A18 - 5 Inch Drive Shaft Extension Kit, Black [ More info ] $1,089.99 Available to Order: Shipping delay up to 10 days.
#1	12092A3	SPACER KIT (1 required per assembly)
		12092A 3 - Spacer - Drive Shaft Housing - XL - Black [ More info ] $382.99 $91.82 1 In Stock.
#2	903503	STUD (M10 X 190) (4 required per assembly)
		16-90350 3 - Stud [ More info ] $26.11 1 In Stock.
#3	903502	STUD (M10 X 227) (1 required per assembly)
		16-90350 2 - Stud [ More info ] $86.49 Available to Order: Shipping delay up to 10 days.
#4	8M0084244	PIN DOWEL (1 required per assembly) — Replaces: 43043
		178M0084244 - Pin - Dowel [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#5	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) (1 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 1 In Stock.
#6	11289	SPACER (1 required per assembly)
		23-11289 - Spacer - Shift Shaft - XL [ More info ] $9.39 Available to Order: Shipping delay up to 10 days.
#7	856774	WASHER (.406 X .750 X .105) STAINLESS STEEL (5 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#8	40140	NUT (M10) (5 required per assembly)
		11-40140 - Nut, (M10) [ More info ] $3.39 7 In Stock.
#9	861844	O-RING (1 required per assembly) — Replaces: 97386
		25-861844 - O-Ring [ More info ] Unavailable
		18-7961 - O-Ring 25-97386 [ More info ] $4.41 6 In Stock.
		25-8M0214974 - O-Ring [ More info ] $8.19 2 In Stock.
#10	8M0204658	SEAL (1 required per assembly) — Replaces: 43023
		8M0204658 - SEAL [ More info ] $14.89 7 In Stock.
#11	8M4501430	TUBE WATER (1 required per assembly) — Replaces: 8289371
		32-8M4501430 - Water Tube 4 Inch XL Extension only [ More info ] $44.29 10+ In Stock.
#12	430232	SEAL (1 required per assembly)
		43023 2 - Seal [ More info ] $11.89 4 In Stock.
#13	875222A1	DRIVESHAFT ASSEMBLY (1 required per assembly)
		45-875222A 1 - Drive Shaft Assembly -xl [ More info ] $683.99 Available to Order: Shipping delay up to 10 days.
		92-205-04-25G - Drive Shaft replaces 45-875222A 1 [ More info ] $413.12 $413.12 Available to Order
#14	8M0204681	O RING @5 (1 required per assembly) — Replaces: 457101
		25-8M0204681 - O RING Note: Priced Individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#15	853908A1	SHIFT SHAFT ASSEMBLY (1 required per assembly)
		853908A 1 - Shaft Kit -xl [ More info ] $97.49 $93.52 10+ In Stock.
#16	191833	SEAL (3 required per assembly)
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 10+ In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 6 In Stock.
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
