Parts for 40 HP EFI 3 Cyl 4-Stroke Mercury Outboard Motor Shift Linkage Tiller, Design II-no Shift Detent

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP EFI 3 Cyl > 1C043417 - 1C456299 > Shift Linkage Tiller, Design II-no Shift Detent

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

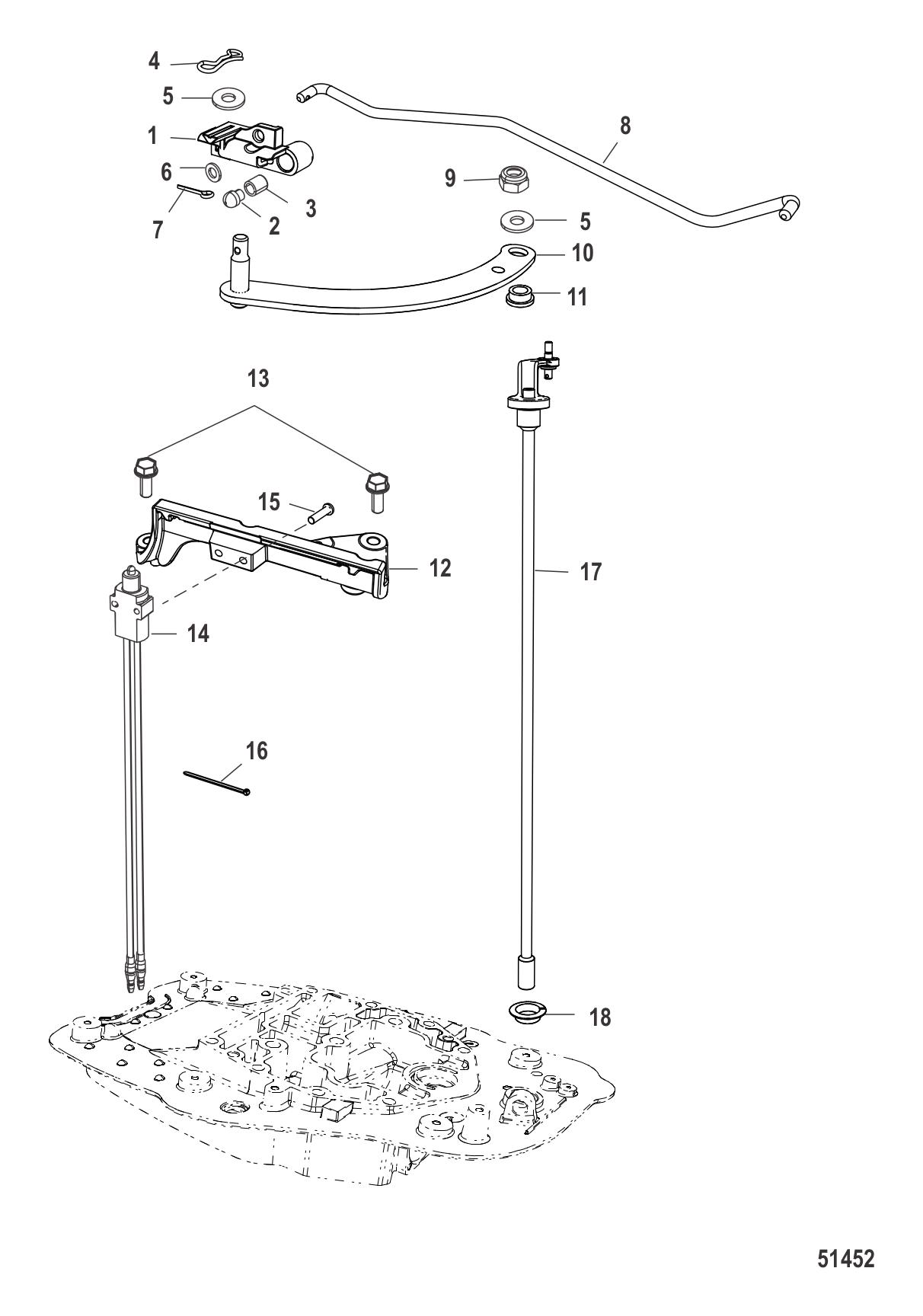

Shift Linkage Tiller, Design II-no Shift Detent

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	880093A03	HANDLE KIT-TILLER (1 required per assembly)
		880093A03 - Tiller Handle Kit [ More info ] $1,371.49 Available to Order: Shipping delay up to 10 days.
#1	8M0162940	SLIDE-SHIFT (1 required per assembly) — Replaces: 8M0032129
		8M0162940 - SLIDE-SHIFT [ More info ] $22.59 Available to Order: Shipping delay up to 10 days.
#2	8M0075211	SPRING KIT (1 required per assembly)
		8M0075211 - Spring Kit [ More info ] $18.29 Available to Order: Shipping delay up to 10 days.
#3	NSS	NOT SOLD SEPARATE SPRING-COMPRESSION, DETENT (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#4	8M0001157	PIN @2 (1 required per assembly)
		8M0001157 - Pin, Bow Tie Clip [ More info ] $1.90 Available to Order: Shipping delay up to 10 days.
#5	35462	WASHER @2 (2 required per assembly)
		12-35462 - Washer, (.2656 X .625 X .0625) Stainless Steel [ More info ] $1.80 10+ In Stock.
#6	8M0204649	WASHER @10 (1 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#7	210711	COTTER PIN @2 (1 required per assembly)
		0210711 [ More info ] Unavailable Replaced by 0210710
		[ More info ] Unavailable
#8	8M0005914	ROD-SHIFT (1 required per assembly)
		8M0005914 - Shift Rod [ More info ] $18.19 Available to Order: Shipping delay up to 10 days.
#9	401386	NUT @5 (1 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#10	8M0007151	LINK-SHIFT (1 required per assembly)
		8M0007151 - Shift Link [ More info ] $16.89 Available to Order: Shipping delay up to 10 days.
#11	892263	BUSHING @2 (1 required per assembly)
		23-892263 - Bushing - Priced Individually [ More info ] $6.79 2 In Stock.
#12	898289T33	BRACKET (1 required per assembly)
		898289T33 - Bracket [ More info ] $39.99 Available to Order: Shipping delay up to 10 days.
#13	8M0204706	SCREW @2 (2 required per assembly) — Replaces: 1993720
		108M0204706 - SCREW Note: Must be ordered in multiples of 2 [ More info ] $1.20 3 In Stock.
#14	8M0052940	SWITCH (1 required per assembly) — Replaces: 8M0021265
		87-8M0052940 - Switch [ More info ] $51.99 Available to Order: Shipping delay up to 10 days.
#15	69570	SCREW (2 required per assembly)
		10-69570 - Screw [ More info ] $1.80 9 In Stock.
#16	56762	TIE STRAP @5 (1 required per assembly)
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 3 In Stock.
#17	8M0091612	SHIFT SHAFT-UPPER (1 required per assembly) — Replaces: 899040
		8M0091612 - SHIFT Shaft-UPPER [ More info ] $318.49 Available to Order: Shipping delay up to 10 days.
#17	8M0091611	SHIFT SHAFT-UPPER (1 required per assembly) — Replaces: 899039
		8M0091611 - SHIFT Shaft-UPPER [ More info ] $235.49 Available to Order: Shipping delay up to 10 days.
		8M0187147 - SHIFT SHAFT UPPER [ More info ] Unavailable
#18	74647	BUSHING (1 required per assembly)
		23-74647 - Bushing [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
