Parts for 40 HP EFI 3 Cyl 4-Stroke Mercury Outboard Motor Swivel Bracket

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP EFI 3 Cyl > 1B227000 - 1B355027 - USA > Swivel Bracket

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

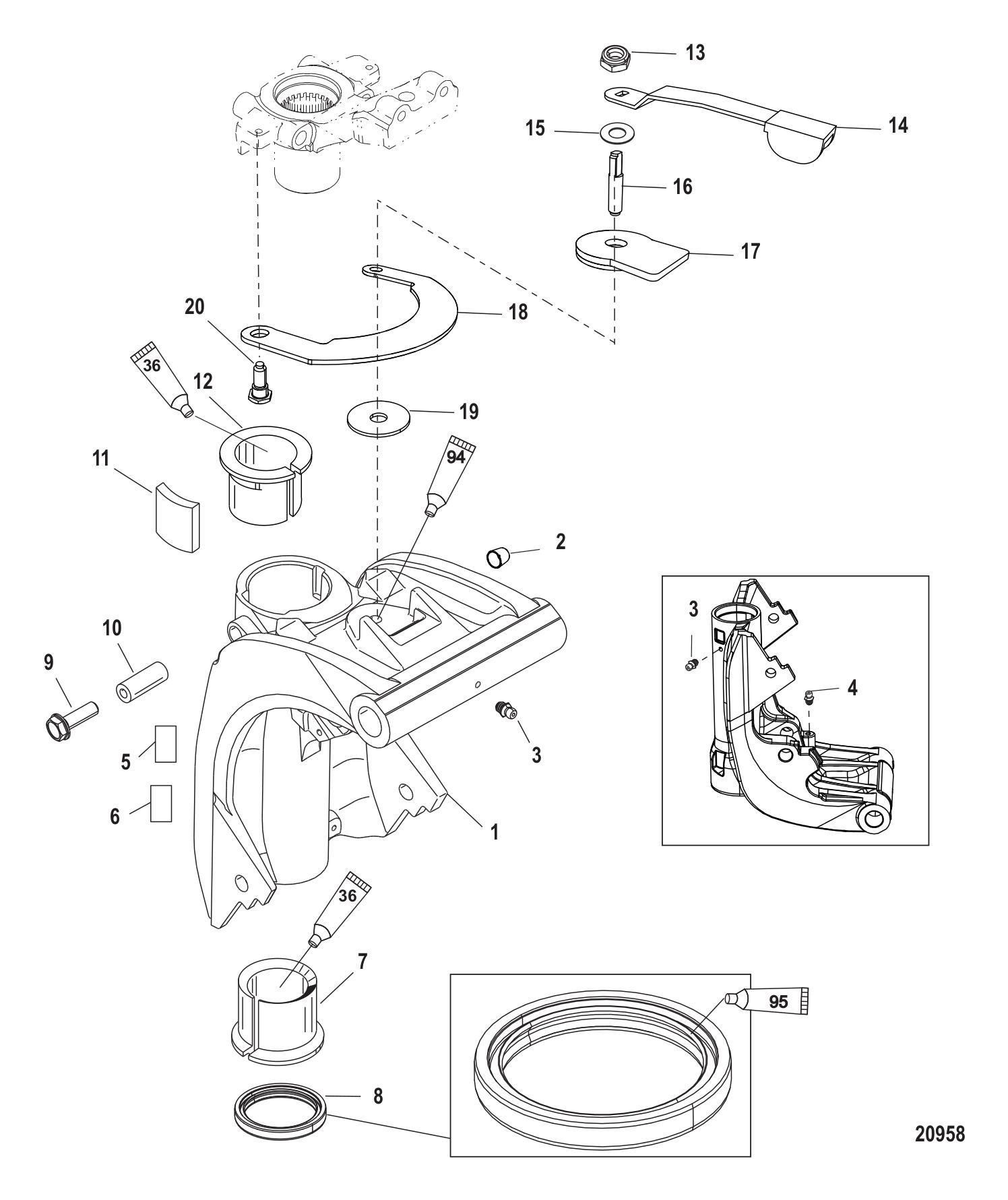

Swivel Bracket

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	850066T01	SWIVEL BRACKET ASSEMBLY-PAINT (1 required per assembly) — Replaces: 850066A1
		1401-850066T01 - Swivel Bracket As [ More info ] $1,148.99 Available to Order: Shipping delay up to 10 days.
#2	19606	BEARING TRIM PIN (2 required per assembly)
		23-19606 - Bearing - Trim Pin [ More info ] $11.79 Available to Order: Shipping delay up to 10 days.
#3	8M0169589	FITTING GREASE (2 required per assembly) — Replaces: 74036
		228M0169589 - Fitting Note: Priced Individually [ More info ] $4.79 1 In Stock.
#4	8M0169589	FITTING @2 (Handle) (1 required per assembly) — Replaces: 74036
#5	8237011	DECAL CO-PILOT (HANDLE) (1 required per assembly)
		37-823701 1 - Decal -co Pilot [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#6	NSS	NOT SOLD SEPARATE DECAL-SERIAL OVERLAMINATE (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#7	821777	BUSHING (LOWER) (1 required per assembly)
		23-821777 - Bushing [ More info ] $28.29 Available to Order: Shipping delay up to 10 days.
#8	822404	SEAL (1 required per assembly)
		26-822404 - Seal [ More info ] Unavailable
		268M0205512 - SEAL [ More info ] $17.29 Available to Order: Shipping delay up to 10 days.
#9	40011149	SCREW (1 required per assembly)
		10-40011149 - Screw [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#10	8282451	SEAL CO-PILOT (1 required per assembly)
		828245 1 - Seal [ More info ] Unavailable
#11	822397	PUCK (NON HANDLE) (1 required per assembly)
		822397 - Co Pilot Puck [ More info ] $17.69 Available to Order: Shipping delay up to 10 days.
#12	8217711	BUSHING (1 required per assembly)
		23-821771 1 - Bushing [ More info ] $42.49 Available to Order: Shipping delay up to 10 days.
#13	8M0204726	NUT-BRASS @3 (HANDLE) (1 required per assembly) — Replaces: 826709113, 8M0042636
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 10 In Stock.
#14	823792	LEVER CO-PILOT (HANDLE) (1 required per assembly)
		823792 - Co Pilot Lever [ More info ] $27.59 $26.48 10+ In Stock.
#15	29330	WASHER (HANDLE) (1 required per assembly)
		12-29330 - Washer, Nylon [ More info ] $1.50 10+ In Stock.
#16	821961	ROD (THREADED)(HANDLE) (1 required per assembly)
		821961 - Threaded Rod [ More info ] $15.59 Available to Order: Shipping delay up to 10 days.
#17	8M0006845	PLATE/DISC ASSEMBLY BRAKE (HANDLE) (1 required per assembly) — Replaces: 821957A2
		8M0006845 - Brake Plate Disc [ More info ] $24.89 Available to Order: Shipping delay up to 10 days.
#18	8M0007471	PLATE SWIVEL HEAD SWIVEL HEAD (HANDLE) (1 required per assembly) — Replaces: 823791
		8M0007471 - Swivel Head Plate [ More info ] $24.49 Available to Order: Shipping delay up to 10 days.
#19	8165621	DISC FRICTION (HANDLE) (1 required per assembly)
		816562 1 - Disc - Brake [ More info ] $18.29 2 In Stock.
#20	768042	SHOULDER SCREW HEX (HANDLE) (2 required per assembly)
		0768042 - T-SHRT-M-G.BASS [ More info ] Unavailable
