Parts for 40 HP EFI 3 Cyl 4-Stroke Mercury Outboard Motor Adapter Plate

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP EFI 3 Cyl > 1B227000 - 1B355027 - USA > Adapter Plate

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

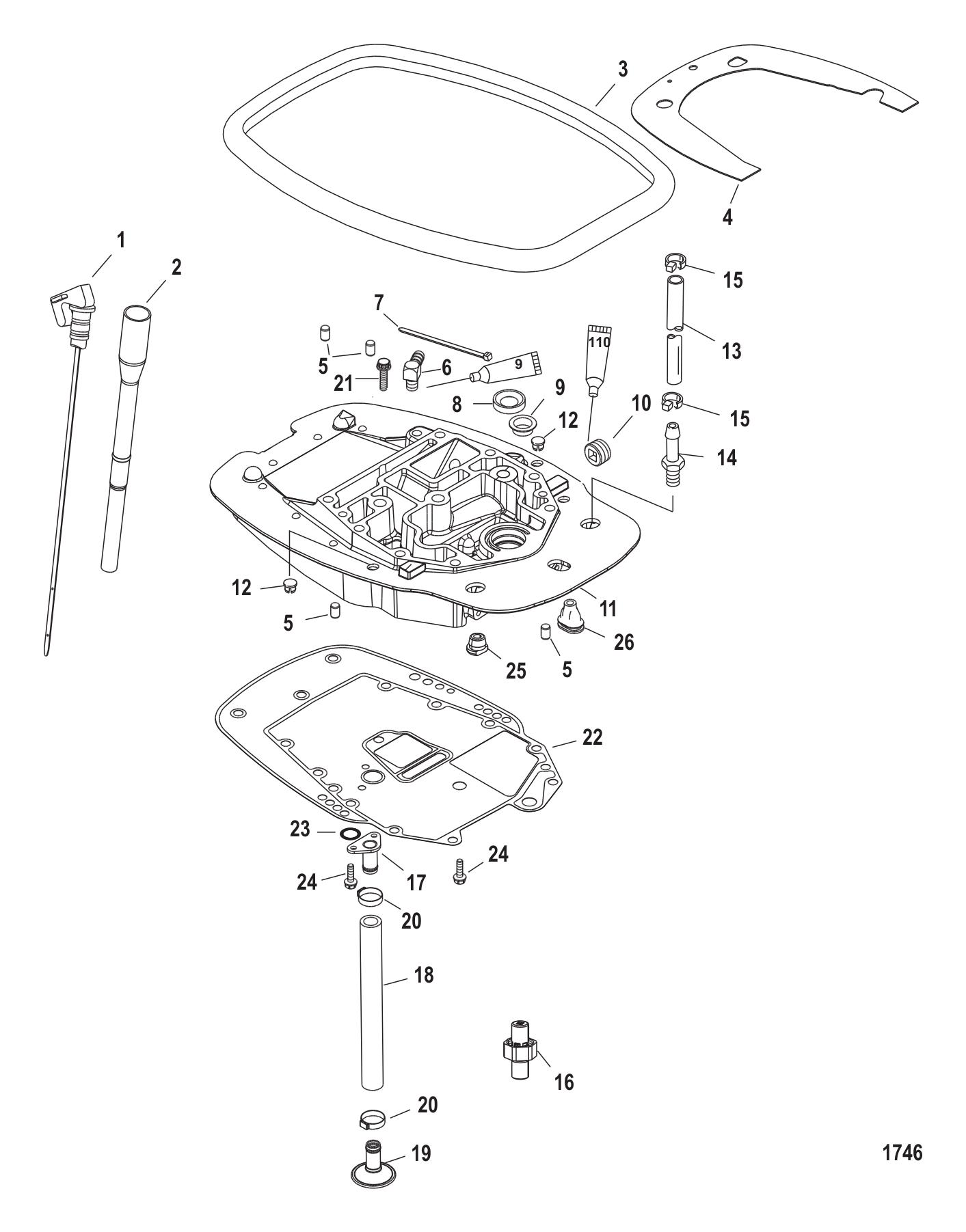

Adapter Plate

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	859352A02	GASKET SET (1 required per assembly)
		27-859352A02 - Gasket Set [ More info ] Unavailable
#1	8M0162935	DIPSTICK (1 required per assembly) — Replaces: 825990
		8M0162935 - DIPSTICK [ More info ] $32.99 Available to Order: Shipping delay up to 10 days.
#2	825989003	TUBE-DIPSTICK (1 required per assembly)
		825989003 - Dipstick Tube [ More info ] Unavailable
#3	8560552	SEAL (1 required per assembly)
		856055 2 - Seal [ More info ] $64.68 1 In Stock.
#4	8289151	SHIELD-HEAT (1 required per assembly)
		828915 1 - Heat Shield [ More info ] $22.39 Available to Order: Shipping delay up to 10 days.
#5	23784	PIN-DOWEL (4 required per assembly)
		17-23784 - Pin, Dowel [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#6	629101	ELBOW (1 required per assembly)
		22-62910 1 - Elbow [ More info ] $13.39 Available to Order: Shipping delay up to 10 days.
#7	816311T	TIE STRAP @100 (3 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#8	828932	SEAL (Short) (1 required per assembly)
		26-828932 - Seal [ More info ] $12.89 5 In Stock.
#8	66301	SEAL @2 (Long) (1 required per assembly)
		26-66301 - Seal - Priced Individually [ More info ] $20.49 Available to Order: Shipping delay up to 10 days.
#9	856743	BUSHING (Short) (1 required per assembly)
		23-856743 - Bushing [ More info ] $9.39 Available to Order: Shipping delay up to 10 days.
#9	859594	BUSHING (Long) (1 required per assembly)
		23-859594 - Bushing [ More info ] $9.39 Available to Order: Shipping delay up to 10 days.
#10	889567	PLUG-PIPE @5 (1 required per assembly)
		22-889567 - Pipe Plug - Priced Individually [ More info ] $2.39 $1.92 6 In Stock.
#11	825228A17	ADAPTOR PLATE KIT (1 required per assembly)
		825228A17 - Adaptor Plate Kit [ More info ] $821.43 Available to Order: Shipping delay up to 10 days.
#12	822464	PLUG (2 required per assembly)
		19-822464 - Plug [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#13	8M0108355	HOSE (57 INCHES BULK) (CUT TO 17 INCHES) (1 required per assembly) — Replaces: 830756109, 8M0047428
		32-8M0108355 - Hose, 57 Inch [ More info ] $52.49 1 In Stock.
#14	291112	FITTING (1 required per assembly)
		0291112 - Exhaust Gasket (291112) [ More info ] Unavailable
#15	816311T	TIE STRAP @100 (AR required per assembly)
#16	8M0203751	ADAPTOR ASSY (1 required per assembly) — Replaces: 881872A1
		8M0203751 - 8M0203751 - ADAPTOR ASSY [ More info ] Unavailable Replaced by -8M0210772
		8M0210772 - ADAPTOR ASSY [ More info ] Unavailable
#17	893765	PLATE (1 required per assembly) — Replaces: 854789
		893765 - Plate [ More info ] $14.49 Available to Order: Shipping delay up to 10 days.
#18	854793	HOSE (1 required per assembly)
		32-854793 - Hose [ More info ] $26.09 Available to Order: Shipping delay up to 10 days.
#19	893700	BAFFLE (1 required per assembly) — Replaces: 8547911
		893700 - Baffle [ More info ] $27.19 Available to Order: Shipping delay up to 10 days.
#20	855228	CLAMP @5 (2 required per assembly)
		54-855228 - Clamp [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#21	4007455	SCREW (1 required per assembly)
		10-40074 55 - Screw [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#22	892320001	GASKET (1 required per assembly)
		27-892320001 - Adaptor Plate Gasket [ More info ] Unavailable
		27-8M0163130 - 27-8M0163130 - GASKET [ More info ] Unavailable Replaced by -8M0213113
		278M0213113 - Gasket [ More info ] $131.99 Available to Order: Shipping delay up to 10 days.
#23	845746	O RING (1 required per assembly)
		25-845746 - O-ring, Oil Pick-up Plate [ More info ] $8.69 Available to Order: Shipping delay up to 10 days.
#24	8M0204741	SCREW @4 (3 required per assembly) — Replaces: 40011128, 8M4503518
		108M0204741 - SCREW Note: Priced Individually [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#25	8M0179867	GROMMET (Non-Power Trim) (1 required per assembly) — Replaces: 19564001
		258M0179867 - Grommet [ More info ] $9.09 1 In Stock.
#25	19565002	GROMMET (Power Trim) (1 required per assembly)
		25-19565002 - Grommet [ More info ] $30.99 Available to Order: Shipping delay up to 10 days.
#26	822408001	GROMMET (SHORT) (1 required per assembly)
		25-822408001 - Grommet, Shift Shaft [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
