Parts for 40 HP EFI 3 Cyl 4-Stroke Mercury Outboard Motor Linkage

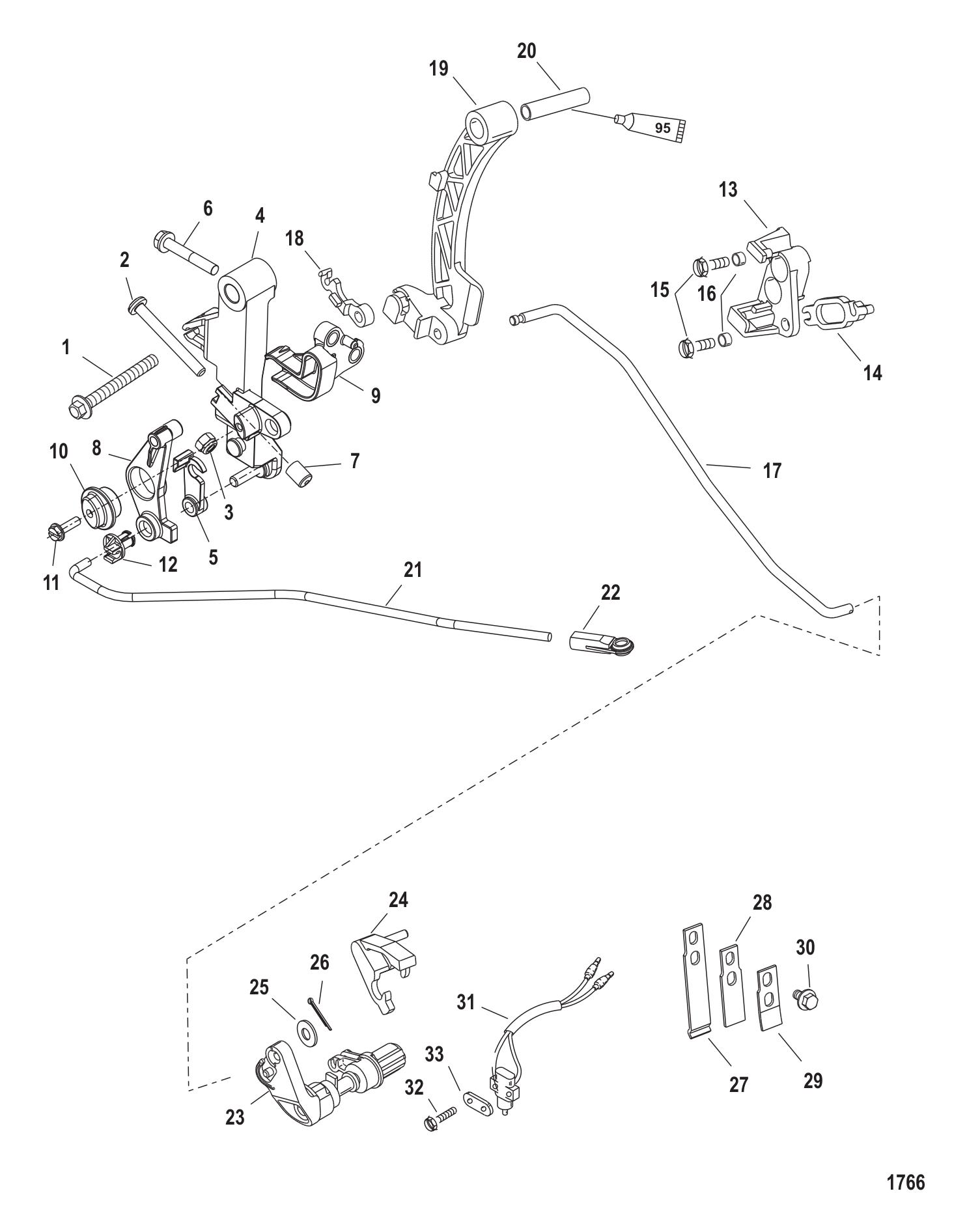

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 40011158 | SCREW (1 required per assembly) |
  |
|
10-40011158 - Screw [ More info ]
|
| #2 | 8147763 | SCREW (1 required per assembly) |
  |
|
10-814776 3 - Screw [ More info ]
|
| #3 | 401196 | NUT (1 required per assembly) |
  |
|
11-40119 6 - Nut [ More info ]
|
| #4 | 822682A4 | LEVER KT-THROTTLE (1 required per assembly) |
  |
|
822682A 4 - Throttle Lever Kit [ More info ]
|
| #5 | 883160 | RETAINER (NON HANDLE) (1 required per assembly) |
  |
|
883160 - Retainer [ More info ]
|
| #6 | 8248329 | SCREW (2 required per assembly) |
  |
|
10-824832 9 - Screw [ More info ]
|
| #7 | 42942 | CAP (1 required per assembly) |
  |
|
42942 - Nylon Cap [ More info ]
|
| #8 | 883006A1 | ARM-THROTTLE (1 required per assembly) |
  |
|
883006A 1 - Throttle Arm [ More info ]
|
| #9 | 879865 | CAM-THROTTLE (1 required per assembly) |
  |
|
879865 - Throttle Cam [ More info ]
|
| #10 | 883005 | BUSHING (1 required per assembly) |
  |
|
23-883005 - Bushing [ More info ]
|
| #11 | 8214281 | SCREW (1 required per assembly) |
  |
|
10-821428 1 - Screw [ More info ]
|
| #12 | 932481 | BUSHING (1 required per assembly) |
  |
23-93248 1 - Bushing, New Number 238M0215006 [ More info ] Unavailable |
|
  |
|
23-8M0215006 - Bushing [ More info ]
|
| #13 | 827706A4 | BRACKET/GUIDE KIT (NON HANDLE) (1 required per assembly) |
  |
|
827706A 4 - Bracket/Guide Kit [ More info ]
|
| #14 | 98889 | LATCH (NON HANDLE) (1 required per assembly) |
  |
|
|
| #15 | 8248324 | SCREW @5 (NON HANDLE) (2 required per assembly) |
  |
|
10-824832 4 - Screw [ More info ]
|
| #16 | 15885 | SLEEVE (NON HANDLE) (2 required per assembly) |
  |
|
23-15885 - Sleeve [ More info ]
|
| #17 | 882820 | ROD-SHIFT (NON HANDLE) (1 required per assembly) |
  |
|
882820 - Shift Rod [ More info ] Unavailable |
| #18 | 822459 | RETAINER (NON HANDLE) (1 required per assembly) |
  |
|
822459 - Retainer [ More info ]
|
| #19 | 8259571 | LEVER-SHIFT (NON HANDLE) (1 required per assembly) |
  |
|
825957 1 - Shift Lever [ More info ]
|
| #20 | 825078 | BUSHING (1 required per assembly) |
  |
|
23-825078 - Bushing [ More info ]
|
| #21 | 893780A01 | LINK-THROTTLE (1 required per assembly) — Replaces: 881062A1 |
  |
|
893780A01 - Throttle Link [ More info ]
|
| #22 | 8M0084742 | SOCKET (1 required per assembly) — Replaces: 19384 |
  |
|
8M0084742 - Socket - Ball [ More info ]
|
| #23 | 826588A4 | SHAFT ASSY-SHIFT (1 required per assembly) |
  |
|
826588A 4 - Shift Shaft Assembly [ More info ]
|
| #24 | 8277071 | RETAINER (1 required per assembly) |
  |
|
827707 1 - Clip [ More info ] Unavailable |
| #25 | 8M0204649 | WASHER @10 (1 required per assembly) — Replaces: 29245 |
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #26 | 210711 | COTTER PIN @2 (1 required per assembly) |
  |
|
0210711 [ More info ] Unavailable Replaced by 0210710 |
  |
|
[ More info ] Unavailable |
| #27 | 826077 | SPRING (1 required per assembly) |
  |
|
24-826077 - Spring, Detent [ More info ]
|
| #28 | 824993 | SPRING (2 required per assembly) |
  |
|
24-824993 - Spring, Backing [ More info ]
|
| #29 | 824994 | PLATE-SPRING (1 required per assembly) |
  |
|
824994 - Spring, Plate [ More info ]
|
| #30 | 40011107 | SCREW @5 (2 required per assembly) |
  |
|
10-40011107 - SCREW [ More info ]
|
| #31 | 8M0052927 | SWITCH ASSY (ELECTRIC HANDLE MODELS) (1 required per assembly) — Replaces: 813960A3 |
  |
|
878M0052927 - Switch Assembly [ More info ]
|
| #32 | 88075020 | SCREW (M3 X 20) (ELECTRIC HANDLE MODELS) (2 required per assembly) |
  |
|
10-880750 20 - Screw [ More info ]
|
| #33 | 824923 | PLATE SWITCH (ELECTRIC HANDLE MODELS) (1 required per assembly) |
  |
|
824923 - Switch Plate [ More info ]
|
