Parts for 40 HP Carb Italy 4-Stroke Mercury Outboard Motor Cylinder Block

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP Carb Italy > 0P017000 - 0P094499 - Belgium > Cylinder Block

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

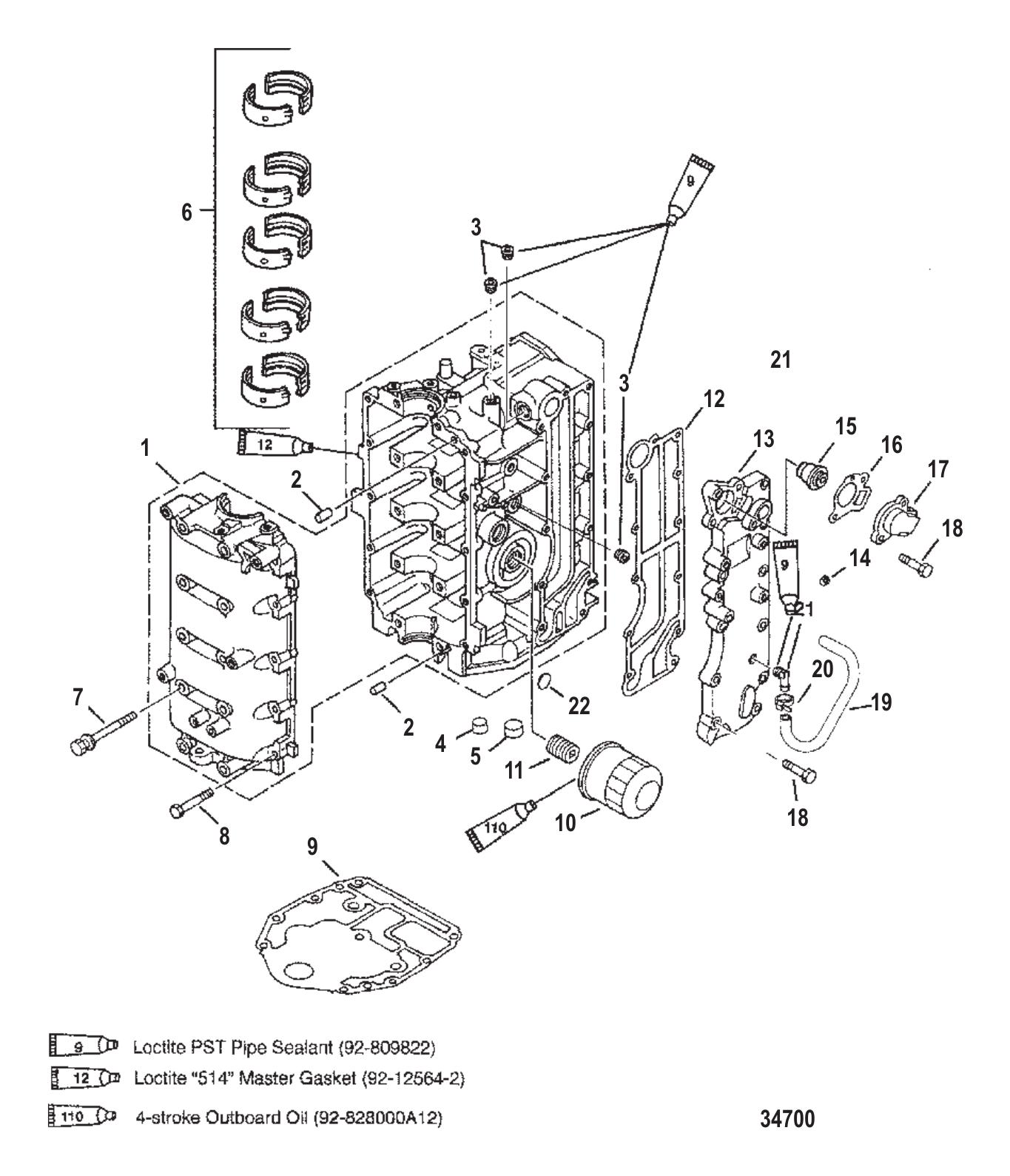

Cylinder Block

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	822775T97	PH 50 4S 4CYL (1 required per assembly)
		61-822775T97 - PH 50 4S 4CYL,NLA [ More info ] Unavailable
#-	822775T98	POWERHEAD ASSEMBLY BIGFOOT (1 required per assembly)
		61-822775T98 - Powerhead 40/50 4CYL 4S [ More info ] Unavailable
#-	832013A96	GASKET SET (1 required per assembly)
		27-832013A96 - Engine Gasket Set [ More info ] Unavailable
#1	824955T8	CYLINDER BLOCK (1 required per assembly)
		892-824955T 8 - Cylinder Block [ More info ] Unavailable
#2	825010	PIN DOWEL (2 required per assembly)
		17-825010 - Pin -Dowel [ More info ] $4.19 2 In Stock.
#3	479452	PLUG (3 required per assembly)
		22-47945 2 - Pipe Plug [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#4	NSS	NOT SOLD SEPARATE PIPE PLUG (1/4-14) (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#5	NSS	NOT SOLD SEPARATE PIPE PLUG (3/4-14) (1 required per assembly)
#6	893631	BEARING (10 required per assembly) — Replaces: 825024
		23-893631 - Bearing - Main - Brown [ More info ] $16.79 Available to Order: Shipping delay up to 10 days.
#6	893631001	BEARING (10 required per assembly) — Replaces: 8250241
		23-893631001 - Bearing - Main - Black [ More info ] $17.29 Available to Order: Shipping delay up to 10 days.
#6	893631002	BEARING (10 required per assembly) — Replaces: 8250242
		23-893631002 - Bearing - Main - Blue [ More info ] $19.59 $15.68 5 In Stock.
#7	82506182	SCREW (10 required per assembly)
		10-825061 82 - Screw [ More info ] $5.90 Available to Order: Shipping delay up to 10 days.
#8	88348935	SCREW (10 required per assembly) — Replaces: 82500935
		10-883489 35 - Screw [ More info ] Unavailable
		8M0241960 - SCREW [ More info ] Unavailable
#9	892319001	GASKET (1 required per assembly) — Replaces: 825231, 859352
		27-892319001 - Cylinder Block Gasket [ More info ] Unavailable
		27-8M0163129 - Gasket [ More info ] Unavailable
		278M0213112 - Gasket [ More info ] $89.94 1 In Stock.
#10	822626Q04	FILTER ASSY-OIL (1 required per assembly) — Replaces: 822626A2, 822626Q2
		35-822626Q04 - Oil Filter [ More info ] Unavailable
		35-822626Q05 - Oil Filter - Priced Individually [ More info ] Unavailable
		35-8M0065103 - Oil Filter QS - Priced Individually [ More info ] Unavailable
		18-7914 - Filter, 35-822626K04 [ More info ] $8.99 10+ In Stock.
		35-8M0162830 - Oil Filter, Priced Individually [ More info ] $14.49 8 In Stock.
#11	822625	NIPPLE (1 required per assembly)
		822625- Nipple [ More info ] $23.99 Available to Order: Shipping delay up to 10 days.
#12	8M0058361	GASKET (1 required per assembly) — Replaces: 825029
		278M0058361 - Gasket [ More info ] Unavailable
#13	825030A1	COVER KIT-EXHAUST (1 required per assembly)
		825030A 1 - Exhaust Cover Kit, NLA [ More info ] Unavailable
#14	479452	PLUG (1 required per assembly)
#15	855676003	ORD 855676A 1 (1 required per assembly) — Replaces: 825212, 825212001
		855676003 - Thermostat [ More info ] Unavailable
		825212A 1 - Thermostat Kit [ More info ] $85.99 3 In Stock.
		75-75520 - Thermostat and Gasket Kit Mercury Mariner ?30 40 HP (4-Stroke) [ More info ] $49.49 $37.84 1 In Stock.
#16	8M0177107	GASKET (1 required per assembly) — Replaces: 824853
		27-8M0177107 - Thermostat Gasket [ More info ] $12.69 2 In Stock.
#17	8M0008243	COVER (1 required per assembly) — Replaces: 825031C, 8250311
		8M0008243 - Thermostat Cover [ More info ] Unavailable
		8M0188835 - COVER [ More info ] $15.99 Available to Order: Shipping delay up to 10 days.
#18	88348935	SCREW (12 required per assembly) — Replaces: 82500935
#19	8M0047448	TUBING (.312) (70 INCHES BULK) CUT TO 11 INCHES (1 required per assembly) — Replaces: 83075780, 830757130
		32-8M0047448 - Tubing-70 Inch [ More info ] Unavailable
		32-8M0108349 - Hose-70 Inch [ More info ] $66.31 1 In Stock.
#20	816311T	TIE STRAP @100 (1 required per assembly) — Replaces: 816311
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#21	996642	ELBOW (1 required per assembly) — Replaces: 996641
		22-99664 2 - Elbow [ More info ] $2.69 6 In Stock.
#22	NSS	NOT SOLD SEPARATE PLUG-SERIAL NUMBER (1 required per assembly)
