Parts for 40 HP Carb Italy 4-Stroke Mercury Outboard Motor Transom Bracket

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP Carb Italy > 0G760300 - 0T178499 - USA > Transom Bracket

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

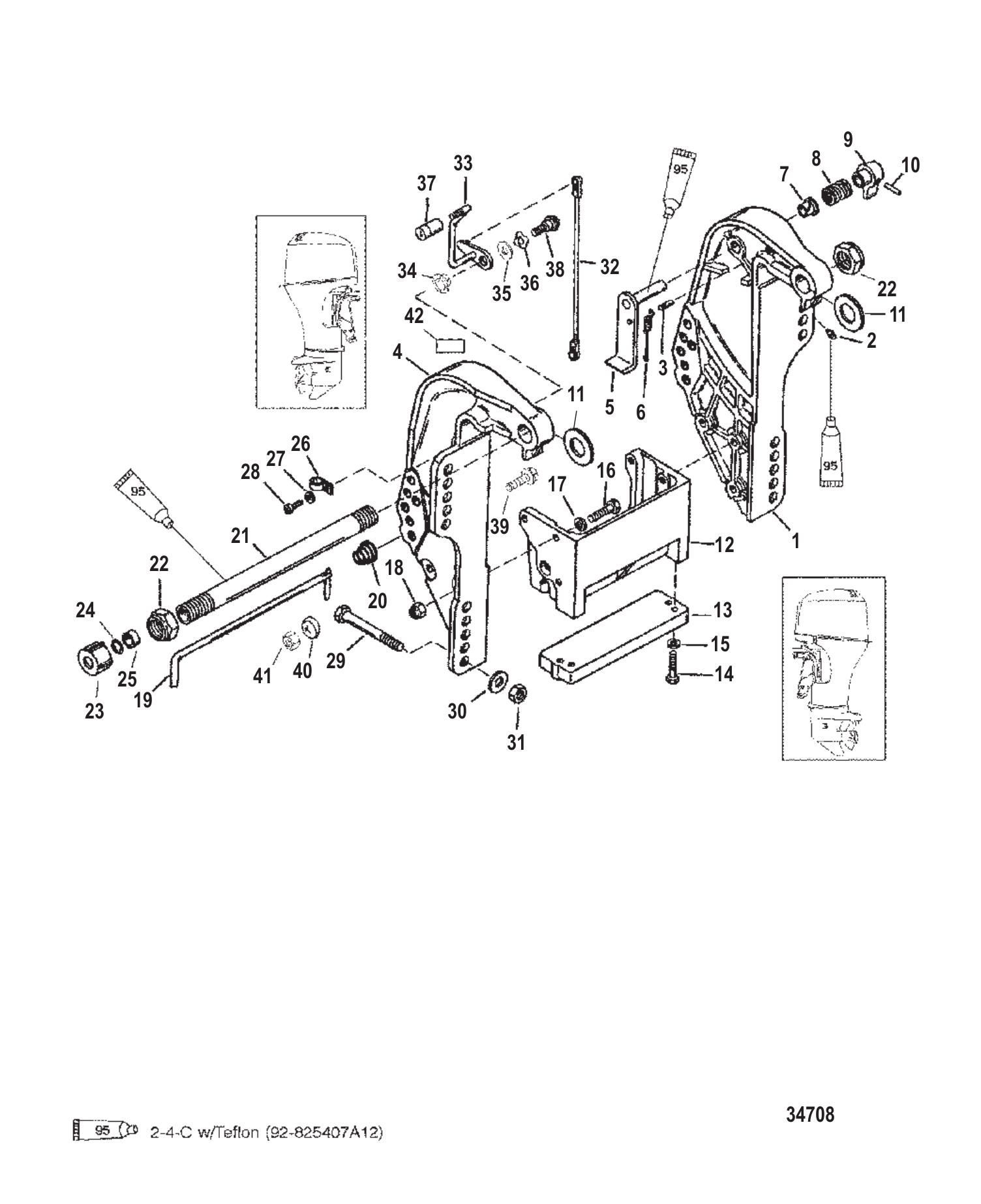

Transom Bracket

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	822866T04	TRANSOM BRACKET ASSEMBLY-PORT-PAINT Port-Black (1 required per assembly) — Replaces: 822866A1
		3418-822866T04 - Transom Bracket A [ More info ] $655.99 Available to Order: Shipping delay up to 10 days.
#1	822866A2	BRKT-TRANSOM-GRAY Port-Gray (1 required per assembly)
		3418-822866A 2 - Transom Bracket -gra, NLA [ More info ] Unavailable
#2	8M0169588	FITTING (1 required per assembly) — Replaces: 98727
		22-8M0169588 - FITTING [ More info ] Unavailable
#3	99604	PIN GROOVE (1 required per assembly)
		17-99604 - Pin, Groove [ More info ] $4.99 6 In Stock.
#4	822865T05	TRANSOM BRACKET-STBD-PAINT Starboard-Black (1 required per assembly) — Replaces: 822865F2
		3418-822865T05 - Transom Bracket -s [ More info ] $608.99 1 In Stock.
#4	822865F3	BRKT-TRANSOM-GRAY Starboard-Gray (1 required per assembly)
		3418-822865F 3 - Transom Bracket -gra, NLA [ More info ] Unavailable
#5	893704T01	TILT LOCK LEVER-PAINT Gray (1 required per assembly) — Replaces: 19618A2, 19618A3
		893704T01 - Tilt Lock Lever [ More info ] $254.49 Available to Order: Shipping delay up to 10 days.
#6	99622	SPRING (1 required per assembly)
		24-99622 - Spring, Tilt Lock Tension [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#7	65830	NYLINER (1 required per assembly)
		23-65830 - NyLiner [ More info ] $5.69 1 In Stock.
#8	812708	SPRING (1 required per assembly)
		24-812708 - Spring [ More info ] $5.39 1 In Stock.
#9	812709	KNOB Gray (1 required per assembly) — Replaces: 812709T, 812709T6
		812709 - Knob [ More info ] $16.29 Available to Order: Shipping delay up to 10 days.
#10	99615	PIN-GROOVE (1 required per assembly)
		17-99615 - Pin, Groove [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#11	19619	WASHER (2 required per assembly)
		12-19619 - Washer [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#12	18486A08	ANCHOR BRACKET KIT-PAINT Gray (1 required per assembly) — Replaces: 18486F5, 18486F6
		18486A08 - Anchor Bracket Ki [ More info ] $467.49 Available to Order: Shipping delay up to 10 days.
#13	818298Q1	ANODE KIT(ALUM) (1 required per assembly) — Replaces: 818298A1
		97-818298Q 1 - Anode Kit - Outboard Transom Aluminum [ More info ] $25.49 4 In Stock.
		18-6249A - Anode, Aluminum, 18-6249A [ More info ] $23.09 $22.96 In Stock
		18-6249 - Zinc Anode, 818298A1 [ More info ] $25.05 1 In Stock.
		97-818298T 1 - Anode - Outboard Transom Aluminum [ More info ] $27.99 $27.92 Available to Order: Shipping delay up to 10 days.
#14	8M0204707	SCREW @5 (2 required per assembly) — Replaces: 4000330
		108M0204707 - SCREW Note: Priced Individually [ More info ] $3.99 4 In Stock.
#15	8M0204649	WASHER @10 (2 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#16	4000354	SCREW @5 (5 required per assembly)
		10-40003 54 - Screw - Priced Individually [ More info ] $4.79 7 In Stock.
#16	4000355	SCREW @10 (1 required per assembly)
		10-40003 55 - Screw - Priced Individually [ More info ] $4.49 $2.53 10 In Stock.
#17	400257	LOCKWASHER (4 required per assembly)
		13-40025 7 - LockWasher [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#18	401388	NUT @5 (2 required per assembly) — Replaces: 400635
		11-40138 8 - Nut - Priced Individually [ More info ] $3.11 3 In Stock.
#19	8M0026068	PIN ASY-TILT Non Power Trim (1 required per assembly) — Replaces: 49930A1
		17-8M0026068 - Pin Assembly - Tilt [ More info ] $56.75 1 In Stock.
#20	821461	SPRING Non Power Trim (1 required per assembly)
		24-821461 - Spring, Tilt Lock Pin (Manual Tilt Models) [ More info ] $1.80 2 In Stock.
#21	8M0035070	TILT TUBE (1 required per assembly) — Replaces: 19614, 196141
		8M0035070 - Tilt Tube [ More info ] Unavailable
		8M0041938 - Tilt Tube [ More info ] $117.08 2 In Stock.
#22	858869	NUT @5 (2 required per assembly) — Replaces: 30499
		11-858869 - Nut, (.875-14) [ More info ] $4.99 4 In Stock.
#23	19624A1	SEAL KIT Non Handle (1 required per assembly)
		19624A 1 - Seal Kit [ More info ] $11.51 2 In Stock.
#24	29619	O-RING (.583 X .103) Non Handle (1 required per assembly)
		25-29619 - O-ring, (.583 X .103) [ More info ] $2.69 10+ In Stock.
#25	78861	SPACER Non Handle (1 required per assembly)
		23-78861 - Spacer [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#26	22740	CLIP Power Trim (2 required per assembly)
		54-22740 - Clip [ More info ] $5.09 2 In Stock.
#27	8M0084613	WASHER Power Trim (1 required per assembly) — Replaces: 69205
		8M0084613 - Washer [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#28	878609	SCREW Power Trim (1 required per assembly) — Replaces: 8128321
		10-878609 - Screw [ More info ] $2.59 4 In Stock.
#29	814259	SCREW (4 required per assembly)
		10-814259 - Screw [ More info ] $19.55 3 In Stock.
#30	8M0204648	WASHER @5 (4 required per assembly) — Replaces: 28421
		12-8M0204648 - ENGINE MOUNTING WASHER Note: Must be ordered in multiples of 5 O/B [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#31	82671117	NUT (4 required per assembly) — Replaces: 8M0027784
		11-826711 17 - Nut, (.500-20) [ More info ] $8.99 10+ In Stock.
#32	8M0084737	LINK Non Power Trim (1 required per assembly) — Replaces: 1938525
		8M0084737 - LINK [ More info ] $30.79 Available to Order: Shipping delay up to 10 days.
#33	19615A05	TILT LEVER ASSY Non Power Trim (1 required per assembly) — Replaces: 19615A4
		19615A05 - Tilt Lever Assembly [ More info ] $57.49 Available to Order: Shipping delay up to 10 days.
#34	812707	BUSHING Non Power Trim (1 required per assembly)
		23-812707 - Bushing [ More info ] $8.29 2 In Stock.
#35	8M0042643	WASHER Non Power Trim (1 required per assembly) — Replaces: 19605
		12-8M0042643 - Washer [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#36	99611	WASHER-WAVE Non Power Trim (1 required per assembly)
		13-99611 - Washer, NLA [ More info ] $1.90 Available to Order: Shipping delay up to 10 days.
#37	8M0007469	KNOB-TILT Non Power Trim (1 required per assembly) — Replaces: 19621
		8M0007469 - Knob - Tilt [ More info ] $12.59 Available to Order: Shipping delay up to 10 days.
#38	19611	BOLT Non Power Trim (1 required per assembly)
		10-19611 - Bolt [ More info ] $14.89 Available to Order: Shipping delay up to 10 days.
#39	4009040	SCREW (2 required per assembly)
		10-40090 40 - Screw [ More info ] $14.09 Available to Order: Shipping delay up to 10 days.
#40	4002319	WASHER @3 (2 required per assembly)
		12-40023 19 - Washer (M10) [ More info ] $3.19 7 In Stock.
#41	40140	NUT @2 (2 required per assembly) — Replaces: 13914
		11-40140 - Nut, (M10) [ More info ] $3.39 7 In Stock.
#42	830253	DECAL-TILT/LOCK (1 required per assembly)
		37-830253 - Decal - Tilt/Lock [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
