Parts for 40 HP Carb Italy 4-Stroke Mercury Outboard Motor Gear Housing Driveshaft - 1.83:1 Gear Ratio - Non Bigfoot

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP Carb Italy > 0G760300 - 0T178499 - USA > Gear Housing Driveshaft - 1.83:1 Gear Ratio - Non Bigfoot

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

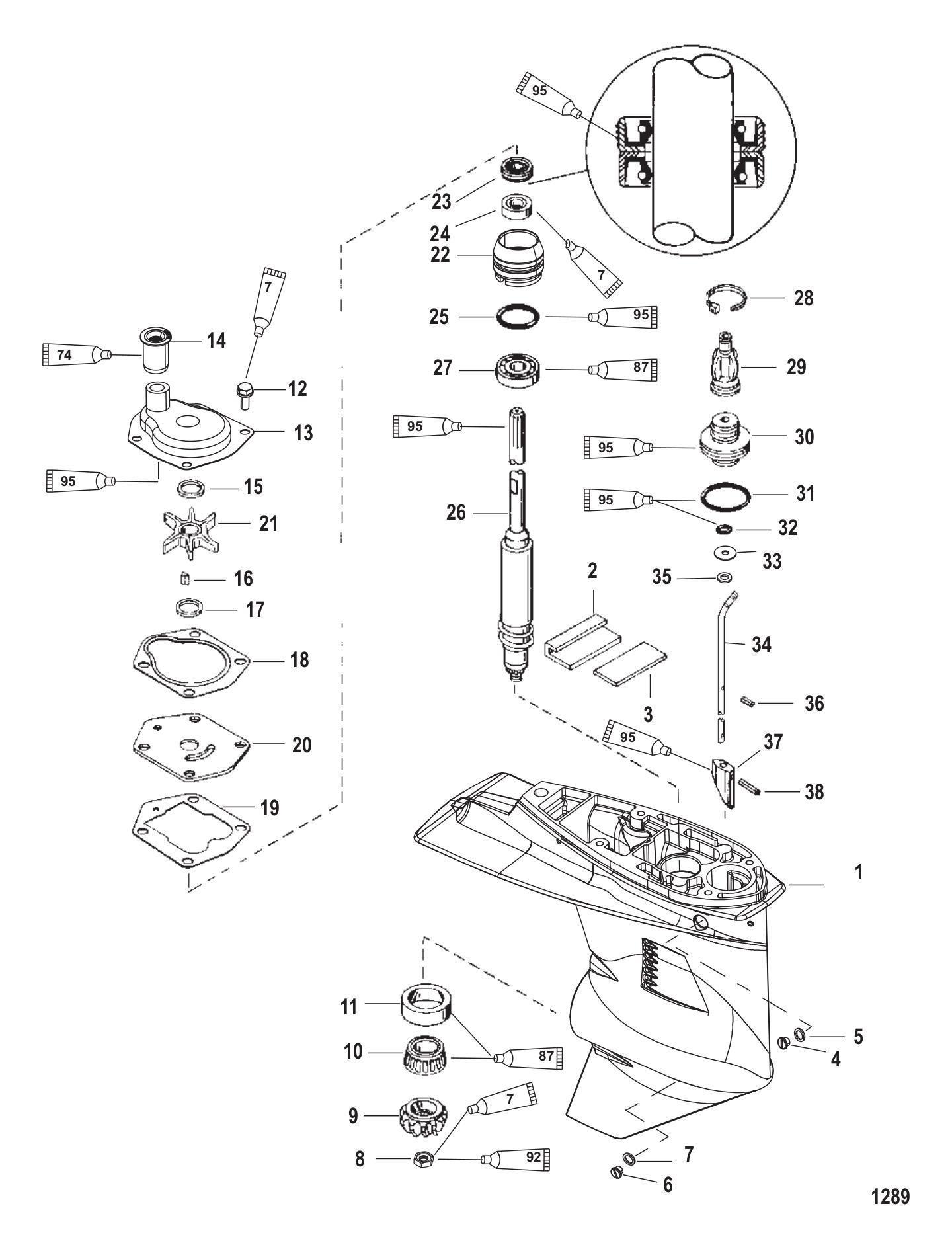

Gear Housing Driveshaft - 1.83:1 Gear Ratio - Non Bigfoot

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	821306T24	GC 30-50 4S BLK Black (1 required per assembly)
		1682-821306T24 - Gear Housing Assembly [ More info ] Unavailable
#-	821306T25	GEAR HSG ASSY-GR Gray (1 required per assembly)
		1682-821306T25 - Gear Housing Assembly [ More info ] Unavailable
#-	823547A2	SEAL KIT-GEAR HSG (1 required per assembly)
		823547A 2 - Gear Housing Seal Kit [ More info ] $112.38 5 In Stock.
#-	821354A2	REPAIR KIT-W/P (1 required per assembly)
		821354A 2 - Water Pump Repair Kit [ More info ] $71.49 9 In Stock.
		18-4531 - Water Pump Repair Kit without Housing, 821354A2 [ More info ] $61.49 $61.29 In Stock
		46-46367 - Water Pump Kit Without Key 821354A2 [ More info ] $61.59 $47.10 1 In Stock.
#1	821306T12	GEAR HOUSING ASSEMBLY BASIC Gray (1 required per assembly) — Replaces: 821306T13
		1682-821306T12 - Gear Housing - Housing Only [ More info ] $1,457.49 1 In Stock.
#2	818226A1	SEAL/PLATE KIT (1 required per assembly)
		818226A 1 - Plate Kit -Filler [ More info ] $7.19 4 In Stock.
#3	NSS	NOT SOLD SEPARATE PLATE (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#4	79953Q04	SCREW KIT DRAIN (1 required per assembly) — Replaces: 79953A2, 79953Q2
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 6 In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 10+ In Stock.
#5	191833	SEAL (1 required per assembly) — Replaces: 19183, 191832
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 10+ In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 10+ In Stock.
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#6	67892A06	PLUG KIT DRAIN - MAGNETIC (1 required per assembly) — Replaces: 67892A1, 67892A05
		22-67892A06 - Drain Plug Kit [ More info ] Unavailable
		22-8M0058389 - Screw Kit - Priced Individually [ More info ] $11.69 10+ In Stock.
		18-23751-9 - Drain Screw , Package of 50 [ More info ] $346.09 In Stock
		18-2375 - Plug, 22-67892A1 [ More info ] $7.16 10+ In Stock.
		10-02683 - Drain Screw [ More info ] $6.39 $6.03 10 In Stock.
#7	191833	SEAL (1 required per assembly) — Replaces: 19183, 191832
#8	55910	NUT (.437-20) (1 required per assembly)
		11-55910 - Nut, Special (7/16-20) [ More info ] $5.49 $4.40 10+ In Stock.
#9	822161T2	GEAR PINION (12 TEETH (1 required per assembly) — Replaces: 8221612
		43-822161T 2 - Gear, Pinion (12 Teeth) [ More info ] $184.49 Available to Order: Shipping delay up to 10 days.
#10	821321A2	BEARING ASSEMBLY (1 required per assembly)
		31-821321A 2 - Bearing Kit [ More info ] $36.49 Available to Order: Shipping delay up to 10 days.
#11	NSS	NOT SOLD SEPARATE CUP (1 required per assembly)
#12	8248324	SCREW (M6 X 16) (4 required per assembly)
		10-824832 4 - Screw [ More info ] $1.80 5 In Stock.
#13	821351A3	HOUSING ASSEMBLY WATER PUMP UPPER (1 required per assembly)
		46-821351A 3 - Water Pump Upper Housing [ More info ] $113.99 Available to Order: Shipping delay up to 10 days.
#14	8235471	SEAL (1 required per assembly)
		823547 1 - Seal - Water Tube [ More info ] $22.87 1 In Stock.
#15	8M0204722	WASHER (1 required per assembly) — Replaces: 8M0027721
		128M0204722 - WASHER [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#16	8M0032838	KEY @5 (1 required per assembly) — Replaces: 85119
		28-8M0032838 - Key - Priced Individually [ More info ] Unavailable
		288M0214993 - KEY Note: Priced Individually [ More info ] $3.69 10+ In Stock.
#17	8M0204722	WASHER (1 required per assembly) — Replaces: 8M0027721
#18	822189	GASKET UPPER WATER PUMP (1 required per assembly)
		27-822189 - Upper Water Pump Gasket [ More info ] $6.69 8 In Stock.
		18-0345 - Gasket [ More info ] $7.30 10+ In Stock.
#19	822217	GASKET LOWER WATER PUMP (1 required per assembly)
		27-822217 - Lower Water Pump Gasket [ More info ] Unavailable
		278M0214956 - Gasket [ More info ] $5.59 3 In Stock.
#20	8213542	FACE PLATE (1 required per assembly)
		821354 2 - Face Plate [ More info ] $19.59 Available to Order: Shipping delay up to 10 days.
#21	8M0204712	IMPELLER (1 required per assembly) — Replaces: 850893, 8508910
		47-8M0204712 - Impeller [ More info ] $39.49 4 In Stock.
#22	821307A2	BASE ASSEMBLY WATER PUMP (1 required per assembly)
		46-821307A 2 - Water Pump Base Kit [ More info ] $87.49 Available to Order: Shipping delay up to 10 days.
#23	821309	SEAL (1 required per assembly)
		26-821309 - Seal [ More info ] $8.79 Available to Order: Shipping delay up to 10 days.
		18-3013 - Seal, 26-821309 [ More info ] $2.19 $2.11 Available to Order: Shipping delay up to 10 days.
		26-8M0248704 - SEAL OIL [ More info ] Unavailable

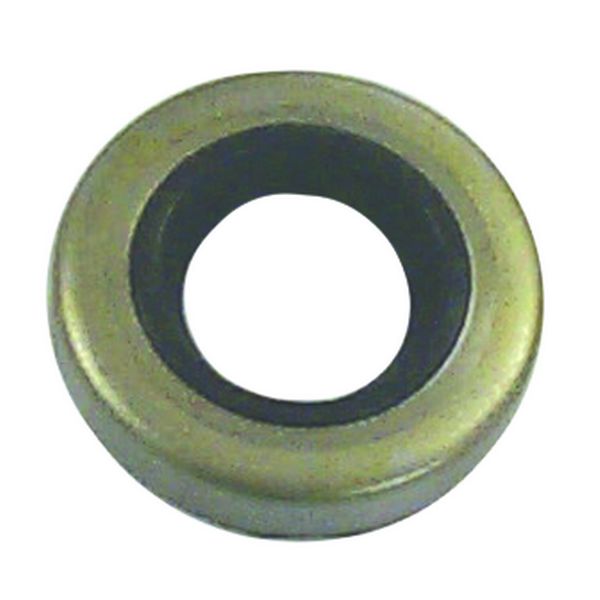

#24	821310	SEAL (1 required per assembly)
		26-821310 - Seal [ More info ] $7.49 2 In Stock.
#25	821308	O-RING (1.421 X .139) (1 required per assembly)
		25-821308 - O-ring, (1.421 X .139) [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#26	826194A1	DRIVESHAFT (1 required per assembly)
		45-826194A 1 - Drive Shaft Assembly - Long [ More info ] $443.86 $289.92 Available to Order: Shipping delay up to 10 days.
#27	821311	BEARING BALL (1 required per assembly)
		30-821311 - Ball Bearing [ More info ] $33.49 Available to Order: Shipping delay up to 10 days.
#28	8M0064024	CABLE TIE @100 (1 required per assembly) — Replaces: 823548, 823548T
		548M0064024 - Cable TIE , Priced Individually [ More info ] $1.20 $0.96 10+ In Stock.
#29	822158	BOOT (1 required per assembly)
		822158 - Shift Shaft Boot [ More info ] $14.39 3 In Stock.
#30	821827	RETAINER (1 required per assembly)
		821827 - Shift Shaft Retainer [ More info ] $19.29 2 In Stock.
#31	26855	O-RING (1.609 X .139) (1 required per assembly)
		25-26855 - O-ring, (1.609 X .139) [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
		18-7155 - O-Ring 25-26855 [ More info ] $9.95 $2.48 Available to Order: Shipping delay up to 10 days.
#32	85594	O-RING (.239 X .174) (1 required per assembly)
		25-85594 - O-ring, (.239 X .174) [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
		18-7100-9 - O-Ring (PK5) 301877 [ More info ] $12.74 Available to Order: Shipping delay up to 10 days.
#33	814803	WASHER (1 required per assembly)
		12-814803 - Washer [ More info ] $5.19 4 In Stock.
#34	827865A1	SHIFT SHAFT (1 required per assembly)
		827865A 1 - Shift Shaft Assembly [ More info ] $158.49 Available to Order: Shipping delay up to 10 days.
#35	8M0204649	WASHER @10 (1 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#36	85593	PIN (.078 X .437) (1 required per assembly)
		17-85593 - Pin (.078 x .437) [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#37	8213161	CAM SHIFT (1 required per assembly)
		821316 1 - Shift Cam [ More info ] $120.49 Available to Order: Shipping delay up to 10 days.
#38	822369	PIN (.125 X .625) (1 required per assembly)
		17-822369 - Coil Pin [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
