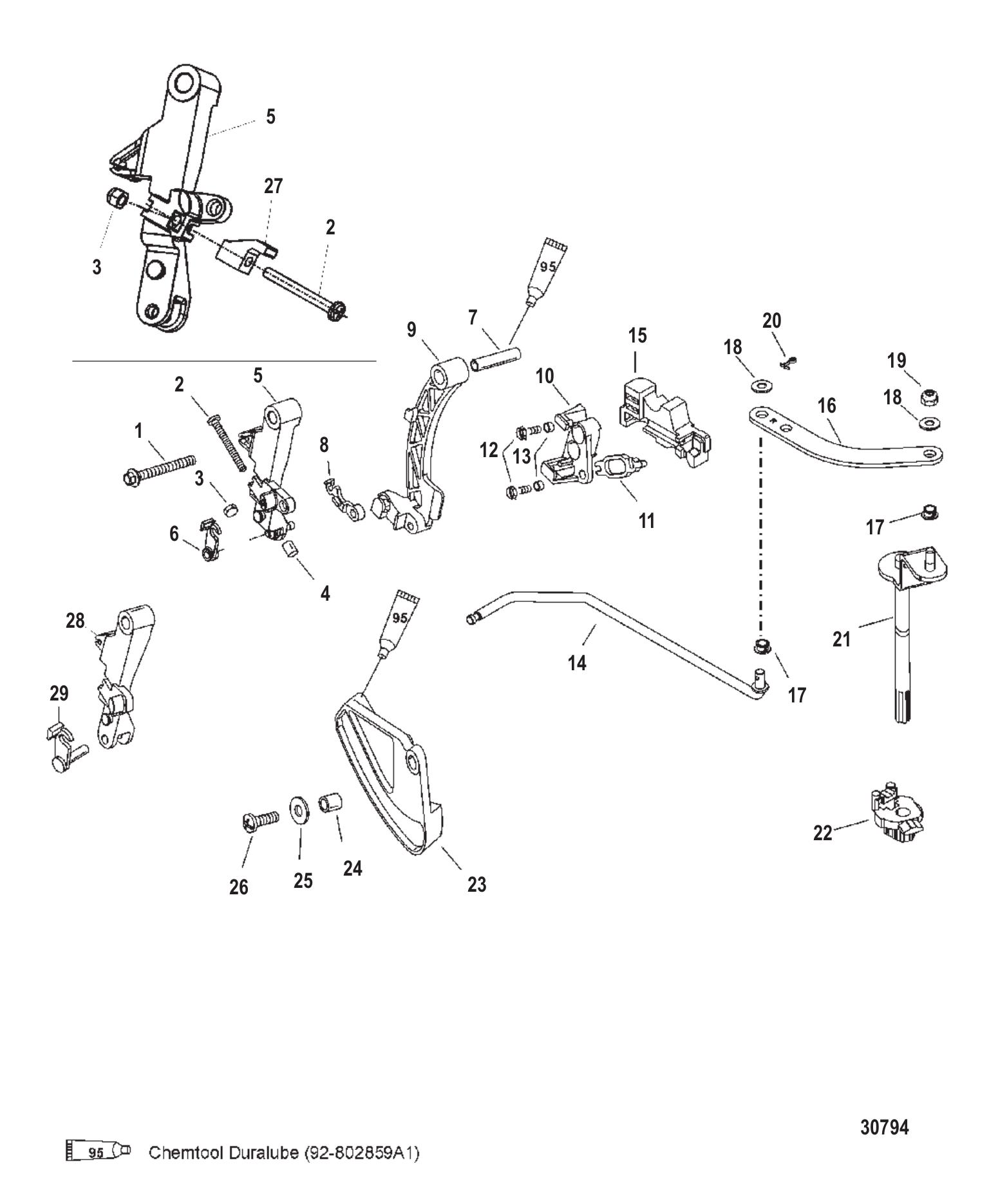

Parts for 40 HP Carb 4 Cyl 4-Stroke Mercury Outboard Motor Linkage (Remote)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 40011158 | SCREW (1 required per assembly) |
  |
|
10-40011158 - Screw [ More info ]
|
| #2 | 8147763 | SCREW (1 required per assembly) |
  |
|
10-814776 3 - Screw [ More info ]
|
| #3 | 401196 | NUT (1 required per assembly) |
  |
|
11-40119 6 - Nut [ More info ]
|
| #4 | 42942 | CAP (50/60) (1 required per assembly) |
  |
|
42942 - Nylon Cap [ More info ]
|
| #5 | 822682A4 | LEVER KT-THROTTLE (1 required per assembly) |
  |
|
822682A 4 - Throttle Lever Kit [ More info ]
|
| #6 | 883160 | RETAINER (1 required per assembly) |
  |
|
883160 - Retainer [ More info ]
|
| #7 | 825078 | BUSHING (1 required per assembly) |
  |
|
23-825078 - Bushing [ More info ]
|
| #8 | 822459 | RETAINER (1 required per assembly) |
  |
|
822459 - Retainer [ More info ]
|
| #9 | 8259571 | LEVER-SHIFT (1 required per assembly) |
  |
|
825957 1 - Shift Lever [ More info ]
|
| #10 | 827706A4 | BRACKET/GUIDE KIT (1 required per assembly) — Replaces: 827706 |
  |
|
827706A 4 - Bracket/Guide Kit [ More info ]
|
| #11 | 98889 | LATCH @5 (1 required per assembly) |
  |
|
|
| #12 | 8248324 | SCREW @5 (2 required per assembly) |
  |
|
10-824832 4 - Screw [ More info ]
|
| #13 | 15885 | SLEEVE (2 required per assembly) |
  |
|
23-15885 - Sleeve [ More info ]
|
| #14 | 893777 | ROD-SHIFT (1 required per assembly) — Replaces: 850162 |
  |
|
893777 - Shift Rod [ More info ]
|
| #15 | 827706A4 | BRACKET/GUIDE KIT (1 required per assembly) — Replaces: 8501631 |
| #16 | 893769A01 | LINK KIT-SHIFT (1 required per assembly) — Replaces: 850255A1 |
  |
|
893769A01 - Shift Link Kit [ More info ]
|
| #17 | 48475 | BUSHING (2 required per assembly) |
  |
|
23-48475 - Bushing [ More info ]
|
| #18 | 8M0204649 | WASHER @10 (2 required per assembly) — Replaces: 29245 |
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #19 | 401386 | NUT @5 (1 required per assembly) |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #20 | 210711 | COTTER PIN @2 (1 required per assembly) — Replaces: 21071 |
  |
|
0210711 [ More info ] Unavailable Replaced by 0210710 |
  |
|
[ More info ] Unavailable |
| #21 | 850166T2 | LEVER-SHIFT SHAFT (1 required per assembly) |
  |
|
850166T 2 - Shift Shaft Lever [ More info ]
|
| #22 | 850165 | BUSHING (1 required per assembly) |
  |
|
23-850165 - Bushing [ More info ]
|
| #23 | 8535853 | THROTTLE CAM (1 required per assembly) |
  |
|
853585 3 - Throttle Cam [ More info ]
|
| #24 | 309772 | SPACER (1 required per assembly) |
  |
|
23-30977 2 - Spacer [ More info ]
|
| #25 | 4002314 | WASHER @5 (1 required per assembly) |
  |
|
12-40023 14 - Washer - Priced Individually [ More info ]
|
| #26 | 40056107 | SCREW (1 required per assembly) |
  |
|
10-40056107 - Screw [ More info ]
|
| #27 | 881283F | SPACER (40) (1 required per assembly) |
  |
|
881283F - Spacer - Throttle Stop [ More info ] Unavailable |
| #28 | 822682A4 | LEVER KT-THROTTLE (1 required per assembly) |
| #29 | 826587 | RETAINER (1 required per assembly) |
  |
|
826587 - Retainer, NLA [ More info ] Unavailable |
