Parts for 40 HP Carb 4 Cyl 4-Stroke Mercury Outboard Motor Gear Housing (Prop Shaft) (1.83:1 Gear Ratio)

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP Carb 4 Cyl > 0T178500 - 0T598999 - USA > Gear Housing (Prop Shaft) (1.83:1 Gear Ratio)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Gear Housing (Prop Shaft) (1.83:1 Gear Ratio)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	9760T41	GC COMP 4CYL 4SLG (1 required per assembly)
		1671-9760T41 - Gear Housing Assembly [ More info ] Unavailable
#-	814669A2	SEAL KIT-G/H (1 required per assembly)
		26-814669A 2 - Gear Housing Seal Kit [ More info ] $77.05 1 In Stock.
		18-2635 - Seal Kit, 26-814669A2 [ More info ] $66.91 10+ In Stock.
#1	9760T42	GEAR HOUSING ASSEMBLY BASIC (1 required per assembly)
		1671-9760T42 - Gear Housing Only, No Gears or Shafting [ More info ] $1,749.99 1 In Stock.
#37	8M0063263	SHIM SET (AR required per assembly) — Replaces: 812769A1
		158M0063263 - Shim Set [ More info ] $74.49 Available to Order: Shipping delay up to 10 days.
#38	8M0103476	BEARING ASSY (1 required per assembly) — Replaces: 812767A1
		31-8M0103476 - Bearing Assembly [ More info ] $52.99 Available to Order: Shipping delay up to 10 days.
#39	NSS	NOT SOLD SEPARATE (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#40	859101T2	GEAR FORWARD - 22 TEETH (1 required per assembly)
		43-859101T 2 - Forward Gear [ More info ] $426.49 Available to Order: Shipping delay up to 10 days.
#41	21739	BEARING ROLLER (1 required per assembly)
		31-21739 - Roller Bearing - Forward Gear [ More info ] $18.59 10+ In Stock.
#42	8129291	FOLLOWER CAM (1 required per assembly)
		812929 1 - Cam - Follower [ More info ] $66.49 Available to Order: Shipping delay up to 10 days.
#43	20843	SLIDE (1 required per assembly)
		20843 - Cross Slide [ More info ] $24.39 $23.36 5 In Stock.
#44	38114	SPRING (1 required per assembly)
		24-38114 - Spring, Retaining - Cross Pin [ More info ] $4.49 1 In Stock.
#45	813697T	CLUTCH (1 required per assembly)
		52-813697T - Clutch [ More info ] $91.99 Available to Order: Shipping delay up to 10 days.
#46	8M0020942	PIN-CROSS @2 (1 required per assembly) — Replaces: 38113
		17-8M0020942 - Pin -cross - Priced Individually [ More info ] $4.49 1 In Stock.
#47	815418	SPRING (1 required per assembly)
		24-815418 - Spring [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#48	14493	PROPELLER SHAFT (1 required per assembly)
		44-14493 - Prop Shaft [ More info ] $425.49 Available to Order: Shipping delay up to 10 days.
#49	859104T	GEAR REVERSE - 22 TEETH (1 required per assembly)
		43-859104T - Reverse Gear [ More info ] $250.99 Available to Order: Shipping delay up to 10 days.
#50	20839T	BEARING BALL (1 required per assembly)
		30-20839T - Ball Bearing [ More info ] Unavailable
		18-1190 - Bearing, 30-20839T [ More info ] $66.26 2 In Stock.
		31-02116 - Ball Bearing EMP [ More info ] $66.99 $51.23 3 In Stock.
#51	8M0168900	BEARING CARRIER (1 required per assembly) — Replaces: 19291A3
		8M0168900 - Bearing Carrier [ More info ] $311.49 Available to Order: Shipping delay up to 10 days.
		18-2370 - Bearing Carrier, 19291A3 [ More info ] $240.51 10+ In Stock.
#52	815460	O-RING (1 required per assembly)
		25-815460 - O-ring, Bearing Carrier [ More info ] $2.99 8 In Stock.
#53	21700	BEARING NEEDLE (1 required per assembly)
		31-21700 - Roller Bearing - Bearing Carrier [ More info ] $19.29 2 In Stock.
#54	8M0205511	SEAL (1 required per assembly) — Replaces: 69188
		26-8M0205511 - Prop Shaft Oil Seal, Outboard [ More info ] $19.29 7 In Stock.

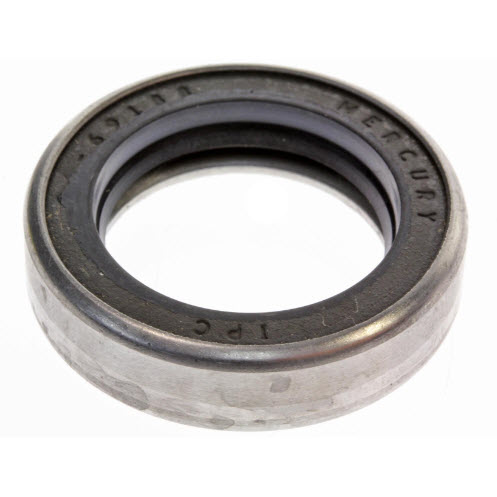

#55	8M0203757	SEAL (1 required per assembly) — Replaces: 69189
		26-8M0203757 - Bearing Carrier Oil Seal, Outboard [ More info ] $19.55 5 In Stock.
#56	85594030	SCREW (M8 X 30) (2 required per assembly)
		10-855940 30 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#57	855941	WASHER (.323 X .590 X .112) STAINLESS STEEL (2 required per assembly)
		12-855941 - Washer, (.323 X .590 X .112) Stainless Steel [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#58	8227731	INSERT THREADED (2 required per assembly)
		822773 1 - Insert [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#59	NSS	NOT SOLD SEPARATE (1 required per assembly)
#60	17264T2	TRIM TAB (1 required per assembly)
		17264T 2 - Trim Tab [ More info ] $32.89 5 In Stock.
#61	4000377	SCREW @5 (1 required per assembly)
		10-40003 77 - Screw [ More info ] Unavailable
#62	856774	WASHER @5 (1 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#63	73345A1	THRUST WASHER (1 required per assembly)
		73345A 1 - Thrust Washer [ More info ] $18.21 $17.47 10+ In Stock.
#64	69578Q1	PROP NUT KIT@2 (1 required per assembly)
		11-69578Q 1 - Prop Nut Kit - Priced Individually [ More info ] $17.12 2 In Stock.
		18-3704 - Nut, 11-69578 [ More info ] $21.79 1 In Stock.
		18-3702 - Nut Kit, 11-69578Q1 [ More info ] $15.99 $15.62 5 In Stock.
		11-69578T 1 - Prop Nut Kit - Priced Individually [ More info ] $16.72 Available to Order: Shipping delay up to 10 days.
#65	76281	TAB WASHER (1 required per assembly)
		14-76281 - Tab Washer - Priced Individually [ More info ] $2.99 10+ In Stock.
		18-3204-9 - Washer, 14-76281, 10PK [ More info ] $17.49 $11.83 Available to Order: Shipping delay up to 10 days.
		14-76281Q - Tab Washer - Priced Individually [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
		14-8M0214942 - Prop Tab Washer, Priced Individually [ More info ] $6.09 10+ In Stock.
#66	856774	WASHER @5 (4 required per assembly)
#67	4000380	SCREW @5 (4 required per assembly)
		10-40003 80 - Screw [ More info ] $5.29 2 In Stock.
