Parts for 3.0L EFI Marathon 2-Stroke EFI Mercury Outboard Motor Swivel Bracket & Steering Arm

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > 3.0L EFI Marathon > 0T409000 - 0T800999 - USA > Swivel Bracket & Steering Arm

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

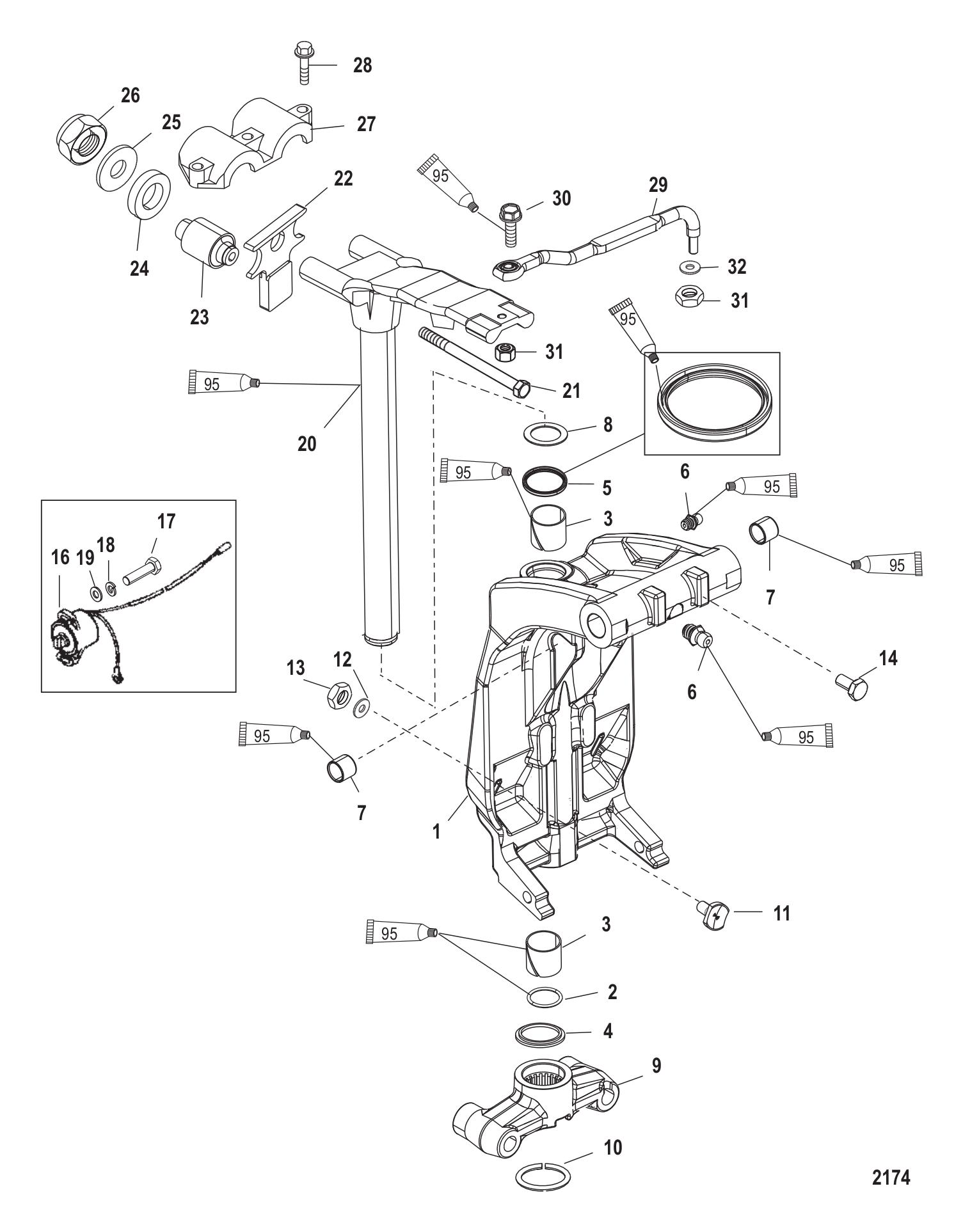

Swivel Bracket & Steering Arm

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0102865	BRACKET-SWIVEL-BL (1 required per assembly) — Replaces: 8710T20
		14998M0102865 - Swivel Bracket, Black [ More info ] $1,600.99 Available to Order: Shipping delay up to 10 days.
#2	33504	O-RING (1 required per assembly)
		25-33504 - O-Ring - Priced Individually [ More info ] $1.99 $1.20 10+ In Stock.
		258M0214926 - O RING Priced Individually [ More info ] $2.89 10+ In Stock.
#3	818764	BUSHING (2 required per assembly)
		23-818764 - Bushing [ More info ] $31.92 4 In Stock.
#4	816039	SPACER (1 required per assembly)
		23-816039 - Spacer - Swivel Bracket [ More info ] $13.89 4 In Stock.
#5	87735	SEAL OIL (LOWER) (1 required per assembly)
		26-87735 - Seal [ More info ] $30.64 2 In Stock.
#6	8M0169589	FITTING GREASE (2 required per assembly) — Replaces: 74036
		228M0169589 - Fitting Note: Priced Individually [ More info ] $4.79 1 In Stock.
#7	821207	BUSHING (2 required per assembly)
		23-821207 - Bushing [ More info ] $12.79 4 In Stock.
#8	816432	THRUST WASHER (1 required per assembly)
		12-816432 - Washer, Thrust [ More info ] $6.99 5 In Stock.
#9	814084F1	YOKE-BOTTOM-BLACK (LONG - CARBON STEEL) (1 required per assembly)
		814084F 1 - Bottom Yoke - Black [ More info ] Unavailable
#9	826364T	YOKE-BOTTOM (XL-STAINLESS STEEL) (1 required per assembly) — Replaces: 826364F1
		826364T - Yoke -bottom [ More info ] $485.99 Available to Order: Shipping delay up to 10 days.
#10	67684	RING-RETAIN @2 (1 required per assembly)
		53-67684 - Ring - Retaining [ More info ] $4.49 6 In Stock.
#11	8M0045383	STRIKER PLATE (2 required per assembly) — Replaces: 996301
		8M0045383 - Striker Plate [ More info ] $12.29 Available to Order: Shipping delay up to 10 days.
#12	58643	LOCKWASHER (2 required per assembly)
		13-58643 - LockWasher [ More info ] $1.80 $1.30 10+ In Stock.
#13	46335	NUT (2 required per assembly)
		11-46335 - Nut (.375-24) [ More info ] $2.97 Available to Order: Shipping delay up to 10 days.
#14	64014	SCREW (2 required per assembly)
		10-64014 - Screw [ More info ] $1.82 Available to Order: Shipping delay up to 10 days.
#15	NSS	NOT SOLD SEPARATE DECAL-SERIAL OVERLAMINATE (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#16	8M0074846	ORDER 8M0098273 (1 required per assembly) — Replaces: 821180A6
		8M0074846 - Trim Sender [ More info ] Unavailable
		8M0098273 - Trim Sender - [ More info ] $81.83 Available to Order: Shipping delay up to 10 days.
#17	852368	SCREW (2 required per assembly)
		10-852368 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#18	26996	LOCKWASHER @15 (2 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#19	89302	WASHER @5 (2 required per assembly)
		12-89302 - Washer (.203 X .406 X .040) [ More info ] $1.80 10+ In Stock.
#20	8M0132731	SWIVEL PIN ASSY (XL-STAINLESS STEEL) (1 required per assembly) — Replaces: 67706A55, 826432A2
		178M0132731 - Swivel Pin Assembly [ More info ] $1,042.49 Available to Order: Shipping delay up to 10 days.
#21	8M0141069	SCREW (2 required per assembly) — Replaces: 816386, 8M0000517
		108M0141069 - Screw [ More info ] $17.49 Available to Order: Shipping delay up to 10 days.
#22	824998001	BUMPER (1 required per assembly) — Replaces: 824998
		824998001 - Bumper [ More info ] $15.29 Available to Order: Shipping delay up to 10 days.
#23	8163851	MOUNT (2 required per assembly)
		816385 1 - Mount [ More info ] $93.94 1 In Stock.
#24	8154371	WASHER (2 required per assembly)
		12-815437 1 - Washer [ More info ] $6.39 Available to Order: Shipping delay up to 10 days.
#25	815436	WASHER (2 required per assembly)
		12-815436 - Washer [ More info ] $8.99 Available to Order: Shipping delay up to 10 days.
#26	896963	NUT @6 (2 required per assembly) — Replaces: 859129
		11-896963 - Nut, (M12) [ More info ] $6.09 3 In Stock.
#27	8M0036783	CLAMP (1 required per assembly) — Replaces: 813769
		8M0036783 - Clamp [ More info ] $51.99 Available to Order: Shipping delay up to 10 days.
#28	81893435	SCREW (3 required per assembly)
		10-818934 35 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
		108M0103814 - Screw (M8 x 35 MM) [ More info ] $4.19 6 In Stock.
#29	92876A12	LINK ROD KIT (1 required per assembly) — Replaces: 92876A10
		92876A12 - Link Rod Assembly [ More info ] Unavailable
#30	849838	SCREW (1 required per assembly)
		10-849838 - Screw [ More info ] $22.61 6 In Stock.
#31	8M0204726	NUT-BRASS @3 (2 required per assembly) — Replaces: 826709113, 8M0042636
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 10 In Stock.
#32	37828	WASHER (2 required per assembly)
		12-37828 - Washer, (.390 X .625 X .062) Stainless Steel [ More info ] $0.80 2 In Stock.
