Parts for 40 HP Carb 3 Cyl 4-Stroke Mercury Outboard Motor Bottom Cowl

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP Carb 3 Cyl > 1B227000 - 1B344306 - USA > Bottom Cowl

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

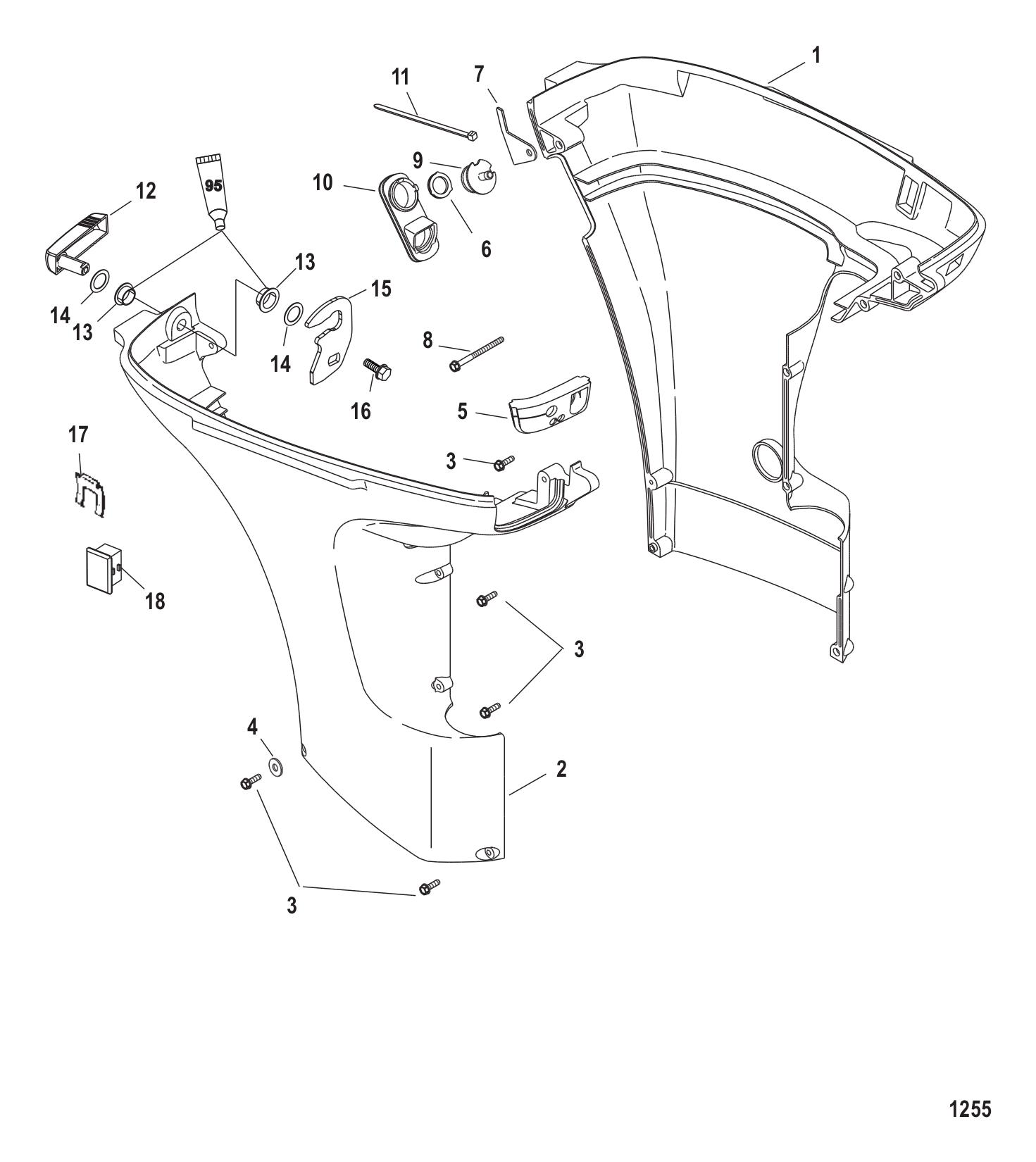

Bottom Cowl

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	852554T1	COWL-BOT-PORT-BLK (Short-Port) (1 required per assembly)
		4020-852554T 1 - Bottom Cowl, Port, Black [ More info ] Unavailable
#1	826277T1	COWL-BOT-PORT-BLK (Long-Port) (1 required per assembly)
		4020-826277T 1 - Cowl -bot- Port- Black [ More info ] $974.99 Available to Order: Shipping delay up to 10 days.
#2	852555T5	COWL-STBD BOTTOM (Short-Starboard) (1 required per assembly)
		4020-852555T 5 - Bottom Cowl, Starboard, Black [ More info ] Unavailable
#2	826278T7	COWL-BL STBD BOTM (Long-Starboard) (1 required per assembly)
		4020-826278T 7 - Bottom Cowl, Starboard, Black [ More info ] $1,077.71 Available to Order: Shipping delay up to 10 days.
#3	82684430	SCREW @5 (6 required per assembly)
		10-826844 30 - Screw - Priced Individually [ More info ] $2.69 10 In Stock.
#4	8M0204649	WASHER @10 (1 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#5	825238002	SEAL (1 required per assembly)
		825238002 - Seal [ More info ] Unavailable
#6	855576	WASHER (1 required per assembly)
		12-855576 - Washer [ More info ] Unavailable
#7	855627	GASKET (1 required per assembly)
		27-855627 - Gasket [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
#8	82684460	SCREW (1 required per assembly)
		10-826844 60 - Screw [ More info ] $13.59 Available to Order: Shipping delay up to 10 days.
#9	827948	FITTING-TELLTALE (1 required per assembly)
		22-827948 - Fitting -Telltale [ More info ] $39.49 Available to Order: Shipping delay up to 10 days.
#10	826273001	BOOT (1 required per assembly)
		826273001 - Boot [ More info ] $48.64 1 In Stock.
#11	816311T	TIE STRAP @100 (2 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#12	825782F1	LEVER-BLACK (1 required per assembly)
		825782F 1 - Lever - Black [ More info ] Unavailable
#13	812707	BUSHING (2 required per assembly)
		23-812707 - Bushing [ More info ] $8.29 2 In Stock.
#14	12134	WASHER-WAVE (2 required per assembly)
		13-12134 - Wave Washer [ More info ] Unavailable
#15	893766	HOOK-LATCH (1 required per assembly) — Replaces: 825783
		893766 - Latch Hook [ More info ] $35.99 Available to Order: Shipping delay up to 10 days.
#16	1993716	SCREW (1 required per assembly)
		10-19937 16 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#17	8M0032848	RETAINER (1 required per assembly) — Replaces: 8124431
		8M0032848 - Retainer [ More info ] $10.99 Available to Order: Shipping delay up to 10 days.
#18	812830T01	CAP-SWITCH LG (1 required per assembly) — Replaces: 8128301
		812830T01 - Cap - Switch Lg [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.
