Parts for 40 HP Carb 3 Cyl 4-Stroke Mercury Outboard Motor Linkage (Non Bigfoot)

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP Carb 3 Cyl > 0T409000 - 1B226999 - USA > Linkage (Non Bigfoot)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

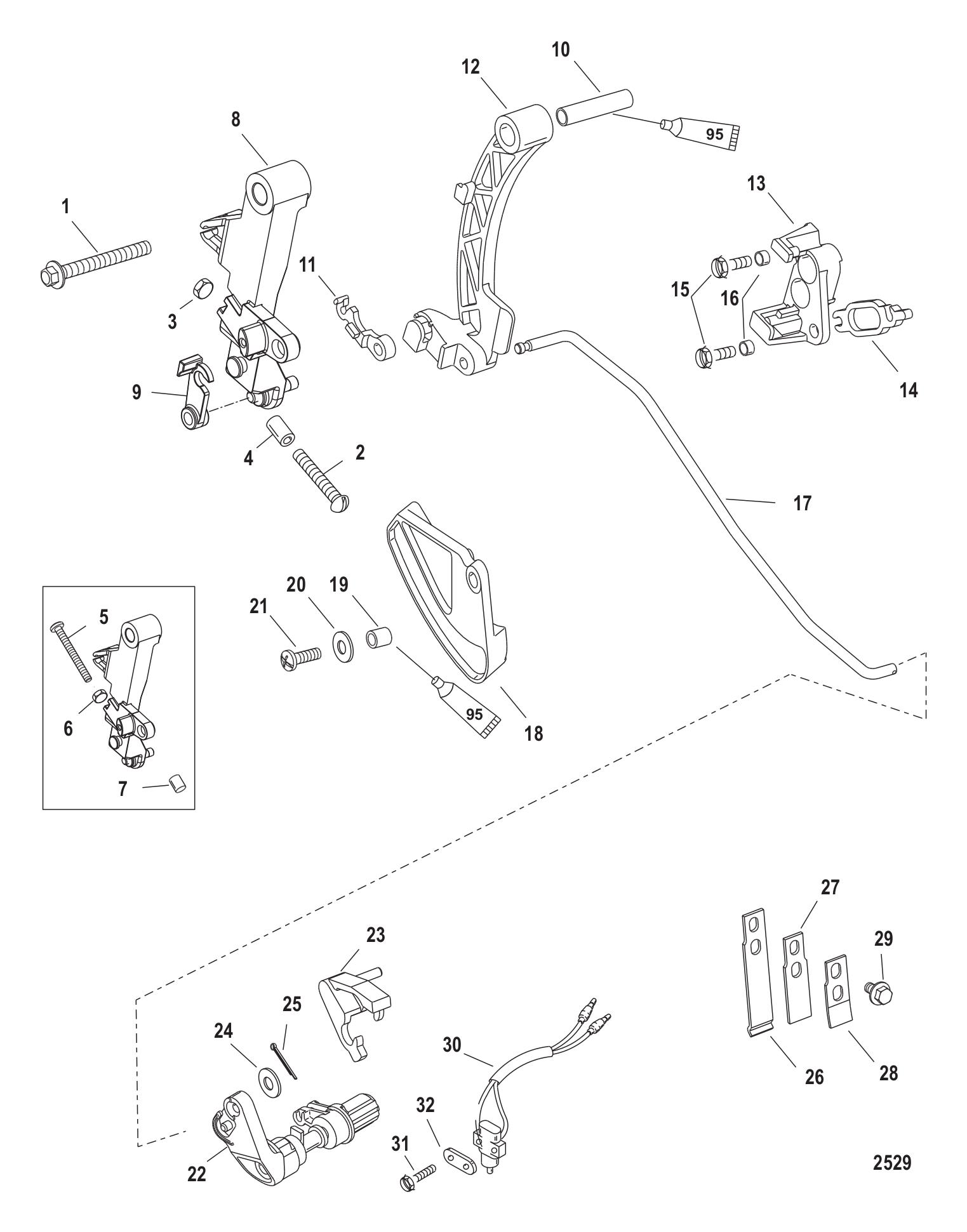

Linkage (Non Bigfoot)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	40011158	SCREW (1 required per assembly)
		10-40011158 - Screw [ More info ] $8.89 Available to Order: Shipping delay up to 10 days.
#2	8147763	SCREW (30 HP) (1 required per assembly)
		10-814776 3 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#3	401196	NUT (30 HP) (1 required per assembly)
		11-40119 6 - Nut [ More info ] $3.06 Available to Order: Shipping delay up to 10 days.
#4	823807	BUSHING (30 HP) (1 required per assembly)
		23-823807 - Bushing [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#5	8147763	SCREW (40 HP) (1 required per assembly)
#6	401196	NUT (40 HP) (1 required per assembly)
#7	42942	CAP (40 HP) (1 required per assembly)
		42942 - Nylon Cap [ More info ] $1.90 Available to Order: Shipping delay up to 10 days.
#8	822682A4	LEVER KT-THROTTLE (1 required per assembly)
		822682A 4 - Throttle Lever Kit [ More info ] $42.99 Available to Order: Shipping delay up to 10 days.
#9	883160	RETAINER (1 required per assembly)
		883160 - Retainer [ More info ] $9.39 Available to Order: Shipping delay up to 10 days.
#10	825078	BUSHING (1 required per assembly)
		23-825078 - Bushing [ More info ] $27.69 Available to Order: Shipping delay up to 10 days.
#11	822459	RETAINER (NON HANDLE) (1 required per assembly)
		822459 - Retainer [ More info ] $18.59 Available to Order: Shipping delay up to 10 days.
#12	8259571	LEVER-SHIFT (NON HANDLE) (1 required per assembly)
		825957 1 - Shift Lever [ More info ] $36.99 Available to Order: Shipping delay up to 10 days.
#13	827706A4	BRACKET/GUIDE KIT (NON HANDLE) (1 required per assembly) — Replaces: 827706
		827706A 4 - Bracket/Guide Kit [ More info ] $27.19 Available to Order: Shipping delay up to 10 days.
#14	98889	LATCH @5 (NON HANDLE) (1 required per assembly)
		98889 - Latch [ More info ] $3.79 6 In Stock.
#15	8248324	SCREW @5 (NON HANDLE) (2 required per assembly)
		10-824832 4 - Screw [ More info ] $1.80 5 In Stock.
#16	15885	SLEEVE (NON HANDLE) (2 required per assembly)
		23-15885 - Sleeve [ More info ] $13.99 Available to Order: Shipping delay up to 10 days.
#17	882820	ROD-SHIFT (NON HANDLE) (1 required per assembly)
		882820 - Shift Rod [ More info ] Unavailable
#18	8535853	THROTTLE CAM (1 required per assembly)
		853585 3 - Throttle Cam [ More info ] $24.89 Available to Order: Shipping delay up to 10 days.
#19	309772	SPACER (1 required per assembly)
		23-30977 2 - Spacer [ More info ] $4.79 2 In Stock.
#20	4002314	WASHER @5 (1 required per assembly)
		12-40023 14 - Washer - Priced Individually [ More info ] $3.69 $2.96 10+ In Stock.
#21	40056107	SCREW (1 required per assembly)
		10-40056107 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#22	826588A4	SHAFT ASSY-SHIFT (1 required per assembly)
		826588A 4 - Shift Shaft Assembly [ More info ] $114.49 Available to Order: Shipping delay up to 10 days.
#23	8277071	RETAINER (1 required per assembly)
		827707 1 - Clip [ More info ] Unavailable
#24	8M0204649	WASHER @10 (1 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#25	210711	COTTER PIN @2 (1 required per assembly)
		0210711 [ More info ] Unavailable Replaced by 0210710
		[ More info ] Unavailable
#26	826077	SPRING (1 required per assembly)
		24-826077 - Spring, Detent [ More info ] $18.29 Available to Order: Shipping delay up to 10 days.
#27	824993	SPRING (2 required per assembly)
		24-824993 - Spring, Backing [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#28	824994	PLATE-SPRING (1 required per assembly)
		824994 - Spring, Plate [ More info ] $17.29 Available to Order: Shipping delay up to 10 days.
#29	40011107	SCREW @5 (2 required per assembly)
		10-40011107 - SCREW [ More info ] $1.80 2 In Stock.
#30	8M0052927	SWITCH ASSY (ELECTRIC HANDLE MODELS) (1 required per assembly) — Replaces: 813960A3
		878M0052927 - Switch Assembly [ More info ] $109.99 Available to Order: Shipping delay up to 10 days.
#31	88075020	SCREW (ELECTRIC HANDLE MODELS) (2 required per assembly)
		10-880750 20 - Screw [ More info ] $1.50 $0.85 10+ In Stock.
#32	824923	PLATE (ELECTRIC HANDLE MODELS) (1 required per assembly)
		824923 - Switch Plate [ More info ] $9.89 $7.92 10+ In Stock.
