Parts for 40 HP Carb 3 Cyl 4-Stroke Mercury Outboard Motor Linkage (Manual Bigfoot)

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP Carb 3 Cyl > 0T409000 - 1B226999 - USA > Linkage (Manual Bigfoot)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

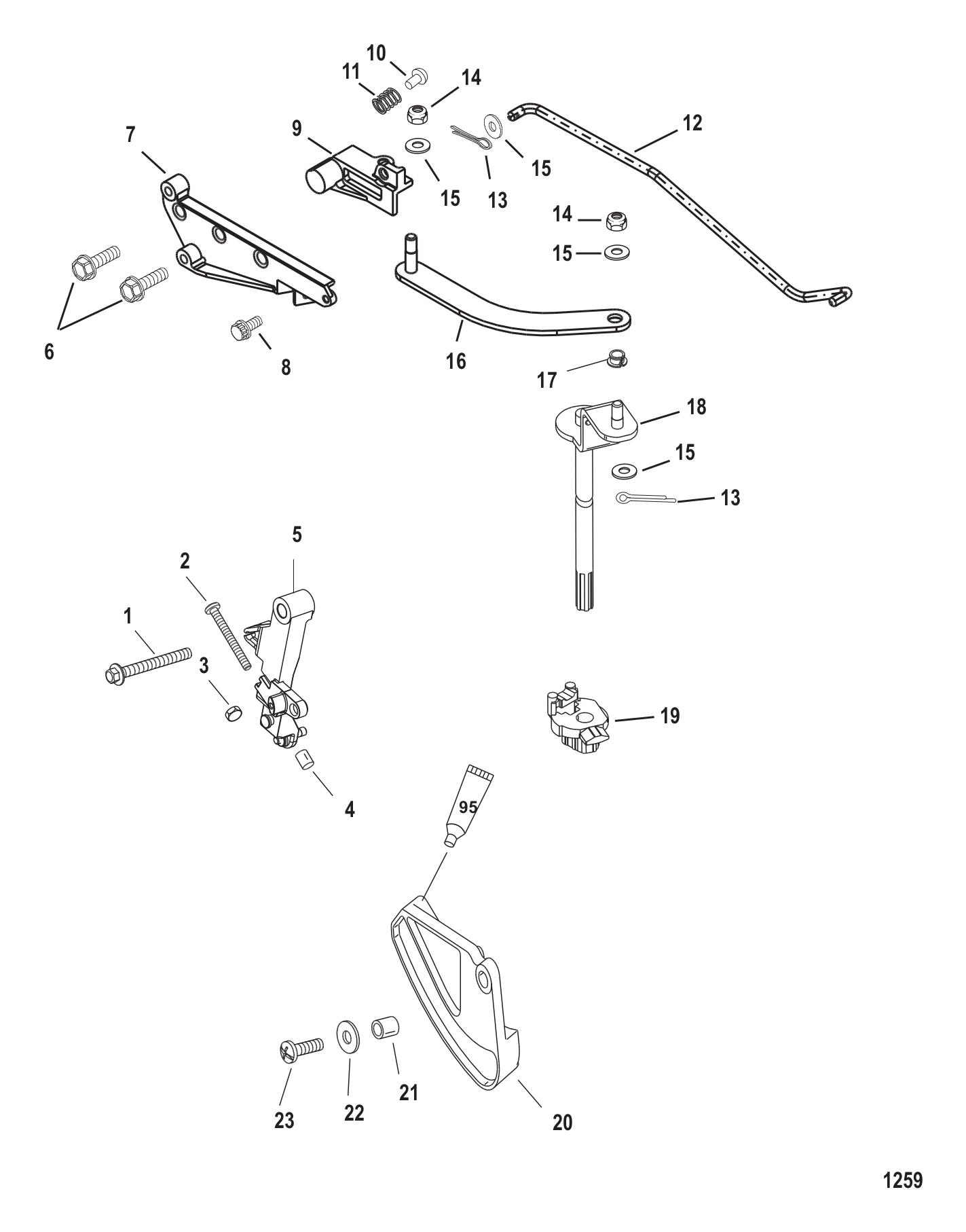

Linkage (Manual Bigfoot)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	40011158	SCREW (1 required per assembly)
		10-40011158 - Screw [ More info ] $8.89 Available to Order: Shipping delay up to 10 days.
#2	8147763	SCREW (1 required per assembly)
		10-814776 3 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#3	401196	NUT (1 required per assembly)
		11-40119 6 - Nut [ More info ] $3.06 Available to Order: Shipping delay up to 10 days.
#4	42942	CAP (1 required per assembly)
		42942 - Nylon Cap [ More info ] $1.90 Available to Order: Shipping delay up to 10 days.
#5	822682A4	LEVER KT-THROTTLE (1 required per assembly)
		822682A 4 - Throttle Lever Kit [ More info ] $42.99 Available to Order: Shipping delay up to 10 days.
#6	8248326	SCREW (2 required per assembly)
		10-824832 6 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#7	858245	GUIDE-SHIFT (1 required per assembly)
		858245 - Guide - Shift [ More info ] $225.99 Available to Order: Shipping delay up to 10 days.
#8	82239312	SCREW (1 required per assembly)
		10-822393 12 - SCREW (M5 x 12) [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#9	858246	SLIDE-SHIFT (1 required per assembly)
		858246 - Shift Slide [ More info ] $34.49 Available to Order: Shipping delay up to 10 days.
#10	12016A2	ORDER 8M0091388 (1 required per assembly)
		12016A 2 - Detent/Spring Kit [ More info ] Unavailable
#11	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#12	858247	ROD-SHIFT (1 required per assembly)
		858247 - Shift Rod [ More info ] $53.99 $51.52 1 In Stock.
#13	210711	COTTER PIN @2 (2 required per assembly)
		0210711 [ More info ] Unavailable Replaced by 0210710
		[ More info ] Unavailable
#14	401386	NUT @5 (2 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#15	8M0204649	WASHER @10 (4 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#16	858248	LINK-SHIFT (1 required per assembly)
		858248 - Shift Link [ More info ] $81.24 1 In Stock.
#17	48475	BUSHING (1 required per assembly)
		23-48475 - Bushing [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#18	850166T2	LEVER-SHIFT SHAFT (1 required per assembly)
		850166T 2 - Shift Shaft Lever [ More info ] $119.99 $101.62 5 In Stock.
#19	850165	BUSHING (1 required per assembly)
		23-850165 - Bushing [ More info ] $11.29 1 In Stock.
#20	8535853	THROTTLE CAM (1 required per assembly)
		853585 3 - Throttle Cam [ More info ] $24.89 Available to Order: Shipping delay up to 10 days.
#21	309772	SPACER (1 required per assembly)
		23-30977 2 - Spacer [ More info ] $4.79 2 In Stock.
#22	4002314	WASHER @5 (1 required per assembly)
		12-40023 14 - Washer - Priced Individually [ More info ] $3.69 $2.96 10+ In Stock.
#23	40056107	SCREW (1 required per assembly)
		10-40056107 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
