Parts for 40 HP Carb 3 Cyl 4-Stroke Mercury Outboard Motor Electrical Components

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP Carb 3 Cyl > 0P401000 & Up - Belgium > Electrical Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

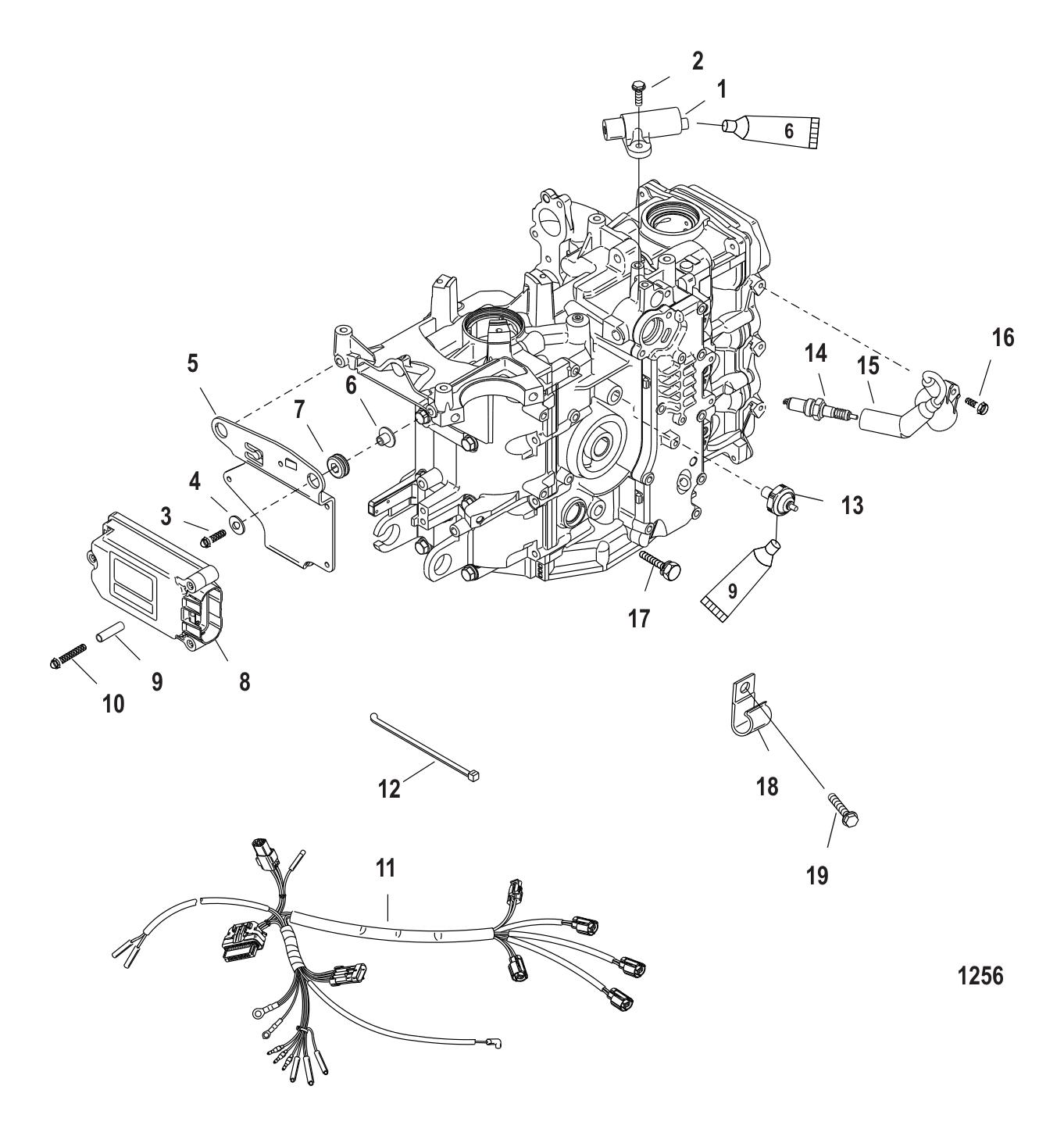

Electrical Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	803017T01	PH 30/40 3CYL 4S (Short) (1 required per assembly)
		61-803017T01 - Powerhead 30/40 3 Cylinder 4S [ More info ] Unavailable
#-	803016T06	PH 40EFI 4S (Long) (1 required per assembly)
		61-803016T06 - PH 40EFI 4S [ More info ] Unavailable
#1	8M0082988	SENSOR ASSY (1 required per assembly) — Replaces: 8283582, 8M0030022
		8M0082988 - Sensor Assembly [ More info ] $120.49 $115.99 In Stock
#2	40011107	SCREW @5 (2 required per assembly)
		10-40011107 - SCREW [ More info ] $1.80 2 In Stock.
#3	82130025	SCREW @5 (3 required per assembly)
		10-821300 25 - Screw [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#4	4002316	WASHER @5 (3 required per assembly)
		12-40023 16 - Washer - Priced Individually [ More info ] $1.17 2 In Stock.
		128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ] $1.00 1 In Stock.
#5	859224	PLATE (1 required per assembly)
		859224 - Plate [ More info ] $42.49 Available to Order: Shipping delay up to 10 days.
#6	856954	BUSHING (3 required per assembly)
		23-856954 - Bushing [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#7	834985	GROMMET @5 (3 required per assembly)
		25-834985 - Grommet [ More info ] Unavailable
		25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ] $3.89 Available to Order: Shipping delay up to 10 days.
#8	87843302S	ECM F30/40 (1 required per assembly)
		87843302S - ORD 8M0096533 [ More info ] Unavailable
#9	8539201	BUSHING (3 required per assembly)
		23-853920 1 - Bushing [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#10	82129140	SCREW (3 required per assembly)
		10-821291 40 - Screw [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#11	859196T1	HARNESS-ENGINE (1 required per assembly)
		84-859196T 1 - Engine Harness [ More info ] $333.49 Available to Order: Shipping delay up to 10 days.
#12	816311T	TIE STRAP @100 (AR required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#13	8M0098207	SWITCH-PRESSURE (1 required per assembly) — Replaces: 8280401, 8M0070107
		87-8M0098207 - Pressure Switch [ More info ] $36.27 3 In Stock.
#14	827858Q	PG DPR6EA-9 @10 (3 required per assembly) — Replaces: 827858
		33-827858Q - DPR6EA-9 - Priced Individually [ More info ] Unavailable
		DPR6EA-9 - NGK Spark Plug, 5531 [ More info ] $4.99 $4.84 10+ In Stock.
#15	858942T1	COIL-IGNITION (3 required per assembly)
		339-858942T 1 - Ignition Coil [ More info ] $118.49 Available to Order: Shipping delay up to 10 days.
#16	8M0204741	SCREW @4 (3 required per assembly) — Replaces: 40011128, 8M4503518
		108M0204741 - SCREW Note: Priced Individually [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#17	8248324	SCREW @5 (1 required per assembly)
		10-824832 4 - Screw [ More info ] $1.80 5 In Stock.
#18	55098	J CLIP @5 (1 required per assembly)
		54-55098 - J Clip - Priced Individually [ More info ] $4.90 5 In Stock.
		54-8M0024808 - J-CLIP [ More info ] Unavailable
#19	40011149	SCREW (1 required per assembly)
		10-40011149 - Screw [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
