Parts for 40 HP Carb 4-Stroke Mercury Outboard Motor Flywheel

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP Carb > 0P017000 - 0P153499 - Belgium > Flywheel

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

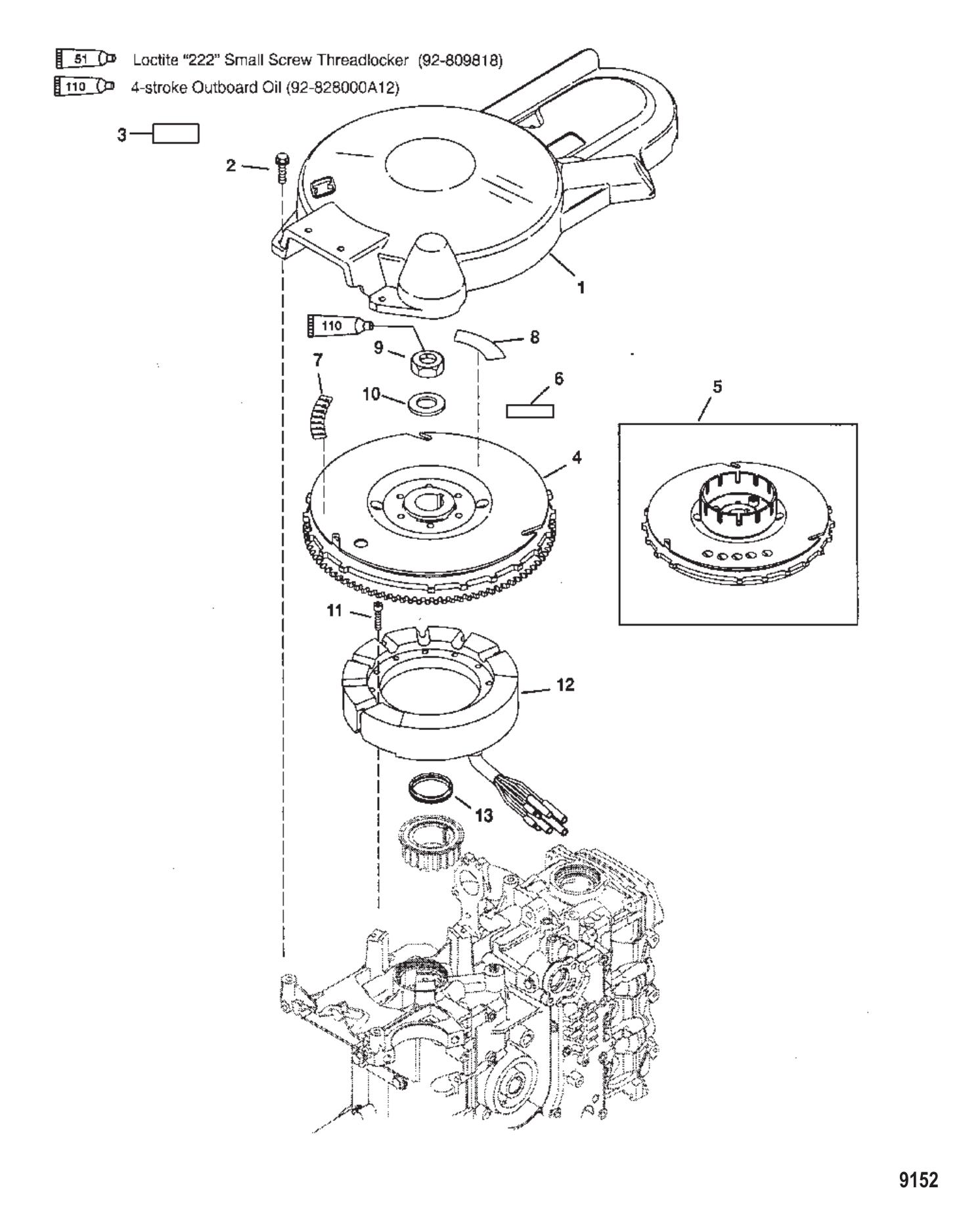

Flywheel

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	859284T2	FLYWHEEL COVER-EFI (ELECTRIC) (1 required per assembly) — Replaces: 8552231, 859284T1
		859284T 2 - Flywheel Cover -ef [ More info ] $180.49 Available to Order: Shipping delay up to 10 days.
#2	8248326	SCREW (ELECTRIC) (4 required per assembly)
		10-824832 6 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#3	856985A22	REF SOB 09-18 (ELECTRIC)(1999) (1 required per assembly)
		37-856985A22 - Decal -epa, NLA [ More info ] Unavailable
#3	804654A00	REF SOB 09-18 (ELECTRIC)(2000) (1 required per assembly)
		37-804654A00 - REF OB SB 09-18,NLA [ More info ] Unavailable
#3	804654A01	REF SOB 09-18 (ELECTRIC)(2001) (1 required per assembly)
		37-804654A01 - REF OB SB 09-18,NLA [ More info ] Unavailable
#4	832010T31	FLYWHEEL (ELECTRIC) (1 required per assembly) — Replaces: 832010T14, 832010T26
		284-832010T31 - Flywheel [ More info ] Unavailable
		284-832010T32 - Flywheel Assembly [ More info ] $631.99 Available to Order: Shipping delay up to 10 days.
#5	832010T27	FLYWHEEL (MANUAL) (1 required per assembly) — Replaces: 832010T16
		284-832010T27 - Flywheel [ More info ] $340.99 Available to Order: Shipping delay up to 10 days.
#6	NSS	NOT SOLD SEPARATE DECAL-WARNING SPINNING FLYWHEEL (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#7	NSS	NOT SOLD SEPARATE DECAL-TIMING MARKS (1 required per assembly)
#8	NSS	NOT SOLD SEPARATE DECAL-WARNING-NEUTRAL (1 required per assembly)
#9	893789	NUT (1 required per assembly) — Replaces: 81773M
		11893789 - Nut [ More info ] $9.79 Available to Order: Shipping delay up to 10 days.
#10	893762	WASHER @2 (1 required per assembly) — Replaces: 84436M
		12-893762 - Washer - Priced Individually [ More info ] $4.09 1 In Stock.
#11	4007325	SCREW (Manual) [0G960500] & Up (3 required per assembly)
		10-40073 25 - Screw [ More info ] $0.90 $0.18 7 In Stock.
#11	4013930	SCREW @5 (Electric) [0G960500] & Up (3 required per assembly)
		10-40139 30 - Screw - Priced Individually [ More info ] $2.89 $2.32 2 In Stock.
#12	852387T7	STATOR ASSY (Electric) [0G960500] & Up (1 required per assembly)
		398-852387T 7 - Stator Assembly [ More info ] Unavailable
		18-99250 - Stator Mercury, 2, 3 & 4 Cylinder 16 Amp 398-852387A11, 174-2387 [ More info ] $340.09 $314.70 In Stock
#12	852386T6	STATOR-MANUAL (Manual) [0G960500] & Up (1 required per assembly)
		398-852386T 6 - Stator-manual [ More info ] $443.04 1 In Stock.
#12	852387T9	STATOR ASSY (Electric) [0G960499] & Below (1 required per assembly) — Replaces: 852387A4
		398-852387T 9 - Stator Assembly [ More info ] $166.67 Available to Order: Shipping delay up to 10 days.
#12	852386T8	STATOR ASSY (Manual) [0G960499] & Below (1 required per assembly) — Replaces: 852386A4
		398-852386T 8 - Stator Assembly [ More info ] $396.99 Available to Order: Shipping delay up to 10 days.
#13	834838	LOAD RING (1 required per assembly)
		834838 - Load Ring [ More info ] $36.49 Available to Order: Shipping delay up to 10 days.
