Parts for 40 HP Carb 4-Stroke Mercury Outboard Motor Linkage (Manual BIGFOOT-0G960499 & Below)

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP Carb > 0G760300 - 0T408999 - USA > Linkage (Manual BIGFOOT-0G960499 & Below)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

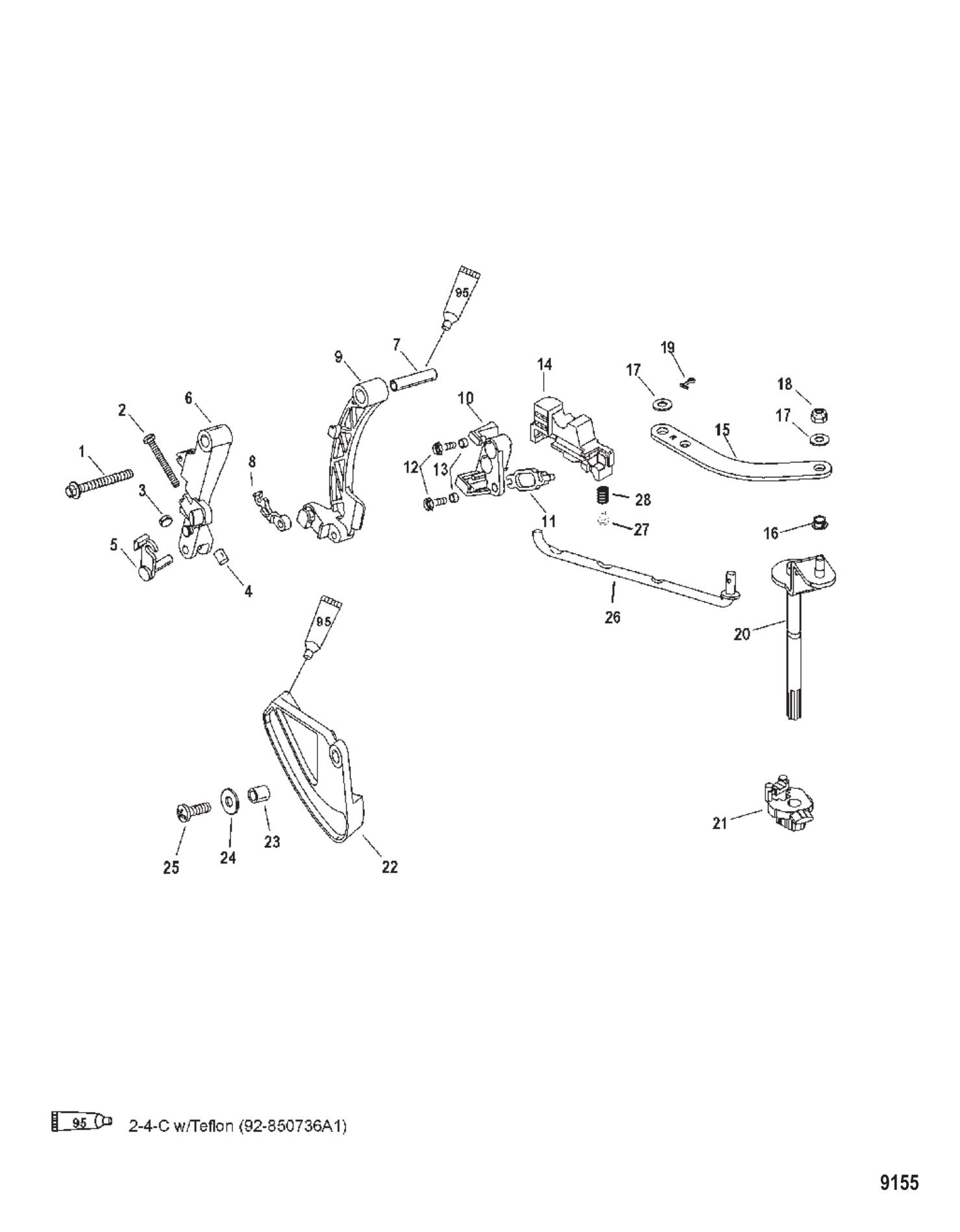

Linkage (Manual BIGFOOT-0G960499 & Below)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	40011158	SCREW (1 required per assembly)
		10-40011158 - Screw [ More info ] $8.89 Available to Order: Shipping delay up to 10 days.
#2	814776	SCREW (1 required per assembly)
		10-814776 - Screw [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#3	401196	NUT (1 required per assembly)
		11-40119 6 - Nut [ More info ] $3.06 Available to Order: Shipping delay up to 10 days.
#4	42942	CAP (1 required per assembly)
		42942 - Nylon Cap [ More info ] $1.90 Available to Order: Shipping delay up to 10 days.
#5	826587	RETAINER (1 required per assembly)
		826587 - Retainer, NLA [ More info ] Unavailable
#6	822682A4	LEVER KT-THROTTLE (1 required per assembly)
		822682A 4 - Throttle Lever Kit [ More info ] $42.99 Available to Order: Shipping delay up to 10 days.
#7	825078	BUSHING (1 required per assembly)
		23-825078 - Bushing [ More info ] $27.69 Available to Order: Shipping delay up to 10 days.
#8	822459	RETAINER (1 required per assembly)
		822459 - Retainer [ More info ] $18.59 Available to Order: Shipping delay up to 10 days.
#9	8259571	LEVER-SHIFT (1 required per assembly)
		825957 1 - Shift Lever [ More info ] $36.99 Available to Order: Shipping delay up to 10 days.
#10	827706A4	BRACKET/GUIDE KIT (1 required per assembly) — Replaces: 827706
		827706A 4 - Bracket/Guide Kit [ More info ] $27.19 Available to Order: Shipping delay up to 10 days.
#11	98889	LATCH @5 (1 required per assembly)
		98889 - Latch [ More info ] $3.79 5 In Stock.
#12	8248324	SCREW @5 (2 required per assembly)
		10-824832 4 - Screw [ More info ] $1.80 5 In Stock.
#13	15885	SLEEVE (2 required per assembly)
		23-15885 - Sleeve [ More info ] $13.99 Available to Order: Shipping delay up to 10 days.
#14	827706A4	BRACKET/GUIDE KIT (1 required per assembly) — Replaces: 8501631
#15	893769A01	LINK KIT-SHIFT (1 required per assembly) — Replaces: 850255A1
		893769A01 - Shift Link Kit [ More info ] $63.49 Available to Order: Shipping delay up to 10 days.
#16	48475	BUSHING (2 required per assembly)
		23-48475 - Bushing [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#17	8M0204649	WASHER @10 (2 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 7 In Stock.
#18	401386	NUT @5 (1 required per assembly) — Replaces: 8268336, 40144
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#19	210711	COTTER PIN @2 (1 required per assembly) — Replaces: 21071
		0210711 [ More info ] Unavailable Replaced by 0210710
		[ More info ] Unavailable
#20	850166T2	LEVER-SHIFT SHAFT (1 required per assembly) — Replaces: 850166A1
		850166T 2 - Shift Shaft Lever [ More info ] $119.99 $101.62 5 In Stock.
#21	850165	BUSHING (1 required per assembly)
		23-850165 - Bushing [ More info ] $11.29 1 In Stock.
#22	8535853	THROTTLE CAM (1 required per assembly)
		853585 3 - Throttle Cam [ More info ] $24.89 Available to Order: Shipping delay up to 10 days.
#23	309772	SPACER (1 required per assembly)
		23-30977 2 - Spacer [ More info ] $4.79 2 In Stock.
#24	4002314	WASHER @5 (1 required per assembly)
		12-40023 14 - Washer - Priced Individually [ More info ] $3.69 $2.96 10+ In Stock.
#25	40056107	SCREW (1 required per assembly)
		10-40056107 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#26	854467	ROD-SHIFT (1 required per assembly)
		854467 - Shift Rod [ More info ] Unavailable
#27	12016A2	ORDER 8M0091388 (1 required per assembly)
		12016A 2 - Detent/Spring Kit [ More info ] Unavailable
#28	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
