Parts for 40 HP Carb 4-Stroke Mercury Outboard Motor Camshaft / Oil Pump

Revise Search: Outboard > 4-Stroke Mercury Outboard > 40 HP Carb > 0G231123 - 0G760299 - USA > Camshaft / Oil Pump

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

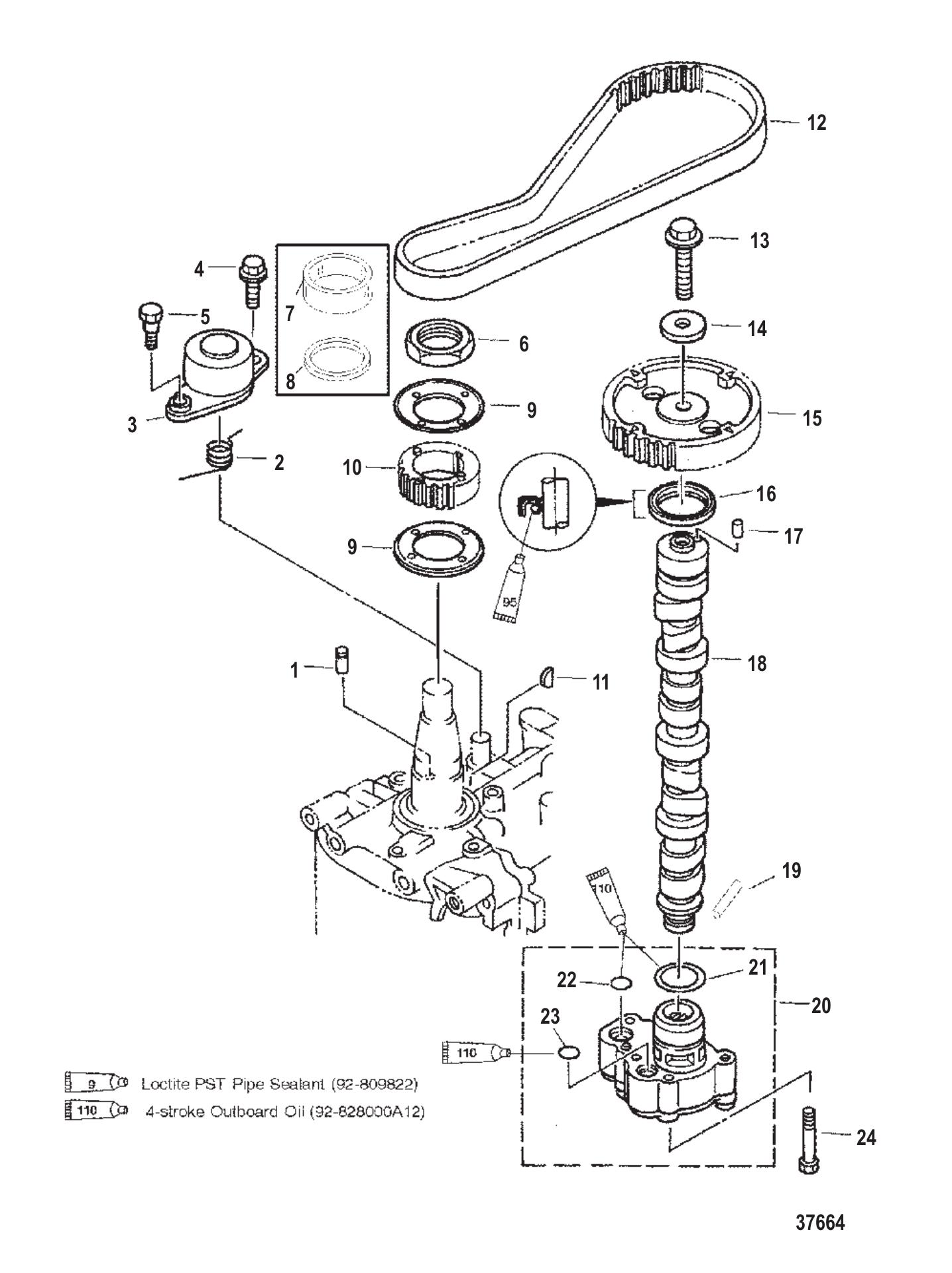

Camshaft / Oil Pump

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	832013A96	GASKET SET (1 required per assembly)
		27-832013A96 - Engine Gasket Set [ More info ] Unavailable
#-	822775T97	PH 50 4S 4CYL (1 required per assembly) — Replaces: 822775A97
		61-822775T97 - PH 50 4S 4CYL,NLA [ More info ] Unavailable
#-	822775A98	POWERHEAD (BIGFOOT) (1 required per assembly)
		61-822775A98 - Powerhead [ More info ] Unavailable
#-	825034A17	HEAD KIT-CYLINDER (1 required per assembly) — Replaces: 825034A8, 825034A12
		825034A17 - Cylinder Head Kit [ More info ] $269.48 8 In Stock.
#1	825087	PIN (INCLUDED WITH CYL. BLOCK) (1 required per assembly)
		17-825087 - Pin (included With Cyl. Block) [ More info ] $8.63 $7.32 6 In Stock.
#2	825088	SPRING (1 required per assembly)
		24-825088 - Spring [ More info ] Unavailable
#3	824796A1	TENSIONER ASSY (1 required per assembly)
		824796A 1 - Tensioner Assembly [ More info ] Unavailable
#4	81893420	SCREW (1 required per assembly)
		10-818934 20 - Screw [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#5	826165	SCREW (1 required per assembly)
		10-826165 - Screw [ More info ] Unavailable
#6	825085	NUT [0G437999] & Below (1 required per assembly)
		11-825085 - Nut, NLA [ More info ] Unavailable
#7	850522	SPACER [0G438000] & Up (1 required per assembly)
		23-850522 - Spacer [ More info ] Unavailable
#8	834838	LOAD RING [0G438000] & Up (1 required per assembly)
		834838 - Load Ring [ More info ] $36.49 Available to Order: Shipping delay up to 10 days.
#9	825082	WASHER (2 required per assembly)
		12-825082 - Washer [ More info ] $5.00 $4.24 10+ In Stock.
#10	825083T	PULLEY (1 required per assembly) — Replaces: 825083
		825083T - Pulley [ More info ] Unavailable
#11	893761	KEY @2 (1 required per assembly) — Replaces: 18856M
		28893761 - Key - Priced Individually [ More info ] $8.79 1 In Stock.
#12	825109	BELT-TIMING (1 required per assembly)
		825109 - Timing Belt [ More info ] $168.67 1 In Stock.
#13	82761140	SCREW (1 required per assembly)
		10-827611 40 - Screw [ More info ] $5.29 1 In Stock.
#14	4002319	WASHER @3 (1 required per assembly)
		12-40023 19 - Washer (M10) [ More info ] $3.19 7 In Stock.
#15	825108	PULLEY (1 required per assembly)
		825108 - PULLEY [ More info ] Unavailable
#16	825048	SEAL (1 required per assembly)
		26-825048 - Seal [ More info ] $27.39 $18.37 8 In Stock.
#17	825956	PIN-DOWEL (1 required per assembly)
		17-825956 - Pin, Dowel, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#18	8250471	CAMSHAFT (1 required per assembly) — Replaces: 825047
		2407-825047 1 - CamShaft [ More info ] $225.92 Available to Order: Shipping delay up to 10 days.
#19	826149	PIN-DOWEL (1 required per assembly)
		17-826149 - Pin -Dowel [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#20	825058A1	PUMP ASSY-OIL (1 required per assembly)
		825058A 1 - Oil Pump Assembly [ More info ] Unavailable
#21	826152	O-RING (1 required per assembly)
		25-826152 - O-ring, Oil Pump [ More info ] Unavailable
#22	826154	O-RING (1 required per assembly)
		25-826154 - O-ring, Oil Pump [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#23	826153	O-RING (1 required per assembly)
		25-826153 - O-ring, Oil Pump [ More info ] $9.69 Available to Order: Shipping delay up to 10 days.
#24	4000333	SCREW @5 (4 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $4.09 10+ In Stock.
