Parts for 4 HP Carb 4-Stroke Mercury Outboard Motor Electrical Components

Revise Search: Outboard > 4-Stroke Mercury Outboard > 4 HP Carb > 0R067090 - 0R411837 - USA > Electrical Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

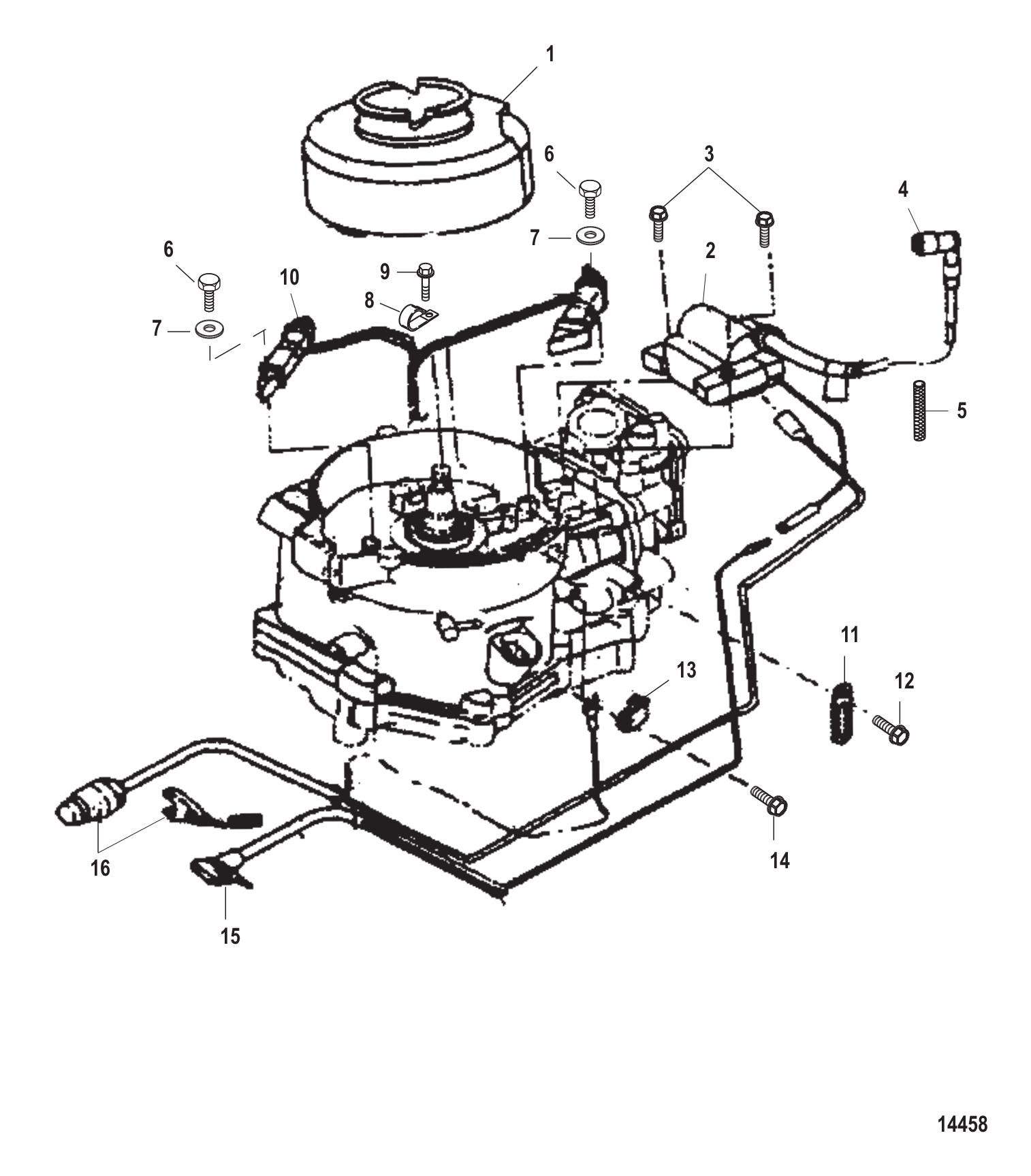

Electrical Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	803557T01	FLYWHEEL (1 required per assembly)
		262-803557T01 - Flywheel [ More info ] $314.83 Available to Order: Shipping delay up to 10 days.
#1	803557T02	FLYWHEEL Sailpower/Sailmate (1 required per assembly)
		262-803557T02 - Flywheel [ More info ] $366.99 Available to Order: Shipping delay up to 10 days.
#2	803559T07	IGNITER (1 required per assembly)
		339-803559T07 - Igniter [ More info ] Unavailable
#3	879194264	BOLT (2 required per assembly) — Replaces: 82304224
		10-879194264 - Bolt [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#4	803560001	BOOT (1 required per assembly) — Replaces: 803560
		85-803560001 - Boot [ More info ] $19.09 Available to Order: Shipping delay up to 10 days.
#5	803560003	PROTECTOR (1 required per assembly)
		85-803560003 - Protector [ More info ] $3.49 Available to Order: Shipping delay up to 10 days.
#6	16123	SCREW (4 required per assembly)
		10-16123 - Screw [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#7	8M0108373	WASHER (4 required per assembly) — Replaces: 16080
		128M0108373 - Washer [ More info ] $1.50 1 In Stock.
#8	16060	CLAMP (1 required per assembly)
		54-16060 - Clamp [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#9	16821	SCREW (1 required per assembly)
		10-16821 - Screw [ More info ] $2.19 Available to Order: Shipping delay up to 10 days.
#10	8M0056334	ALTERNATOR Sailpower/Sailmate-Standard (1 required per assembly) — Replaces: 16074T04
		8M0056334 - Alternator [ More info ] $96.99 Available to Order: Shipping delay up to 10 days.
#11	8M0130961	CLAMP (1 required per assembly) — Replaces: 95306
		548M0130961 - Clamp [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#12	8230427	BOLT (1 required per assembly)
		10-823042 7 - Bolt [ More info ] $4.09 $2.30 10+ In Stock.
#13	953951	CLAMP (1 required per assembly)
		54-95395 1 - Clamp [ More info ] $9.29 Available to Order: Shipping delay up to 10 days.
#14	8230427	BOLT (1 required per assembly)
#15	803562	LAMP-WARNING (1 required per assembly)
		803562 - Lamp- Warning [ More info ] $25.99 Available to Order: Shipping delay up to 10 days.
#16	823037A06	SWITCH (1 required per assembly)
		87-823037A06 - Switch [ More info ] $60.99 Available to Order: Shipping delay up to 10 days.
