Parts for 4 HP Carb 4-Stroke Mercury Outboard Motor Intergral Fuel Tank

Revise Search: Outboard > 4-Stroke Mercury Outboard > 4 HP Carb > 0P073456 - 0P400999 - Belgium > Intergral Fuel Tank

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

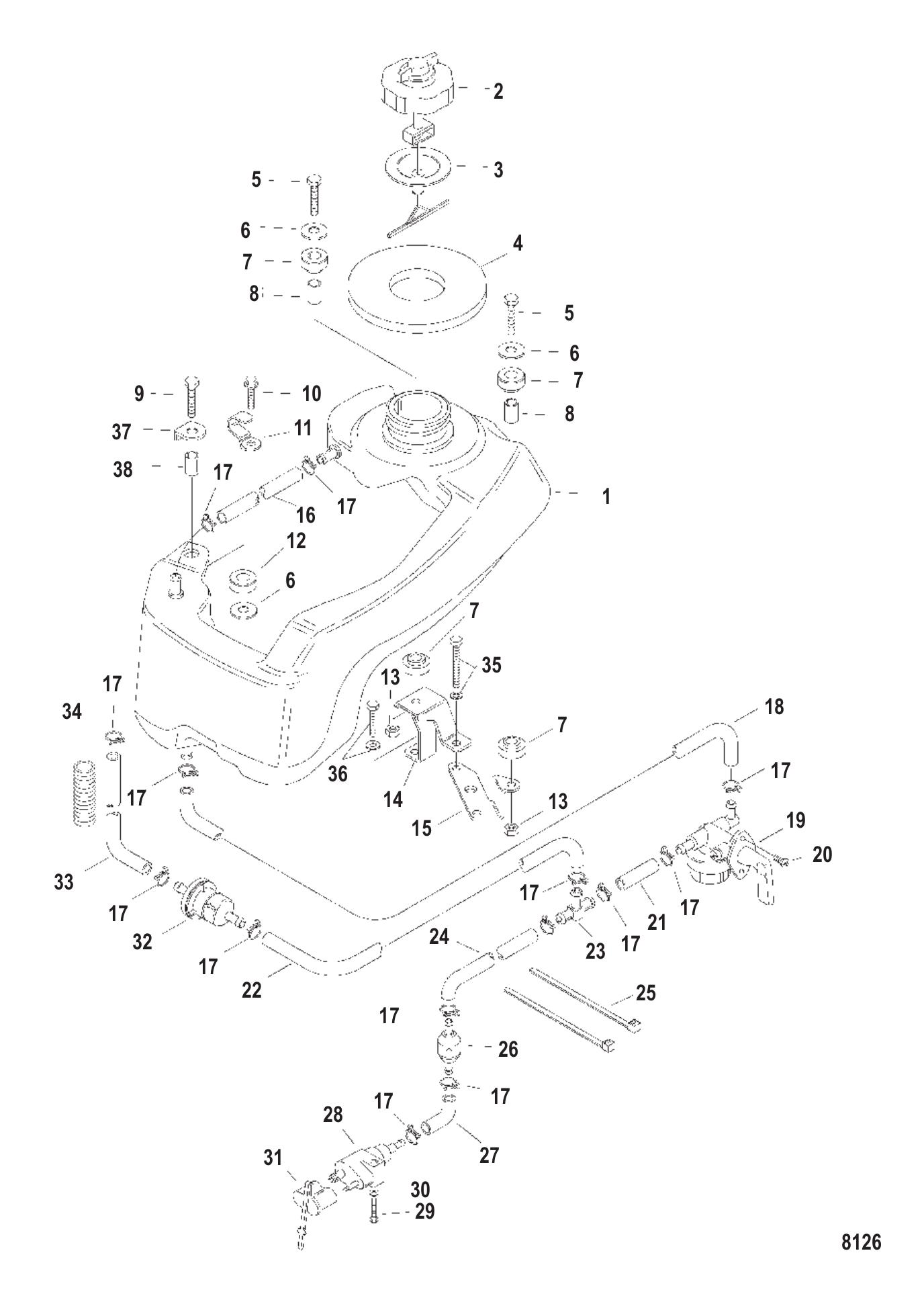

Intergral Fuel Tank

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0088123	FUEL TANK ASY (1 required per assembly) — Replaces: 878355A1, 889246T45
		12008M0088123 - Fuel Tank Assembly [ More info ] $264.49 Available to Order: Shipping delay up to 10 days.
#1	878355A2	FUEL TANK ASSY (Bodensee) (1 required per assembly)
		1258-878355A 2 - TANK ASSEMBLY Fue [ More info ] Unavailable
#2	8M0056977	CAP ASSEMBLY (1 required per assembly) — Replaces: 878352A1, 8M0058608
		8M0056977 - Fuel Cap [ More info ] Unavailable
#2	8M0126977	CAP-FUEL TANK (Bodensee) (1 required per assembly) — Replaces: 878352A2, 8M0058610
		368M0126977 - Fuel Tank Cap [ More info ] $39.99 Available to Order: Shipping delay up to 10 days.
#3	8M0126977	CAP-FUEL TANK (1 required per assembly) — Replaces: 878353
#4	878354	SEAL (1 required per assembly)
		26-878354 - Seal [ More info ] $17.49 Available to Order: Shipping delay up to 10 days.
#5	8M0204707	SCREW @5 (2 required per assembly) — Replaces: 4000330
		108M0204707 - SCREW Note: Priced Individually [ More info ] $3.99 4 In Stock.
#6	161404	WASHER (4 required per assembly)
		12-16140 4 - Washer [ More info ] $4.29 2 In Stock.
#7	8537437	BUSHING (4 required per assembly)
		23-853743 7 - Bushing [ More info ] $9.99 Available to Order: Shipping delay up to 10 days.
#8	853715007	SPACER (2 required per assembly) — Replaces: 8537154
		23-853715007 - Spacer [ More info ] $5.69 Available to Order: Shipping delay up to 10 days.
#9	16705	BOLT (1 required per assembly)
		10-16705 - Bolt [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#10	8M0051381	SCREW (1 required per assembly) — Replaces: 878388
		10-8M0051381 - Screw [ More info ] $6.69 Available to Order: Shipping delay up to 10 days.
#11	813275	CLAMP (1 required per assembly)
		54-813275 - Clamp [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#12	881305	MOUNT (1 required per assembly)
		25-881305 - Mount [ More info ] $5.69 Available to Order: Shipping delay up to 10 days.
#13	400212	NUT (AR required per assembly)
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#14	878350	BRACKET (1 required per assembly)
		878350 - Bracket [ More info ] $14.60 Available to Order: Shipping delay up to 10 days.
#15	878351	BRACKET (Use where Applicable) (1 required per assembly)
		878351 - Bracket [ More info ] $8.40 Available to Order: Shipping delay up to 10 days.
#16	8M0057113	TUBING (9.875 INCH) (1 required per assembly) — Replaces: 953949, 879194470
		328M0057113 - Hose [ More info ] $27.79 Available to Order: Shipping delay up to 10 days.
#17	95395	CLIP (14 required per assembly)
		54-95395 - Clip [ More info ] $3.09 1 In Stock.
#18	8M0057113	TUBING (14.00 INCH) (1 required per assembly) — Replaces: 953949, 879194470
#19	878387	FUEL COCK (1 required per assembly)
		22-878387 - Fuel Cock [ More info ] $49.49 Available to Order: Shipping delay up to 10 days.
#20	815046	SCREW (2 required per assembly)
		10-815046 - Screw [ More info ] $0.80 Available to Order: Shipping delay up to 10 days.
#21	8M0057113	TUBING (1.375 INCH) (1 required per assembly) — Replaces: 953949, 879194470
#22	8M0057113	TUBING (8.50 INCH) (1 required per assembly) — Replaces: 953949, 879194470
#23	73318	FITTING (1 required per assembly)
		22-73318 - Fitting [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#24	8M0057113	TUBING (5.25 INCH) (1 required per assembly) — Replaces: 953949, 879194470
#25	816311T	TIE STRAP @100 (2 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#26	815048	CONNECTOR (1 required per assembly)
		22-815048 - Connector [ More info ] $38.99 Available to Order: Shipping delay up to 10 days.
#27	8M0168427	HOSE (1.75 INCH) (1 required per assembly) — Replaces: 815049
		32-8M0168427 - Hose [ More info ] $9.29 Available to Order: Shipping delay up to 10 days.
#28	8M0182334	CONNECTOR FUEL (1 required per assembly) — Replaces: 15781A5, 8M0148583
		22-8M0182334 - Fuel Connector [ More info ] $31.83 3 In Stock.
#29	4000333	SCREW @5 (1 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $4.09 10+ In Stock.
#30	16826	WASHER (1 required per assembly)
		12-16826 - Washer, Stainless Steel [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#31	878311	CAP (1 required per assembly)
		878311 - CAP [ More info ] $22.49 Available to Order: Shipping delay up to 10 days.
#32	8M0157133	FILTER-FUEL (1 required per assembly) — Replaces: 16248
		35-8M0157133 - In-Line Fuel Filter, Mercury Mariner 2 cycle and 4 stroke [ More info ] $21.39 3 In Stock.
		35-35406 - Inline Fuel Filter, Mercury Mercruiser 35-8M0157133 [ More info ] $13.49 $12.51 4 In Stock.
#33	17668	HOSE (7.125 INCH) (1 required per assembly)
		32-17668 - Hose - 7 Inch [ More info ] Unavailable
#34	8797051	SLEEVE (1 required per assembly)
		23-879705 1 - Sleeve [ More info ] $6.29 Available to Order: Shipping delay up to 10 days.
#35	82304235	BOLT (M6 x 45) (1 required per assembly)
		10-823042 35 - Bolt [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#35	82304221	BOLT (M6 x 40) (1 required per assembly)
		10-823042 21 - Bolt [ More info ] $1.90 Available to Order: Shipping delay up to 10 days.
#36	162232	BOLT (M6 x 30) (1 required per assembly)
		0162232 - Part (162232) [ More info ] Unavailable
#36	8230421	BOLT (M6 x 25) (1 required per assembly)
		10-823042 1 - Bolt, NLA [ More info ] $2.69 $0.54 10+ In Stock.
#37	881306	PLATE (1 required per assembly)
		881306 - Plate [ More info ] $10.89 Available to Order: Shipping delay up to 10 days.
#38	881307001	SPACER (1 required per assembly) — Replaces: 881307
		23-881307001 - Spacer [ More info ] Unavailable
