Parts for 250xb (3.0L EFI) 2-Stroke EFI Mercury Outboard Motor Crankshaft Pistons - & Connecting Rods
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 832933A98 | GASKET SET (1 required per assembly) |
  |
|
27-832933A98 - Engine Gasket Set [ More info ]
|
| #- | 848700A7 | PH 250 XBEFI 3.0 (1 required per assembly) |
  |
|
61-848700A 7 - PH 250 XBEFI 3.0 [ More info ] Unavailable |
| #1 | 9784A11 | CRANKSHAFT ASSY (1 required per assembly) |
  |
|
482-9784A11 - CrankShaft Assembly [ More info ] Unavailable |
| #2 | NSS | NOT SOLD SEPARATE WEAR SLEEVE (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #3 | 67923T | BEARING BALL (LOWER) (1 required per assembly) |
  |
|
30-67923T - Ball Bearing [ More info ]
|
| #4 | 67446 | RING (1 required per assembly) |
  |
|
53-67446 - Ring - Retaining [ More info ]
|
| #5 | 19301 | GEAR (1 required per assembly) |
  |
|
43-19301 - Drive Gear [ More info ] Unavailable |
| #6 | 843198T01 | RING SEAL (7 required per assembly) — Replaces: 816106, 843198001 |
  |
|
39-843198T01 - Seal Ring [ More info ]
|
| #7 | 91800 | KEY WOODRUFF (2 required per assembly) |
  |
|
28-91800 - Key - Priced Individually [ More info ]
|
| #8 | 35126 | O-RING (.859 X .139) (1 required per assembly) |
  |
|
25-35126 - O-ring, (.859 X .139) [ More info ]
|

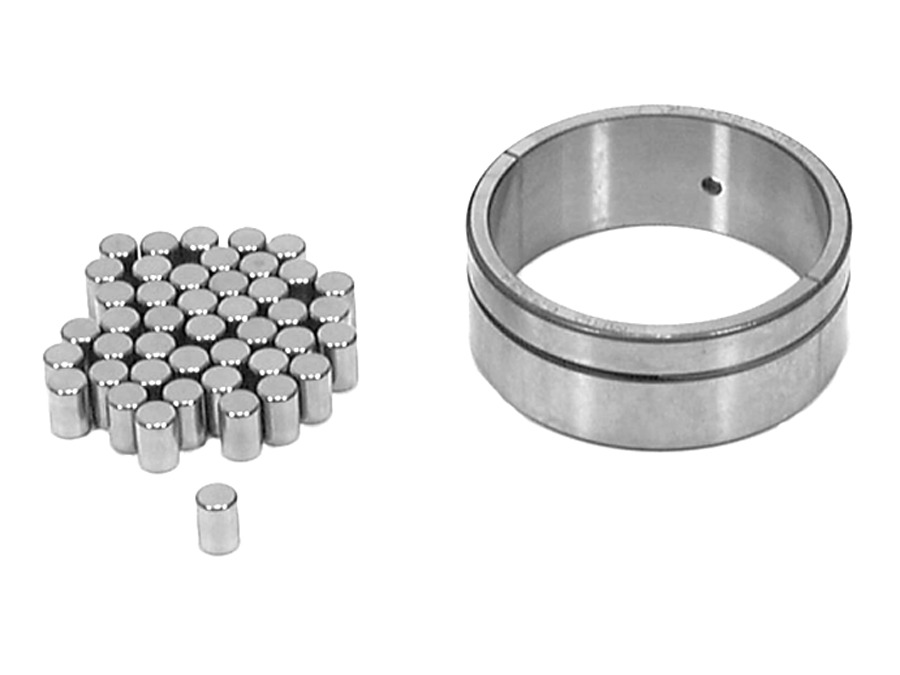

| #9 | 8M0113288 | RACE ASSY-BEARING [0T325116] & Below (2 required per assembly) — Replaces: 817001A1 |
  |
|
8M0113288 - RACE ASSY-Bearing [ More info ]
|
  |
|
817001A 1 - Bearing Race [ More info ]
|
| #9 | 88270A02 | BEARING/RACE KIT [0T325117] & Up (2 required per assembly) — Replaces: 88270A1 |
  |
|
31-88270A02 - Bearing/Race Kit [ More info ]
|
| #10 | NSS | NOT SOLD SEPARATE ROLLER BEARING [0T325117] & Below (2 required per assembly) |
| #11 | 858295T2 | PISTON ASSY-STBD (STARBOARD) (3 required per assembly) |
  |
|
700-858295T 2 - Piston Assembly - Stbd [ More info ]
|
| #11 | 858294T2 | PISTON ASSY-PORT (PORT) (3 required per assembly) |
  |
|
700-858294T 2 - Piston Assembly - Port [ More info ]
|
| #12 | 841202 | RING (12 required per assembly) |
  |
|
40-841202 - Lock Ring [ More info ]
|
| #13 | 827179A12 | RING SET PISTON (1 required per assembly) |
  |
|
39-827179A12 - Rings - Standard [ More info ]
|
| #14 | NSS | NOT SOLD SEPARATE PISTON RING (SECOND) (6 required per assembly) |
| #15 | 8M0125869 | CONN ROD KIT (6 required per assembly) — Replaces: 822373A7, 822373A09 |
  |
|
6008M0125869 - Connecting Rod Kit [ More info ]
|
| #16 | 94320 | SCREW (.375-24 X 1.250) (12 required per assembly) |
  |
|
10-94320 - Screw [ More info ]
|
| #17 | 844338A01 | BEARING ASSEMBLY (6 required per assembly) — Replaces: 43012A1, 43012A04 |
  |
|
31-844338A01 - Bearing Kit [ More info ]
|
  |
|
|
| #18 | NSS | NOT SOLD SEPARATE BEARING (96 required per assembly) |
| #19 | 88263 | THRUST WASHER (12 required per assembly) |
  |
|
12-88263 - Washer, Needle Locating [ More info ]
|
| #20 | 8M0204715 | NEEDLES-BRG @102 (204 required per assembly) — Replaces: 88258, 88258001 |
  |
|
29-8M0204715 - NEEDLES-BRG @102 [ More info ] Unavailable |
| #21 | 816773A2 | BEARING ASSEMBLY (UPPER) (1 required per assembly) |
  |
|
31-816773A 2 - Main Bearing - Upper [ More info ]
|
| #22 | 859093 | SEAL (1 required per assembly) |
  |
|
26-859093 - Seal [ More info ]
|
| #23 | 823683 | O RING (1 required per assembly) |
  |
|
25-823683 - O-ring, (1.989 X .070) [ More info ]
|
| #24 | 33001 | WASHER @2 (1 required per assembly) — Replaces: 68229 |
  |
|
12-33001 - Washer, Flywheel Nut [ More info ]
|
| #25 | 42979 | NUT (1 required per assembly) |
  |
|
11-42979 - Nut (M16 X 1.5) [ More info ]
|
