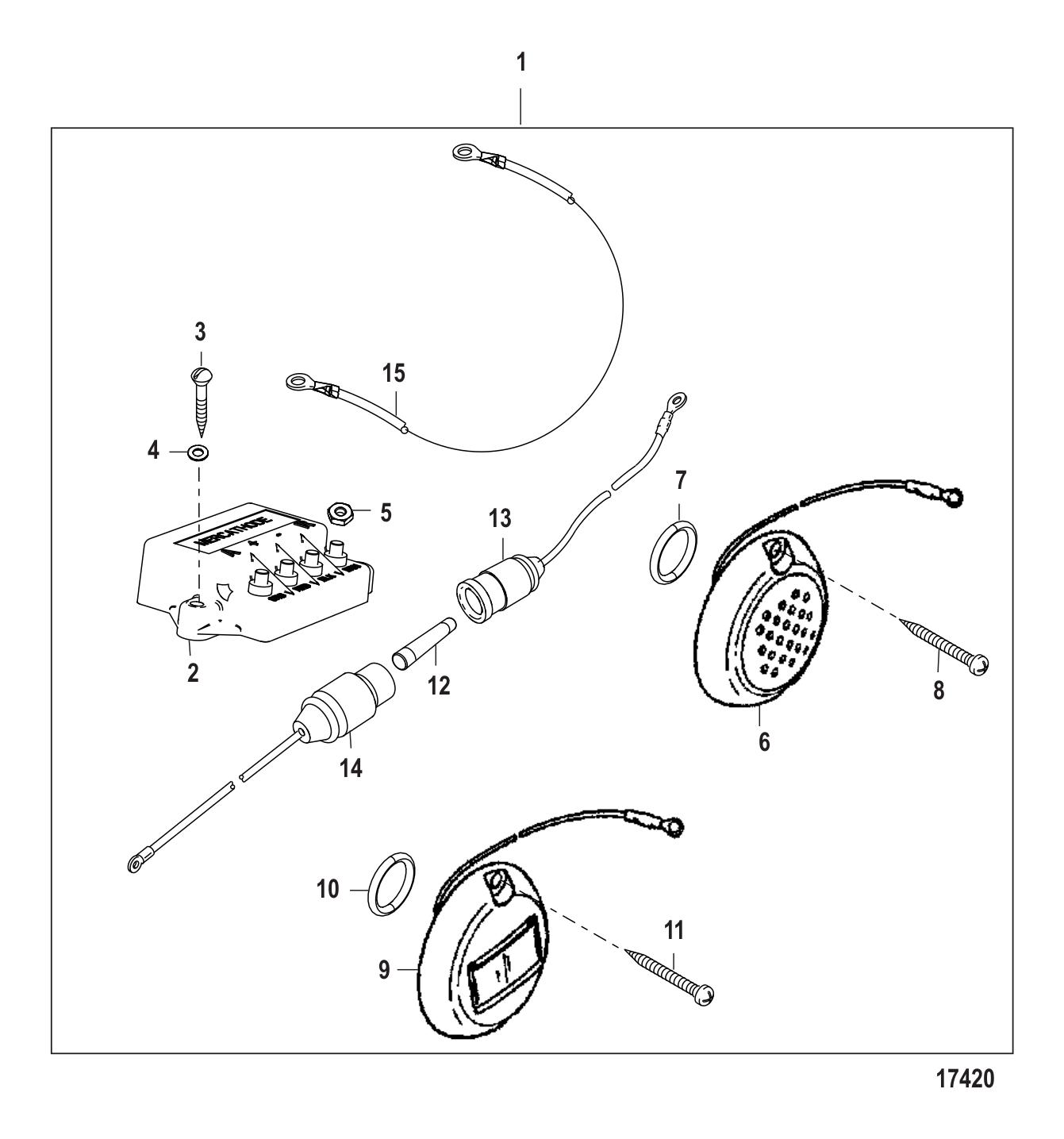

Parts for 300 HP Verado 6 Cyl 4-Stroke Mercury Outboard Motor Mercathode Kit
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 88334A2 | MERCATHODE KIT (1 required per assembly) |
  |
|
88334A 2 - Mercathode Kit [ More info ]
|
| #2 | 42600A09 | MERCATHODE ASSEMBLY (1 required per assembly) |
  |
|
42600A09 - Mercathode Kit [ More info ]
|
| #3 | 22793 | SCREW (#9-14 X .875) (2 required per assembly) |
  |
|
10-22793 - Screw - Priced Individually [ More info ]
|
| #4 | 30164 | WASHER (.192 X .375 X .0312) STAINLESS STEEL (2 required per assembly) |
  |
|
12-30164 - Washer, (.192 X .375 X .0312) [ More info ]
|
| #5 | 45076 | NUT (#10-32) BRASS (4 required per assembly) |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #6 | 72958A5 | ELECTRODE ASSEMBLY (1 required per assembly) |
  |
|
72958A 5 - Electrode Assembly [ More info ]
|
| #7 | 8M0204645 | O RING (1 required per assembly) — Replaces: 21836 |
  |
|
25-8M0204645 - O RING [ More info ]
|
| #8 | 87698 | SCREW (#10-16 X 1.250) STAINLESS STEEL (2 required per assembly) |
  |
|
10-87698 - Screw [ More info ]
|
| #9 | 72957A5 | ANODE ASSEMBLY (1 required per assembly) |
  |
|
97-72957A 5 - Anode Assembly [ More info ]
|
| #10 | 8M0204645 | O RING (1 required per assembly) — Replaces: 21836 |
| #11 | 87698 | SCREW (#10-16 X 1.250) STAINLESS STEEL (2 required per assembly) |
| #12 | 8M0207796 | FUSE-20 AMP @5 (1 required per assembly) — Replaces: 79091 |
  |
|
888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ]
|
| #13 | 95084A10 | CABLE ASSEMBLY (5.00 INCHES) RED (1 required per assembly) |
  |
84-95084A10 - Cable Assembly [ More info ] Unavailable |
|
  |
|
84-8M0207788 - CABLE ASSY [ More info ] Unavailable |
| #14 | 95084A13 | CABLE ASSEMBLY (64.00 INCHES) (1 required per assembly) |
  |
|
84-95084A13 - Cable Assembly [ More info ]
|
| #15 | 79138A8 | CABLE ASSEMBLY (72.00 INCHES) BLACK (1 required per assembly) |
  |
|
84-79138A 8 - Cable Assembly [ More info ]
|
