Parts for 300 HP Pro Verado 6 Cyl 4-Stroke Mercury Outboard Motor Gear Housing Prop Shaft - Std Rot, 4.80 Torpedo

Revise Search: Outboard > 4-Stroke Mercury Outboard > 300 HP Pro Verado 6 Cyl > 2B144123 - 2B577715 - USA > Gear Housing Prop Shaft - Std Rot, 4.80 Torpedo

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

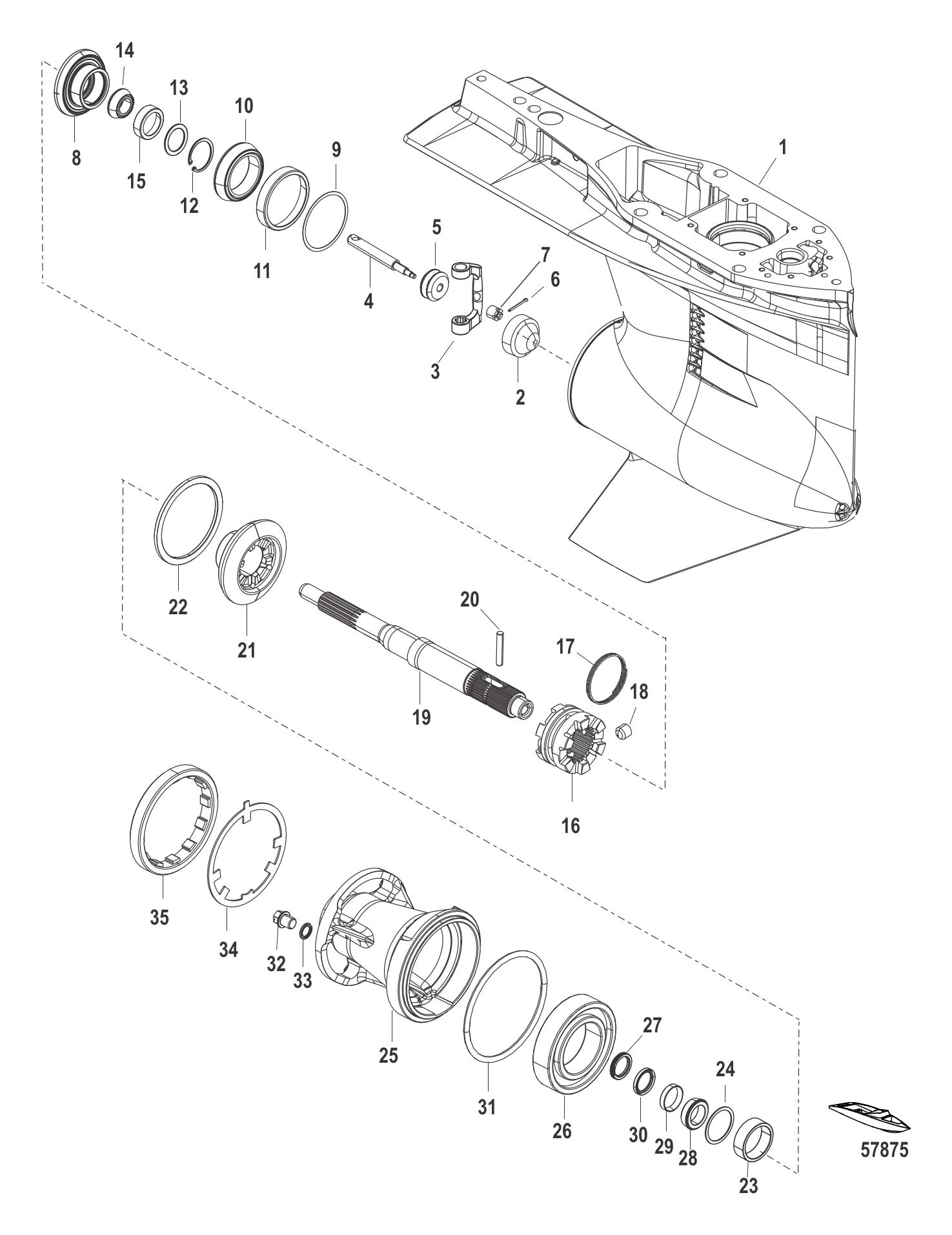

Gear Housing Prop Shaft - Std Rot, 4.80 Torpedo

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	830749A01	SEAL KIT-G/H (1 required per assembly)
		26-830749A01 - Gear Housing Seal Kit [ More info ] $72.99 In Stock
#-	880686T13	GC I6 4S LG (Long)(1.85:1)(200-275) (1 required per assembly)
		1600-880686T13 - Gear Housing Assembly [ More info ] Unavailable
		90-221-B20F - SE221 Lower Unit Mercury 200-275 HP Verado Inline 6, 4-stroke, 1.85:1, 20 inch, Standard Rotation [ More info ] $1645.00 $1645.00 Available to Order
		1600-8M0236255 - GC L6 4S L [ More info ] Unavailable
#-	880686T14	GC I6 4S XL (X-Long)(1.85:1)(200-275) (1 required per assembly)
		1600-880686T14 - Gear Housing Assembly [ More info ] Unavailable
		90-221-B25F - SE221 Lower Unit Mercury 200-275 HP Verado Inline 6 ,4-stroke, 1.85:1, 25 inch, Standard Rotation [ More info ] $1645.00 $1645.00 Available to Order
		1600-8M0236256 - GC L6 4S XL [ More info ] Unavailable
#-	880686T54	GC 300L 1.75:1 (Long)(1.75:1)(300) (1 required per assembly)
		1600-880686T54 - Gear Housing Assembly [ More info ] Unavailable
		90-221-A20F - SE221 Lower Unit Mercury 300 HP Verado Inline 6, 4-stroke, 1.75:1, 20 inch, Standard Rotation [ More info ] $1645.00 $1645.00 Available to Order
		1600-8M0236264 - GC L6 1.75 L [ More info ] Unavailable
#-	880686T55	GC 300XL 1.75:1 (X-Long)(1.75:1)(300) (1 required per assembly)
		1600-880686T55 - Gear Housing Assembly [ More info ] Unavailable
		90-221-A25F - SE221 Lower Unit Mercury 300 HP Verado Inline 6, 4-stroke, 1.75:1, 25 inch, Standard Rotation [ More info ] $1645.00 $1645.00 Available to Order
		1600-8M0236265 - GC L6 1.75 XL [ More info ] Unavailable
#1	8M0056631	GEAR HOUSING ASSEMBLY BASIC (1 required per assembly)
		16008M0056631 - Gear Housing -Basic [ More info ] Unavailable
#2	NSS	NOT SOLD SEPARATE PLUG (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#3	8M0046215	CRANK, SHIFTER 1/4 PIVOT PIN (1 required per assembly)
		8M0046215 - Crank- Shift Assembly [ More info ] Unavailable
		8M0220880 - CRANK-SHIFT ASSY [ More info ] Unavailable
#4	19755T7	SPOOL ASSEMBLY (1 required per assembly)
		19755T 7 - Spool Assembly [ More info ] Unavailable
#5	NSS	NOT SOLD SEPARATE SPOOL (1 required per assembly)
#6	469501	COTTER PIN (1 required per assembly)
		18-46950 1 - Cotter Pin [ More info ] $4.49 7 In Stock.
#7	NSS	NOT SOLD SEPARATE SLEEVE ADJUSTING (1 required per assembly)
#8	892595A05	GEAR SET FORWARD/PINION (1.85:1)(200-275) (1 required per assembly)
		43-892595A05 - Forward & Pinion Gear Set 1.85:1, 13-tooth pinion [ More info ] $876.49 Available to Order: Shipping delay up to 10 days.
#8	892595A04	GEAR SET FORWARD/PINION (1.75:1)(300) (1 required per assembly)
		43-892595A04 - Forward Gear Set [ More info ] $650.99 Available to Order: Shipping delay up to 10 days.
#9	8M0063270	SHIM SET (AR required per assembly)
		158M0063270 - Shim Set [ More info ] $113.99 Available to Order: Shipping delay up to 10 days.
#10	8M0142836	BEARING ROLLER TAPERED (1 required per assembly) — Replaces: 884323T01
		318M0142836 - Bearing ROLLER [ More info ] $70.49 Available to Order: Shipping delay up to 10 days.
#11	NSS	NOT SOLD SEPARATE CUP (1 required per assembly)
#12	8M0051043	RETAINING RING (1 required per assembly)
		53-8M0051043 - Retainer Ring [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#13	8M0053823	THRUST WASHER (1 required per assembly)
		128M0053823 - Washer [ More info ] $18.59 1 In Stock.
#14	8M0142835	BEARING ROLLER TAPERED (1 required per assembly) — Replaces: 884325T01
		318M0142835 - Bearing ROLLER [ More info ] $76.62 2 In Stock.
#15	NSS	NOT SOLD SEPARATE CUP (1 required per assembly)
#16	880714T	CLUTCH (1 required per assembly)
		52-880714T - Clutch [ More info ] $329.49 Available to Order: Shipping delay up to 10 days.
#17	30893	SPRING (1 required per assembly)
		24-30893 - Spring, Reatiner - Cross Pin [ More info ] $2.69 1 In Stock.
#18	828356	PIN DETENT (1 required per assembly)
		17-828356 - Pin, Detent [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#19	8M0140446	PROPELLER SHAFT (1 required per assembly) — Replaces: 8M0069774
		448M0140446 - Prop Shaft [ More info ] $778.49 Available to Order: Shipping delay up to 10 days.
#20	8M0100263	PIN CROSS (1 required per assembly) — Replaces: 8M0084681
		17-8M0100263 - Pin - Priced Individually [ More info ] $4.49 2 In Stock.
#21	8M0142891	GEAR REVERSE, 24T (1.85:1)(200-275) (1 required per assembly) — Replaces: 880695A01, 8M0118362
		438M0142891 - GEAR REVERSE [ More info ] $224.99 Available to Order: Shipping delay up to 10 days.
#21	8M0118363	GEAR REVERSE, 21T (1.75)(300) (1 required per assembly) — Replaces: 880707A01
		438M0118363 - Gear Reverse [ More info ] $516.99 Available to Order: Shipping delay up to 10 days.
#22	880699	THRUST RING (1 required per assembly)
		880699 - Ring - Thrust [ More info ] $10.99 1 In Stock.
#23	8M0064306	SPACER (1 required per assembly)
		238M0064306 - Spacer-Thrust [ More info ] $18.79 Available to Order: Shipping delay up to 10 days.
#24	8M0076745	SHIM SET (1 required per assembly)
		158M0076745 - Washer/Shim Set [ More info ] $394.99 Available to Order: Shipping delay up to 10 days.
#24	8M0050423	WASHER .020 (AR required per assembly)
		12-8M0050423 - Shim-.020 , Priced Individually [ More info ] $37.99 Available to Order: Shipping delay up to 10 days.
#24	8M0050424	WASHER .022 (AR required per assembly)
		12-8M0050424 - Shim-.022 , Priced Individually [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#24	8M0050425	WASHER .024 (AR required per assembly)
		12-8M0050425 - Shim-.024 , Priced Individually [ More info ] $19.99 Available to Order: Shipping delay up to 10 days.
#24	8M0050427	WASHER .026 (AR required per assembly)
		12-8M0050427 - Shim-.026 , Priced Individually [ More info ] $30.19 Available to Order: Shipping delay up to 10 days.
#24	8M0050428	WASHER .028 (AR required per assembly)
		12-8M0050428 - Shim-.028 , Priced Individually [ More info ] $31.59 Available to Order: Shipping delay up to 10 days.
#24	8M0050429	WASHER .030 (AR required per assembly)
		12-8M0050429 - Shim-.030 , Priced Individually [ More info ] $19.09 Available to Order: Shipping delay up to 10 days.
#24	8M0050430	WASHER .032 (AR required per assembly)
		12-8M0050430 - Shim-.032 , Priced Individually [ More info ] $19.89 Available to Order: Shipping delay up to 10 days.
#24	8M0050431	WASHER .034 (AR required per assembly)
		12-8M0050431 - Shim-.034 , Priced Individually [ More info ] $25.99 Available to Order: Shipping delay up to 10 days.
#24	8M0050432	WASHER .036 (AR required per assembly)
		12-8M0050432 - Shim-.036 , Priced Individually [ More info ] $26.19 Available to Order: Shipping delay up to 10 days.
#24	8M0050433	WASHER .038 (AR required per assembly)
		12-8M0050433 - Shim-.038 , Priced Individually [ More info ] $25.79 Available to Order: Shipping delay up to 10 days.
#24	8M0050434	WASHER .040 (AR required per assembly)
		12-8M0050434 - Shim-.040 , Priced Individually [ More info ] $30.09 Available to Order: Shipping delay up to 10 days.
#24	8M0050435	WASHER .042 (AR required per assembly)
		12-8M0050435 - Shim-.042 , Priced Individually [ More info ] $30.29 Available to Order: Shipping delay up to 10 days.
#24	8M0050436	WASHER .044 (AR required per assembly)
		12-8M0050436 - Shim-.044 , Priced Individually [ More info ] $30.99 Available to Order: Shipping delay up to 10 days.
#24	8M0050437	WASHER .046 (AR required per assembly)
		12-8M0050437 - Shim-.046 , Priced Individually [ More info ] $29.99 Available to Order: Shipping delay up to 10 days.
#24	8M0050438	WASHER .048 (AR required per assembly)
		12-8M0050438 - Shim-.048 , Priced Individually [ More info ] $26.79 Available to Order: Shipping delay up to 10 days.
#24	8M0050439	WASHER .050 (AR required per assembly)
		12-8M0050439 - Shim-.050 , Priced Individually [ More info ] $26.89 Available to Order: Shipping delay up to 10 days.
#25	8M0083392	CARRIER ASSEMBLY BEARING (1 required per assembly)
		8M0083392 - Bearing Carrier [ More info ] $381.49 Available to Order: Shipping delay up to 10 days.
#26	8M0142873	BEARING (1 required per assembly) — Replaces: 884329T
		308M0142873 - Bearing BALL [ More info ] $28.89 Available to Order: Shipping delay up to 10 days.
#27	8M0204700	SEAL-OIL (1 required per assembly) — Replaces: 888483
		268M0204700 - SEAL-OIL [ More info ] $22.49 Available to Order: Shipping delay up to 10 days.
#28	8M0148319	BEARING CUP/CONE (1 required per assembly) — Replaces: 884330T01
		318M0148319 - Bearing CUPCone [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#29	NSS	NOT SOLD SEPARATE CUP (1 required per assembly)
#30	8M0204700	SEAL-OIL (1 required per assembly) — Replaces: 888483
#31	8M0142840	O-RING (3.85 X 0.210) (1 required per assembly) — Replaces: 896524
		258M0142840 - O-Ring [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#32	880717A01	SCREW/SEAL KIT .38 INCH LONG (1 required per assembly)
		10-880717A01 - Screw/Seal Kit [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
#32	8M0077071	SCREW/SEAL KIT .75 INCH LONG (1 required per assembly)
		108M0077071 - Screw/Seal Kit [ More info ] $18.49 Available to Order: Shipping delay up to 10 days.
#33	8M0204693	SEAL @6 (1 required per assembly) — Replaces: 830749
		26-8M0204693 - Drain Screw Washer, Priced Individually [ More info ] $5.19 10+ In Stock.
		10-10100-1 - Drain Screw Washer 830749 [ More info ] $3.79 $2.91 7 In Stock.
#34	880697	KEYED WASHER (1 required per assembly)
		14-880697 - Washer -keyed [ More info ] $11.89 Available to Order: Shipping delay up to 10 days.
#35	8M0168577	RETAINER (1 required per assembly) — Replaces: 8M2011027, 8M2000347
		8M0168577 - Bearing Carrier Retaining Nut [ More info ] $43.49 In Stock
