Parts for 30 HP EFI 3 Cyl 4-Stroke Mercury Outboard Motor Recoil Starter

Revise Search: Outboard > 4-Stroke Mercury Outboard > 30 HP EFI 3 Cyl > 1R154758 & Up > Recoil Starter

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

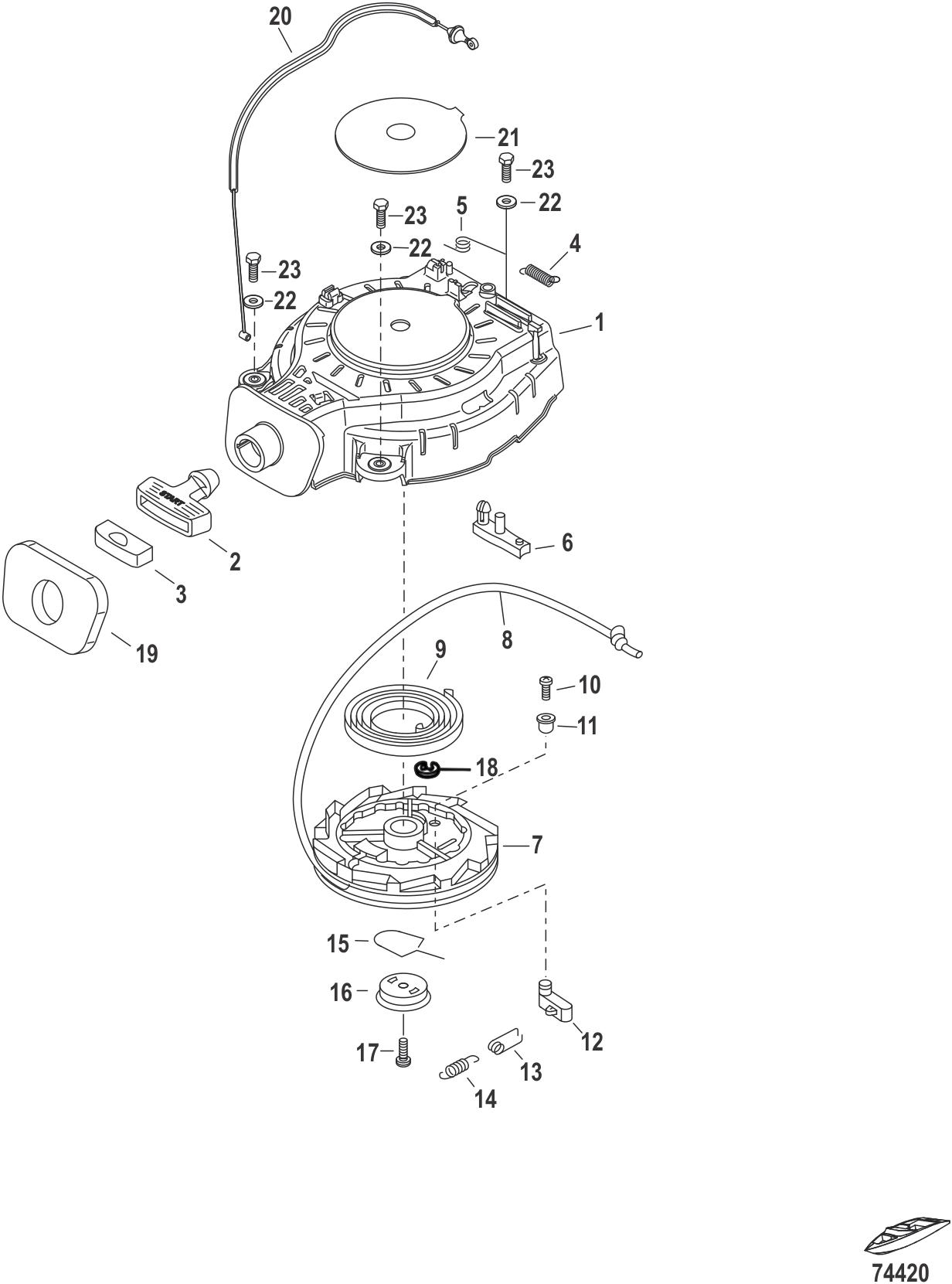

Recoil Starter

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0186897	RECOIL STARTER (1 required per assembly)
		8M0186897 - RECOIL STARTER [ More info ] Unavailable
#1	8M0186898	CASE STARTER (1 required per assembly)
		8M0186898 - STARTER CASE [ More info ] Unavailable
#2	898101182	HANDLE STARTER (1 required per assembly)
		898101182 - Handle A [ More info ] $21.19 Available to Order: Shipping delay up to 10 days.
#3	898101325	ANCHOR ROPE (1 required per assembly)
		898101325 - Anchor [ More info ] $17.69 Available to Order: Shipping delay up to 10 days.
#4	898101185	SPRING (1 required per assembly)
		24-898101185 - Spring, Starter Lock Cam [ More info ] $14.89 Available to Order: Shipping delay up to 10 days.
#5	812645008	SPRING (1 required per assembly)
		24-812645008 - Spring, Starter Lock [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#6	804031002	LOCK STARTER (1 required per assembly)
		804031002 - Starter Lock [ More info ] $12.19 Available to Order: Shipping delay up to 10 days.
#7	898103118	REEL (1 required per assembly)
		898103118 - Reel [ More info ] $51.49 Available to Order: Shipping delay up to 10 days.
#8	8M0110715	ROPE STARTER (1 required per assembly)
		508M0110715 - Starter Rope [ More info ] $24.07 1 In Stock.
#9	804024008	SPRING STARTER (1 required per assembly)
		24-804024008 - Starter Spring [ More info ] $38.49 Available to Order: Shipping delay up to 10 days.
#10	898103121	SCREW TAPPING (1 required per assembly)
		10-898103121 - Screw [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#11	898103120	BUSHING (1 required per assembly)
		23-898103120 - Bushing [ More info ] $9.29 Available to Order: Shipping delay up to 10 days.
#12	898103119	RATCHET (1 required per assembly)
		898103119 - Ratchet [ More info ] $8.29 Available to Order: Shipping delay up to 10 days.
#13	898101148	GUIDE RATCHET (1 required per assembly)
		898101148 - Guide [ More info ] $10.39 Available to Order: Shipping delay up to 10 days.
#14	8M0135608	SPRING RETURN (1 required per assembly)
		248M0135608 - SPRING RETURN [ More info ] $25.89 Available to Order: Shipping delay up to 10 days.
#15	8M0135609	SPRING FRICTION (1 required per assembly)
		248M0135609 - SPRING FRICTION [ More info ] $22.19 Available to Order: Shipping delay up to 10 days.
#16	812638002	PLATE FRICTION (1 required per assembly)
		812638002 - Friction Plate [ More info ] $14.09 Available to Order: Shipping delay up to 10 days.
#17	8M0139430	SCREW (1 required per assembly)
		108M0139430 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#18	852784001	E RING (1 required per assembly)
		53-852784001 - E-Ring [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#19	8M0186986	STARTER SEAL (1 required per assembly)
		25-8M0186986 - STARTER SEAL [ More info ] Unavailable
#20	8M0186899	STARTER LOCK WIRE (1 required per assembly)
		8M0186899 - STARTER LOCK WIRE [ More info ] Unavailable
#21	8M0137310	DECAL CAUTION (1 required per assembly)
		378M0137310 - Decal CAUTION [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#21	8M0137311	DECAL CAUTION EU Models (1 required per assembly)
		378M0137311 - Decal CAUTION [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#22	953921	WASHER (3 required per assembly)
		12-95392 1 - Washer [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
#23	8M0137309	BOLT (3 required per assembly)
		108M0137309 - Bolt [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
