Parts for 30 HP EFI 3 Cyl 4-Stroke Mercury Outboard Motor Tiller Handle

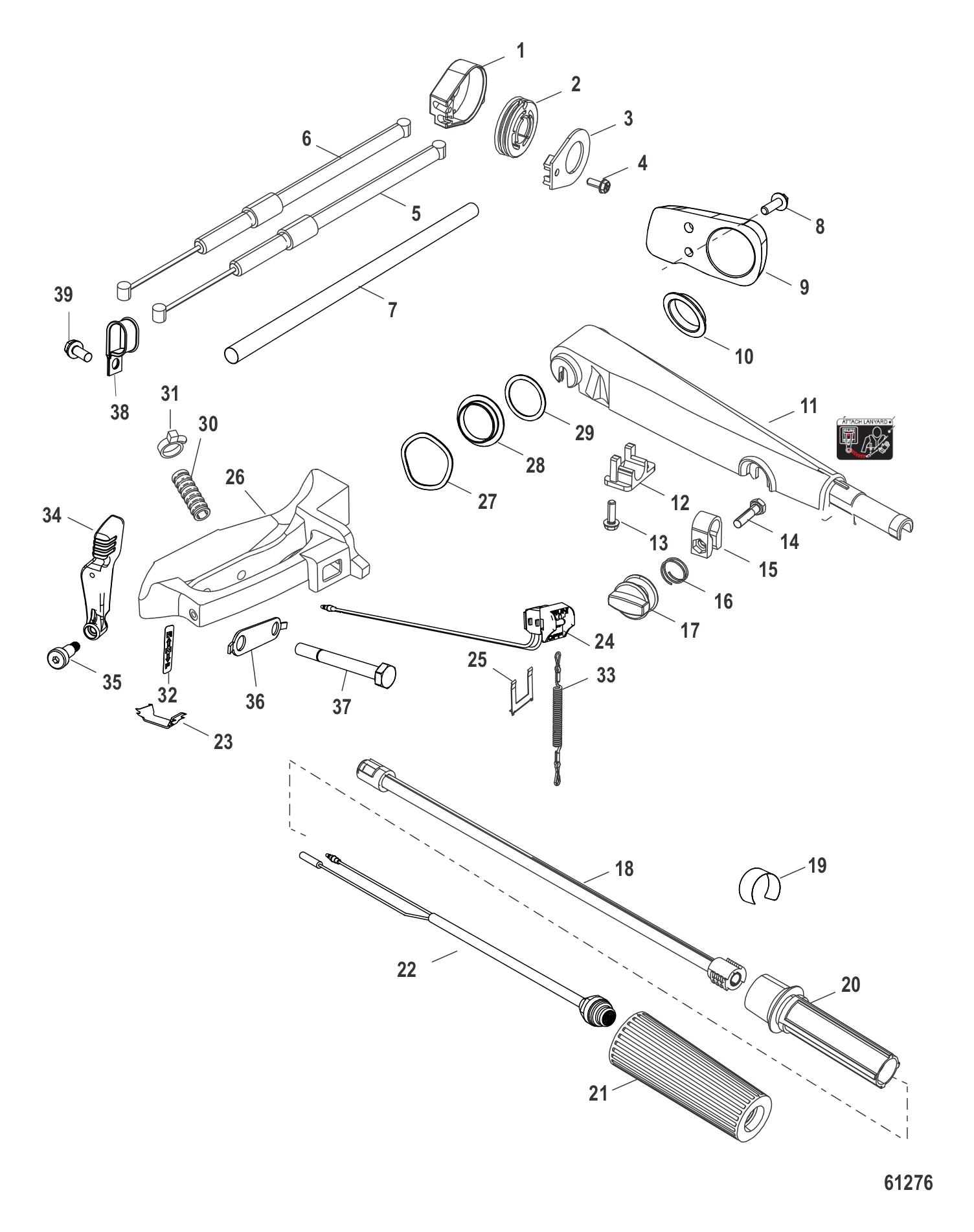

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0032728 | DECAL LANYARD, BLACK (1 required per assembly) |
  |
|
378M0032728 - Decal-Lanyard BLK [ More info ]
|
| #- | 880093A03 | HANDLE KIT-TILLER (1 required per assembly) |
  |
|
880093A03 - Tiller Handle Kit [ More info ]
|
| #1 | 822148T06 | PULLEY KIT-TILLER HANDLE (1 required per assembly) |
  |
|
822148T06 - Pulley Kit - Tiller [ More info ]
|
| #2 | 822150 | PULLEY (1 required per assembly) |
  |
|
|
| #3 | NSS | NOT SOLD SEPARATE CASE (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #4 | 878608 | SCREW (#10-16 X .500) (1 required per assembly) |
  |
|
10-878608 - Screw [ More info ]
|
| #5 | 4324210 | CABLE ASSEMBLY THROTTLE (30.50 INCHES) (1 required per assembly) |
  |
|
43242 10 - Throttle Cable [ More info ]
|
| #6 | 4324211 | CABLE ASSEMBLY THROTTLE (41.50 INCHES) (1 required per assembly) |
  |
|
43242 11 - Throttle Cable [ More info ]
|
| #7 | 960099 | SLEEVE-12 INCH (1 required per assembly) |
  |
|
85-96009 9 - Sleeve -12 Inch [ More info ]
|
| #8 | 82526225 | SCREW (2 required per assembly) |
  |
|
10-825262 25 - Screw [ More info ]
|
| #9 | 8M0072298 | SIDE COVER-CSTG (1 required per assembly) |
  |
|
8M0072298 - Cover [ More info ]
|
| #10 | 821477 | BUSHING (1 required per assembly) |
  |
|
23-821477 - Bushing [ More info ]
|
| #11 | 828813T1 | HANDLE-TILLER HANDLE (1 required per assembly) |
  |
|
828813T 1 - Handle - Tiller Han A [ More info ]
|
| #12 | 822441 | RETAINER (1 required per assembly) |
  |
|
822441 - Retainer [ More info ]
|
| #13 | 40011107 | SCREW @5 (1 required per assembly) |
  |
|
10-40011107 - SCREW [ More info ]
|
| #14 | 8M0204707 | SCREW @5 (1 required per assembly) — Replaces: 4000330 |
  |
|
108M0204707 - SCREW Note: Priced Individually [ More info ]
|
| #15 | 892995 | LOCK-THROTTLE (1 required per assembly) |
  |
|
892995 - Throttle Lock [ More info ]
|
| #16 | 96203 | SPRING (1 required per assembly) |
  |
|
24-96203 - Spring, Pilot Control Screw [ More info ]
|
| #17 | 821972T | KNOB-THROTTLE (1 required per assembly) |
  |
|
821972T - Throttle Knob [ More info ]
|
| #18 | 8M0138696 | TILLER TUBE (1 required per assembly) — Replaces: 821463A2 |
  |
|
8M0138696 - Tiller Tube [ More info ]
|
| #19 | 8M0105187 | DECAL-TILLER HLD (1 required per assembly) |
  |
|
378M0105187 - Decal - Tiller HLD [ More info ]
|
| #20 | 821465 | HANDLE-THROTTLE (1 required per assembly) |
  |
|
821465 - Throttle Handle [ More info ]
|
| #21 | 99589003 | GRIP (1 required per assembly) |
  |
99589003 - Grip [ More info ] Unavailable |
|
  |
|
8M0221732 - Outer Grip [ More info ]
|
| #22 | 8M0104614 | SWITCH ASSY (1 required per assembly) |
  |
|
878M0104614 - Switch [ More info ]
|
| #23 | 823687 | CLIP-CABLE RETAIN (2 required per assembly) |
  |
|
823687 - Clip- Cable Retain [ More info ]
|
| #24 | 11083A31 | SWITCH ASSY-STOP (1 required per assembly) |
  |
|
87-11083A31 - Stop Switch Assembly [ More info ] Unavailable |
| #25 | 8M0032846 | RETAINER (1 required per assembly) |
  |
|
8M0032846 - Brass Retainer [ More info ]
|
| #26 | 821455A4 | BRACKET-TILLER-BL (1 required per assembly) |
  |
|
821455A 4 - Bracket - Tiller, Black [ More info ]
|
| #27 | 826792 | WASHER-WAVE (1 required per assembly) |
  |
|
13-826792 - Wave Washer [ More info ]
|
| #28 | 821477 | BUSHING 1.485-1.475 INSIDE DIAMETER USE WHEN HANDLE BOSS IS BELOW 1.485 INCH (1 required per assembly) |
| #28 | 8M0105383 | BUSHING 1.49-1.50 INSIDE DIAMETER USE WHEN HANDLE BOSS IS ABOVE 1.49 INCH (1 required per assembly) |
  |
|
238M0105383 - Bushing [ More info ]
|
| #29 | 827314 | WASHER @5 (1 required per assembly) |
  |
|
12-827314 - Washer - Priced Individually [ More info ]
|
| #30 | 828547633 | CONDUIT-.63 X 3FT (1 required per assembly) |
  |
|
32-828547633 - Conduit (.620 Inside Di [ More info ]
|
| #31 | 816311T | TIE STRAP @100 (1 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #32 | 82409316 | DECAL-SHIFT (1 required per assembly) |
  |
|
37-824093 16 - Decal - Shift [ More info ]
|
| #33 | 8M0164891 | LANYARD ASY @2 (1 required per assembly) — Replaces: 8M0092850 |
  |
|
8M0164891 - Lanyard - Sold Indivudually [ More info ]
|
| #34 | 830180A01 | HANDLE KIT-SHIFT (1 required per assembly) |
  |
|
830180A01 - Shift Handle Kit [ More info ]
|
| #35 | 8M0021519 | SHOULDER SCREW (10 X 20) (1 required per assembly) |
  |
|
10-8M0021519 - Screw [ More info ]
|
| #36 | 8M0009820 | TAB WASHER (1 required per assembly) |
  |
|
14-8M0009820 - Tab Washer [ More info ]
|
| #37 | 82484890 | SCREW (2 required per assembly) |
  |
|
10-824848 90 - Screw [ More info ]
|
| #38 | 8M0009374 | CLAMP (1 required per assembly) |
  |
|
54-8M0009374 - Clamp [ More info ]
|
| #39 | 8248324 | SCREW @5 (1 required per assembly) |
  |
|
10-824832 4 - Screw [ More info ]
|
