Parts for 30 HP EFI 3 Cyl 4-Stroke Mercury Outboard Motor Gear Housing Propeller Shaft - 2:1 Gear Ratio

Revise Search: Outboard > 4-Stroke Mercury Outboard > 30 HP EFI 3 Cyl > 1C109093 - 1C456299 > Gear Housing Propeller Shaft - 2:1 Gear Ratio

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

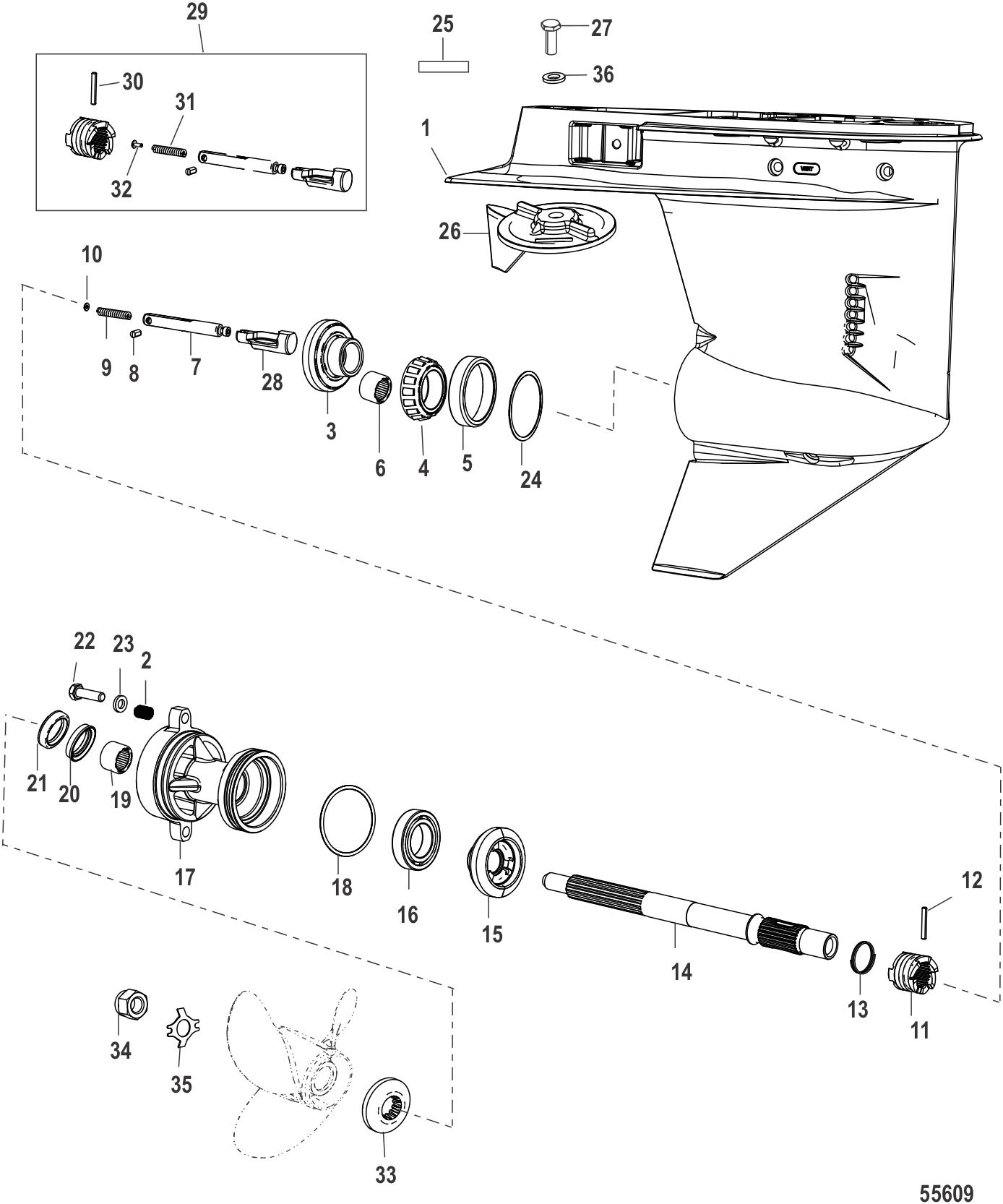

Gear Housing Propeller Shaft - 2:1 Gear Ratio

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0086323	GC 40 3CYL 4S SH [1C267559] & Up (1 required per assembly) — Replaces: 893680T03
		8M0086323 - Gearcase 40HP 3 Cylinder 4-Stroke, Short [ More info ] Unavailable
#-	8M0086324	GC 40 3CYL 4S LG [1C267559] & Up (1 required per assembly) — Replaces: 893680T04
		8M0086324 - Gearcase 40HP 3 Cylinder 4 Stroke Long [ More info ] Unavailable
#-	814669A2	SEAL KIT-G/H (1 required per assembly)
		26-814669A 2 - Gear Housing Seal Kit [ More info ] $75.49 In Stock
		18-2635 - Seal Kit, 26-814669A2 [ More info ] $66.91 10+ In Stock.
#1	893680T06	GEAR HOUSING ASSEMBLY BASIC (1 required per assembly)
		893680T06 - Gear Housing only [ More info ] $1,522.49 Available to Order: Shipping delay up to 10 days.
#2	8227731	INSERT THREADED (2 required per assembly)
		822773 1 - Insert [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#3	821315T02	GEAR ASSEMBLY FORWARD (1 required per assembly)
		43-821315T02 - Forward Gear Assembly [ More info ] $448.99 Available to Order: Shipping delay up to 10 days.
#4	889246A95	BEARING ASSEMBLY ROLLER (1 required per assembly)
		31-889246A95 - Bearing - Roller [ More info ] $82.49 Available to Order: Shipping delay up to 10 days.
#5	NSS	NOT SOLD SEPARATE CUP (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#6	21700	BEARING NEEDLE (1 required per assembly)
		31-21700 - Roller Bearing - Bearing Carrier [ More info ] $19.29 1 In Stock.
#7	8M0005743	ROD ACTUATOR (1 required per assembly)
		8M0005743 - Actuator [ More info ] $85.49 Available to Order: Shipping delay up to 10 days.
#8	8M0084682	PIN SPRING (1 required per assembly) — Replaces: 8M0025222
		178M0084682 - PIN [ More info ] $9.29 Available to Order: Shipping delay up to 10 days.
#9	79910	SPRING Design I [1C267558] & Below (1 required per assembly)
		24-79910 - Spring, Compression [ More info ] $8.19 2 In Stock.
#10	78910	WASHER (1 required per assembly)
		12-78910 - Washer, Compression Spring [ More info ] $1.99 10+ In Stock.
#11	821314T01	CLUTCH (1 required per assembly)
		52-821314T01 - Clutch [ More info ] $86.49 Available to Order: Shipping delay up to 10 days.
#12	8M0091340	SPRING / PIN KIT Design I [1C267558] & Below (1 required per assembly) — Replaces: 8M0009287
		178M0091340 - PIN KIT-Clutch [ More info ] $22.99 Available to Order: Shipping delay up to 10 days.
#13	38114	SPRING (1 required per assembly)
		24-38114 - Spring, Retaining - Cross Pin [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#14	826193T03	PROPELLER SHAFT (1 required per assembly)
		44-826193T03 - Prop Shaft [ More info ] $341.49 Available to Order: Shipping delay up to 10 days.
#15	821312T02	GEAR REVERSE (1 required per assembly)
		43-821312T02 - Reverse Gear [ More info ] $293.99 Available to Order: Shipping delay up to 10 days.
#16	20839T	BEARING BALL (1 required per assembly)
		30-20839T - Ball Bearing [ More info ] Unavailable
		18-1190 - Bearing, 30-20839T [ More info ] $66.26 2 In Stock.
		31-02116 - Ball Bearing EMP [ More info ] $66.99 $51.23 3 In Stock.
#17	8M0168900	BEARING CARRIER (1 required per assembly) — Replaces: 19291A3
		8M0168900 - Bearing Carrier [ More info ] $311.49 Available to Order: Shipping delay up to 10 days.
		18-2370 - Bearing Carrier, 19291A3 [ More info ] $240.51 10+ In Stock.
#18	815460	O-RING (1 required per assembly)
		25-815460 - O-ring, Bearing Carrier [ More info ] $2.99 8 In Stock.
#19	21700	BEARING NEEDLE (1 required per assembly)
#20	8M0205511	SEAL (1 required per assembly) — Replaces: 69188
		26-8M0205511 - Prop Shaft Oil Seal, Outboard [ More info ] $19.29 7 In Stock.
#21	8M0203757	SEAL (1 required per assembly) — Replaces: 69189
		26-8M0203757 - Bearing Carrier Oil Seal, Outboard [ More info ] $19.55 3 In Stock.
#22	85594030	SCREW (M8 X 30) (2 required per assembly)
		10-855940 30 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#23	855941	WASHER (.323 X .590 X .112) STAINLESS STEEL (2 required per assembly)
		12-855941 - Washer, (.323 X .590 X .112) Stainless Steel [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#24	8M0063264	SHIM SET (AR required per assembly) — Replaces: 889246A98
		158M0063264 - Shim Set [ More info ] $172.49 Available to Order: Shipping delay up to 10 days.
#25	NSS	NOT SOLD SEPARATE DECAL-GEAR RATIO (1 required per assembly)
#26	822157T03	TRIM TAB ALUMINUM (1 required per assembly)
		822157T03 - Trim Tab- Std Gc [ More info ] $124.50 3 In Stock.
		8M0203918 - TRIM TAB [ More info ] Unavailable
#26	17264T2	TRIM TAB ZINC (1 required per assembly)
		17264T 2 - Trim Tab [ More info ] $32.89 5 In Stock.
#27	858771	SCREW (M10 X 30) (1 required per assembly) — Replaces: 1996230
		10-858771 - Screw [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#28	842071A01	CAM/FOLLOWER KIT (1 required per assembly) — Replaces: 8M0008716
		842071A01 - Cam/Follower Kit [ More info ] $65.99 Available to Order: Shipping delay up to 10 days.
#29	8M0091340	SPRING / PIN KIT Design II [1C267559] & Up (1 required per assembly)
#30	NSS	NOT SOLD SEPARATE PIN Design II [1C267559] & Up (1 required per assembly)
#31	NSS	NOT SOLD SEPARATE SPRING Design II [1C267559] & Up (1 required per assembly)
#32	NSS	NOT SOLD SEPARATE GUIDE, SPRING Design II [1C267559] & Up (1 required per assembly)
#33	73345A1	THRUST WASHER (1 required per assembly)
		73345A 1 - Thrust Washer [ More info ] $18.21 $17.47 10+ In Stock.
#34	69578Q1	PROP NUT KIT@2 (1 required per assembly)
		11-69578Q 1 - Prop Nut Kit - Priced Individually [ More info ] $17.12 1 In Stock.
		18-3704 - Nut, 11-69578 [ More info ] $21.79 1 In Stock.
		18-3702 - Nut Kit, 11-69578Q1 [ More info ] $15.99 $15.62 5 In Stock.
		11-69578T 1 - Prop Nut Kit - Priced Individually [ More info ] $16.72 Available to Order: Shipping delay up to 10 days.
#35	76281	TAB WASHER (1 required per assembly)
		14-76281 - Tab Washer - Priced Individually [ More info ] $2.99 10+ In Stock.
		18-3204-9 - Washer, 14-76281, 10PK [ More info ] $17.49 $11.83 Available to Order: Shipping delay up to 10 days.
		14-76281Q - Tab Washer - Priced Individually [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
		14-8M0214942 - Prop Tab Washer, Priced Individually [ More info ] $6.09 10+ In Stock.
#36	856774	WASHER @5 (4 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#37	4000380	SCREW @5 (4 required per assembly)
		10-40003 80 - Screw [ More info ] $5.29 2 In Stock.
#38	856774	WASHER @5 (1 required per assembly)
