Parts for 30 HP EFI 3 Cyl 4-Stroke Mercury Outboard Motor Ignition Coil S/N USA-0T979999 / BEL-0P325499 & Below

Revise Search: Outboard > 4-Stroke Mercury Outboard > 30 HP EFI 3 Cyl > 0T409000 - 1B226999 - USA > Ignition Coil S/N USA-0T979999 / BEL-0P325499 & Below

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

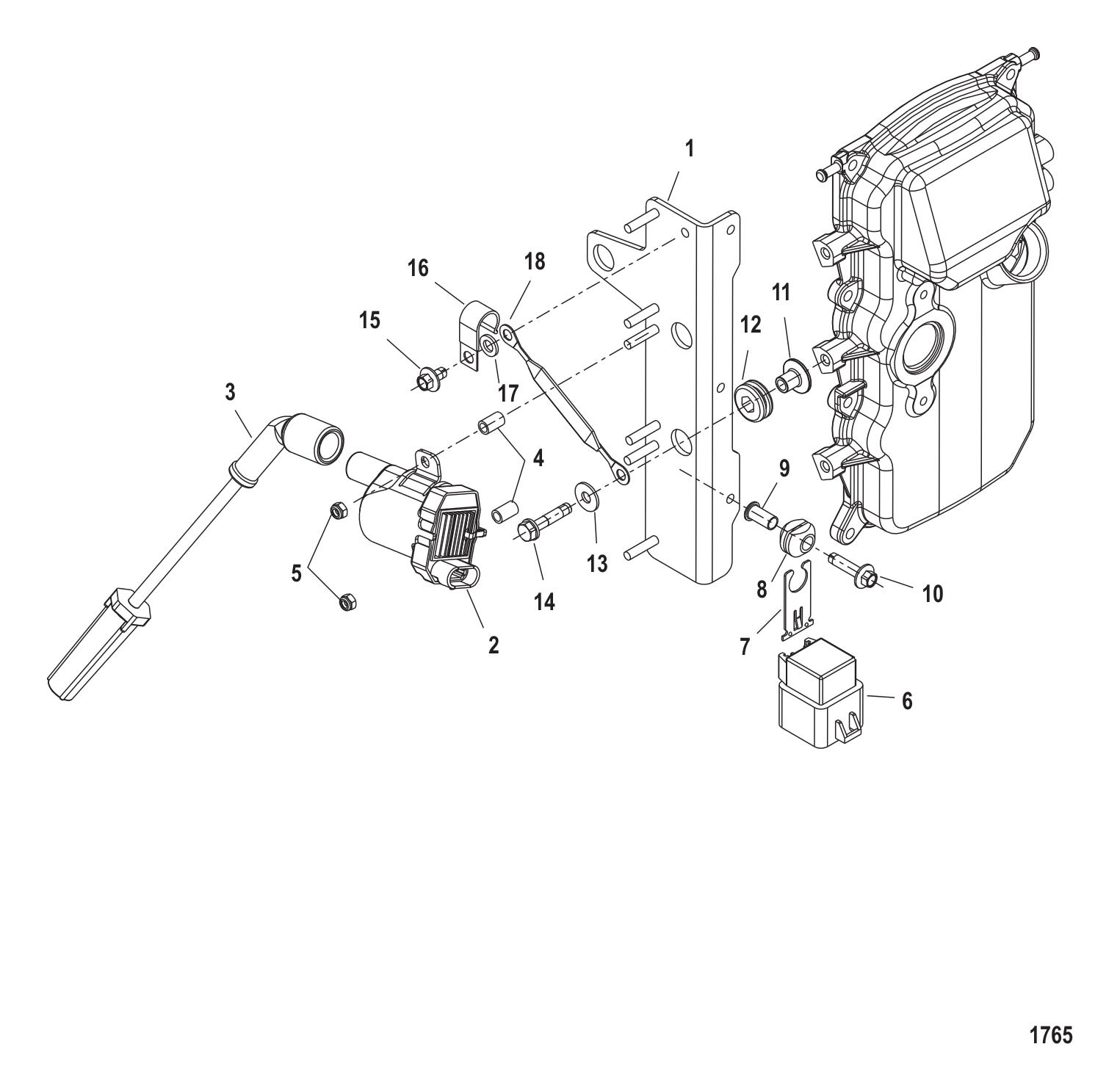

Ignition Coil S/N USA-0T979999 / BEL-0P325499 & Below

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8798471	PLATE (1 required per assembly)
		879847 1 - Plate [ More info ] Unavailable
#2	877807A2	COIL KIT-IGN (3 required per assembly)
		339-877807A 2 - Ignition Coil Kit [ More info ] $239.92 Available to Order: Shipping delay up to 10 days.
#3	821945T68	CABLE SET-IGN (1 required per assembly)
		84-821945T68 - Ignition Cable Set [ More info ] $57.43 3 In Stock.
#4	309773	SPACER (6 required per assembly)
		0309773 - Washer (309773) [ More info ] $12.99 $7.90 10+ In Stock.
#5	401385	NUT (6 required per assembly)
		11-40138 5 - Nut [ More info ] Unavailable
#6	882751A1	RELAY ASSY-TRIM (1 required per assembly)
		882751A 1 - Relay - 8M0207773 [ More info ] Unavailable
		18-5849 - Relay, 882751A1 [ More info ] $20.16 10+ In Stock.
		300-01562 - Power Trim Relay, 882751A1 [ More info ] $16.99 10 In Stock.
		R151 - Relay [ More info ] $20.40 $19.55 In Stock
#7	8M0207771	BRACKET (1 required per assembly) — Replaces: 828102
		8M0207771 - BRACKET [ More info ] Unavailable
#8	8M0207785	GROMMET (1 required per assembly) — Replaces: 818967
		258M0207785 - Grommet [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#9	818968	BUSHING (1 required per assembly)
		23-818968 - Bushing [ More info ] Unavailable
		238M0214955 - Bushing [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#10	82129125	SCREW (1 required per assembly)
		10-821291 25 - Screw [ More info ] Unavailable
#11	856954	BUSHING (3 required per assembly)
		23-856954 - Bushing [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#12	834985	GROMMET @5 (3 required per assembly)
		25-834985 - Grommet [ More info ] $3.00 2 In Stock.
		25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ] $3.89 Available to Order: Shipping delay up to 10 days.
#13	4002316	WASHER @5 (3 required per assembly)
		12-40023 16 - Washer - Priced Individually [ More info ] $1.17 2 In Stock.
		128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ] $1.00 1 In Stock.
#14	82684430	SCREW @5 (3 required per assembly)
		10-826844 30 - Screw - Priced Individually [ More info ] $2.69 10 In Stock.
#15	82129110	SCREW (1 required per assembly)
		10-821291 10 - Screw [ More info ] $1.10 1 In Stock.
#16	55098	J CLIP @5 (1 required per assembly)
		54-55098 - J Clip - Priced Individually [ More info ] $4.90 5 In Stock.
		54-8M0024808 - J-CLIP [ More info ] Unavailable
#17	8M0204649	WASHER @10 (1 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#18	858414A3	CABLE (1 required per assembly)
		84-858414A 3 - Cable [ More info ] $19.39 Available to Order: Shipping delay up to 10 days.
