Parts for 30 HP Carb 3 Cyl 4-Stroke Mercury Outboard Motor Carburetor (0T178499 & Below)

Revise Search: Outboard > 4-Stroke Mercury Outboard > 30 HP Carb 3 Cyl > 0P017000 - 0P153499 - Belgium > Carburetor (0T178499 & Below)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

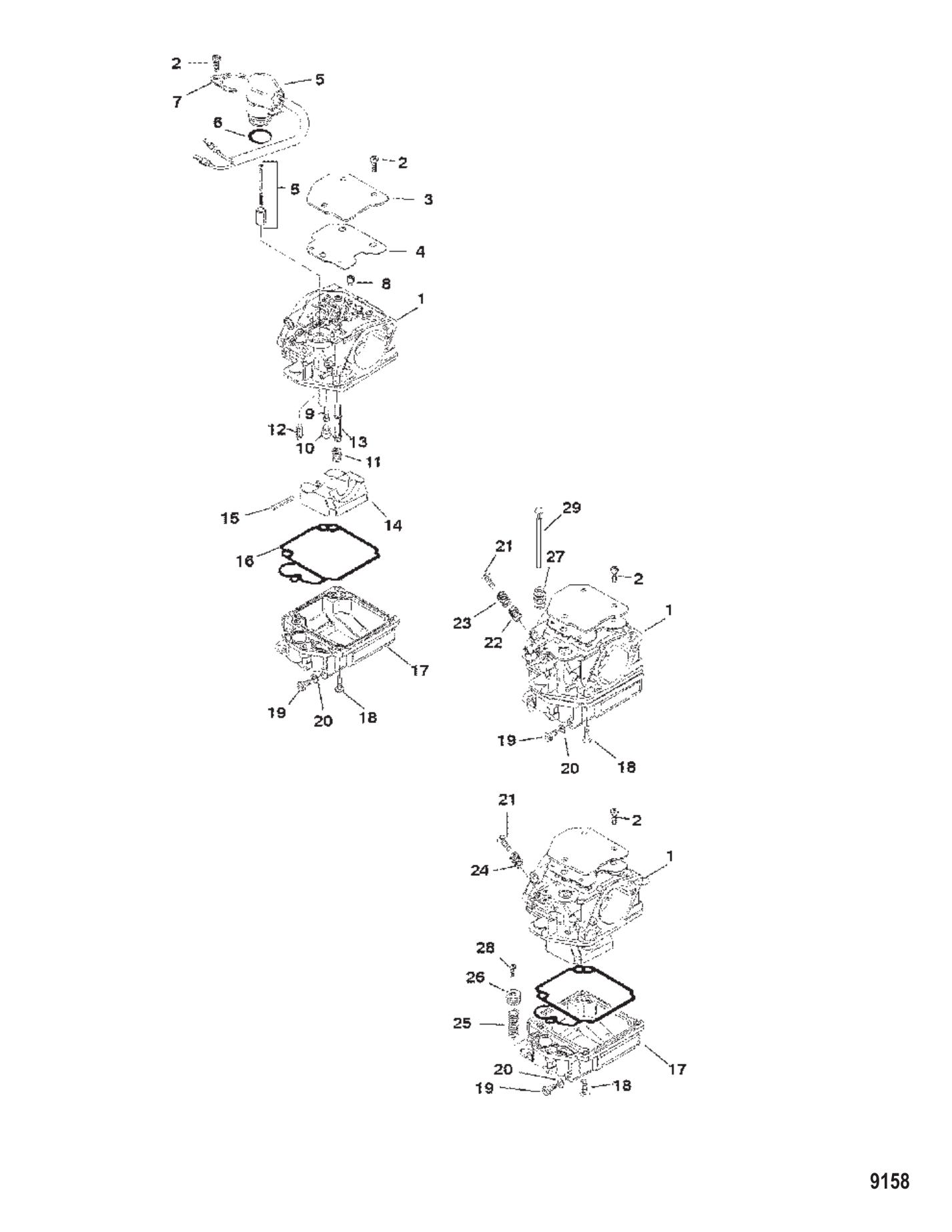

Carburetor (0T178499 & Below)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	854256	REPAIR KIT-CARB (1 required per assembly)
		854256 - Carburetor Repair Kit [ More info ] $87.00 3 In Stock.
#1	830276T27	CARBURETOR (TOP) (1 required per assembly)
		3329-830276T27 - Carburetor [ More info ] $559.49 Available to Order: Shipping delay up to 10 days.
#1	830276T11	CARBURETOR (CENTER) (1 required per assembly)
		3329-830276T11 - Carburetor [ More info ] $550.49 Available to Order: Shipping delay up to 10 days.
#1	830276T12	CARBURETOR (BOTTOM) (1 required per assembly)
		3329-830276T12 - Carburetor [ More info ] $568.49 Available to Order: Shipping delay up to 10 days.
#2	854246	SCREW (10 required per assembly)
		10-854246 - Screw [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#3	854245	PLATE (3 required per assembly)
		854245 - Plate [ More info ] $8.89 $7.53 10 In Stock.
#4	NSS	NOT SOLD SEPARATE GASKET (3 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#5	854254T	ENRICHENER (1 required per assembly)
		854254T - Enrichener [ More info ] $179.99 Available to Order: Shipping delay up to 10 days.
#6	NSS	NOT SOLD SEPARATE O RING (1 required per assembly)
#7	854255	PLATE (1 required per assembly)
		854255 - Plate [ More info ] $16.39 Available to Order: Shipping delay up to 10 days.
#8	803919	IDLE JET (3 required per assembly)
		803919 - Idle Jet [ More info ] $21.99 Available to Order: Shipping delay up to 10 days.
#9	803912	JET (3 required per assembly)
		803912 - Jet (sj) [ More info ] $21.39 Available to Order: Shipping delay up to 10 days.
#10	854248	PLUG RUBBER (3 required per assembly)
		19-854248 - Plug [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#11	803915	JET (3 required per assembly)
		803915 - JET (MJ),NLA [ More info ] Unavailable
#12	854247	VALVE FLOAT (3 required per assembly)
		854247 - Float Valve [ More info ] $24.19 Available to Order: Shipping delay up to 10 days.
#13	803914	MAIN NOZZLE (3 required per assembly)
		803914 - Main Nozzle [ More info ] $26.49 Available to Order: Shipping delay up to 10 days.
#14	854253	FLOAT (3 required per assembly)
		854253 - Float [ More info ] $41.99 Available to Order: Shipping delay up to 10 days.
#15	NSS	NOT SOLD SEPARATE FLOAT PIN (3 required per assembly)
#16	NSS	NOT SOLD SEPARATE GASKET (3 required per assembly)
#17	803916	FLOAT BOWL (TOP) (1 required per assembly)
		803916 - Float Bowl [ More info ] $162.49 Available to Order: Shipping delay up to 10 days.
#17	803917	FLOAT BOWL (CENTER/BOTTOM) (2 required per assembly)
		803917 - Float Bowl [ More info ] Unavailable
#18	8542463	SCREW (12 required per assembly)
		10-854246 3 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#19	8542462	SCREW DRAIN (3 required per assembly)
		10-854246 2 - Drain Screw [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#20	NSS	NOT SOLD SEPARATE WASHER (3 required per assembly)
#21	803925	SCREW SYNCHRONIZATION (TOP/CENTER) (2 required per assembly)
		10-803925 - Screw [ More info ] Unavailable
#21	803913	SCREW (BOTTOM) (1 required per assembly)
		10-803913 - Stop Screw [ More info ] Unavailable
#22	803923	SPRING (TOP/CENTER) (2 required per assembly)
		24-803923 - Spring, Top/center [ More info ] $0.80 Available to Order: Shipping delay up to 10 days.
#23	803924	SPRING (TOP/CENTER) (2 required per assembly)
		24-803924 - Spring, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#24	854249	SPRING (BOTTOM) (1 required per assembly)
		24-854249 - Spring, Bottom [ More info ] Unavailable
#25	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
#26	854251	PLUNGER (1 required per assembly)
		854251 - Plunger [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#27	NSS	NOT SOLD SEPARATE RUBBER BELLOWS (3 required per assembly)
#28	NSS	NOT SOLD SEPARATE SCREW-PLUNGER RETAINING (3 required per assembly)
#29	NSS	NOT SOLD SEPARATE PLUNGER ROD (3 required per assembly)
