Parts for 30 HP Carb 3 Cyl 4-Stroke Mercury Outboard Motor Bottom Cowl
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

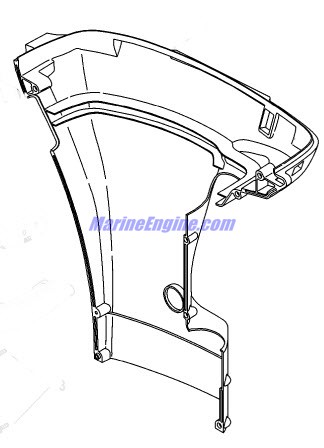

| #1 | 852554T1 | COWL-BOT-PORT-BLK (SHORT-PORT) (1 required per assembly) |
  |
|
4020-852554T 1 - Bottom Cowl, Port, Black [ More info ] Unavailable |
| #1 | 826277T1 | COWL-BOT-PORT-BLK (LONG-PORT) (1 required per assembly) |
  |
|
4020-826277T 1 - Cowl -bot- Port- Black [ More info ]
|
| #2 | 852555T5 | COWL-STBD BOTTOM (SHORT-STARBOARD) (1 required per assembly) — Replaces: 852555T1 |
  |
|
4020-852555T 5 - Bottom Cowl, Starboard, Black [ More info ] Unavailable |
| #2 | 826278T7 | COWL-BL STBD BOTM (LONG-STARBOARD) (1 required per assembly) — Replaces: 826278T3 |
  |
|
4020-826278T 7 - Bottom Cowl, Starboard, Black [ More info ]
|
| #3 | 82684430 | SCREW @5 (6 required per assembly) |
  |
|
10-826844 30 - Screw - Priced Individually [ More info ]
|
| #4 | 8M0204649 | WASHER @10 (1 required per assembly) — Replaces: 29245 |
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #5 | 825238002 | SEAL (1 required per assembly) — Replaces: 825238, 8252381 |
  |
|
825238002 - Seal [ More info ] Unavailable |
| #6 | 855576 | WASHER (1 required per assembly) |
  |
|
12-855576 - Washer [ More info ] Unavailable |
| #7 | 855627 | GASKET (1 required per assembly) |
  |
|
27-855627 - Gasket [ More info ]
|
| #8 | 82684460 | SCREW (1 required per assembly) |
  |
|
10-826844 60 - Screw [ More info ]
|
| #9 | 827948 | FITTING-TELLTALE (1 required per assembly) |
  |
|
22-827948 - Fitting -Telltale [ More info ]
|
| #10 | 826273001 | BOOT (1 required per assembly) — Replaces: 826273 |
  |
|
826273001 - Boot [ More info ]
|
| #11 | 816311T | TIE STRAP @100 (2 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #12 | 825782F1 | LEVER-BLACK (1 required per assembly) |
  |
|
825782F 1 - Lever - Black [ More info ] Unavailable |
| #13 | 812707 | BUSHING (2 required per assembly) |
  |
|
23-812707 - Bushing [ More info ]
|
| #14 | 12134 | WASHER-WAVE (2 required per assembly) |
  |
|
13-12134 - Wave Washer [ More info ] Unavailable |
| #15 | 893766 | HOOK-LATCH (1 required per assembly) — Replaces: 825783 |
  |
|
893766 - Latch Hook [ More info ]
|
| #16 | 1993716 | SCREW (1 required per assembly) |
  |
|
10-19937 16 - Screw [ More info ]
|
| #17 | 8M0179867 | GROMMET (NON POWER TRIM) (1 required per assembly) — Replaces: 19564, 19564001 |
  |
|
258M0179867 - Grommet [ More info ]
|
| #17 | 19565002 | GROMMET (SPLIT - POWER TRIM) (1 required per assembly) — Replaces: 19565 |
  |
|
25-19565002 - Grommet [ More info ]
|
| #18 | 812830T01 | CAP-SWITCH LG (NON POWER TRIM) (1 required per assembly) — Replaces: 8128301 |
  |
|
812830T01 - Cap - Switch Lg [ More info ]
|
| #19 | 8M0042300 | SWITCH-TRIM (POWER TRIM - DESIGN II) (1 required per assembly) — Replaces: 8569901, 896620001 |
  |
87-8M0042300 - Trim Switch [ More info ] Unavailable |
|
  |
|
87-8M0235191 - SWITCH TRIM [ More info ] Unavailable |
| #20 | 8M0042301 | SWITCH-TRIM (POWER TRIM - DESIGN I) (1 required per assembly) — Replaces: 856990, 896620 |
  |
87-8M0042301 - Trim Switch [ More info ] In Stock |
|
  |
|
87-09058 - Power Trim Switch [ More info ]
|
  |
|
SWITCH TRIM [ More info ]
|
| #21 | 8M0032848 | RETAINER (NON POWER TRIM) (1 required per assembly) — Replaces: 8124431 |
  |
|
8M0032848 - Retainer [ More info ]
|
