Parts for 275 HP Verado 6 Cyl 4-Stroke Mercury Outboard Motor Charge Cooler / Intake Manifold (Gen II) End Cap Serviced

Revise Search: Outboard > 4-Stroke Mercury Outboard > 275 HP Verado 6 Cyl > 1B517434 - 2B144122 - USA > Charge Cooler / Intake Manifold (Gen II) End Cap Serviced

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

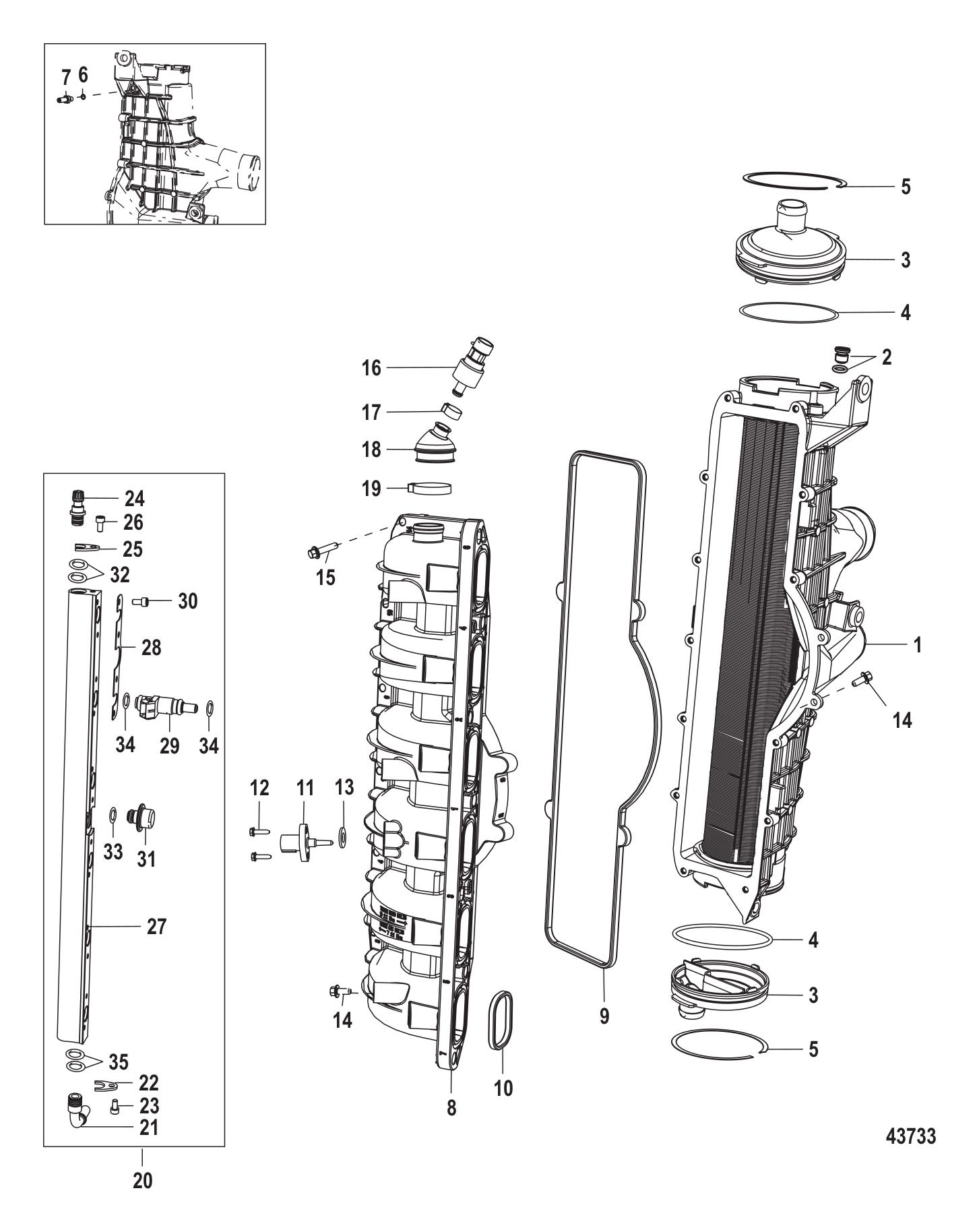

Charge Cooler / Intake Manifold (Gen II) End Cap Serviced

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0131233	IAFM [1B831009] THRU [1B870112] (1 required per assembly) — Replaces: 8M0053763, 8M0092408
		8M0131233 - IAFM [ More info ] Unavailable
		8M0185613 - IAFM [ More info ] Unavailable
#-	8M0185613	IAFM [1B870381] & Up (1 required per assembly) — Replaces: 8M0092408, 8M0131233
#-	8M0132737	O-RING KIT (1 required per assembly)
		258M0132737 - ORING KIT [ More info ] $27.89 Available to Order: Shipping delay up to 10 days.
#1	8M0132388	CAC ASSEMBLY (1 required per assembly) — Replaces: 8M0046692, 8M0092462
		8M0132388 - CAC ASSEMBLY [ More info ] Unavailable
#2	8M0048079	PLUG 8MM (1 required per assembly) — Replaces: 8M0039519
		198M0048079 - Plug-8MM [ More info ] $9.20 Available to Order: Shipping delay up to 10 days.
#3	8M0046698	END CAP ASSEMBLY (2 required per assembly)
		8M0046698 - End Cap Assembly [ More info ] $63.49 Available to Order: Shipping delay up to 10 days.
#4	8M0039516	O-RING (1 required per assembly)
		258M0039516 - O-Ring [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#5	8M0039464	RING RETAINING (1 required per assembly)
		538M0039464 - Ring [ More info ] $26.19 Available to Order: Shipping delay up to 10 days.
#6	8M0040116	O-RING (1 required per assembly)
		258M0040116 - O-Ring [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#7	8M0039993	FITTING (1 required per assembly)
		228M0039993 - Fitting [ More info ] $26.59 Available to Order: Shipping delay up to 10 days.
#8	8M0083678	MANIFOLD ASSEMBLY INTAKE (1 required per assembly) — Replaces: 8M0041479
		8M0083678 - Manifold [ More info ] $460.99 Available to Order: Shipping delay up to 10 days.
#9	895019	SEAL MANIFOLD TO CAC (1 required per assembly)
		895019 - Seal [ More info ] $83.99 Available to Order: Shipping delay up to 10 days.
#10	895020	SEAL MANIFOLD HEAD (6 required per assembly)
		895020 - Seal [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#11	891663001	SENSOR TEMPERATURE (1 required per assembly)
		891663001 - Temperature Sensor Assembly [ More info ] $228.49 In Stock
#12	895054	SCREW (M4 X 16 MM) (2 required per assembly)
		10-895054 - Screw - Priced Individually [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#13	892317001	O-RING (1 required per assembly)
		25-892317001 - O-ring, Air Plenum Sensor And Intake Manifold [ More info ] $23.19 Available to Order: Shipping delay up to 10 days.
#14	8M0103805	SCREW (M6 X 16MM) STAINLESS STEEL CAC TO MANIFOLD (2 required per assembly) — Replaces: 88552516
		108M0103805 - Screw (M6 x 16MM) Stain [ More info ] $2.49 4 In Stock.
#15	8M0103807	SCREW (M6 X 25 MM) STAINLESS STEEL MANIFOLD TO CAC (13 required per assembly) — Replaces: 88552525
		108M0103807 - Screw (M6 x 25 MM) Stainless Steel [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#16	8M6000639	SENSOR PRESSURE PRESSURE (1 required per assembly) — Replaces: 8M0010248
		8M6000639 - Sensor [ More info ] $247.58 1 In Stock.
		8M0234766 - SENSOR PRESSURE [ More info ] In Stock
#17	13791	CLAMP (15.7) (1 required per assembly) — Replaces: 888988015
		54-13791 - Clamp [ More info ] Unavailable
		54-8M0214911 - CLAMP @5 [ More info ] Unavailable
#18	8M0041053	BOOT MAP SENSOR (1 required per assembly)
		8M0041053 - Boot [ More info ] $35.41 2 In Stock.
#19	8M0204719	CLAMP @5 (1 required per assembly) — Replaces: 888988001
		548M0204719 - CLAMP Note: Priced Individually [ More info ] $5.49 4 In Stock.
#20	8M0185166	FUEL RAIL ASSY (1 required per assembly) — Replaces: 8M0041080, 8M0129411
		8M0185166 - FUEL RAIL ASSY [ More info ] Unavailable
#21	8M0047054	TUBE KIT FUEL INLET (1 required per assembly)
		328M0047054 - Tube Kit-Fuel INL [ More info ] $93.99 Available to Order: Shipping delay up to 10 days.
#22	8M0041097	BRACKET RETAINING (1 required per assembly)
		8M0041097 - Bracket [ More info ] $18.79 Available to Order: Shipping delay up to 10 days.
#23	8M0041100	SCREW (M5 X 10) (1 required per assembly)
		108M0041100 - Screw [ More info ] $34.49 Available to Order: Shipping delay up to 10 days.
#24	8M0047053	VALVE KIT SHRADER (1 required per assembly)
		8M0047053 - Valve Kit [ More info ] $135.49 Available to Order: Shipping delay up to 10 days.
#25	8M0041097	BRACKET RETAINING (1 required per assembly)
#26	8M0041100	SCREW (M5 X 10) (1 required per assembly)
#27	NSS	NOT SOLD SEPARATE FUEL RAIL (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#28	8M0041096	BRACKET FUEL INJECTOR MOUNTING (3 required per assembly)
		8M0041096 - Bracket [ More info ] $28.49 Available to Order: Shipping delay up to 10 days.
#29	8M0041571	INJECTOR ASSEMBLY FUEL (6 required per assembly)
		8M0041571 - Fuel Injector [ More info ] Unavailable
		8M0222278 - FUEL INJECTOR [ More info ] Unavailable
#30	8M0041100	SCREW (M5 X 10) (12 required per assembly)
#31	8M0041101	DAMPER FUEL RAIL (1 required per assembly)
		8M0041101 - Damper [ More info ] Unavailable
#32	NSS	NOT SOLD SEPARATE O-RING, SHRADER VALVE (2 required per assembly)
#33	851889	O-RING DAMPER (1 required per assembly)
		25-851889 - O-Ring [ More info ] $14.49 Available to Order: Shipping delay up to 10 days.
#34	851889	O-RING FUEL INJECTOR (6 required per assembly)
#35	NSS	NOT SOLD SEPARATE O-RING, TUBE (2 required per assembly)
