Parts for 275 HP Verado 6 Cyl 4-Stroke Mercury Outboard Motor Crankshaft, Pistons & Connecting Rods

Revise Search: Outboard > 4-Stroke Mercury Outboard > 275 HP Verado 6 Cyl > 1B227000 - 1B381711 - USA > Crankshaft, Pistons & Connecting Rods

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

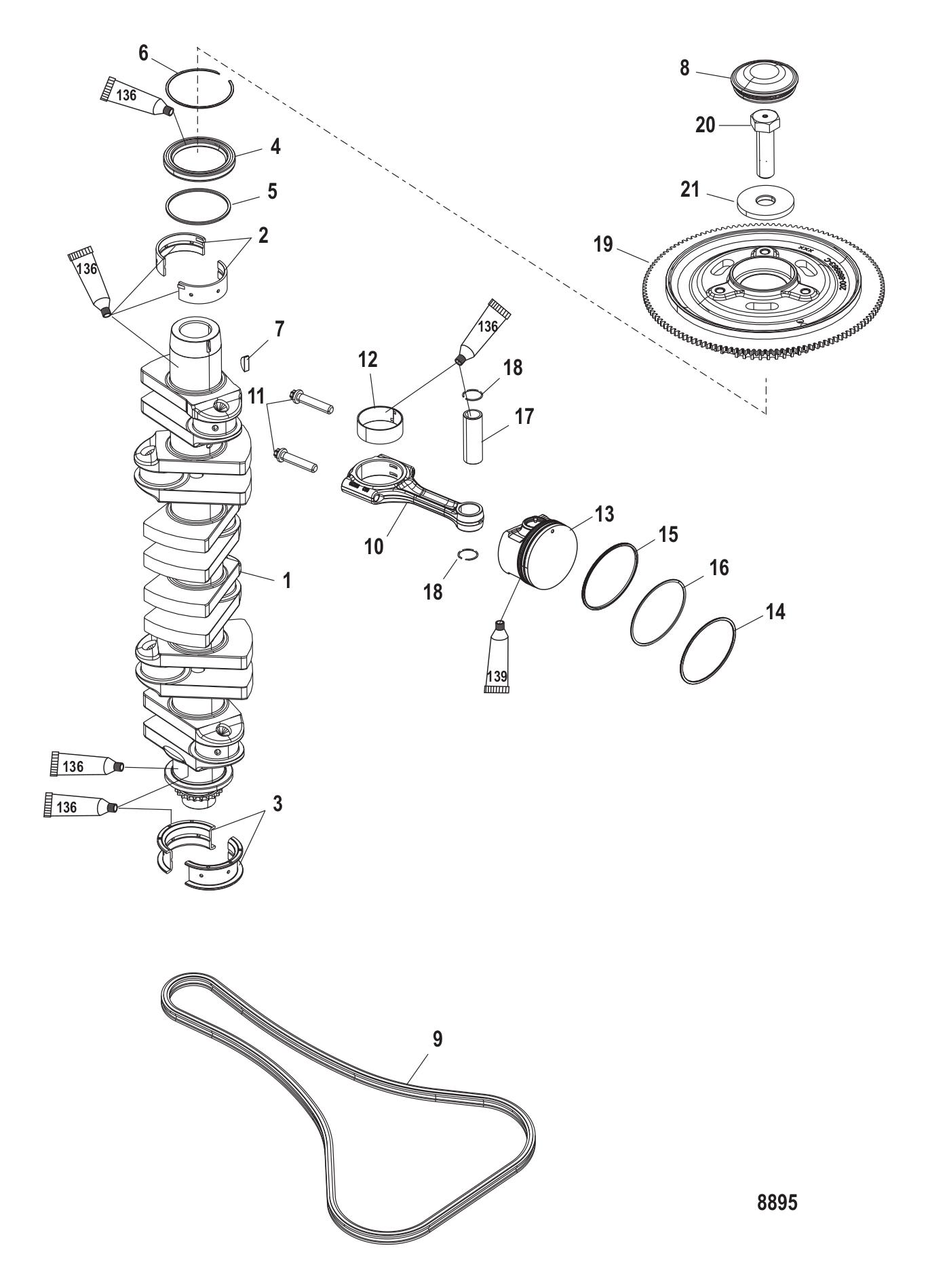

Crankshaft, Pistons & Connecting Rods

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	880552A07	GASKET SET (1 required per assembly) — Replaces: 880552A06
		27-880552A07 - Gasket Set [ More info ] $383.49 Available to Order: Shipping delay up to 10 days.
#-	895247R06	RM L6 GEN1 VERADO (1 required per assembly) — Replaces: 895247A06
		61-895247R06 - RM L6 GEN1 Verado [ More info ] Unavailable
#1	891644A04	CRANKSHAFT (1 required per assembly)
		400-891644A04 - CrankShaft [ More info ] $1,749.99 Available to Order: Shipping delay up to 10 days.
#2	897498T01	BEARING MAIN - GREEN CRANKSHAFT-UPPER (Green) (12/AR required per assembly)
		23-897498T01 - Bearing - Main - Green - Upper Crankshaft [ More info ] $12.69 Available to Order: Shipping delay up to 10 days.
#2	897498T02	BEARING MAIN - NAVY BLUE CRANKSHAFT-UPPER (Navy Blue) (12/AR required per assembly)
		23-897498T02 - Bearing - Main - Navy Blue - Upper Crankshaft [ More info ] $13.39 Available to Order: Shipping delay up to 10 days.
#2	897498T03	BEARING MAIN - WHITE CRANKSHAFT-UPPER (White) (12/AR required per assembly)
		23-897498T03 - Bearing - Main - White - Upper Crankshaft [ More info ] $12.49 1 In Stock.
#2	897498T04	BEARING MAIN - ORANGE CRANKSHAFT-UPPER (Orange) (12/AR required per assembly)
		23-897498T04 - Bearing - Main - Orange - Upper Crankshaft [ More info ] $12.29 $9.84 2 In Stock.
#3	8M0117003	BEARING CRANKSHAFT-LOWER (Green) (2/AR required per assembly) — Replaces: 892309T01
		238M0117003 - Bearing [ More info ] $75.99 Available to Order: Shipping delay up to 10 days.
#3	8M0117001	BEARING CRANKSHAFT-LOWER (Navy Blue) (2/AR required per assembly) — Replaces: 892309T02
		238M0117001 - Bearing [ More info ] $68.49 Available to Order: Shipping delay up to 10 days.
#3	8M0117002	BEARING CRANKSHAFT-LOWER (White) (2/AR required per assembly) — Replaces: 892309T03
		238M0117002 - Bearing [ More info ] $66.49 Available to Order: Shipping delay up to 10 days.
#3	8M0117004	BEARING CRANKSHAFT-LOWER (Orange) (2/AR required per assembly) — Replaces: 892309T04
		238M0117004 - Bearing [ More info ] $75.99 Available to Order: Shipping delay up to 10 days.
#4	8M0032912	SEAL TOP MAIN BEARING (1 required per assembly) — Replaces: 8805251
		26-8M0032912 - Seal [ More info ] $17.32 1 In Stock.
#5	896883	SPACER (1 required per assembly)
		23-896883 - Spacer [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#6	896882	RING-RETAINING (1 required per assembly)
		53-896882 - Ring - Retaining [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#7	91800	KEY @2 (1 required per assembly)
		28-91800 - Key - Priced Individually [ More info ] $3.05 6 In Stock.
#8	885348	CAP FLYWHEEL BOLT (1 required per assembly)
		19-885348 - Cap [ More info ] $17.79 3 In Stock.
#9	8M0103398	CHAIN - CAM DRIVE (1 required per assembly) — Replaces: 897796
		8M0103398 - CHAIN - CAM DRIVE [ More info ] $145.49 Available to Order: Shipping delay up to 10 days.
#10	8M0103285	CONN ROD ASSY (6 required per assembly) — Replaces: 881210T02
		662-8M0103285 - Connecting Rod Assembly [ More info ] $161.49 Available to Order: Shipping delay up to 10 days.
#11	884441	BOLT (12 required per assembly)
		10-884441 - Bolt [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#12	892005A01	BEARING KIT (Blue) (12/AR required per assembly)
		23-892005A01 - Bearing - Connecting Rod - Blue [ More info ] $22.09 Available to Order: Shipping delay up to 10 days.
#12	892005A02	BEARING KIT (White) (12/AR required per assembly)
		23-892005A02 - Bearing - Connecting Rod - White [ More info ] $24.79 Available to Order: Shipping delay up to 10 days.
#12	892005A03	BEARING KIT (Orange) (12/AR required per assembly)
		23-892005A03 - Bearing - Connecting Rod - Orange [ More info ] $22.09 Available to Order: Shipping delay up to 10 days.
#13	897737A04	PISTON/OILJET KIT (6 required per assembly) — Replaces: 897737T01
		700-897737A04 - Piston/OilJet Kit [ More info ] $432.49 Available to Order: Shipping delay up to 10 days.
#14	881180A02	RING SET PISTON (6 required per assembly)
		39-881180A02 - Rings - Standard [ More info ] $53.99 Available to Order: Shipping delay up to 10 days.
#15	NSS	NOT SOLD SEPARATE PISTON RING-OIL (6 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#16	NSS	NOT SOLD SEPARATE PISTON RING-2ND (6 required per assembly)
#17	NSS	NOT SOLD SEPARATE PISTON PIN (6 required per assembly)
#18	881184	CIRCLIP (12 required per assembly)
		40-881184 - Circlip [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#19	888983T03	FLYWHEEL (1 required per assembly) — Replaces: 888983T02
		200-888983T03 - Flywheel [ More info ] $399.48 Available to Order: Shipping delay up to 10 days.
#20	8M0147042	BOLT (1 required per assembly) — Replaces: 880515
		108M0147042 - BOLT [ More info ] $8.29 Available to Order: Shipping delay up to 10 days.
#21	8M0090010	WASHER (1 required per assembly) — Replaces: 880517, 8M0071546
		128M0090010 - Washer [ More info ] $10.69 Available to Order: Shipping delay up to 10 days.
