Parts for 275 HP Verado 6 Cyl 4-Stroke Mercury Outboard Motor Driveshaft Housing

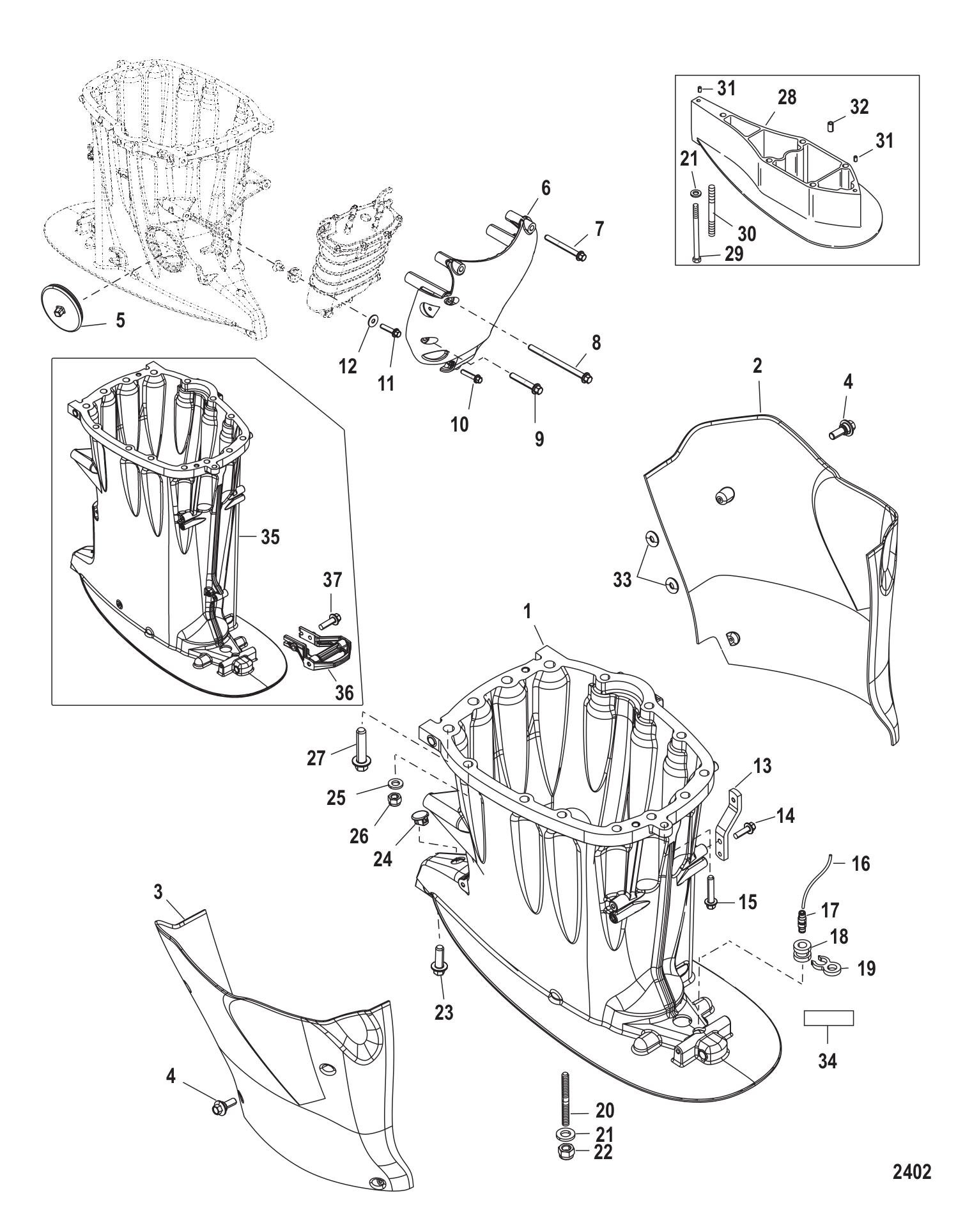

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 895247R06 | RM L6 GEN1 VERADO (1 required per assembly) — Replaces: 895247A05, 895247A06 |
  |
|
61-895247R06 - RM L6 GEN1 Verado [ More info ] Unavailable |
| #1 | 8M0107177 | DSH BLACK L (Long) (1 required per assembly) — Replaces: 880646T01, 8M0103297 |
  |
|
1500-8M0107177 - 1500-8M0107177 - DSH BLACK L [ More info ] Unavailable Replaced by 1500-8M0113286 |
  |
|
15008M0113286 - DSH BLACK L [ More info ]
|
| #2 | 885365T03 | CHAP ASSY LONG (Long) (1 required per assembly) — Replaces: 885366T01 |
  |
885365T03 - Chap Assembly Long [ More info ] Unavailable |
|
  |
|
100-8M0217261 - CHAP L P/STBD BL [ More info ] Unavailable |
| #2 | 885363T04 | CHAP ASSY XL (X-Long/XX-Long) (1 required per assembly) — Replaces: 885364T01 |
  |
885363T04 - Chap Assembly Xl [ More info ] Unavailable |
|
  |
|
100-8M0217264 - CHAP XL P/STBD BL [ More info ] Unavailable |
| #3 | 885365T03 | CHAP ASSY LONG (Long) (1 required per assembly) — Replaces: 885365T01 |
| #3 | 885363T04 | CHAP ASSY XL (X-Long/XX-Long) (1 required per assembly) — Replaces: 885363T01 |
| #4 | 892073002 | SCREW @4 (4 required per assembly) — Replaces: 892073, 892073001 |
  |
10-892073002 - Screw [ More info ] Unavailable |
|
  |
|
108M0230980 - SCREW (108M0230980) [ More info ]
|
| #5 | 889568001 | GROMMET (1 required per assembly) |
  |
|
25-889568001 - Grommet [ More info ]
|
| #6 | 889656T01 | SHROUD (1 required per assembly) — Replaces: 889656T |
  |
|
889656T01 - Shroud [ More info ]
|
| #7 | 8M0103818 | SCREW @2 (2 required per assembly) — Replaces: 88552675 |
  |
|
108M0103818 - Screw - Priced Individually [ More info ]
|
| #8 | 8M0103812 | SCREW (2 required per assembly) — Replaces: 885526120 |
  |
|
108M0103812 - Screw [ More info ]
|
| #9 | 8M0103816 | SCREW (2 required per assembly) — Replaces: 88552650 |
  |
|
108M0103816 - Screw [ More info ]
|
| #10 | 8M0103815 | SCREW @2 (1 required per assembly) — Replaces: 88552640 |
  |
|
108M0103815 - Screw - Priced Individually [ More info ]
|
| #11 | 8M0103814 | SCREW @2 (3 required per assembly) — Replaces: 88552635 |
  |
|
108M0103814 - Screw (M8 x 35 MM) [ More info ]
|
| #12 | 817274 | WASHER (3 required per assembly) |
  |
|
12-817274 - Washer, (.344 X 1.00 X .063) Stainless Steel [ More info ]
|
| #13 | 897784A01 | BRACKET KIT (2 required per assembly) |
  |
|
897784A01 - Bracket Kit [ More info ]
|
| #14 | 8M0103806 | SCREW (M6 X 20 MM) STAINLESS STEEL (2 required per assembly) — Replaces: 88552520 |
  |
|
108M0103806 - Screw - Priced Individually [ More info ]
|
| #15 | 8M0103813 | SCREW (1 required per assembly) — Replaces: 88552630 |
  |
|
108M0103813 - Screw [ More info ]
|
| #16 | 85944975 | TUBING (72.00 INCHES BULK) CUT TO 26 INCHES (1 required per assembly) |
  |
|
32-859449 75 - Tubing - 72 Inches [ More info ]
|
| #17 | 859448T | FITTING (1 required per assembly) — Replaces: 859448 |
  |
|
22-859448T - Fitting [ More info ]
|
| #18 | 8M0153609 | GROMMET @4 (1 required per assembly) — Replaces: 821555001 |
  |
|
25-8M0153609 - Grommet - Priced Individually [ More info ]
|
| #19 | 889831 | RETAINER (1 required per assembly) |
  |
|
889831 - Retainer [ More info ]
|
| #20 | 8M0008031 | STUD (LONG/XL) (4 required per assembly) — Replaces: 856983 |
  |
|
16-8M0008031 - Stud [ More info ]
|
| #21 | 856982 | WASHER @4 (4 or 5 required per assembly) |
  |
|
12-856982 - Washer, (.500 X .810 X .090) Stainless Steel [ More info ]
|
| #22 | 896895 | NUT @4 (4 required per assembly) — Replaces: 857008 |
  |
|
11-896895 - Nut, (M12) [ More info ]
|
| #23 | 8M0102995 | SCREW (Long/X-Long) (1 required per assembly) — Replaces: 88552835, 8M0071178 |
  |
|
108M0102995 - Screw [ More info ]
|
| #24 | 824928001 | PLUG (1 required per assembly) |
  |
|
19-824928001 - Plug [ More info ]
|
| #25 | 856774 | WASHER @5 (10 required per assembly) |
  |
12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable |
|
  |
|
128M0214963 - WASHER Note: Priced Individually [ More info ]
|
| #26 | 884412 | NUT @2 (10 required per assembly) |
  |
|
11-884412 - Nut - Priced Individually [ More info ]
|
| #27 | 8M0103825 | SCREW @2 (4 required per assembly) — Replaces: 88552845 |
  |
|
108M0103825 - Screw - Priced Individually [ More info ]
|
| #28 | 880647T04 | SPACER (XX-Long) (1 required per assembly) — Replaces: 880647T, 880647T02 |
  |
880647T04 - Spacer [ More info ] Unavailable |
|
  |
8M0071622 - Spacer-DSH X-LONG [ More info ] Unavailable |
|
  |
|
8M0105088 - Spacer-DSH XL [ More info ]
|
  |
|
823979T 5 - Ord 823979T 1, NLA [ More info ]
|
| #29 | 857137 | SCREW (XX-Long) (1 required per assembly) |
  |
|
10-857137 - Screw [ More info ]
|
| #30 | 8M0008047 | STUD (XX-Long) (4 required per assembly) — Replaces: 857009 |
  |
|
16-8M0008047 - Stud [ More info ]
|
| #31 | 43044 | PIN-DOWEL-SOLID (XX-Long) (2 required per assembly) |
  |
|
17-43044 - Pin -Dowel-solid [ More info ]
|
| #32 | 855623 | BUSHING (XX-Long) (1 required per assembly) |
  |
|
23-855623 - Bushing [ More info ] Unavailable |
| #33 | 898033 | CLIP @2 (2 required per assembly) — Replaces: 896251 |
  |
|
54-898033 - Clip - Priced Individually [ More info ]
|
| #34 | NSS | NOT SOLD SEPARATE DECAL-OIL DRAIN (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #35 | 8M0107178 | DSH BLACK XL (X-Long/XX-Long) (1 required per assembly) — Replaces: 880648T01, 8M0103298 |
  |
|
1500-8M0107178 - 1500-8M0107178 - DSH BLACK XL [ More info ] Unavailable Replaced by 1500-8M0113287 |
  |
|
15008M0113287 - DSH BLACK XL [ More info ]
|
| #36 | 891966006 | BRACKET (X-Long/XX-Long) (2 required per assembly) |
  |
|
891966006 - Bracket [ More info ]
|
| #37 | 8M0103806 | SCREW @2 (X-Long/XX-Long) (2 required per assembly) — Replaces: 88552520 |
