Parts for 275 HP Verado 6 Cyl 4-Stroke Mercury Outboard Motor Starter Motor

Revise Search: Outboard > 4-Stroke Mercury Outboard > 275 HP Verado 6 Cyl > 0P520553 - 2B144122 - Belgium > Starter Motor

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

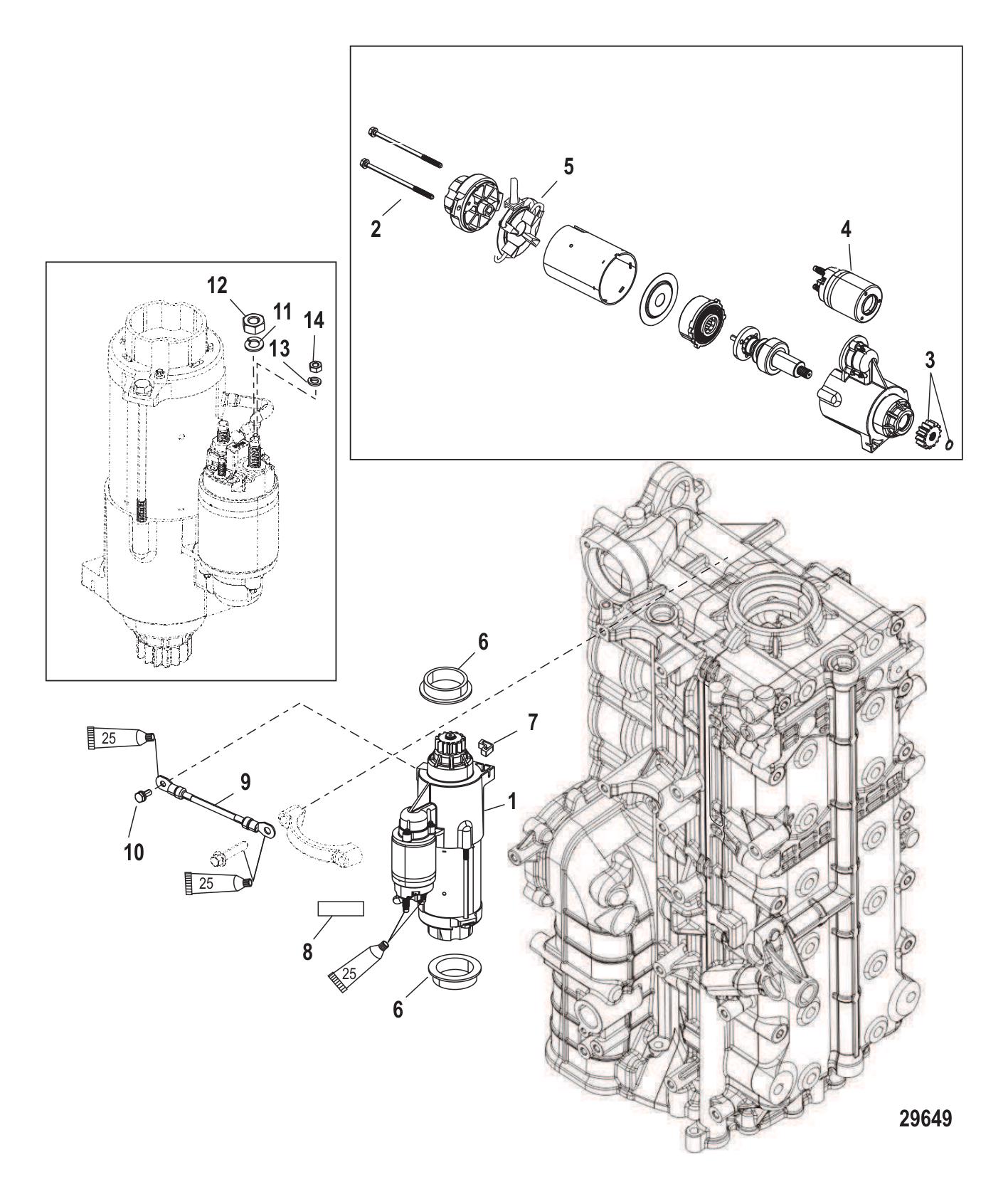

Starter Motor

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	NSS	NOT SOLD SEPARATE STARTER MOTOR ASSEMBLY (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#1	892339T01	STARTER MOTOR ASSEMBLY (1 required per assembly)
		50-892339T01 - Starter Motor Assembly [ More info ] $428.49 In Stock
		18-6440 - Starter [ More info ] $398.99 $382.26 2 In Stock.
		5400 - Outboard Starter [ More info ] $376.36 1 In Stock.
#2	NSS	NOT SOLD SEPARATE SCREWS (2 required per assembly)
#3	880805A1	GEAR KIT (1 required per assembly)
		43-880805A 1 - Gear Kit [ More info ] $110.49 Available to Order: Shipping delay up to 10 days.
#4	809463A1	SOLENOID KIT (1 required per assembly)
		809463A 1 - Solenoid Kit [ More info ] $205.49 Available to Order: Shipping delay up to 10 days.
		18-5811-1 - OMC/Volvo SOLENOID [ More info ] $62.99 $62.65 3 In Stock.
		SW463 - Solenoid, 809463A1, 3850216 [ More info ] $59.03 In Stock
#5	8M0065258	BRUSH SET (1 required per assembly)
		8M0065258 - Brush Set [ More info ] $72.08 Available to Order: Shipping delay up to 10 days.
#6	8M0034918	COLLAR (2 required per assembly)
		23-8M0034918 - Collar [ More info ] $9.29 3 In Stock.
#7	8M0043276	STOP (1 required per assembly)
		8M0043276 - Stop-START [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#8	NSS	NOT SOLD SEPARATE DECAL-WARING-HIGH VOLTAGE (1 required per assembly)
#9	93388A1	CABLE ASSEMBLY (6.00 INCHES) BLACK (1 required per assembly)
		84-93388A 1 - Cable Assembly [ More info ] $13.19 Available to Order: Shipping delay up to 10 days.
#10	69035	SCREW AND LOCKWASHER (.250-20 X .625) STAINLESS STEEL (1 required per assembly)
		10-69035 - Screw/LockWasher [ More info ] $1.90 $1.52 10+ In Stock.
#11	8M0204647	LOCKWASHER @5 (1 required per assembly) — Replaces: 26993
		138M0204647 - LOCKWASHER, Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#12	400213	NUT @2 (1 required per assembly)
		11-40021 3 - Nut - Priced Individually [ More info ] $2.89 1 In Stock.
#13	400255	LOCKWASHER (1 required per assembly)
		13-40025 5 - LockWasher [ More info ] $1.10 $0.88 8 In Stock.
#14	400211	NUT (1 required per assembly)
		11-40021 1 - Nut [ More info ] $3.59 10+ In Stock.
