Parts for 275 HP Verado 6 Cyl 4-Stroke Mercury Outboard Motor Starboard Cylinder Block / Oil Cooler (1B830815 & Below)

Revise Search: Outboard > 4-Stroke Mercury Outboard > 275 HP Verado 6 Cyl > 0P520553 - 2B144122 - Belgium > Starboard Cylinder Block / Oil Cooler (1B830815 & Below)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Starboard Cylinder Block / Oil Cooler (1B830815 & Below)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	895247A07	PH L6 4S (1 required per assembly)
		61-895247A07 - PH L6 4S [ More info ] Unavailable
#1	892404A05	DEFLECTOR-WATER (2 required per assembly)
		892404A05 - Water Deflector [ More info ] $16.49 Available to Order: Shipping delay up to 10 days.
#2	885518A02	FITTING ASSY (1 required per assembly)
		22-885518A02 - Fitting Assembly [ More info ] $10.39 Available to Order: Shipping delay up to 10 days.
#3	62701	O-RING (2 required per assembly)
		25-62701 - O-ring, Fitting Assembly [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#4	8M0103805	SCREW @2 (1 required per assembly) — Replaces: 88552516
		108M0103805 - Screw (M6 x 16MM) Stain [ More info ] $2.49 4 In Stock.

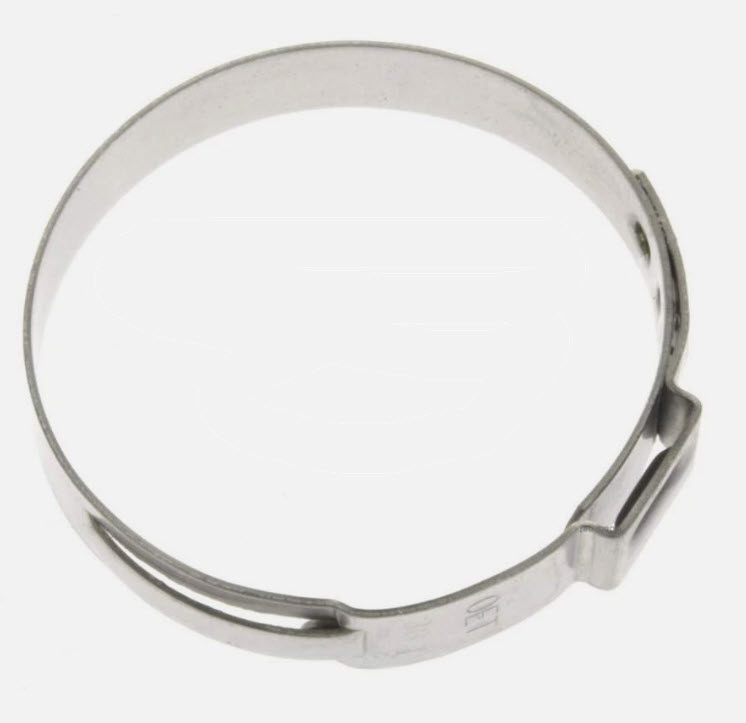

#5	888988011	CLAMP (1 required per assembly)
		54-888988011 - Clamp [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#6	888930003	HOSE (1 required per assembly)
		32-888930003 - Hose [ More info ] $28.49 Available to Order: Shipping delay up to 10 days.
#7	888988008	CLAMP @2 (1 required per assembly)
		54-888988008 - 54-888988008 - CLAMP (34.6 mm) [ More info ] Unavailable Replaced by -8M0187145
		54-8M0187145 CLAMP [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#8	8M0174561	THERMOSTAT ASSY (1 required per assembly) — Replaces: 892864T04
		8M0174561 - Thermostat with Housing, Verado [ More info ] $207.99 $199.99 In Stock
		18-3631 - Thermostat with Housing, 892864T04 [ More info ] $181.59 $168.85 In Stock
#9	8M0005958	O-RING (1 required per assembly)
		25-8M0005958 - O-Ring [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#10	8M0204719	CLAMP @5 (1 required per assembly) — Replaces: 888988001
		548M0204719 - CLAMP Note: Priced Individually [ More info ] $5.49 4 In Stock.
#11	892865	HOSE THERMOSTAT (1 required per assembly)
		32-892865 - Hose - Thermostat [ More info ] $37.49 Available to Order: Shipping delay up to 10 days.
#12	888988007	CLAMP (1 required per assembly)
		54-888988007 - Clamp [ More info ] $4.69 1 In Stock.
#13	8M0062950	FUEL FILTER (1 required per assembly) — Replaces: 892242T
		35-8M0062950 - Fuel Filter [ More info ] $144.49 In Stock
#14	8M0122423	FUEL FILTER QUICKSILVER (1 required per assembly) — Replaces: 8M0020349, 8M0060041
		35-8M0122423 - Fuel Filter Element [ More info ] $41.99 10+ In Stock.
		35-35120 - Fuel Filter [ More info ] $39.99 $27.63 7 In Stock.
#15	816311T	TIE STRAP @100 (1 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#16	892356	CONNECTOR (1 required per assembly)
		22-892356 - Connector [ More info ] $2.79 1 In Stock.
#17	863156	TAB-GRAB (1 required per assembly)
		19-863156 - Tab-grab [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#18	8M0072532	HOSE FUEL TO LIFT PUMP [1B792493] & Below (1 required per assembly) — Replaces: 8M0008224, 8M0042628
		328M0072532 - Hose [ More info ] Unavailable
		328M0087107 - Hose [ More info ] $50.99 Available to Order: Shipping delay up to 10 days.
#18	8M0087107	HOSE FUEL TO LIFT PUMP [1B792494] & Up (1 required per assembly) — Replaces: 8M0042628, 8M0072532
#19	78945	J CLAMP (1 required per assembly)
		54-78945 - J Clamp [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#20	8M0103824	SCREW @2 (3 required per assembly) — Replaces: 88552785
		108M0103824 - Screw - Priced Individually [ More info ] $7.39 Available to Order: Shipping delay up to 10 days.
#21	8M0103820	SCREW @2 (1 required per assembly) — Replaces: 885527105
		108M0103820 - Screw - Priced Individually [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#22	8M0045343	HOSE ASSMEBLY FUEL INLET, 32.5 INCH FUEL INLET [1B792494] THRU [1B830902] (1 required per assembly) — Replaces: 880597, 8M0043788
		32-8M0045343 - Hose - Fuel Inlet [ More info ] $70.49 Available to Order: Shipping delay up to 10 days.
#22	8M0046557	HOSE [1B830903] & Up (1 required per assembly)
		328M0046557 - Hose [ More info ] $60.99 Available to Order: Shipping delay up to 10 days.
#23	8M0065846	OIL COOLER MODULE [1B830815] & Below (1 required per assembly) — Replaces: 880640T11, 8M0046690
		8M0065846 - 8M0065846 - OIL COOLER MODULE [ More info ] Unavailable Replaced by -8M0076369
		8M0076369 - Oil Cooler Module [ More info ] Unavailable
		8M0092405 - 8M0092405 - MODULE Integrated [ More info ] Unavailable Replaced by -8M0132390
		8M0132390 - Oil Cooler MODULE [ More info ] $2,399.99 Available to Order: Shipping delay up to 10 days.
#24	877769K01	FILTER OIL (MERCURY BRANDED) (1 required per assembly)
		35-877769K01 - Oil Filter L6SC [ More info ] $17.09 8 In Stock.
		18-7918 - Filter, 35-883701K01 [ More info ] $10.99 $10.69 10+ In Stock.
		35-877769Q01 - Oil Filter L6SC [ More info ] $18.59 Available to Order: Shipping delay up to 10 days.
#24	877769Q01	FILTER OIL (QUICKSILVER BRANDED) (1 required per assembly)
#25	8M0046694	HOUSING ASSEMBLY (1 required per assembly) — Replaces: 880640A05
		8M0046694 - Housing Kit [ More info ] $518.49 Available to Order: Shipping delay up to 10 days.
#26	88552516	SCREW (M6 X 16 MM) STAINLESS STEEL (6 required per assembly) — Replaces: 895336, 8M0041014
		10-885525 16 - Screw - Priced Individually [ More info ] Unavailable
#27	8M0034568	GASKET (1 required per assembly) — Replaces: 880640500
		278M0034568 - Gasket [ More info ] $23.59 Available to Order: Shipping delay up to 10 days.
#28	880640A06	THERMOSTAT/GUIDE KIT (1 required per assembly)
		880640A06 - Thermostat/Guide [ More info ] $215.42 $182.46 1 In Stock.
#29	880640508	THERMOSTAT (1 required per assembly)
		880640508 - Thermostat [ More info ] Unavailable
#30	892801T53	OVERHAUL KIT (1 required per assembly)
		892801T53 - Overhaul Kit [ More info ] Unavailable
#31	8M0034568	GASKET (1 required per assembly) — Replaces: 880640500
#32	8M0071635	O-RING KIT (1 required per assembly) — Replaces: 880640A09
		258M0071635 - O-Ring Kit [ More info ] $59.99 Available to Order: Shipping delay up to 10 days.
#33	895032	STRAP (2 required per assembly)
		895032 - Strap [ More info ] $6.69 Available to Order: Shipping delay up to 10 days.
#34	88552516	SCREW (M6 X 16 MM) STAINLESS STEEL (4 required per assembly) — Replaces: 895336, 8M0041014
#35	8M0103807	SCREW @2 (2 required per assembly) — Replaces: 88552525
		108M0103807 - Screw (M6 x 25 MM) Stainless Steel [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#36	8M0007906	BRACKET (1 required per assembly)
		8M0007906 - Bracket [ More info ] $12.29 Available to Order: Shipping delay up to 10 days.
#37	822003	BUSHING (2 required per assembly)
		23-822003 - Bushing [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#38	834985	GROMMET @5 (2 required per assembly)
		25-834985 - Grommet [ More info ] Unavailable
		25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ] $3.89 Available to Order: Shipping delay up to 10 days.
#39	8M0007908	BRACKET (1 required per assembly)
		8M0007908 - Bracket [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#40	82129125	SCREW (2 required per assembly)
		10-821291 25 - Screw [ More info ] Unavailable
#41	65567	WASHER @2 (2 required per assembly)
		12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
