Parts for 250 HP Verado 6 Cyl 4-Stroke Mercury Outboard Motor Gear Housing Prop Shaft-Counter Rotation, 4.80 Torpedo 2B026817 & Up

Revise Search: Outboard > 4-Stroke Mercury Outboard > 250 HP Verado 6 Cyl > 1B517434 - 2B144122 - USA > Gear Housing Prop Shaft-Counter Rotation, 4.80 Torpedo 2B026817 & Up

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

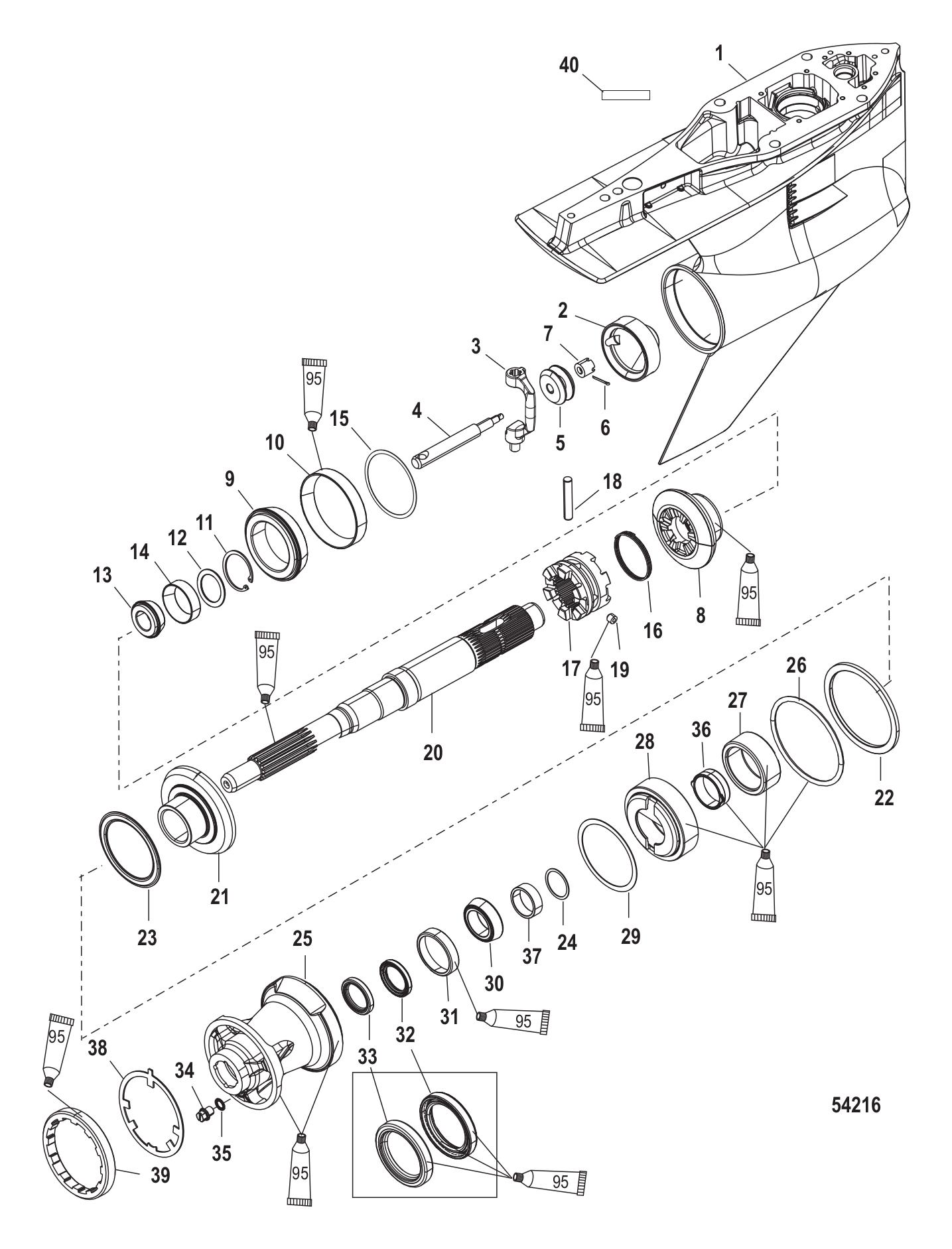

Gear Housing Prop Shaft-Counter Rotation, 4.80 Torpedo 2B026817 & Up

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	880686T15	GC L64S CXL (X-Long)(1.85:1)(200-275) (1 required per assembly)
		1600-880686T15 - Gear Housing Assembly [ More info ] Unavailable
		90-228-B25F - SE228 Lower Unit Mercury 200-275 HP Verado Inline 6, 4-stroke, 1.85:1, 25 inch, Counter Rotation [ More info ] $1865.00 $1865.00 Available to Order
		1600-8M0236258 - GC L6 4S CXL [ More info ] Unavailable
#-	880686T17	GC I6 4S CXXL (XX-Long)(1.85:1)(200-275) (1 required per assembly)
		1600-880686T17 - Gear Housing Assembly [ More info ] Unavailable
		90-228-B30F - SE228 Lower Unit Mercury 200-275 HP Verado Inline 6, 4-stroke, 1.85:1, 30 inch,Counter Rotation [ More info ] $1865.00 $1865.00 Available to Order
		1600-8M0236260 - GC L6 4S CXXL [ More info ] Unavailable
#-	880686T57	GC 300CL 1.75:1 (Long)(1.75:1)(300) (1 required per assembly)
		1600-880686T57 - Gear Housing Assembly [ More info ] Unavailable
		1600-8M0236267 - GC L6 1.75 CXL [ More info ] Unavailable
#-	880686T58	GC 300CXL 1.75:1 (X-Long)(1.75:1)(300) (1 required per assembly)
		1600-880686T58 - Gear Housing Assembly [ More info ] Unavailable
		90-228-A25F - SE228 Lower Unit Mercury 300 HP Verado Inline 6, 4-stroke, 1.75:1, 25 inch, Counter Rotation [ More info ] $1865.00 $1865.00 Available to Order
		1600-8M0236269 - GC L6 1.75 CXL [ More info ] Unavailable
#-	880686T59	GC 300CXXL 1.75:1 (XX-Long)(1.75:1) (1 required per assembly)
		1600-880686T59 - Gear Housing Assembly [ More info ] Unavailable
		90-228-A30F - SE228 Lower Unit Mercury 300 HP Verado Inline 6, 4-stroke, 1.75:1, 30 inch, Counter Rotation [ More info ] $1865.00 $1865.00 Available to Order
		1600-8M0236270 - GC L6 1.75 CXXL [ More info ] Unavailable
#-	830749A01	SEAL KIT-G/H (1 required per assembly)
		26-830749A01 - Gear Housing Seal Kit [ More info ] $72.99 In Stock
#1	8M0056631	GEAR HOUSING ASSEMBLY BASIC USED WITH 1/4 INCH SHIFT CRANK (1B853028 AND ABOVE) (1 required per assembly)
		16008M0056631 - Gear Housing -Basic [ More info ] Unavailable
#2	NSS	NOT SOLD SEPARATE PLUG (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#3	8M0046215	CRANK, SHIFTER 1/4 PIVOT PIN (1B853028 AND ABOVE) (1 required per assembly)
		8M0046215 - Crank- Shift Assembly [ More info ] Unavailable
		8M0220880 - CRANK-SHIFT ASSY [ More info ] Unavailable
#4	19755T7	SPOOL ASSEMBLY (1 required per assembly)
		19755T 7 - Spool Assembly [ More info ] Unavailable
#5	NSS	NOT SOLD SEPARATE SPOOL (1 required per assembly)
#6	469501	COTTER PIN (1 required per assembly)
		18-46950 1 - Cotter Pin [ More info ] $4.49 7 In Stock.
#7	NSS	NOT SOLD SEPARATE SLEEVE ADJUSTING (1 required per assembly)
#8	892809A02	GEAR ASSEMBLY REVERSE (1.85:1)(200-275) (1 required per assembly)
		43-892809A02 - Reverse Gear Kit [ More info ] $734.99 Available to Order: Shipping delay up to 10 days.
#8	880723A02	GEAR REVERSE (1.75:1)(300) (1 required per assembly)
		43-880723A02 - Reverse Gear Kit [ More info ] $698.49 Available to Order: Shipping delay up to 10 days.
#9	8M0142836	BEARING ROLLER TAPERED (1 required per assembly) — Replaces: 884323T01
		318M0142836 - Bearing ROLLER [ More info ] $70.49 Available to Order: Shipping delay up to 10 days.
#10	NSS	NOT SOLD SEPARATE CUP (1 required per assembly)
#11	8M0051043	RETAINING RING (1 required per assembly) — Replaces: 23721
		53-8M0051043 - Retainer Ring [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#12	8M0053823	THRUST WASHER (1 required per assembly) — Replaces: 892805
		128M0053823 - Washer [ More info ] $18.59 1 In Stock.
#13	8M0142835	BEARING ROLLER TAPERED (1 required per assembly) — Replaces: 884325T01
		318M0142835 - Bearing ROLLER [ More info ] $76.62 2 In Stock.
#14	NSS	NOT SOLD SEPARATE CUP (1 required per assembly)
#15	8M0063270	SHIM SET (AR required per assembly) — Replaces: 884328A01
		158M0063270 - Shim Set [ More info ] $113.99 Available to Order: Shipping delay up to 10 days.
#16	30893	SPRING (1 required per assembly)
		24-30893 - Spring, Reatiner - Cross Pin [ More info ] $2.69 1 In Stock.
#17	880714T	CLUTCH (1 required per assembly)
		52-880714T - Clutch [ More info ] $329.49 Available to Order: Shipping delay up to 10 days.
#18	8M0084681	PIN CROSS (1 required per assembly) — Replaces: 30632, 8M0020941
		17-8M0084681 - Pin - Priced Individually [ More info ] Unavailable
		17-8M0100263 - Pin - Priced Individually [ More info ] $4.49 2 In Stock.
#19	828356	PIN DETENT (1 required per assembly)
		17-828356 - Pin, Detent [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#20	8M0140446	PROPELLER SHAFT (1 required per assembly) — Replaces: 8M0069774
		448M0140446 - Prop Shaft [ More info ] $778.49 Available to Order: Shipping delay up to 10 days.
#21	8M0119540	GEAR KIT-FORWARD (1.85:1)(200-275) (1 required per assembly) — Replaces: 880720A02
		438M0119540 - Forward Gear Kit [ More info ] $632.99 Available to Order: Shipping delay up to 10 days.
#21	8M0119539	GEAR ASSEMBLY (1.75:1)(300) (1 required per assembly) — Replaces: 880720A03
		438M0119539 - Forward Gear Kit [ More info ] $619.49 Available to Order: Shipping delay up to 10 days.
#22	880699	THRUST RING (1 required per assembly)
		880699 - Ring - Thrust [ More info ] $10.99 1 In Stock.
#23	815480	BEARING THRUST (1 required per assembly)
		31-815480 - Thrust Bearing [ More info ] $32.49 $7.81 10+ In Stock.
#24	8M0076745	SHIM SET (1 required per assembly)
		158M0076745 - Washer/Shim Set [ More info ] $394.99 Available to Order: Shipping delay up to 10 days.
#24	8M0050423	WASHER .020 (AR required per assembly)
		12-8M0050423 - Shim-.020 , Priced Individually [ More info ] $37.99 Available to Order: Shipping delay up to 10 days.
#24	8M0050424	WASHER .022 (AR required per assembly)
		12-8M0050424 - Shim-.022 , Priced Individually [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#24	8M0050425	WASHER .024 (AR required per assembly)
		12-8M0050425 - Shim-.024 , Priced Individually [ More info ] $19.99 Available to Order: Shipping delay up to 10 days.
#24	8M0050427	WASHER .026 (AR required per assembly)
		12-8M0050427 - Shim-.026 , Priced Individually [ More info ] $30.19 Available to Order: Shipping delay up to 10 days.
#24	8M0050428	WASHER .028 (AR required per assembly)
		12-8M0050428 - Shim-.028 , Priced Individually [ More info ] $31.59 Available to Order: Shipping delay up to 10 days.
#24	8M0050429	WASHER .030 (AR required per assembly)
		12-8M0050429 - Shim-.030 , Priced Individually [ More info ] $19.09 Available to Order: Shipping delay up to 10 days.
#24	8M0050430	WASHER .032 (AR required per assembly)
		12-8M0050430 - Shim-.032 , Priced Individually [ More info ] $19.89 Available to Order: Shipping delay up to 10 days.
#24	8M0050431	WASHER .034 (AR required per assembly)
		12-8M0050431 - Shim-.034 , Priced Individually [ More info ] $25.99 Available to Order: Shipping delay up to 10 days.
#24	8M0050432	WASHER .036 (AR required per assembly)
		12-8M0050432 - Shim-.036 , Priced Individually [ More info ] $26.19 Available to Order: Shipping delay up to 10 days.
#24	8M0050433	WASHER .038 (AR required per assembly)
		12-8M0050433 - Shim-.038 , Priced Individually [ More info ] $25.79 Available to Order: Shipping delay up to 10 days.
#24	8M0050434	WASHER .040 (AR required per assembly)
		12-8M0050434 - Shim-.040 , Priced Individually [ More info ] $30.09 Available to Order: Shipping delay up to 10 days.
#24	8M0050435	WASHER .042 (AR required per assembly)
		12-8M0050435 - Shim-.042 , Priced Individually [ More info ] $30.29 Available to Order: Shipping delay up to 10 days.
#24	8M0050436	WASHER .044 (AR required per assembly)
		12-8M0050436 - Shim-.044 , Priced Individually [ More info ] $30.99 Available to Order: Shipping delay up to 10 days.
#24	8M0050437	WASHER .046 (AR required per assembly)
		12-8M0050437 - Shim-.046 , Priced Individually [ More info ] $29.99 Available to Order: Shipping delay up to 10 days.
#24	8M0050438	WASHER .048 (AR required per assembly)
		12-8M0050438 - Shim-.048 , Priced Individually [ More info ] $26.79 Available to Order: Shipping delay up to 10 days.
#24	8M0050439	WASHER .050 (AR required per assembly)
		12-8M0050439 - Shim-.050 , Priced Individually [ More info ] $26.89 Available to Order: Shipping delay up to 10 days.
#25	8M0086846	CARRIER ASSEMBLY BEARING (1 required per assembly)
		8M0086846 - Carrier Assembly [ More info ] $508.49 Available to Order: Shipping delay up to 10 days.
#26	8M0142840	O-RING (3.85 X 0.210) (1 required per assembly) — Replaces: 896524
		258M0142840 - O-Ring [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#27	814653T	BEARING ASSEMBLY NEEDLE ROLLERS (1 required per assembly)
		31-814653T - Bearing - Needle Rollers [ More info ] $103.99 $24.96 10+ In Stock.
#28	8M0148384	ADAPTOR BEARING FORWARD GEAR (1 required per assembly) — Replaces: 880728
		8M0148384 - Bearing Adaptor [ More info ] $252.49 Available to Order: Shipping delay up to 10 days.
#29	47397A1	SHIM SET (AR required per assembly)
		15-47397A 1 - Shim Set [ More info ] $16.79 $11.26 10+ In Stock.
		18-2285 - Shim 15-47397A1 [ More info ] $30.99 $27.04 In Stock
#30	8M0148319	BEARING CUP/CONE (1 required per assembly) — Replaces: 884330T01
		318M0148319 - Bearing CUPCone [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#31	NSS	NOT SOLD SEPARATE CUP (1 required per assembly)
#32	8M0204700	SEAL-OIL (1 required per assembly) — Replaces: 896600, 888483
		268M0204700 - SEAL-OIL [ More info ] $22.49 Available to Order: Shipping delay up to 10 days.
#33	8M0204700	SEAL-OIL (1 required per assembly) — Replaces: 888483
#34	880717A01	SCREW/SEAL KIT .38 INCH LONG (1 required per assembly)
		10-880717A01 - Screw/Seal Kit [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
#34	8M0077071	SCREW/SEAL KIT .75 INCH LONG (1 required per assembly)
		108M0077071 - Screw/Seal Kit [ More info ] $18.49 Available to Order: Shipping delay up to 10 days.
#35	8M0204693	SEAL @6 (1 required per assembly) — Replaces: 830749
		26-8M0204693 - Drain Screw Washer, Priced Individually [ More info ] $5.19 10+ In Stock.
		10-10100-1 - Drain Screw Washer 830749 [ More info ] $3.79 $2.91 7 In Stock.
#36	8M0053183	ADAPTER (1 required per assembly)
		8M0053183 - Adaptor [ More info ] $20.79 Available to Order: Shipping delay up to 10 days.
#37	8M0064306	SPACER (1 required per assembly)
		238M0064306 - Spacer-Thrust [ More info ] $18.79 Available to Order: Shipping delay up to 10 days.
#38	880697	KEYED WASHER (1 required per assembly)
		14-880697 - Washer -keyed [ More info ] $11.89 Available to Order: Shipping delay up to 10 days.
#39	8M0168577	RETAINER (1 required per assembly) — Replaces: 8M2011027, 8M2000347
		8M0168577 - Bearing Carrier Retaining Nut [ More info ] $43.49 In Stock
#40	NSS	NOT SOLD SEPARATE DECAL-COUNTER ROTATION (1 required per assembly)
