Parts for 250 HP Verado 6 Cyl 4-Stroke Mercury Outboard Motor Cylinder Block

Revise Search: Outboard > 4-Stroke Mercury Outboard > 250 HP Verado 6 Cyl > 0P520553 - 2B144122 - Belgium > Cylinder Block

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

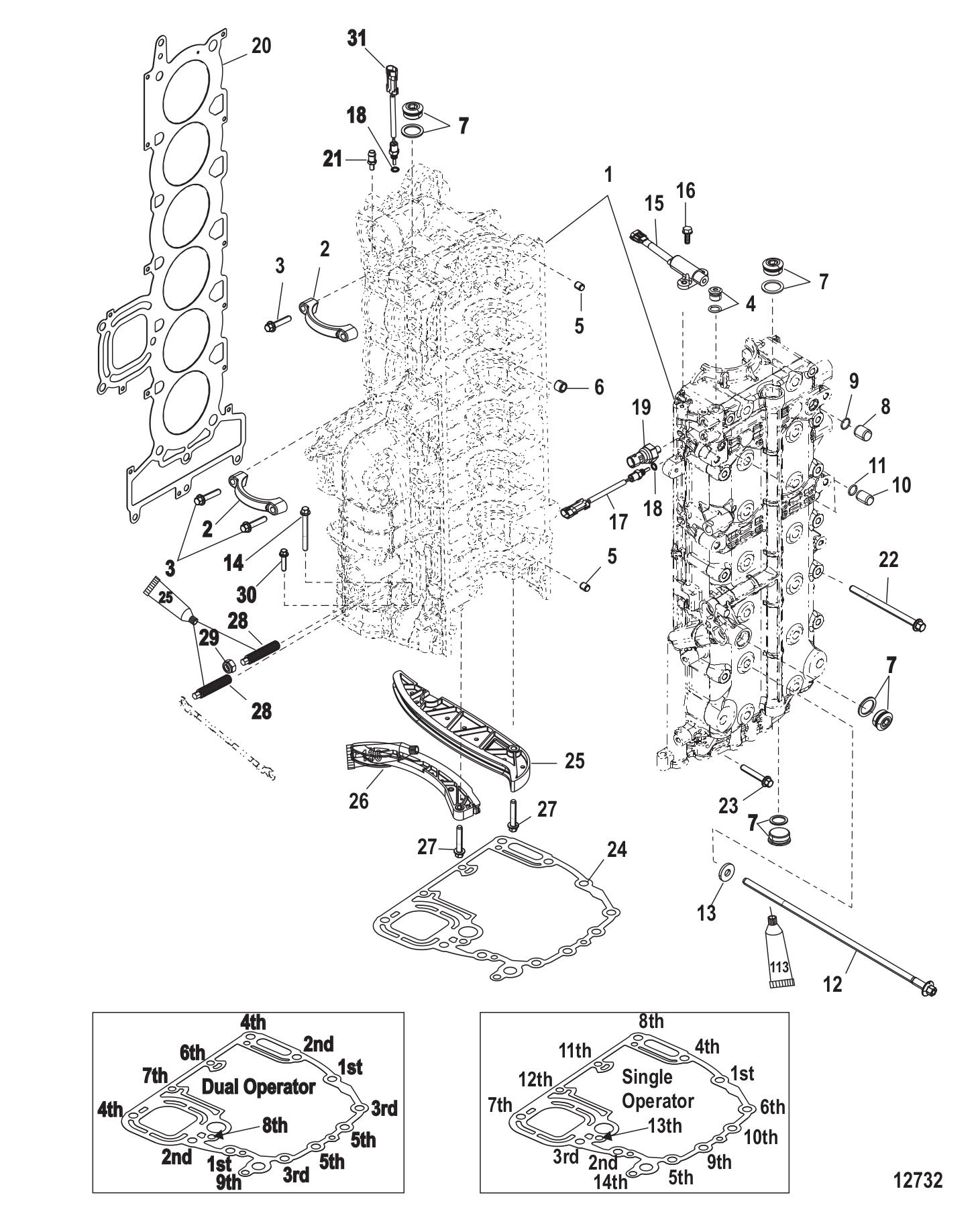

Cylinder Block

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	880552A07	GASKET SET (1 required per assembly) — Replaces: 880552A06
		27-880552A07 - Gasket Set [ More info ] $383.49 Available to Order: Shipping delay up to 10 days.
#-	895247A07	PH L6 4S (1 required per assembly)
		61-895247A07 - PH L6 4S [ More info ] Unavailable
#-	8M0162888	PH-DRS 200/300 L6 [1B517434] THRU [2B144122] (1 required per assembly)
		61-8M0162888 - PH-DRS 200/300 L6 [ More info ] Unavailable
#1	880506A12	CYLINDER BLOCK (1 required per assembly)
		800-880506A12 - Cylinder Block [ More info ] Unavailable
#2	8M0111325	COVER MOUNTING-STARTER MOTOR (2 required per assembly) — Replaces: 8M0041759
		8M0111325 - Cover [ More info ] $45.99 Available to Order: Shipping delay up to 10 days.
#3	8M0103815	SCREW (4 required per assembly) — Replaces: 88552640
		108M0103815 - Screw - Priced Individually [ More info ] $4.09 1 In Stock.
#4	889767	PLUG (12 MM) (1 required per assembly)
		19-889767 - Plug - Priced Individually [ More info ] $15.59 Available to Order: Shipping delay up to 10 days.
#5	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) (2 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#6	893392001	DAMPER (14 required per assembly)
		23-893392001 - Bushing [ More info ] $4.19 4 In Stock.
#7	896951	PLUG (24 MM) (4 required per assembly)
		19-896951 - Plug [ More info ] $16.39 1 In Stock.
#8	880524	PIN DOWEL (14 MM) (1 required per assembly)
		17-880524 - Pin, Dowel (14 Mm) [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#9	884409	O-RING (1 required per assembly)
		25-884409 - O-ring, Cylinder Block Dowl Pin [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#10	884424	PIN DOWEL (11 MM) (1 required per assembly)
		17-884424 - Pin, Dowel (11 Mm) [ More info ] $4.29 Available to Order: Shipping delay up to 10 days.
#11	884423	O-RING (1 required per assembly)
		25-884423 - O-ring, Cylinder Block Dowl Pin [ More info ] $1.50 $1.20 5 In Stock.
#12	8M4501000	SCREW (M10 X 342) (14 required per assembly) — Replaces: 8M0021876
		108M4501000 - Screw [ More info ] $37.99 $36.16 6 In Stock.
#13	892573001	WASHER (14 required per assembly)
		12-892573001 - Washer - Priced Individually [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#14	8M0103818	SCREW @2 (1 required per assembly) — Replaces: 88552675
		108M0103818 - Screw - Priced Individually [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#15	8M0082988	SENSOR ASSY Crankshaft Position (1 required per assembly) — Replaces: 8283582, 8M0030022
		8M0082988 - Sensor Assembly [ More info ] $120.49 $115.99 In Stock
#16	40011107	SCREW @5 (2 required per assembly)
		10-40011107 - SCREW [ More info ] $1.80 2 In Stock.
#17	8M0142542	SENSOR TEMPERATUR Oil Temperature (1 required per assembly) — Replaces: 8M0010146
		8M0142542 - Sensor TEMPERATUR [ More info ] Unavailable
		8M0205787 - Temperature Sensor [ More info ] $33.29 Available to Order: Shipping delay up to 10 days.
#18	896699	O-RING (1.78 MM X .08 MM) (2 required per assembly)
		25-896699 - O-ring, (1.78 Mm X .08 Mm) [ More info ] $12.49 Available to Order: Shipping delay up to 10 days.
#19	8M6000637	SENSOR (1 required per assembly) — Replaces: 8M0010469
		8M6000637 - Sensor [ More info ] Unavailable
		718M0142688 - PRESSURE Sensor [ More info ] $219.49 Available to Order: Shipping delay up to 10 days.
#20	8M0033476	GASKET (1 required per assembly) — Replaces: 8M0024564
		27-8M0033476 - Gasket [ More info ] $166.49 Available to Order: Shipping delay up to 10 days.
#21	888517	PIN (1 required per assembly)
		17-888517 - Pin [ More info ] $11.49 Available to Order: Shipping delay up to 10 days.
#22	8M0193831	SCREW @2 (12 required per assembly) — Replaces: 895810115
		10-8M0193831 - SCREW @2 [ More info ] Unavailable
#23	8M0193659	SCREW (2 required per assembly) — Replaces: 895810050
		10-8M0193659 - SCREW [ More info ] Unavailable
#24	880624003	GASKET BLOCK TO ADAPTER (1 required per assembly)
		27-880624003 - Block To Adaptor Gasket [ More info ] $63.49 $54.67 Available to Order: Shipping delay up to 10 days.
#25	880559	GUIDE FIXED (1 required per assembly)
		880559 - Guide -fixed [ More info ] $46.49 Available to Order: Shipping delay up to 10 days.
#26	880557	GUIDE MOVEABLE (1 required per assembly)
		880557 - Guide -moveable [ More info ] $56.99 Available to Order: Shipping delay up to 10 days.
#27	892456045	SCREW @2 (2 required per assembly)
		10-892456045 - Screw - Priced Individually [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#28	8M0022160	STUD (2 required per assembly) — Replaces: 888849002
		16-8M0022160 - Stud [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#29	401388	NUT @5 (1 required per assembly)
		11-40138 8 - Nut - Priced Individually [ More info ] $3.11 3 In Stock.
#30	8M0103814	SCREW @2 (1 required per assembly) — Replaces: 88552635
		108M0103814 - Screw (M8 x 35 MM) [ More info ] $4.19 6 In Stock.
#31	8M0142542	SENSOR TEMPERATUR Block Water Temperature (1 required per assembly) — Replaces: 8M0010146
