Parts for 225 (3.0L EFI) Marathon 2-Stroke EFI Mercury Outboard Motor Fuel Management

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > 225 (3.0L EFI) Marathon > 0T801000 - 1B417701 - USA > Fuel Management

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

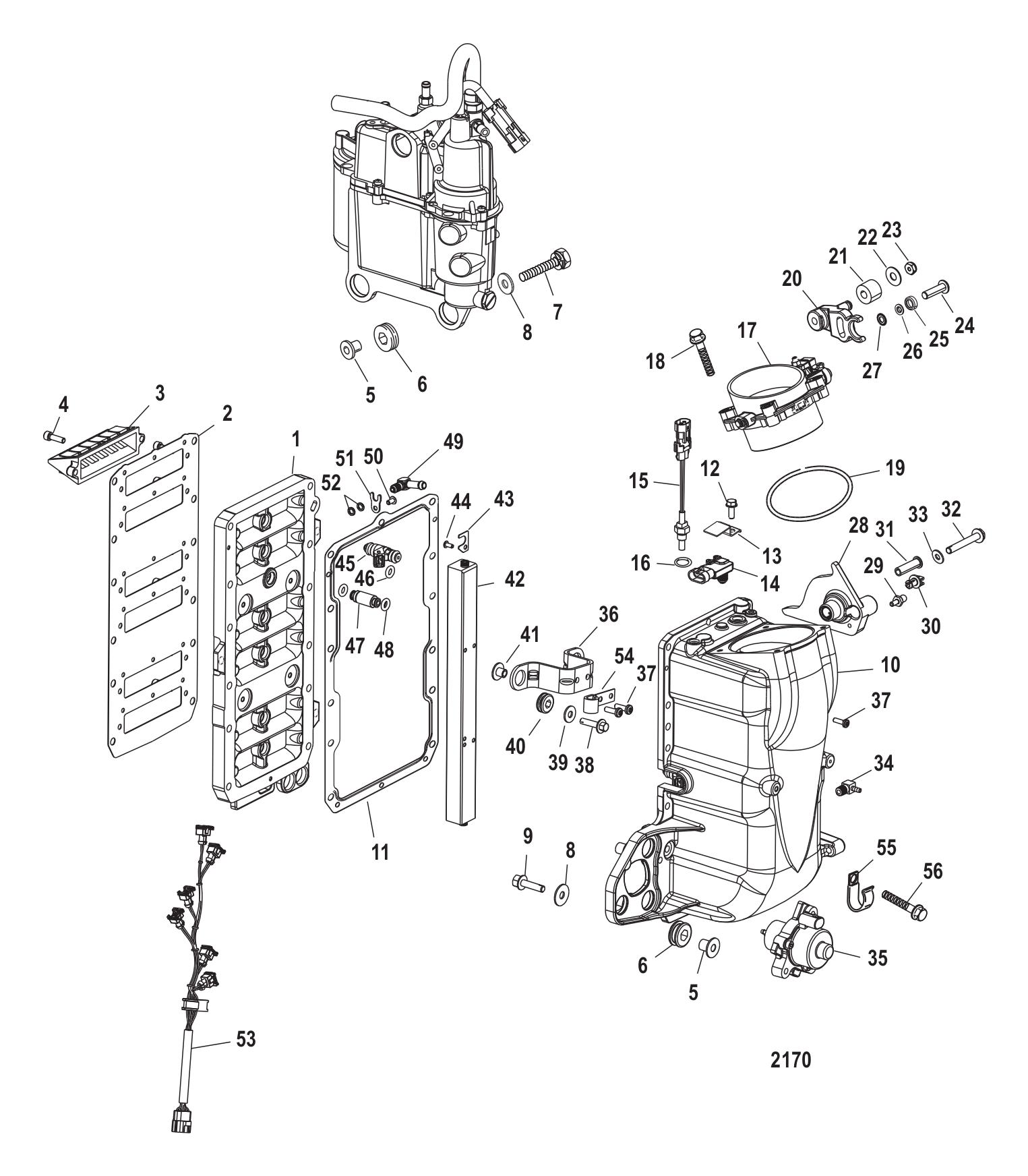

Fuel Management

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	880004T08	FUEL MANAGEMENT (1 required per assembly) — Replaces: 880004T07
		880004T08 - Fuel Management [ More info ] Unavailable
#-	832934A00	GASKET SET (1 required per assembly)
		27-832934A00 - Powerhead Gasket Set [ More info ] $186.49 Available to Order: Shipping delay up to 10 days.
#-	883892A07	PH 225EFI 3L (225) (1 required per assembly) — Replaces: 883892A04
		883892A07 - Powerhead 225EFI 3L [ More info ] Unavailable
#-	883893A07	PH 3L WORK EFI (3L Work) (1 required per assembly) — Replaces: 883893A04
		883893A07 - Powerhead 3L Work Efi [ More info ] Unavailable
#-	883894A07	PH 250EFI 3L (250) (1 required per assembly) — Replaces: 883894A04
		883894A07 - Powerhead 250EFI 3L [ More info ] Unavailable
#-	891823A07	PH 200EFI 3L (200) (1 required per assembly) — Replaces: 891823A04
		891823A07 - Powerhead 200EFI 3L [ More info ] Unavailable
#1	883951T1	ADAPTER PLATE (1 required per assembly)
		883951T 1 - Adaptor Plate Kit [ More info ] $331.99 Available to Order: Shipping delay up to 10 days.
#2	804680	GASKET (1 required per assembly)
		27-804680 - Fuel Management Adaptor Plate Gasket [ More info ] Unavailable
#3	828623T4	REED BLOCK (6 required per assembly)
		828623T 4 - Reed Block Assembly [ More info ] $168.49 Available to Order: Shipping delay up to 10 days.
#4	8555252	SCREW (M6) (12 required per assembly)
		10-855525 2 - Screw [ More info ] $2.99 $0.61 10+ In Stock.
#5	855364	BUSHING (6 required per assembly)
		23-855364 - Bushing [ More info ] $5.99 10+ In Stock.
#6	855362001	GROMMET [0T980000] & Up (6 required per assembly) — Replaces: 855362
		25-855362001 - Grommet, Coolant Reservoir [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#7	81893435	SCREW (M8 X 35) (3 required per assembly)
		10-818934 35 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
		108M0103814 - Screw (M8 x 35 MM) [ More info ] $4.19 6 In Stock.
#8	817274	WASHER (.344 X 1.00 X .063) STAINLESS STEEL (6 required per assembly)
		12-817274 - Washer, (.344 X 1.00 X .063) Stainless Steel [ More info ] $1.40 2 In Stock.
#9	81893430	SCREW (M8 X 30) (3 required per assembly)
		10-818934 30 - Screw - Priced Individually [ More info ] $9.40 1 In Stock.
#10	883950T1	PLENUM KIT AIR (1 required per assembly)
		883950T 1 - Air Plenum Kit [ More info ] $169.99 Available to Order: Shipping delay up to 10 days.
#11	804679004	GASKET [0T980000] & Up (1 required per assembly) — Replaces: 8046793
		27-804679004 - Adapter Plate Gasket [ More info ] $109.49 Available to Order: Shipping delay up to 10 days.
#12	1993716	SCREW (M6 X 16) (1 required per assembly)
		10-19937 16 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#13	884522	BRACKET MAP SENSOR (1 required per assembly)
		884522 - Bracket [ More info ] $13.59 Available to Order: Shipping delay up to 10 days.
#14	854445	SENSOR MAP (1 required per assembly)
		854445 - MAP Sensor Manifold Absolute Pressure [ More info ] $132.61 6 In Stock.
#15	8M0148668	SENSOR ASSEMBLY (1 required per assembly) — Replaces: 885342001, 885342002
		8M0148668 - Temperature Sensor [ More info ] $47.49 In Stock
#16	896699	O-RING (1.78 MM X .08 MM) (1 required per assembly) — Replaces: 888814
		25-896699 - O-ring, (1.78 Mm X .08 Mm) [ More info ] $12.49 Available to Order: Shipping delay up to 10 days.
#17	883949T1	THROTTLE BODY KIT (1 required per assembly)
		883949T 1 - Throttle Body [ More info ] $358.49 Available to Order: Shipping delay up to 10 days.
#18	82130040	SCREW (M6 X 40) (4 required per assembly)
		10-821300 40 - Screw [ More info ] $7.89 $4.43 10+ In Stock.
#19	855426	O-RING (1 required per assembly)
		25-855426 - O-Ring [ More info ] $32.09 Available to Order: Shipping delay up to 10 days.
#20	858851A03	LEVER ASSEMBLY THROTTLE (1 required per assembly)
		858851A03 - Lever Assembly [ More info ] $38.49 Available to Order: Shipping delay up to 10 days.
#21	8M0072162	ROLLER (1 required per assembly) — Replaces: 889610
		8M0072162 - Roller [ More info ] $19.99 Available to Order: Shipping delay up to 10 days.
#22	8M0204666	WASHER @5 (1 required per assembly) — Replaces: 56681
		128M0204666 - WASHER Note: Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#23	826709104	NUT (#8-32) STAINLESS STEEL (1 required per assembly)
		11-826709104 - Nut, (#8-32) [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#24	889354	SCREW SPECIAL (1 required per assembly)
		10-889354 - Screw [ More info ] $10.30 $8.73 1 In Stock.
#25	8M0095734	WASHER/SCREW KIT (1 required per assembly) — Replaces: 881991
		8M0095734 - Washer/Screw Kit [ More info ] $10.89 Available to Order: Shipping delay up to 10 days.
#26	8M0095734	WASHER/SCREW KIT (1 required per assembly) — Replaces: 881992
#27	69432	LOCKWASHER EXTERNAL (#10) (1 required per assembly)
		13-69432 - LockWasher - Priced Individually [ More info ] $1.00 10+ In Stock.
#28	858353A08	CAM ASSEMBLY [0T980000] & Up (1 required per assembly) — Replaces: 858353A3
		858353A08 - Throttle Cam Assembly [ More info ] $107.83 Available to Order: Shipping delay up to 10 days.
#29	8235694	BALL THREADED (1 required per assembly)
		823569 4 - Ball - Threaded [ More info ] $39.49 Available to Order: Shipping delay up to 10 days.
#30	932481	BUSHING (1 required per assembly)
		23-93248 1 - Bushing, New Number 238M0215006 [ More info ] Unavailable
		23-8M0215006 - Bushing [ More info ] $14.19 10+ In Stock.
#31	8807371	BUSHING (1 required per assembly)
		23-880737 1 - Bushing [ More info ] $30.89 Available to Order: Shipping delay up to 10 days.
#32	40011155	SCREW (M8 X 55) STAINLESS STEEL (1 required per assembly)
		10-40011155 - Screw [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#33	56720	WASHER (.330 X .750 X .060) STAINLESS STEEL (1 required per assembly)
		12-56720 - Washer, (.330 X .750 X .060) Stainless Steel [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#34	993211	FITTING (1 required per assembly)
		22-99321 1 - Fitting [ More info ] $19.20 1 In Stock.
#35	8M0101630	PUMP ASSY-OIL (1 required per assembly) — Replaces: 879892T04, 879892T05
		8M0101630 - Oil Pump Assembly [ More info ] Unavailable
		8M0128081 - Oil Pump [ More info ] Unavailable
		8M0185615 - OIL PUMP EFI [ More info ] Unavailable
#36	883926	BRACKET (2 required per assembly)
		883926 - Bracket [ More info ] Unavailable
#37	883942	SCREW (M4 X 16) (6 required per assembly)
		10-883942 - Screw [ More info ] $3.59 1 In Stock.
#38	82130025	SCREW (M6 X 25) (4 required per assembly)
		10-821300 25 - Screw [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#39	4002316	WASHER (6.60 X 17.0 X 1.5SS) (4 required per assembly)
		12-40023 16 - Washer - Priced Individually [ More info ] $1.17 2 In Stock.
		128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ] $1.00 1 In Stock.
#40	834985	GROMMET (4 required per assembly)
		25-834985 - Grommet [ More info ] Unavailable
		25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ] $3.89 Available to Order: Shipping delay up to 10 days.
#41	822003	BUSHING (4 required per assembly)
		23-822003 - Bushing [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#42	883952T1	FUEL RAIL (1 required per assembly)
		883952T 1 - Fuel Rail [ More info ] $110.99 Available to Order: Shipping delay up to 10 days.
#43	8833821	RETAINER (7 required per assembly)
		883382 1 - Retainer [ More info ] Unavailable
#44	840118	SCREW (#8-32 X .380) (7 required per assembly)
		10-840118 - Screw [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#45	840481T01	INJECTOR ASSEMBLY [0T980000] & Up (6 required per assembly) — Replaces: 840481001
		840481T01 - Injector [ More info ] $410.99 Available to Order: Shipping delay up to 10 days.
#46	895239A01	O-RING KIT (6 required per assembly)
		25-895239A01 - O-Ring Kit [ More info ] $55.99 Available to Order: Shipping delay up to 10 days.
#47	8832151	TUBE (1 required per assembly)
		883215 1 - Tube - Fuel [ More info ] $51.99 Available to Order: Shipping delay up to 10 days.
#48	883355	O-RING (2 required per assembly)
		25-883355 - O-Ring [ More info ] $2.29 $1.84 2 In Stock.
#49	883940	FITTING (1 required per assembly)
		22-883940 - Fitting [ More info ] $25.49 Available to Order: Shipping delay up to 10 days.
#50	883376	SCREW (#10-24 X .375) (1 required per assembly)
		10-883376 - Screw [ More info ] $1.99 Available to Order: Shipping delay up to 10 days.
#51	883382	RETAINER (1 required per assembly)
		883382 - Retainer [ More info ] $9.09 Available to Order: Shipping delay up to 10 days.
#52	20385	O-RING (.239 X .070) (2 required per assembly)
		25-20385 - O-ring, (.239 X .070) [ More info ] $1.80 $1.44 10+ In Stock.
#53	880745T1	HARNESS ASSEMBLY FUEL RAIL (1 required per assembly)
		84-880745T 1 - Harness - Fuel Rail [ More info ] $280.99 Available to Order: Shipping delay up to 10 days.
#54	883941	CLAMP (2 required per assembly)
		54-883941 - CLAMP [ More info ] Unavailable
#55	8M0024808	J-CLIP (USE WHERE APPLICABLE) (2 required per assembly) — Replaces: 65292
		54-8M0024808 - J-CLIP [ More info ] Unavailable
#56	82130040	SCREW (12 required per assembly)
