Parts for 25 HP Carb 4-Stroke Mercury Outboard Motor Cylinder Head

Revise Search: Outboard > 4-Stroke Mercury Outboard > 25 HP Carb > 0G760300 - 0T408999 - USA > Cylinder Head

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

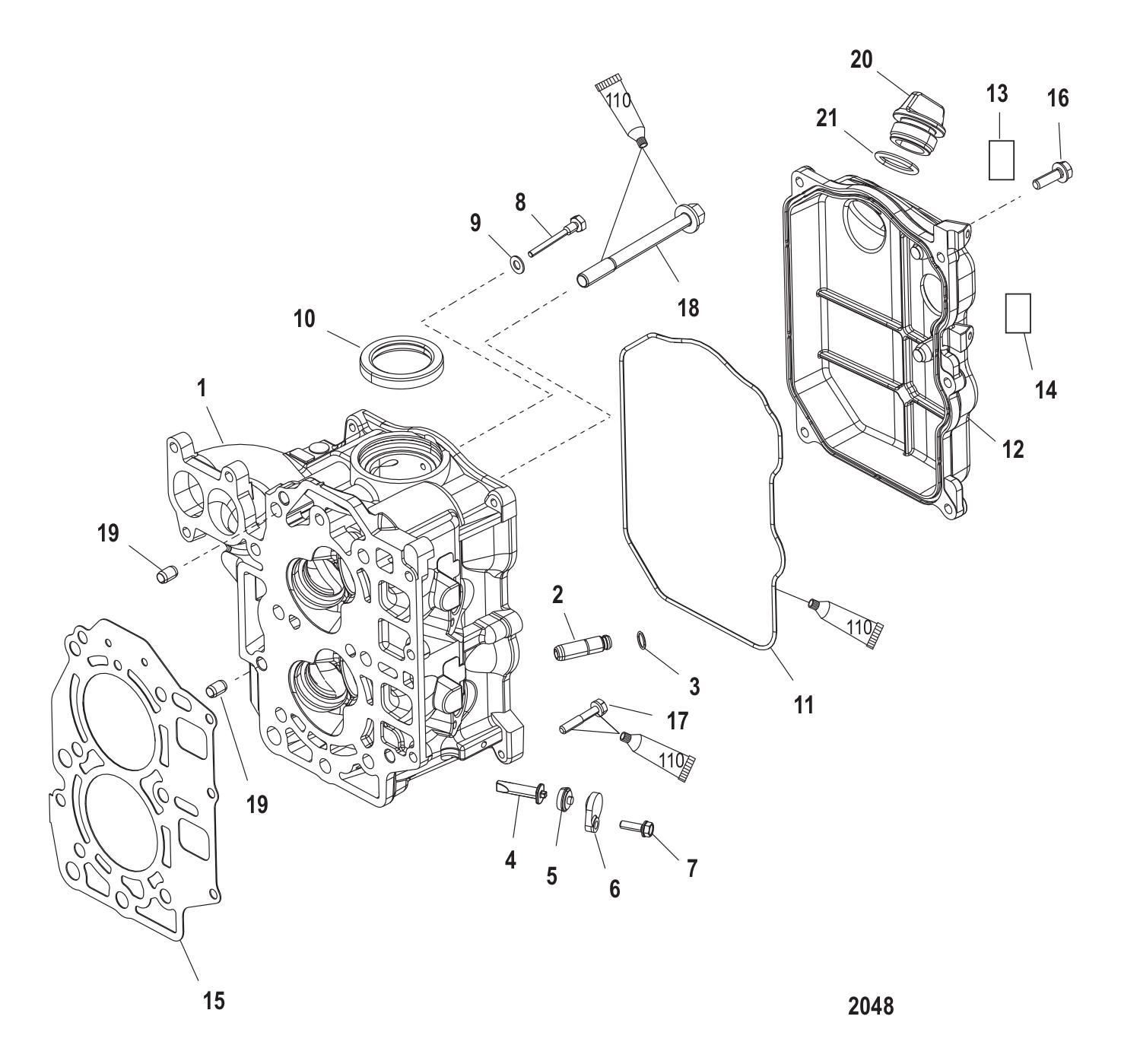

Cylinder Head

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	854236T00	PH 25 4S (1 required per assembly)
		61-854236T00 - Powerhead 25HP 4 Stroke [ More info ] $645.72 2 In Stock.
#-	830270A02	GASKET SET (1 required per assembly) — Replaces: 830270A98
		27-830270A02 - Gasket Set [ More info ] Unavailable
#-	830271T3	HEAD-CYL-ELEC Electric (1 required per assembly)
		830271T 3 - Cylinder Head -elec, NLA [ More info ] Unavailable
#-	830271T4	HEAD-CYL-MANUAL Manual (1 required per assembly)
		830271T 4 - Cylinder Head -manual, NLA [ More info ] $323.38 2 In Stock.
#1	830271T2	CYLINDER HEAD (1 required per assembly)
		830271T 2 - Cylinder Head [ More info ] Unavailable
#2	8M0054272	GUIDE - VALVE (4 required per assembly) — Replaces: 825037, 825037001
		8M0054272 - Valve Guide [ More info ] Unavailable
#3	825038	CIRCLIP (4 required per assembly)
		53-825038 - E Ring [ More info ] $1.20 $1.02 5 In Stock.
#4	826887M	ANODE (2 required per assembly)
		826887M - Anode [ More info ] $17.57 1 In Stock.
#5	825040	GROMMET (2 required per assembly)
		25-825040 - Grommet [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#6	826888M	COVER (2 required per assembly)
		826888M - Cover [ More info ] $51.08 Available to Order: Shipping delay up to 10 days.
#7	8M0204741	SCREW @4 (2 required per assembly) — Replaces: 40011128, 8M4503518
		108M0204741 - SCREW Note: Priced Individually [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#8	827607	BOLT (1 required per assembly)
		10-827607 - Screw [ More info ] Unavailable
#9	827610	GASKET (1 required per assembly)
		27-827610 - Intake Manifold Gasket [ More info ] $2.49 $2.11 2 In Stock.
#10	825048	SEAL OIL (1 required per assembly)
		26-825048 - Seal [ More info ] $27.39 $18.37 10 In Stock.
#11	833103	O-RING (1 required per assembly)
		25-833103 - O-ring, Cylinder Head Cover [ More info ] $52.99 Available to Order: Shipping delay up to 10 days.
#12	830272A1	COVER (1 required per assembly)
		830272A 1 - Cover [ More info ] Unavailable
#13	NSS	NOT SOLD SEPARATE DECAL-SERVICING REFERRAL (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#14	NSS	NOT SOLD SEPARATE DECAL-ENGINE OIL/VALVE CLEARANCE (1 required per assembly)
#15	8M0049885	GASKET (1 required per assembly) — Replaces: 830270
		27-8M0049885 - Gasket [ More info ] $69.99 Available to Order: Shipping delay up to 10 days.
#16	8M0204741	SCREW @4 (5 required per assembly) — Replaces: 40011128, 8M4503518
#17	893745025	SCREW (M6 X 25) (3 required per assembly) — Replaces: 82500925
		10893745025 - Screw (M6 x 25) [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#18	893747095	SCREW-HX HD SEMS M9X1.25X95 (6 required per assembly) — Replaces: 82503395
		10893747095 - SCREW [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
		10-8M0241964 - SCREW [ More info ] Unavailable
#19	825010	PIN-DOWEL (2 required per assembly)
		17-825010 - Pin -Dowel [ More info ] $4.19 2 In Stock.
#20	859578A1	PLUG ASSY-OIL (1 required per assembly)
		859578A 1 - Oil Plug Assembly [ More info ] $7.79 1 In Stock.
#21	NSS	NOT SOLD SEPARATE O-RING (1 required per assembly)
