Parts for 150 / 200 EFI Pro Max / Super Mag 2-Stroke EFI Mercury Outboard Motor Hydraulic Pump Assembly

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > 150 / 200 EFI Pro Max / Super Mag > 0G610050 - 0G856999 - Canada > Hydraulic Pump Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

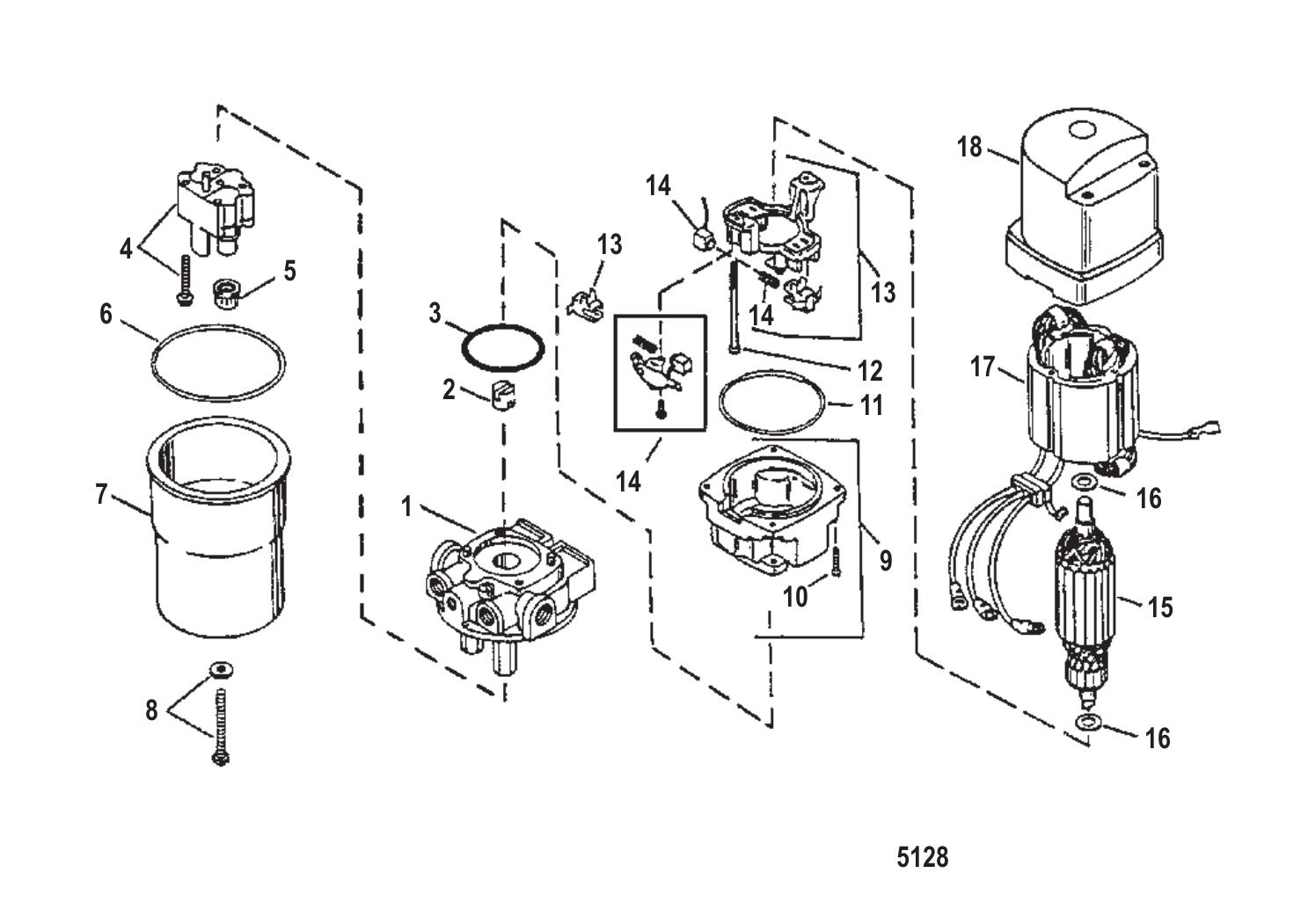

Hydraulic Pump Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0051203	PUMP ASSY-TRIM (1 required per assembly) — Replaces: 818161A4, 846859A1
		8M0051203 - Trim Pump Assembly [ More info ] $1,403.31 Available to Order: Shipping delay up to 10 days.
#-	891736T	MOTOR ASSEMBLY (1 required per assembly) — Replaces: 17649, 17649T
		891736T - Motor Assembly - Trim [ More info ] $378.99 1 In Stock.
		18-6772 - Trim Pump Motor [ More info ] $252.26 5 In Stock.
		10-17626 - Ord 891736T [ More info ] $1.40 10+ In Stock.
		6218 - Tilt Trim Motor [ More info ] $227.77 $225.48 1 In Stock.
#-	812498A1	VALVE KIT-RELIEF (1 required per assembly)
		812498A 1 - Relief Valve Kit [ More info ] $107.49 $103.12 9 In Stock.
#1	8M0084543	ADAPTER (1 required per assembly) — Replaces: 811491
		8M0084543 - Adapter [ More info ] $402.49 Available to Order: Shipping delay up to 10 days.
#2	803852	COUPLING (1 required per assembly)
		803852 - Coupling [ More info ] $63.99 Available to Order: Shipping delay up to 10 days.
#3	89498	O-RING (1 required per assembly)
		25-89498 - O-ring, Motor To Adaptor [ More info ] $11.39 10+ In Stock.
#4	811492T	PUMP ASSEMBLY INCLUDES SCREW (1 required per assembly)
		811492T - Pump [ More info ] $392.99 Available to Order: Shipping delay up to 10 days.
#5	89496	FILTER (2 required per assembly)
		35-89496 - Filter [ More info ] $13.09 Available to Order: Shipping delay up to 10 days.
#6	89497	O-RING (1 required per assembly)
		25-89497 - O-ring, Reservoir To Adaptor [ More info ] $7.09 $3.98 2 In Stock.
#7	41219T	RESERVOIR (1 required per assembly) — Replaces: 41219
		41219T - Reservoir [ More info ] $119.38 1 In Stock.
#8	811493	SCREW KIT (1 required per assembly)
		10-811493 - Screw Kit [ More info ] $7.39 Available to Order: Shipping delay up to 10 days.
#9	891736T	MOTOR ASSEMBLY (1 required per assembly) — Replaces: 17632, 17632T
#10	891736T	MOTOR ASSEMBLY (4 required per assembly) — Replaces: 17626
#11	891736T	MOTOR ASSEMBLY (1 required per assembly) — Replaces: 17625
#12	891736T	MOTOR ASSEMBLY (2 required per assembly) — Replaces: 17621
#13	891736T	MOTOR ASSEMBLY (1 required per assembly) — Replaces: 17633
#14	891736T	MOTOR ASSEMBLY (1 required per assembly) — Replaces: 17631A1
#15	891736T	MOTOR ASSEMBLY (1 required per assembly) — Replaces: 17623
#16	891736T	MOTOR ASSEMBLY (2 required per assembly) — Replaces: 17653
#17	891736T	MOTOR ASSEMBLY (1 required per assembly) — Replaces: 17624
#18	891736T	MOTOR ASSEMBLY (1 required per assembly) — Replaces: 17622
