Parts for 225 HP Verado 6 Cyl 4-Stroke Mercury Outboard Motor Electrical Box Components

Revise Search: Outboard > 4-Stroke Mercury Outboard > 225 HP Verado 6 Cyl > 0T980000 - 1B226999 - USA > Electrical Box Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

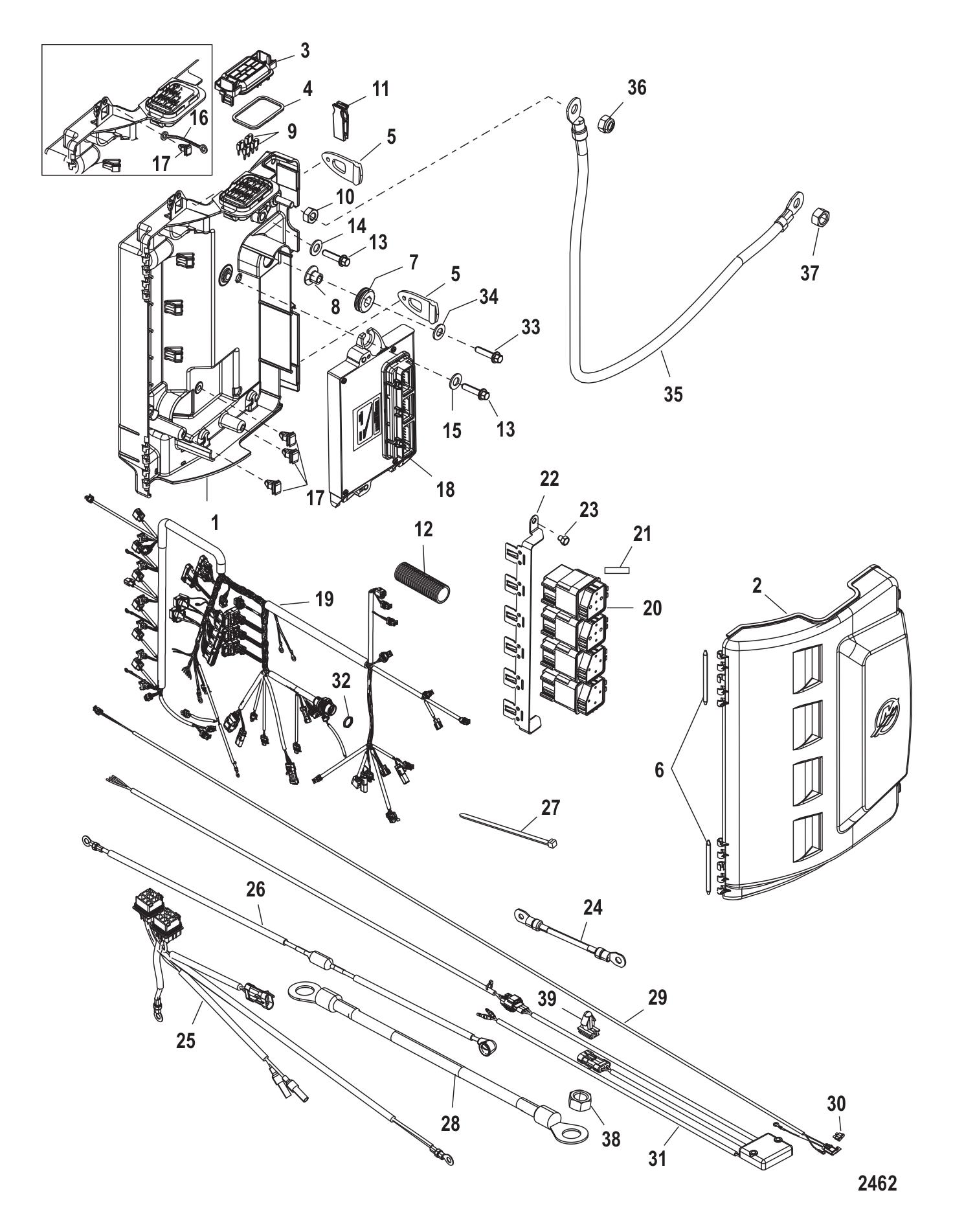

Electrical Box Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	NSS	NOT SOLD SEPARATE RELAY BRACKET ASSEMBLY (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#1	885560T03	BASE ELECTRICAL BOX ELECTRICL BOX (1 required per assembly) — Replaces: 885560T01
		885560T03 - Base [ More info ] $254.49 Available to Order: Shipping delay up to 10 days.
#2	885561T	COVER FUSE BOX (1 required per assembly)
		885561T - Cover [ More info ] $206.99 Available to Order: Shipping delay up to 10 days.
#3	8M0167280	FUSE COVER (1 required per assembly) — Replaces: 888491
		88-8M0167280 - Fuse Cover [ More info ] $9.49 Available to Order: Shipping delay up to 10 days.
#4	885583	SEAL (1 required per assembly)
		25-885583 - Seal [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#5	889531	STRAP (2 required per assembly)
		889531 - Strap [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#6	885584	PIN HINGE (2 required per assembly)
		885584 - Hinge Pin [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#7	833155	GROMMET (1 required per assembly)
		25-833155 - Grommet [ More info ] $4.49 $3.60 3 In Stock.
#8	8502341	BUSHING (1 required per assembly)
		23-850234 1 - Bushing [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#9	832969T20	FUSE MINI - YELLOW - 20 AMPERE (7 required per assembly) — Replaces: 83296920
		88-832969T20 - Fuse - Yellow - 20 Amp [ More info ] $7.09 10+ In Stock.
#10	400213	NUT (M8) STAINLESS STEEL (1 required per assembly)
		11-40021 3 - Nut - Priced Individually [ More info ] $2.89 1 In Stock.
#11	895099	EXTRACTOR FUSE (1 required per assembly)
		895099 - Fuse Extractor [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#12	828547753	CONDUIT (.750 INSIDE DIAMETER X 3.00 FEET BULK) (1 required per assembly)
		32-828547753 - Conduit (.750 Inside Di [ More info ] $9.39 Available to Order: Shipping delay up to 10 days.
#13	40011146	SCREW (M8 X 13) STAINLESS STEEL (2 required per assembly)
		10-40011146 - Screw - Priced Individually [ More info ] $2.59 2 In Stock.
#14	843108	WASHER (.330 X .560 X .060) STAINLESS STEEL (1 required per assembly)
		12-843108 - Washer, (.330 X .560 X .060) Stainless Steel [ More info ] $0.69 Available to Order: Shipping delay up to 10 days.
#15	817274	WASHER (.344 X 1.00 X .063) STAINLESS STEEL (1 required per assembly)
		12-817274 - Washer, (.344 X 1.00 X .063) Stainless Steel [ More info ] $1.40 2 In Stock.
#16	892244	STRAP COVER (1 required per assembly)
		892244 - Strap [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#17	892448	CLIP (5 required per assembly)
		54-892448 - Clip - Priced Individually [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#18	88924640T	PCM (200) (1 required per assembly) — Replaces: 88555802T, 88555847T
		88924640T - PCM [ More info ] Unavailable
		89790717T - PCM [ More info ] Unavailable
#18	88924642T	PCM (225) (1 required per assembly) — Replaces: 88555803T, 88555848T
		88924642T - PCM [ More info ] Unavailable
		89790718T - PCM [ More info ] Unavailable
#18	88924644T	PCM (250) (1 required per assembly) — Replaces: 88555814T, 88555849T
		88924644T - PCM [ More info ] Unavailable
		89790719T - PCM [ More info ] Unavailable
#18	88924646T	PCM (275) (1 required per assembly) — Replaces: 88555815T, 88555850T
		88924646T - PCM [ More info ] Unavailable
		89790720T - PCM [ More info ] Unavailable
#19	880616T04	HARNESS ASSEMBLY ENGINE (1 required per assembly)
		84-880616T04 - Engine Harness [ More info ] $2,999.99 Available to Order: Shipping delay up to 10 days.
#20	882751A04	RELAY ASSEMBLY (4 required per assembly)
		882751A04 - Relay Assembly [ More info ] $23.99 $23.49 In Stock
		18-5850 - Relay, 882751A04 [ More info ] $28.43 6 In Stock.
#21	NSS	NOT SOLD SEPARATE DECAL (4 required per assembly)
#22	889532	BRACKET (1 required per assembly)
		889532 - Bracket [ More info ] $18.49 Available to Order: Shipping delay up to 10 days.
#23	40007103	SCREW (M5 X 6) (2 required per assembly)
		10-40007103 - Screw - Priced Individually [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#24	93388A17	CABLE ASSEMBLY (8.50 INCHES) (1 required per assembly)
		84-93388A17 - Starter Cable [ More info ] $22.09 Available to Order: Shipping delay up to 10 days.
#25	879345T34	HARNESS ASSEMBLY TRIM (1 required per assembly) — Replaces: 819514A20
		84-879345T34 - Trim Harness [ More info ] $68.99 Available to Order: Shipping delay up to 10 days.
#26	892137A02	HARNESS ASSY (1 required per assembly) — Replaces: 892137A01
		84-892137A02 - Harness Assembly [ More info ] $143.99 Available to Order: Shipping delay up to 10 days.
#27	850181	TIE STRAP (11.750 INCHES) (6 required per assembly)
		54-850181 - Cable Tie [ More info ] $0.60 $0.48 9 In Stock.
#27	816311T	TIE STRAP @100 (AR required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#28	88439A26	CABLE ASSY-NEG (LONG) (1 required per assembly)
		84-88439A26 - Cable Assembly -neg [ More info ] $70.99 Available to Order: Shipping delay up to 10 days.
#29	888416T04	HARNESS ASSY (1 required per assembly) — Replaces: 888416A1, 888416T03
		84-888416T04 - Harness Assembly [ More info ] Unavailable
		848M0113732 - Harness, Clean Power [ More info ] $105.85 Available to Order: Shipping delay up to 10 days.
#30	862646	FUSE TAN - 5 AMPERE (1 required per assembly)
		862646 - Fuse, Tan, 5 Amp [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#31	883459T01	HARNESS-ADAPTOR (1 required per assembly) — Replaces: 883459A1
		84-883459T01 - Harness-Adaptor [ More info ] $85.36 Available to Order: Shipping delay up to 10 days.
#32	889664	NUT (1 required per assembly)
		11-889664 - Nut, (1.500-18) Black Nylon [ More info ] $6.69 Available to Order: Shipping delay up to 10 days.
#33	8M0103814	SCREW @2 (1 required per assembly) — Replaces: 88552635
		108M0103814 - Screw (M8 x 35 MM) [ More info ] $4.19 6 In Stock.
#34	817274	WASHER (1 required per assembly)
#35	88439A25	CABLE ASSY-POS LONG (1 required per assembly)
		84-88439A25 - Cable Assembly -pos [ More info ] $61.36 1 In Stock.
#36	401388	NUT @5 (5 required per assembly)
		11-40138 8 - Nut - Priced Individually [ More info ] $3.11 3 In Stock.
#37	8M0204671	NUT BATTERY CABLE-POSITIVE (1 required per assembly) — Replaces: 86226
		11-8M0204671 - NUT [ More info ] Unavailable
#38	8M0204668	NUT (.312-18) BATTERY CABLE-NEGATIVE (1 required per assembly) — Replaces: 68292
		11-8M0204668 - NUT @5 [ More info ] Unavailable
#39	879962	CLIP (1 required per assembly)
		54-879962 - Clip [ More info ] $1.99 4 In Stock.
