Parts for 150 EFI Pro Max / Super Mag 2-Stroke EFI Mercury Outboard Motor Gear Housing Propeller Shaft-Standard Rotation-Sportmaster

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > 150 EFI Pro Max / Super Mag > 0D935000 - 0G610049 - USA > Gear Housing Propeller Shaft-Standard Rotation-Sportmaster

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Gear Housing Propeller Shaft-Standard Rotation-Sportmaster

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	89238A3	SEAL KIT (1 required per assembly)
		26-89238A 3 - Seal Kit [ More info ] $165.68 Available to Order: Shipping delay up to 10 days.
#-	59579	STUD (Long) (1 required per assembly) — Replaces: 90415A24
		16-59579 - Stud [ More info ] $8.69 Available to Order: Shipping delay up to 10 days.
#-	90415A25	STUD KIT (X-Long) (1 required per assembly)
		56-90415A25 - STUD KIT,NLA [ More info ] Unavailable
#1	849780A2	GEAR HOUSING-SM (With Torque Tab) (1 required per assembly) — Replaces: 848450A25, 848450T25
		1687-849780A 2 - Gear Housing Assembly [ More info ] Unavailable
		16008M0083306 - Gear Housing -SM [ More info ] Unavailable
#1	849781A2	GEAR HOUSING-SM (Without Torque Tab) (1 required per assembly) — Replaces: 848474A39, 848474T39
		1687-849781A 2 - Gear Housing Assembly [ More info ] Unavailable
		16008M0084203 - Gear Housing -SM [ More info ] Unavailable
#50	89594A1	CAM/FOLLOWER KIT (1 required per assembly)
		89594A 1 - Cam/Follower Kit [ More info ] $234.99 Available to Order: Shipping delay up to 10 days.
#51	789562	SHIFT CAM (1 required per assembly)
		78956 2 - Shift Cam [ More info ] $11.49 3 In Stock.
#52	79911A1	ROD KIT-CLUTCH (1 required per assembly)
		79911A 1 - Clutch Rod Kit [ More info ] $186.49 Available to Order: Shipping delay up to 10 days.
#53	8M0084245	PIN - LOCATOR (1 required per assembly) — Replaces: 78906
		178M0084245 - Locator Pin [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#54	79910	SPRING (2 required per assembly)
		24-79910 - Spring, Compression [ More info ] $8.19 2 In Stock.
#55	78910	WASHER (2 required per assembly)
		12-78910 - Washer, Compression Spring [ More info ] $1.99 10+ In Stock.
#56	47397A1	SHIM SET (AR required per assembly)
		15-47397A 1 - Shim Set [ More info ] $16.79 $11.26 10+ In Stock.
		18-2285 - Shim 15-47397A1 [ More info ] $30.99 $27.04 In Stock
#57	78172A1	BEARING ASSY (1 required per assembly)
		31-78172A 1 - Tapered Roller Bearing [ More info ] $104.99 $55.22 3 In Stock.
#58	44104A7	GEAR SET (INCLUDED PINION) (1.87:1) (1 required per assembly)
		43-44104A 7 - Gear Set [ More info ] $1,470.29 Available to Order: Shipping delay up to 10 days.
#58	44102A5	GEAR SET (INCLUDED PINION) (2:1) (1 required per assembly)
		43-44102A 5 - Forward Gear Set [ More info ] Unavailable

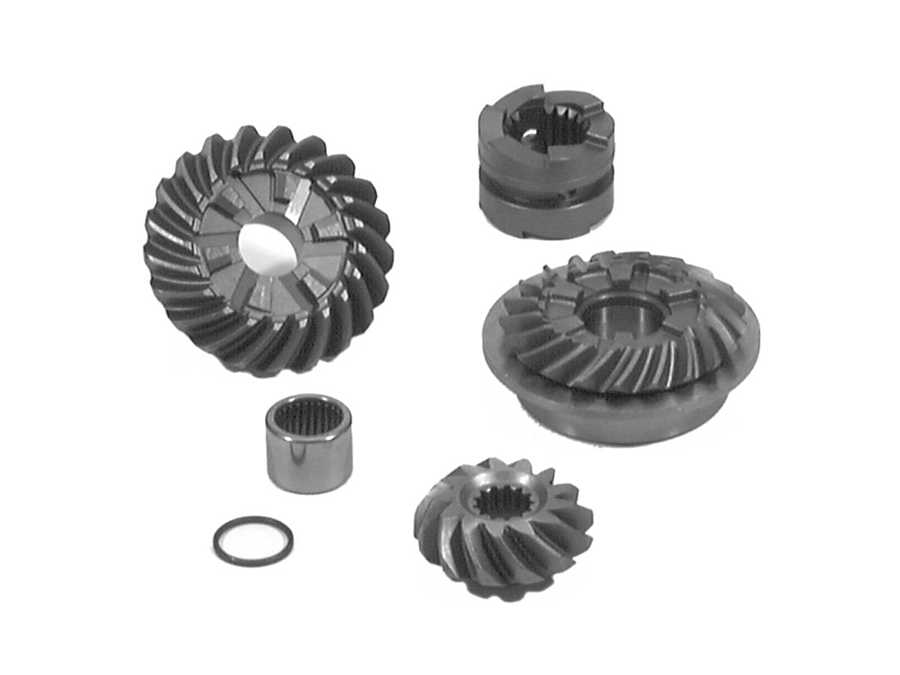

#58	848855T2	GEAR SET-1.62 RH (1.62) (1 required per assembly) — Replaces: 848855A2
		43-848855T 2 - Gear Set -1.62 Rh [ More info ] Unavailable
#58	849189T2	GEAR SET-1.75 RH (1.75) (1 required per assembly) — Replaces: 849189A2
		43-849189T 2 - Gear Set -1.75 Rh [ More info ] Unavailable
#59	549281	BEARING ROLLER (1 required per assembly)
		31-54928 1 - Bearing [ More info ] $25.39 Available to Order: Shipping delay up to 10 days.
#60	42672T	CLUTCH (1 required per assembly) — Replaces: 42672
		52-42672T - Clutch [ More info ] $311.40 Available to Order: Shipping delay up to 10 days.
#61	78909	PIN-DETENT (2 required per assembly)
		17-78909 - Pin, Detent [ More info ] $19.19 $18.40 9 In Stock.
#62	42671	PIN (1 required per assembly)
		17-42671 - Pin, Cross [ More info ] $68.52 Available to Order: Shipping delay up to 10 days.
#63	78962	SPRING (2 required per assembly)
		24-78962 - Spring, Retaining - Cross Pin [ More info ] $11.49 6 In Stock.
#64	840451A03	PROPSHAFT KIT (1 required per assembly) — Replaces: 822820F1
		44-840451A03 - Prop Shaft Kit [ More info ] Unavailable
#65	822824A1	GEAR-REVERSE (1.87:1) (1 required per assembly)
		43-822824A 1 - Reverse Gear [ More info ] $560.26 Available to Order: Shipping delay up to 10 days.
#65	847632A1	GEAR-REVERSE (2:1) (1 required per assembly)
		43-847632A 1 - Reverse Gear [ More info ] $518.04 Available to Order: Shipping delay up to 10 days.
#65	N.S.S.	NOT SOLD SEPARATE REVERSE GEAR (1.75)(Part of 43-849189A2) (1 required per assembly)
		N.S.S. - Not Sold Separate [ More info ] Unavailable
#66	822823	THRUST RING (1 required per assembly)
		23-822823 - Thrust Ring [ More info ] $66.89 Available to Order: Shipping delay up to 10 days.
#67	88957T	BEARING BALL (1 required per assembly) — Replaces: 88957
		30-88957T - Ball Bearing [ More info ] $64.49 Available to Order: Shipping delay up to 10 days.
#68	681001	RING THRUST (1 required per assembly)
		68100 1 - Ring - Thrust [ More info ] $18.79 $15.04 10+ In Stock.
#69	31534	O RING @4 (1 required per assembly)
		25-31534 - O-Ring, Bearing Carrier [ More info ] Unavailable
		25-8M0214920 - Bell Housing O-Ring Note: Priced Individually [ More info ] $6.29 6 In Stock.
#70	848840A1	BEARING CARRIER (1 required per assembly) — Replaces: 847610A1
		848840A 1 - Bearing Carrier [ More info ] $414.04 Available to Order: Shipping delay up to 10 days.
#71	817072	BEARING ROLLER (1 required per assembly)
		31-817072 - Roller Bearing [ More info ] $90.49 Available to Order: Shipping delay up to 10 days.
#72	817071	RING SNAP (1 required per assembly)
		53-817071 - Ring - Retaining [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#73	815565	SEAL OIL (2 required per assembly)
		26-815565 - Seal [ More info ] $36.77 2 In Stock.
#74	67892A06	PLUG KIT-DRAIN (1 required per assembly) — Replaces: 67892A1, 67892A05
		22-67892A06 - Drain Plug Kit [ More info ] Unavailable
		22-8M0058389 - Screw Kit - Priced Individually [ More info ] $11.69 6 In Stock.
		18-23751-9 - Drain Screw , Package of 50 [ More info ] $346.09 In Stock
		18-2375 - Plug, 22-67892A1 [ More info ] $7.16 10+ In Stock.
		10-02683 - Drain Screw [ More info ] $6.39 $6.03 2 In Stock.
#75	191833	SEAL (1 required per assembly) — Replaces: 19183, 191832
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 5 In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 8 In Stock.
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#76	30281	KEY @5 (1 required per assembly)
		28-30281 - Key - Priced Individually [ More info ] $2.99 8 In Stock.
#77	79447	WASHER-TAB @2 (1 required per assembly)
		14-79447 - Tab Washer - Priced Individually [ More info ] $13.69 10+ In Stock.
#78	158401	RETAINER (1 required per assembly)
		15840 1 - Retainer [ More info ] $135.34 1 In Stock.
#79	8354675	THRUST WASHER (1 required per assembly) — Replaces: 131711, 13171T1
		12-835467 5 - Thrust Washer [ More info ] $43.94 1 In Stock.
#80	423511	WASHER @2 (1 required per assembly)
		13-42351 1 - Washer - Priced Individually [ More info ] $3.05 10+ In Stock.
#81	31211Q03	WASHER @2 (1 required per assembly) — Replaces: 31211A2, 31211A3
		12-31211Q03 - Washer - Priced Individually [ More info ] $14.82 Available to Order: Shipping delay up to 10 days.
		18-3714 - Washer, 12-31211A2 [ More info ] $11.54 4 In Stock.
		12-31211K03 - Washer - Priced Individually [ More info ] $14.82 1 In Stock.
#82	52707Q1	PROP NUT KIT@2 (1 required per assembly) — Replaces: 52707A1
		11-52707Q 1 - Prop Nut Kit - Priced Individually [ More info ] $16.81 3 In Stock.
		18-3701 - Nut Kit, 11-52707A1 [ More info ] $24.71 10+ In Stock.
		18-3700 - Prop Nut Only, 11-52707 [ More info ] $15.31 In Stock
		11-52707T 1 - Prop Nut Kit - Priced Individually [ More info ] $16.81 2 In Stock.
		11-00122 - Prop Nut Kit [ More info ] $13.99 $11.16 Available to Order: Shipping delay up to 10 days.
#83	816629Q	TAB WASHER (1 required per assembly) — Replaces: 816629
		14-816629Q - Tab Washer - Priced Individually [ More info ] $6.04 10 In Stock.
		18-3200-9 - Washer, 14-816629, 10PK [ More info ] $78.72 4 In Stock.
		14-816629K - Tab Washer - Priced Individually [ More info ] $6.08 10+ In Stock.
#84	41350	SCREW (Short) (1 required per assembly)
		10-41350 - Screw [ More info ] $27.49 Available to Order: Shipping delay up to 10 days.
#84	66024	SCREW @2 (Long/X-Long) (1 required per assembly)
		10-66024 - Screw - Priced Individually [ More info ] $9.69 6 In Stock.
#85	822836	WASHER (2 required per assembly)
		12-822836 - Washer, (.445 X .805 X .108) [ More info ] Unavailable
#86	859116	NUT @5 (2 required per assembly) — Replaces: 134391
		11-859116 - Nut, (.437-20), Sold Individually [ More info ] $5.09 10+ In Stock.
#87	30206	SCREW @2 (Short/Long) (1 required per assembly)
		10-30206 - Screw - Priced Individually [ More info ] $4.19 $0.85 10+ In Stock.
		18-2361-9 - Screw, 10-30206, 2PK [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#87	15929	SCREW (X-Long) (1 required per assembly)
		10-15929 - SCREW,NLA [ More info ] Unavailable
#88	76214T3	PLATE-ANODIC (Short) (1 required per assembly) — Replaces: 762143
		76214T 3 - Anodic Plate [ More info ] $47.82 1 In Stock.
		18-6244 - Anode, Magnesium, Plate Only - No Fin, 76214 [ More info ] $25.59 $24.49 6 In Stock.
		18-6016A - Anode, Aluminum, Plate Only - No Fin [ More info ] $29.75 In Stock
		18-6016 - Anodic Plate, Zinc, Plate Only - No Fin 76214 [ More info ] $26.41 3 In Stock.
#88	76214Q5	ANODE(ALUM) @2 (Long) (1 required per assembly) — Replaces: 76214A5
		97-76214Q 5 - Anode, Outboard & MCM Aluminum - Priced Individually [ More info ] Unavailable
		97-8M0059339 - Anode, Aluminum, BULK-10PC 76214A 6 QS [ More info ] $194.99 $192.22 Available to Order: Shipping delay up to 10 days.
#88	76214T1	ANODE(ALUM) (X-Long) (1 required per assembly) — Replaces: 762141
		97-76214T 1 - Anode [ More info ] $44.12 2 In Stock.
